Are you tired of your CCTV sending constant "motion" alerts every time the wind blows a leaf or a shadow shifts across your driveway? Traditional motion detection is a headache.
The HiLook 4K All-in-One 180° ACDC Network Camera solves this with AI-powered human and vehicle filtering. In this guide, we’ll walk you through the step-by-step process to set up professional-grade security that only alerts you when it actually matters.
The Gear You’ll Need
Before we start, ensure you have the following hardware:
-

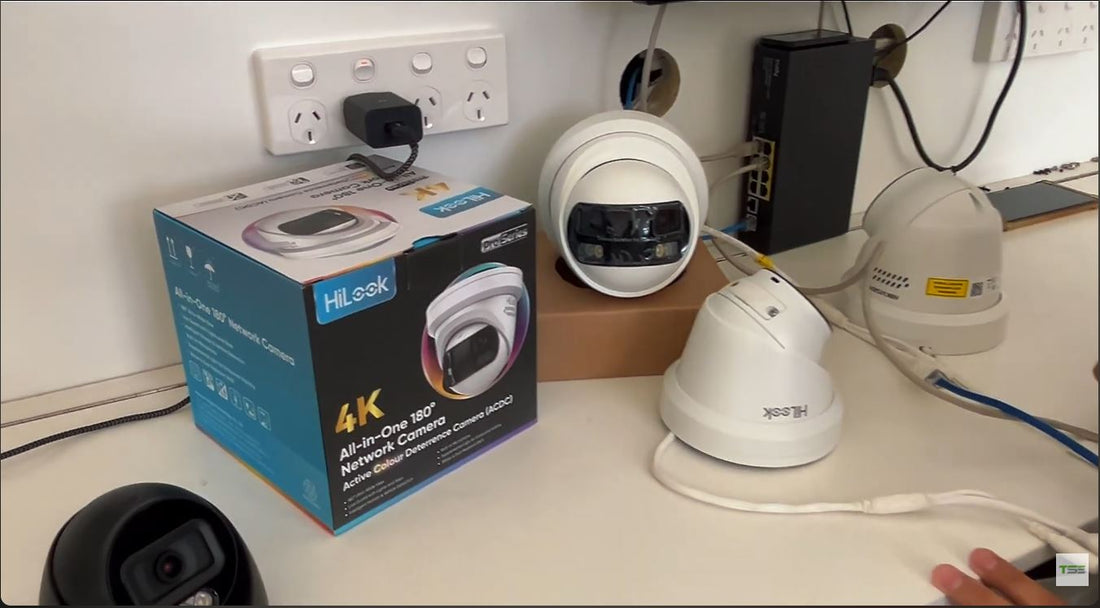

HiLook 4K All-in-One 180° ACDC Camera: The star of the show.
-
PoE (Power over Ethernet) Switch: To power the camera and transmit data through a single cable.
-
Cat6 Ethernet Cable: For a stable, high-speed connection.
Step 1: Mounting and Hardware Connection
First, mount your camera to a stable surface. Because this camera features a 180° ultra-wide-angle lens, positioning is key—you can cover a massive area with a single unit. Connect the camera to your PoE switch using the Cat6 cable; once the lights on the switch blink, your camera is powered and online.
Step 2: Accessing the Configuration Menu
To begin the smart setup, access your NVR (Network Video Recorder) interface:
-
Unlock your screen and enter your password or pattern.
-
Navigate to Configuration > Event > Smart Event.
-
Select the specific channel where your 180° camera is connected.
Step 3: Setting Up a Virtual Tripwire (Line Crossing)
Line crossing is perfect for boundaries like fences or gates.
-
Draw the Line: Draw a line (A to B) across your entry point.
-
Set Direction: Choose if you want to be alerted when someone enters (A to B), exits (B to A), or both.
-
Sensitivity: Adjust the sensitivity slider based on your environment—higher for more precision, lower for busy areas.
Step 4: Creating Intrusion Zones
Intrusion zones are better for specific areas like a porch, a parked car, or a warehouse floor.
-
Draw a Shape: Instead of a line, draw a box around the specific area you want to protect.
-
Target Filtering: This is the most important part. Select Human or Vehicle detection. This ensures that rain or pets won't trigger the alarm.
Step 5: Active Colour Deterrence (ACDC) & Audible Alarms
The "ACDC" feature allows the camera to actively fight back against intruders.
-
Strobe Light: Go to Linkage Action and enable the light. When triggered, the camera will flash red and blue strobe lights to scare off intruders.
-
Audible Siren: If you want an audible warning, tick the Sounds box in the Linkage Action menu.
Step 6: Mobile Notifications (HiLookVision App)
To get alerts on your phone wherever you are:
-
In the Linkage Action menu, ensure Notify Surveillance Center is checked.
-
Open the HiLookVision (or Hik-Connect) app on your smartphone.
-
Ensure notifications are enabled for your device. Now, you’ll receive a push notification the moment the AI detects a real threat.
Conclusion
By moving away from basic motion detection and utilizing the Line Crossing and Intrusion features of your HiLook 4K camera, you turn a passive recording device into an active security guard.
Ready to upgrade your security? Don't forget to check the affiliate links below for the best prices on the gear used in this tutorial.
Source: HiLook 4K AI Camera: Setup Smart Tripwire + Intrusion Alarm
