SKU:E16C

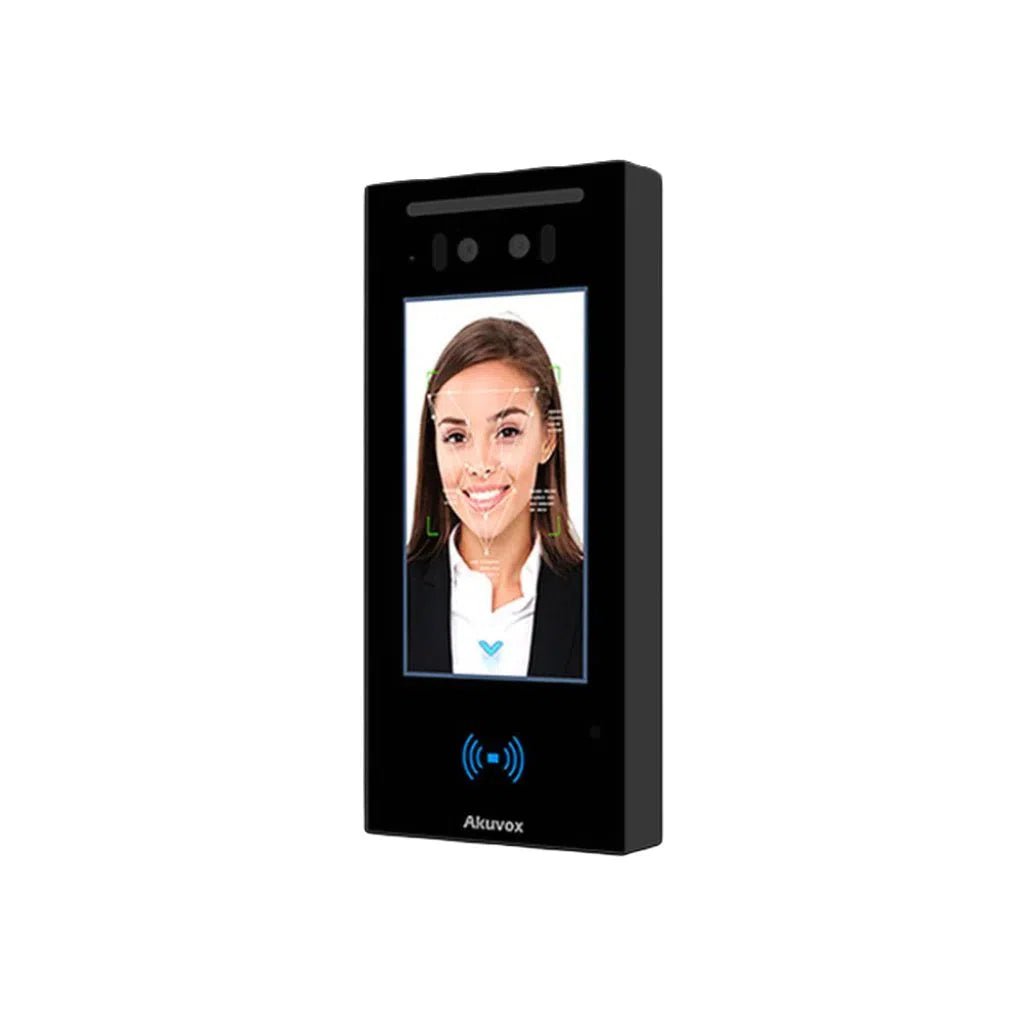

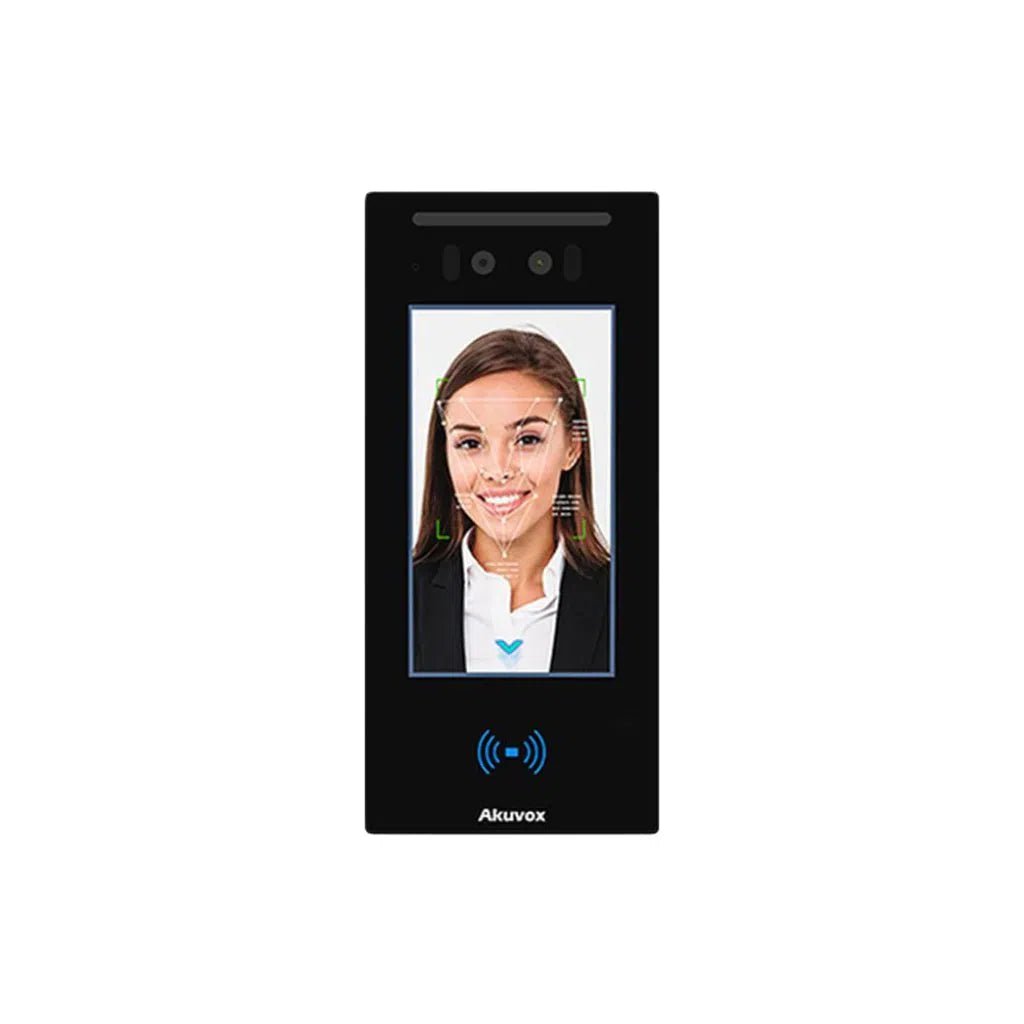

Akuvox E16C Face Recognition Door Phone
Login to buyIdeal for apartments and offices, it provides a modern, stylish, and highly secure way to control access.
Features:
- Digital Touchscreen Access Control Unit
- Anti-spoofing algorithm against photo and video attack
- Mask Detection
- Body Temperature Detection (when used with MD02 - sold separately)
- OSDP & Wiegand Support
- 5 inch LCD digital color display
Additional highlights:
- Weatherproof (IP65) for outdoor use.
- Large user capacity (20,000 faces & cards).
- PoE (Power over Ethernet) for easy installation.
-
Vendor:
Akuvox
- Description
Product Overview
The Akuvox E16C IP Door Phone is an advanced access control and intercom terminal built to unify contactless authentication, high-definition video communication, and enterprise-grade entrance security. Designed with cutting-edge visible light facial recognition, it enables rapid touchless entry, supporting essential health and hygiene standards across modern commercial environments and residential complexes. Equipped with dual camera optics and intelligent anti-spoofing algorithms, the E16C protects access points against photo and video spoofing attempts while maintaining smooth throughput.
Featuring a bright 5-inch HD IPS color touchscreen, the unit serves as an intuitive digital door station for visitors and staff. It boasts a high-volume database capable of storing up to 20,000 face templates and 20,000 access cards with identification speeds under 0.2 seconds per user. Built with an IP65-rated weather-resistant housing, standard Power over Ethernet (PoE 802.3af), and flexible integration ports (OSDP, Wiegand, RS485), the E16C operates effortlessly as a standalone terminal or integrated system supplied by Total Security Equipment.
Key Capabilities
Rapid Biometric Recognition
Authenticates enrolled users in under 0.2 seconds with over 99.7% accuracy, eliminating entryway bottlenecks during peak hours.
Anti-Spoofing Security
Employs dual 2MP WDR cameras paired with liveness detection algorithms to block fraudulent entries using photos or videos.
Versatile Multi-Method Access
Combines facial recognition, RFID cards, NFC, Bluetooth Low Energy (BLE), PIN codes, and dynamic QR codes into one reader.
Health & Compliance Screening
Includes built-in mask detection features and optional body temperature monitoring modules to reinforce site health policies.
High-Capacity Database
Stores up to 20,000 face templates, 20,000 access credentials, and 50,000 local event logs for heavy commercial use.
IP & Mobile Intercom Support
Establishes real-time audio and video communications with indoor monitors, mobile apps, or standard IP phone extensions.
Best For
Streamlines employee access control with touchless facial recognition and credential logging.
Manages large user volumes up to 20,000 templates with multi-protocol panel integration.
Provides secure visitor intercom calling and flexible QR/BLE credentials for residents.
Ensures hygienic, contactless door activation alongside automated mask detection compliance.
Why Choose the E16C
Many conventional access readers rely solely on physical cards that can be lost, shared, or stolen. The Akuvox E16C elevates site security through dual-camera touchless facial recognition, identifying authorized individuals in less than 0.2 seconds while preventing proxy attendance and photo attacks. Available through Total Security Equipment, it combines IP65 outdoor durability, flexible PoE installation, and full Akuvox SmartPlus mobile integration to deliver a modern, secure, and hygienic access control interface.
Buyer Decision Tips
Key Features & Technical Specifications
| Display Screen | 5-Inch IPS LCD Touchscreen (1280 × 720 resolution) |
| Camera Specs | 2MP pixels with Wide Dynamic Range (WDR) and Anti-Spoofing |
| Identification Modes | Face, PIN, 13.56MHz RFID Card, NFC, BLE & QR Code |
| Recognition Speed & Accuracy | < 200 ms recognition duration; > 99.7% accuracy rate |
| System Capacity | 20,000 Faces | 20,000 Cards | 50,000 Event Logs |
| Physical Construction | Plastic housing with IP65 ingress protection rating |
| Communication Ports | RJ45 10/100Mbps Ethernet, Wiegand, RS485, Relay In/Out (1/1) |
| Power Methods | 802.3af Power-over-Ethernet (PoE) or 12V DC terminal |
| Health Functions | Mask detection; Optional temperature module support (MD01/MD02) |
| Operating Parameters | Temp: -20°C to +55°C | Humidity: 10% to 90% (non-condensing) |
| Installation Type | Surface Wall-Mounted with tamper switch support |
Ideal Use Cases
High-Traffic Corporate Buildings
Enables swift, touchless access for large workforces while logging full entry records.
Secure Industrial Facilities
Prevents unauthorized card swapping using real-time liveness facial detection algorithms.
Apartments & Condominiums
Allows residents to generate temporary guest QR codes and answer door calls remotely via smartphone.
Hospitals & Cleanroom Entrances
Maintains high hygiene standards using touchless identification and automated mask checks.
Choosing the Right Model
Choose this model if…
- You require fast facial recognition for high user capacities (up to 20,000 faces).
- Multiple access options like BLE, QR codes, cards, and PINs are needed on one device.
Choose a different model if…
- A simple single-button intercom is sufficient. If biometric recognition and a touchscreen are unnecessary, a compact single-button door phone (like the E12S) is more economical.
- Thermal temperature measurement is needed out-of-the-box. Select the specific E16C(MD01) or E16C(MD02) bundled versions if wrist or forehead temperature sensors are required immediately.
FAQs
1. How fast is the facial recognition on the Akuvox E16C?
The E16C scans and verifies registered faces in under 0.2 seconds per user with an accuracy rate exceeding 99.7%.
2. Can photos or videos trick the facial recognition system?
No, the device utilizes dual cameras and sophisticated anti-spoofing algorithms to detect live subjects and block spoofing attempts.
3. What entry options does the E16C offer besides face scanning?
Users can unlock doors using 13.56MHz RFID cards, NFC, Bluetooth Low Energy (BLE), digital PIN codes, and temporary QR codes.
4. Is the Akuvox E16C suitable for outdoor use?
Yes, the unit features an IP65 ingress rating against dust and water and operates in temperatures ranging from -20°C to +55°C.
5. How does body temperature detection work?
Temperature measurement is supported when combined with the external MD01 (wrist) or MD02 (forehead) thermal modules sold separately.
6. Where can I purchase the Akuvox E16C with genuine support?
Authentic Akuvox hardware, system integration advice, and full warranty support are provided directly through Total Security Equipment.
