SKU:E18C

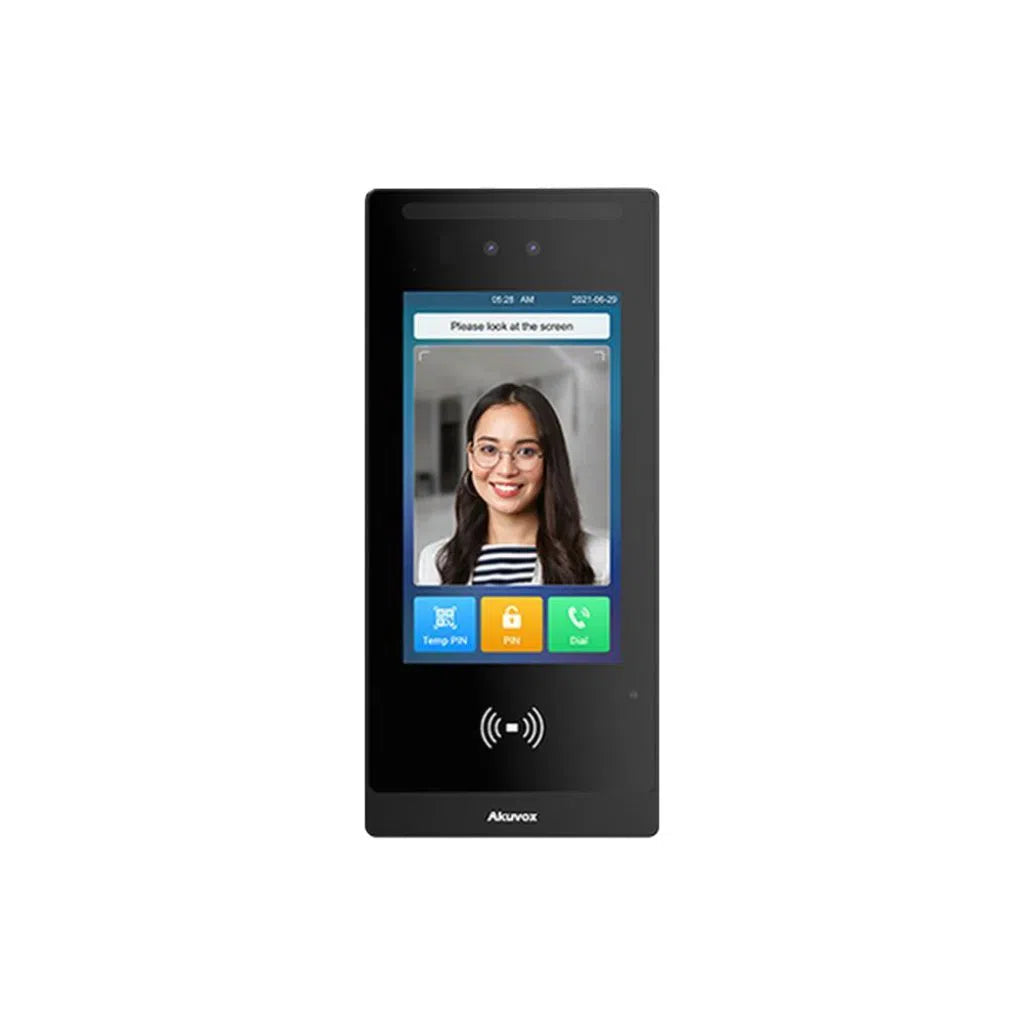

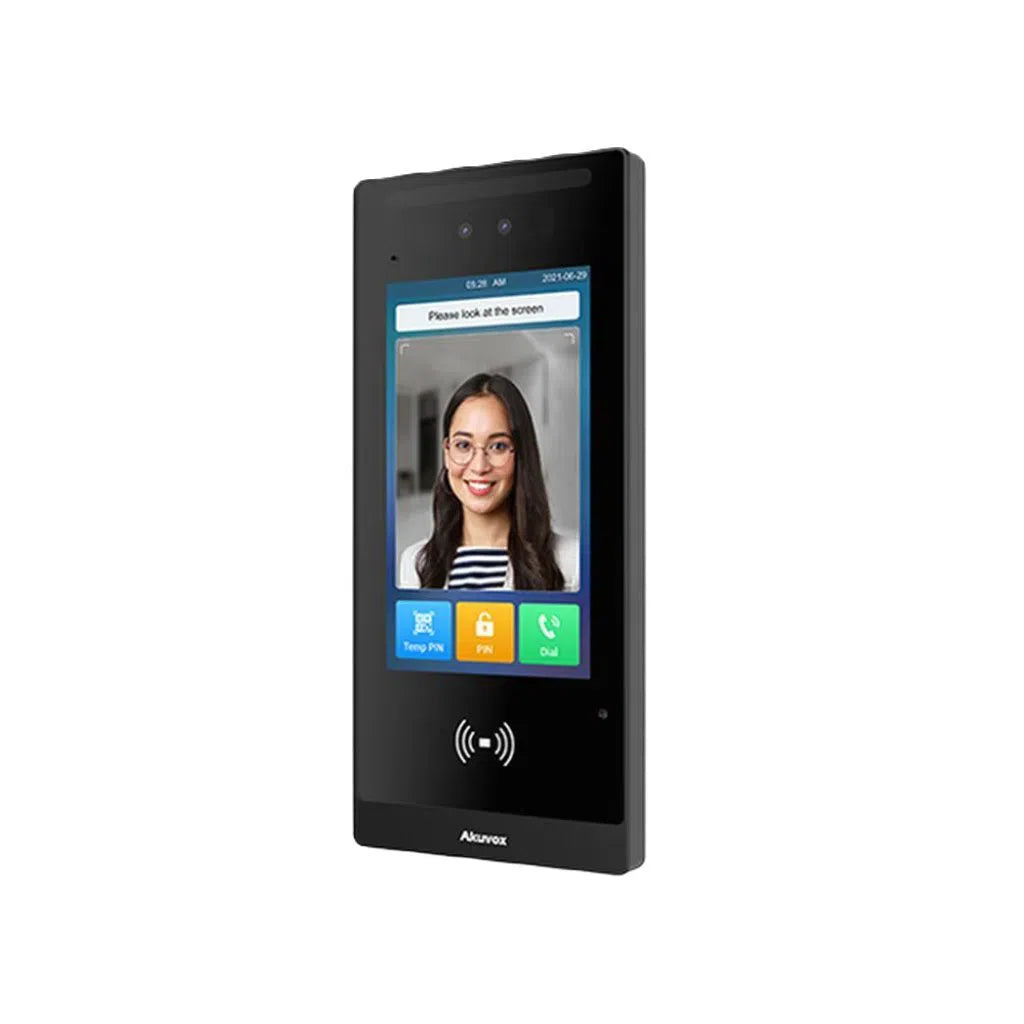

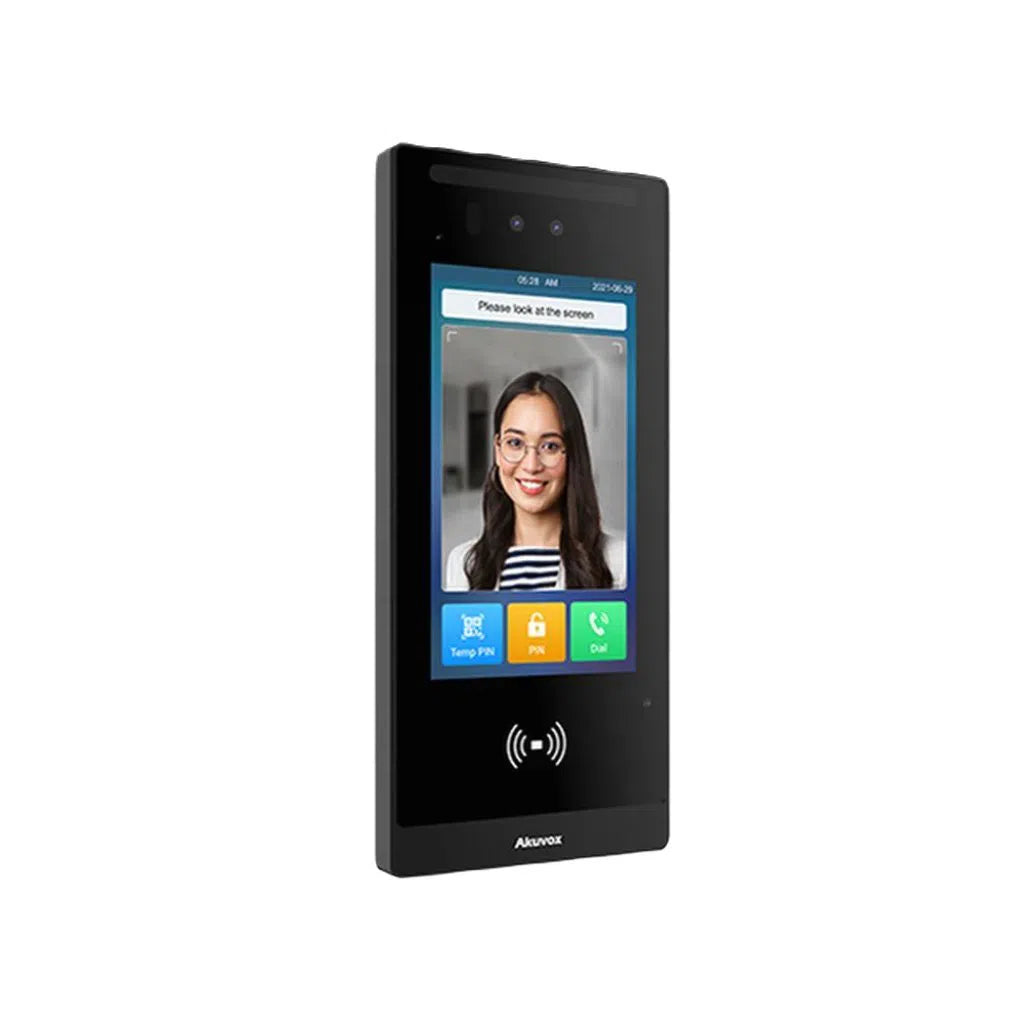

Akuvox E18C 7'' LCD Doorstation with Face Recognition
Login to buyThis commercial-grade intercom and access control system elevates security with cutting-edge facial recognition (dual cameras, anti-spoofing) and supports multiple verification methods (PIN, cards, NFC, BLE, QR codes).
Unparalleled Security:
- Cutting-edge facial recognition technology with dual cameras delivers rapid (under 0.2 seconds) and accurate (over 99.5% success rate) user identification.
- An advanced anti-spoofing algorithm prevents unauthorized access attempts via photos or videos.
Features:
- Visible light facial recognition
- 20,000 face capacity & 20,000 card capacity
- Allows both audio and video communication to an IP phone, mobile client, or softphone
- Multiple verification methods including: face, PIN, cards NFC, BLE and QR codes
- Stand-alone operation
- Configuration via web browser
-
Vendor:
Akuvox
- Description
Product Overview
The Akuvox E18C is a high-performance 7-inch SIP face recognition door phone engineered for complete perimeter access control and rich video communications. Built around a large, vibrant 7-inch IPS touchscreen, the E18C gives visitors and staff an intuitive interface for quick navigation and seamless door operation. Combining cutting-edge visible light facial recognition with dual cameras and advanced liveness anti-spoofing algorithms, it protects commercial and residential access points against unauthorized photo and video spoofing attempts.
Designed for large-scale enterprise deployments, the E18C accommodates a substantial database storing up to 20,000 face templates and 20,000 proximity cards with rapid recognition speeds of under 0.2 seconds per user. In addition to facial authentication, it supports dual-frequency RFID (13.56MHz and 125kHz), PIN codes, NFC, BLE, and dynamic QR codes. Built into an IP65-rated weatherproof housing with Power over Ethernet (802.3af PoE) support, the E18C delivers standalone reliability or deep integration through Total Security Equipment.
Key Capabilities
Sub-0.2s Biometric Authentication
Authenticates users in under 200 ms with over 99.5% accuracy, maintaining rapid site throughput during peak traffic periods.
Anti-Spoofing Camera Suite
Uses dual 2MP WDR optical sensors paired with liveness detection algorithms to eliminate fraudulent photo or video attempts.
Dual-Frequency & Multi-Credential Access
Reads 13.56MHz IC and 125kHz legacy ID cards alongside PIN, NFC, Bluetooth Low Energy (BLE), and QR code credentials.
7-Inch IPS Touchscreen Interface
Provides a wide 1024×600 visual display with clear onscreen keypad input, tenant searching, and custom visitor messaging.
Health & Temperature Options
Features built-in mask detection and supports optional forehead thermal modules (MD02) for non-contact temperature screening.
Expanded I/O & SIP Intercom
Equipped with 3 Relay Ins, 2 Relay Outs, Wiegand I/O, RS485, and SIP support for comprehensive door control and IP phone linkage.
Best For
Handles user bases up to 20,000 faces with high-speed biometric entry points.
Allows visitors to search tenant directories easily on the clear 7-inch display.
Combines dual-camera liveness checks with dual-frequency RFID card migration.
Enforces touchless entry, mask verification, and optional temperature screening.
Why Choose the E18C
When transitioning facilities to modern touchless access control, smaller terminals can limit visibility and card compatibility. The Akuvox E18C addresses this by integrating a spacious 7-inch HD touchscreen with dual-frequency card support (13.56MHz and 125kHz), allowing seamless migration from legacy proximity cards to biometric or mobile entry. Available from Total Security Equipment, it blends IP65 outdoor durability, flexible I/O relay contacts, and open SIP communication to deliver an all-in-one entrance solution.
Buyer Decision Tips
Key Features & Technical Specifications
| Display Screen | 7-Inch IPS LCD Touchscreen (1024 × 600 resolution) |
| Camera Sensor | 2MP pixels with Wide Dynamic Range (WDR) and Anti-Spoofing |
| Credential Options | Face, PIN, 13.56MHz & 125kHz RFID Cards, NFC, BLE & QR Code |
| Speed & Accuracy | < 200 ms recognition duration; > 99.5% accuracy rate |
| System Capacity | 20,000 Faces | 20,000 Cards | 50,000 Event Logs |
| I/O & Interfacing | Wiegand In/Out (1/1), RS485 (1), Relay In/Out (3/2), TF Card Slot |
| Network & Power | RJ45 10/100Mbps Ethernet | 802.3af PoE or 12V DC input |
| Environmental Rating | IP65 ingress rating; Operating Temp: -20°C to +55°C |
| Health Compliance | Mask detection; Forehead temperature scanning supported on E18C(MD02) |
| Installation & Safety | Surface Wall-Mounted with rear tamper switch protection |
Ideal Use Cases
Commercial Office Lobbies
Facilitates high-speed employee entry while allowing visitors to place SIP video calls to reception.
Multi-Unit Residential Developments
Offers a spacious touchscreen for directory calling alongside temporary QR codes for guests.
Industrial Facilities & Campus Entrances
Manages complex door/gate relays and legacy proximity cards on an IP65 weather-resistant frame.
Medical Facilities
Maintains contactless entry and compliance with integrated mask checks and optional thermal sensors.
Choosing the Right Model
Choose this model (E18C) if…
- You want a larger 7-inch display for improved directory visibility and touchscreen navigation.
- You require dual-frequency card support (125kHz + 13.56MHz) to support existing keycards.
Choose a different model if…
- A more compact display is preferred. The Akuvox E16C offers a 5-inch display for tighter wall locations.
- A basic single-button door phone is needed. The E12W or E12S provides a compact footprint for sites that don't need touchscreen biometric terminals.
FAQs
1. What is the primary difference between the E18C and the E16C?
The E18C features a larger 7-inch touchscreen (vs. 5-inch on E16C), expanded relay I/O contacts (3 In / 2 Out), and dual-frequency RFID card support (125kHz and 13.56MHz).
2. How fast and accurate is the face recognition technology?
The E18C identifies registered users in under 0.2 seconds per scan with an accuracy rate exceeding 99.5%.
3. Does the E18C support legacy 125kHz RFID access cards?
Yes, the multi-frequency RF reader supports 125kHz cards, 13.56MHz smart cards, NFC, and BLE credentials on the same unit.
4. Can the E18C be installed outdoors?
Yes, it features an IP65 ingress rating for protection against water and dust and operates in environments between -20°C and +55°C.
5. How does temperature detection function on the E18C?
Forehead temperature screening requires the optional MD02 thermal module (sold separately), which measures body temperature at distances between 0.3m and 1m.
6. Where can I purchase the Akuvox E18C with official warranty?
Genuine Akuvox hardware, technical support, and full product warranty are supplied directly through Total Security Equipment.
