SKU:12U-SINGLE-450
12U Cabinet Single Section
Login to buy12U Single Section optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. These racks are multi-functional rack enclosures designed to meet current IT market trends and applications ranging from high density computing and networking to broadcast and audio-video.
Features
- 19” mounting angles
- Front Glass Door with Lock (Tempered Glass)
- Doors can be mounted to be opening from either side
- Lock on the front door with duplicate keys
- Removable side panels
- Extra cage nuts provided
- Earthing screws
- Cooling fan Optional with effective ventilation
- Dimension: 600mm x 450mm x 635mm
-
Vendor:
TotalSE
- Tags: 12u, Single section
- Description
Product Overview
This 12U wall-mount cabinet gives you a lockable home for larger networking or security equipment installs — PoE switches, NVRs, patch panels, and a UPS, all in one enclosure. It comes with cage nuts and earthing screws included, plus a lockable, reversible tempered glass door and removable side panels for easier access when running cables.
Built in a cold rolled steel body sized at 600mm wide × 450mm deep × 635mm high (12U), with 19-inch mounting angles and an optional cooling fan available, it's the largest single-section option in our standard-depth cabinet range. This is a generic/unbranded cabinet rather than a major racking brand — see the Buyer Decision Tips below for what to confirm before ordering. Supplied through Total Security Equipment.
Key Capabilities
12U of Rack Space
Fits standard 19-inch rack-mount equipment up to 12U tall — switches, NVRs, patch panels, and a UPS.
Cage Nuts + Earthing Screws Included
Comes ready to mount your gear, with cage nuts and earthing screws in the box.

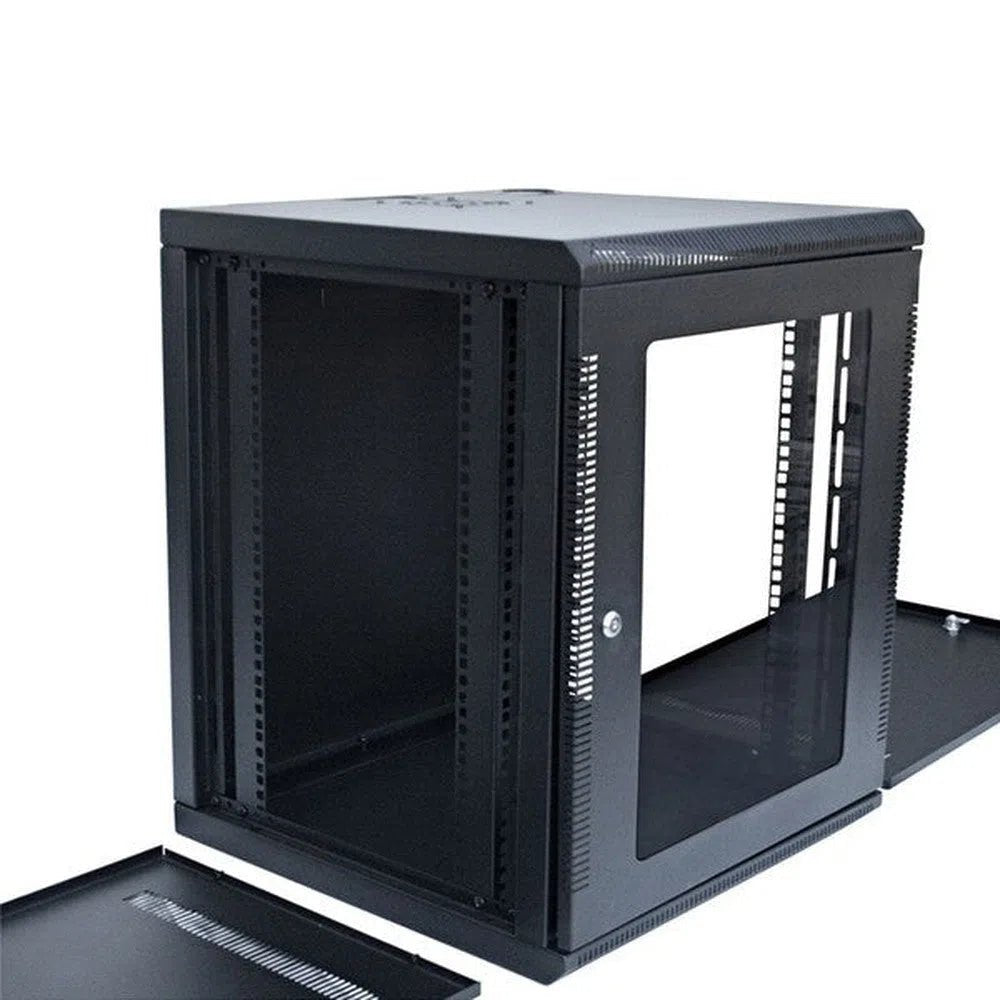

Removable Side Panels
Removable side panels make it easier to run cables and work inside a fuller cabinet.
Optional Cooling Fan
An optional cooling fan is available if your equipment load needs extra airflow.
Best For
Larger Comms Cabinet Installs
Houses a switch, patch panel, NVR, and UPS in one lockable enclosure.
Growing Equipment Setups
More usable rack space than the 4U, 6U, or 9U for installs likely to expand.
Budget-Conscious Jobs
A cost-effective enclosure option where a major racking brand isn't required.
Why Choose This Cabinet
Larger installs need more than a small desktop switch box — they need real rack space, easy cable access, and the mounting hardware to get started straight away. This 12U cabinet gives you a lockable steel enclosure with cage nuts and earthing screws included, removable side panels, and an optional cooling fan, at a budget-friendly price point. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | 12U-SINGLE-450 |
| Brand | Generic/unbranded — not tied to a single named racking manufacturer |
| Type | Wall-mount rack cabinet, single section, with tempered glass door |
| Rack Capacity | 12U of usable 19-inch rack space |
| Dimensions | 600mm (W) × 450mm (D) × 635mm (H, 12U) |
| Material | Cold rolled steel body, black finish |
| Door | Lockable tempered glass, reversible to open from either side |
| Side Panels | Removable, for easier cable access |
| Mounting | Wall-mount, with 19-inch mounting angles |
| Cooling | Optional cooling fan available |
| Included Accessories | Cage nuts, earthing screws |
| Weight | Not published by the manufacturer — confirm with our team before planning a wall installation |
| Maximum Load Capacity | Not officially published for this exact model — similar cabinets in this family are typically rated ≈40-60kg; confirm with our team, especially if mounting a full equipment load |
| Warranty | Not published — confirm current warranty term with our team |
Ideal Use Cases
Switch + NVR + UPS Housing
Lockable enclosure with enough room for a switch, NVR, and small UPS together.
Multi-Device Comms Racks
Room for a patch panel plus multiple network devices in one cabinet.
Comms Cupboard Upgrades
The largest option in our standard-depth range for growing comms cupboard installs.
Budget Rack Upgrades
An affordable enclosure option for larger jobs that don't need a full server rack.
FAQs
1. What equipment fits inside a 12U cabinet?
Standard 19-inch rack-mount equipment up to 12U tall — a switch, NVR, patch panel, and small UPS together.
2. What's the maximum weight this cabinet can hold?
A specific load rating isn't officially published for this exact model, and figures for similar cabinets vary. Please ask our team to confirm before mounting a full equipment load.
3. Does it come with mounting hardware?
Yes — cage nuts and earthing screws are included, and it has 19-inch mounting angles ready for your equipment.
4. Is this a specific racking brand?
No — this is a generic/unbranded cabinet rather than a named racking manufacturer's product. It's a cost-effective option where brand isn't the priority. Ask our team if you'd prefer a branded alternative.
5. Where can I buy this cabinet in Australia?
It's available directly from Total Security Equipment — confirm current stock and delivery timing with our team.
