SKU:R20K-2

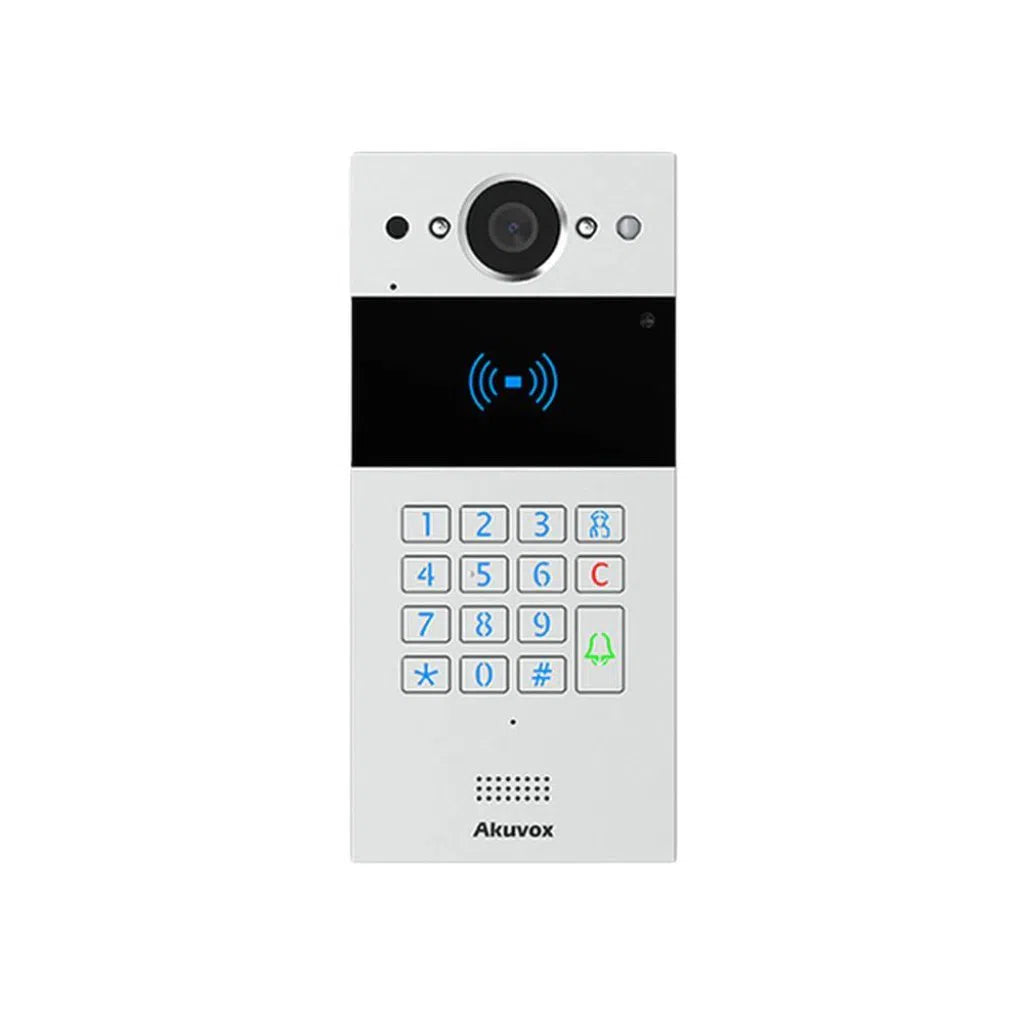

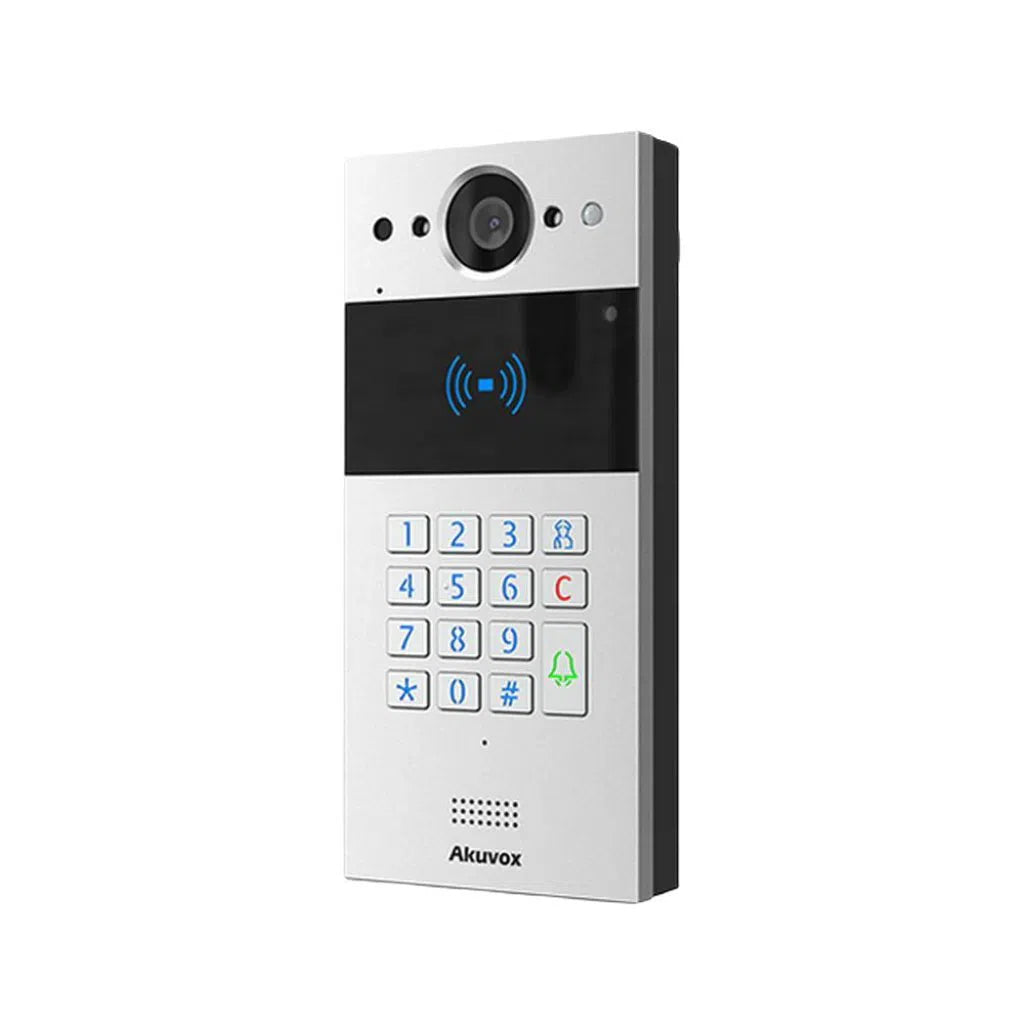

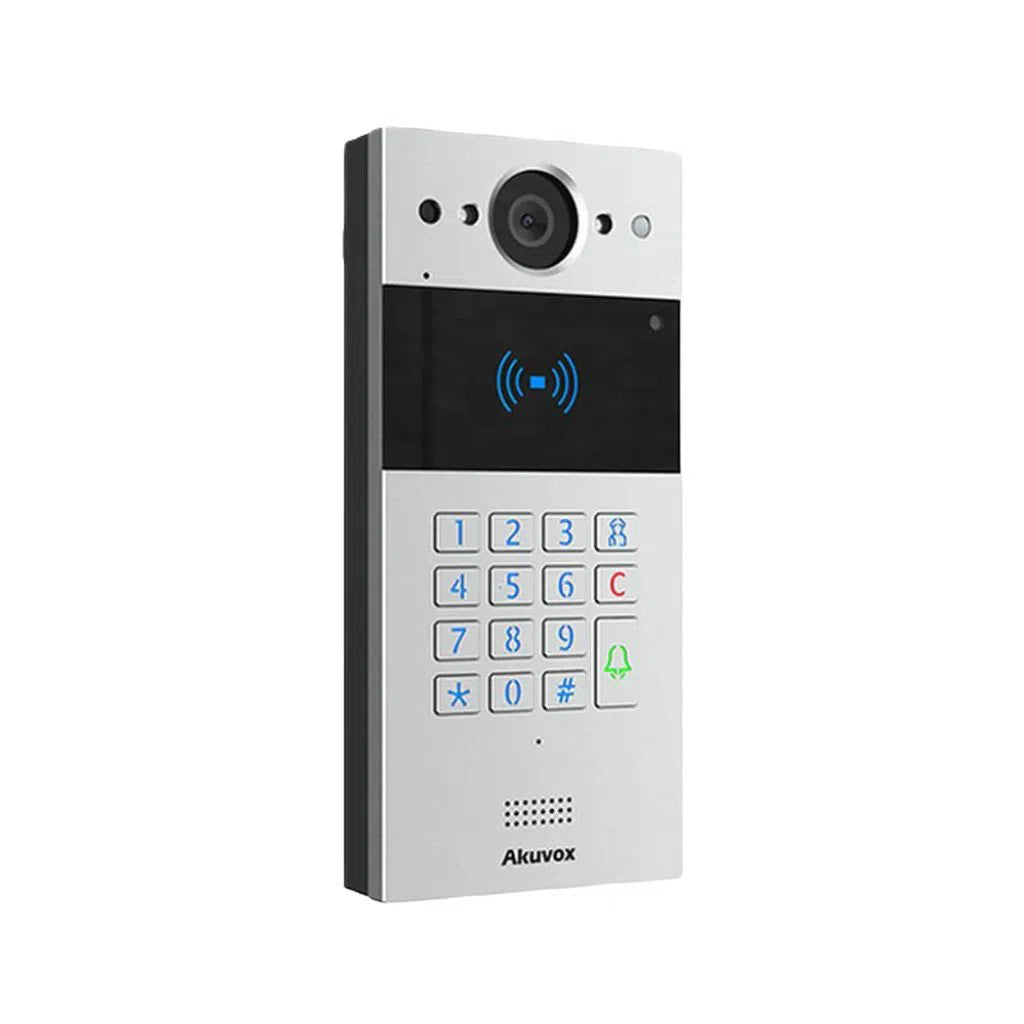

Akuvox R20K-2 2-Wire Door Station

They leverage your existing infrastructure, allowing you to enjoy the advanced features of IP network intercom systems without the hassle and expense of rewiring your entire house.

Key Features:

  • Effortless Upgrade: Integrates seamlessly with existing 2-wire cabling, eliminating rewiring costs.

Enhanced Security:

  • Durable, vandal-resistant construction.
  • Wide-angle camera for clear visitor identification.
  • Night vision LEDs for visibility in low light.
  • IP65 weatherproof rating for outdoor use.

Advanced Functionality:

  • High-resolution 2MP camera for sharp visuals.
  • Real-time video preview and visitor snapshots for peace of mind.
  • RFID card reader and keypad entry for convenient access control.
  • Door lock control relays for direct access management.

Seamless Integration:

  • Two-way audio with echo cancellation for clear communication.
  • SIP and ONVIF compliant for easy integration with existing systems.
  • Vendor:

    Akuvox

View Product Details

Physical & Power

  • Front panel: Aluminum alloy
  • Camera: 2M pixels, automatic lighting
  • Keypad:Yes
  • Light sensor: Support
  • Infrared sensor: Support
  • Wiegand port: Support
  • RS485 port: Support
  • RF card reader: 13.56MHz (with NFC) & 125kHz
  • Relays out: 1
  • Inputs: 1
  • Microphone: -40dB
  • Speaker: 4Ω / 3W
  • Power Interface:1
  • Power supply:48VDC two-wire power supply
  • Water-proof & Dust-proof: IP65
  • Installation: Flush-mounted or Wall-mounted
  • Flush-mounted DIM: 226x108x52mm
  • Wall-mounted DIM: 185x85x29mm
  • Working Humidity: 10~90%
  • Working Temperature: -30°C ~ +60°C
  • Storage Temperature: -40°C ~ +70°C

Audio

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • Broadband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator

Video

  • Sensor: 1/2.7”, CMOS
  • Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
  • Video codec: H.264
  • Video resolution: up to 1920x1080p
  • Max. image transfer rate: 1080p – 25fps
  • Viewing angle: 110°(H) / 58°(V)
  • High intensity IR LEDs for picture lighting during dark hours with internal light sensor
  • Compatible to 3rd-Party-Video components, e.g. NVRs

Door Entry Feature

  • Relays controlled individually by DTMF tones
  • Camera permanently operational
  • Auto-night mode with LED illumination
  • White balance: auto
  • Minimum illumination: 0.1LUX

Networking & Protocol

  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Entry log export
  • Access table export / import
  • Firmware upgrade
  • System logs (include door access logs)

Application Scenario

  • Office door phone with on-site or hosted IP-PBX
  • Remote site entry over Internet
  • Apartment/flat intercom with door access control
