SKU:X916S

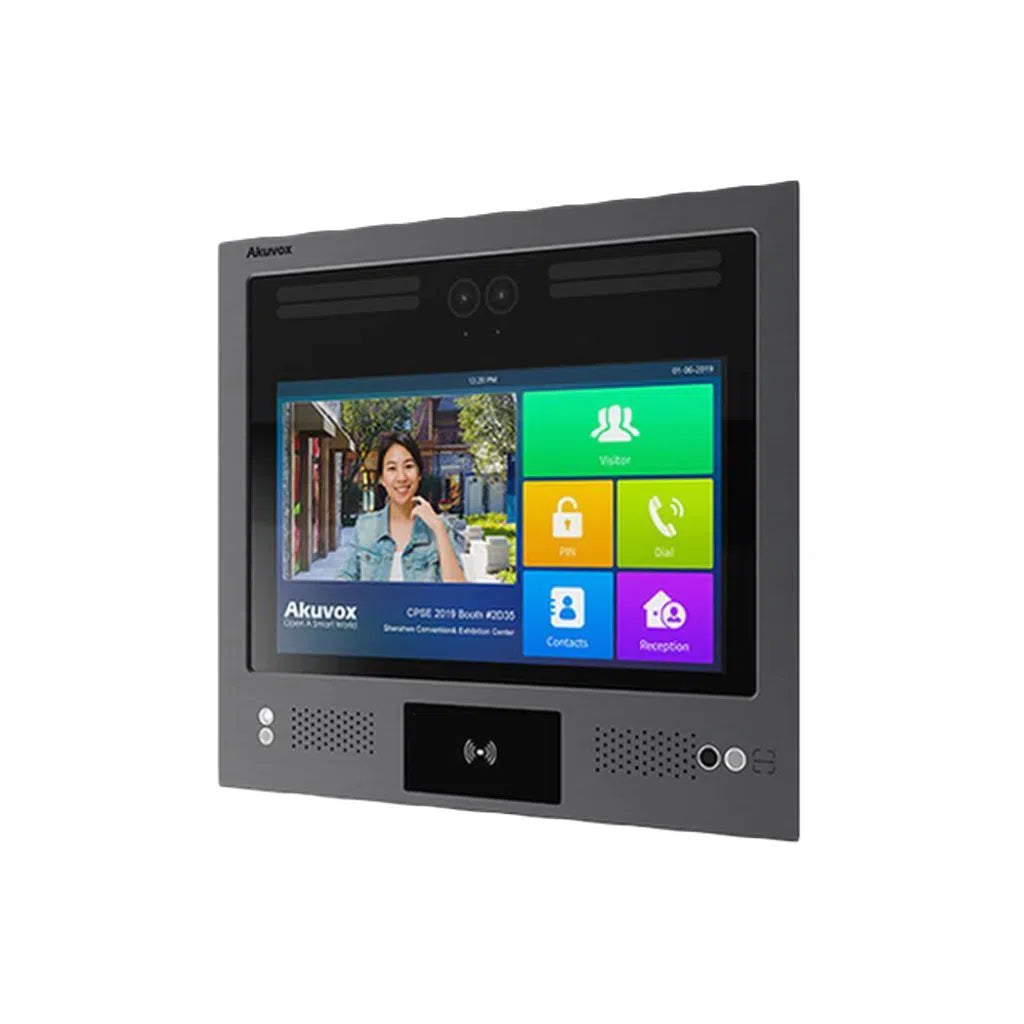

Akuvox X916S 8'' Multi Apartment Door Station
Login to buyPacked with innovative features, it allows for complete customization to manage occupant and visitor entry in various settings, from condominiums to industrial facilities.
Key Features:
- Enhanced Visual Performance:
- Main camera with built-in HDR mode for clear identification in challenging lighting conditions.
- Intuitive User Experience:
- Large, 13-inch, full-color touch display with ultra-wide viewing angles for clear information presentation.
- User-friendly interface with customizable options for resident/visitor navigation.
- Seamless Communication and Integration:
- SIP support for reliable two-way audio and one-way video communication.
- ONVIF compliance for easy integration with existing network surveillance systems.
- Flexible Customization:
- Ability to tailor information and user navigation options to your specific needs (details omitted for brevity).
-
Vendor:
Akuvox
- Tags: New arrival, Offers
- Description
Product Overview
The Akuvox S567 (Wi-Fi & Bluetooth Edition) is a premium 10.1-inch indoor SIP answering monitor engineered for high-end residential and commercial security control. Running on the Android 12 operating system with an upgraded memory capacity of 4GB RAM and 16GB ROM, it delivers exceptionally smooth operation when running resource-intensive third-party smart home automation apps alongside real-time video intercom feeds on its vibrant 1280 x 800 IPS capacitive touchscreen.
Featuring integrated Wi-Fi and Bluetooth connectivity, the S567 eliminates the need for complex network cabling where wireless flexibility is preferred. Designed for optimal acoustic performance, it boasts quad speakers and dual microphones with advanced echo cancellation for crystal-clear two-way calls. Additional features include 8 alarm input zones, an offline smart voice assistant with up to 5-meter voice pickup, a privacy voice changer, and auto-brightness screen control. Powered via 802.3af PoE or 12V DC, it supports both wall-mount and desktop placement. Supplied directly through Total Security Equipment.
Key Capabilities
10.1" HD Touch Display & Auto-Brightness
Features a 1280 x 800 resolution IPS capacitive display with wide 80° viewing angles and an ambient light sensor for automatic brightness adjustment.
Android 12 OS with 4GB RAM / 16GB ROM
Upgraded hardware capacity ensures fluid multitasking and fast app performance for custom home automation and intercom applications.
Wi-Fi & Bluetooth Wireless Built-In
Integrated Wi-Fi and Bluetooth offer effortless wireless network connection and peripheral pairing without forcing hardwired Ethernet runs.
Quad Speakers & Dual Microphones
Combines four integrated speakers with dual noise-canceling mics to deliver room-filling, full-duplex HD voice clarity during call handling.
Smart Voice Assistant & Voice Masking
Hands-free voice recognition operates up to 5 meters away with 95% accuracy, supplemented by a voice changer to protect occupant identity.
8 Alarm Inputs & Flexible Power
Includes 8 alarm inputs, 1 relay output, RS485, and bell input, powered flexibly via standard 802.3af PoE or an auxiliary 12V DC power source.
Best For
Runs multiple smart home control apps seamlessly using the expanded 4GB RAM and 16GB storage capacity.
Ideal for retrofit projects or desktop positioning where Wi-Fi and Bluetooth connectivity simplify installation.
Fills open-plan interiors with clear sound thanks to powerful quad speakers and dual array microphones.
Connects up to 8 security contact sensors directly to the monitor for localized multi-zone monitoring.
Why Choose the S567 (Wi-Fi & Bluetooth)
The Akuvox S567 (Wi-Fi & Bluetooth Edition) stands out as a high-capacity 10.1-inch Android 12 intercom console. With 4GB of RAM and 16GB of storage, it handles resource-heavy automation apps without lag. Built-in wireless radios and quad-speaker sound make it a versatile, high-performance central touchpoint for video door calls, security zone monitoring, and home automation. Sourced directly through Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | Akuvox S567 (Wi-Fi & Bluetooth Version) |
| Operating System | Android 12 OS |
| Memory & Storage | 4GB RAM / 16GB ROM |
| Display Panel | 10.1" IPS LCD Capacitive Touchscreen (1280 x 800 Resolution) |
| Display Quality | 900:1 Contrast Ratio | 290 cd/m² Luminance | Auto-Brightness Sensor |
| Wireless & Network | Wi-Fi & Bluetooth Integrated | 1x RJ45 10/100 Mbps Ethernet Port |
| Audio System | Quad Speakers | Dual Microphones | Echo Cancellation |
| Smart & Security Features | Smart Voice Assistant (5m Range / 95% Accuracy) | Voice Changer | Tamper Support |
| I/O Interfaces | 8x Alarm Inputs | 1x Relay Out | 1x Bell In | 1x RS485 Port |
| Power Options | 802.3af PoE or 12V DC Auxiliary Connector |
| Dimensions & Mount | 278 x 164 x 22.8 mm | Wall-Mounted & Desktop Support |
Ideal Use Cases
Advanced App Integration
Takes full advantage of 4GB RAM and 16GB ROM to run heavy smart home applications and video management software.
Flexible Wireless Installation
Uses built-in Wi-Fi to connect to the local IP network in areas where running Ethernet cables is difficult.
Large Living Spaces & Offices
Fills high-ceiling foyers or open rooms with sound via quad speakers, supported by dual microphones for crisp call pick-up.
Multi-Zone Alarm Hub
Connects up to 8 hardwired alarm zones directly into the monitor to consolidate security triggers onto one display.
Choosing the Right Model
Choose this model (S567 Wi-Fi & Bluetooth) if…
- You want wireless Wi-Fi and Bluetooth connectivity built into the 10.1" monitor.
- You require higher hardware memory (4GB RAM / 16GB ROM) for smooth multi-app execution.
- You need high-output quad speakers and 8 hardwired alarm inputs.
Choose a different model if…
- You want an 8" panel with Wi-Fi. Consider the Akuvox S563W for a smaller wall footprint.
- You prefer a basic 7" monitor. Look into Linux-based indoor monitors like the Akuvox S562.
FAQs
1. What is the RAM and ROM capacity on this S567 model?
This Akuvox S567 features upgraded memory specs with 4GB RAM and 16GB ROM, offering ample processing power and storage for Android 12 applications.
2. Does this model support Wi-Fi and Bluetooth?
Yes, this model comes equipped with integrated Wi-Fi and Bluetooth, allowing for wireless network connectivity and flexible integration options.
3. How does the speaker and microphone setup differ from standard monitors?
The S567 features a quad-speaker array and dual microphones with active echo cancellation, delivering higher volume and clearer audio than single-speaker monitors.
4. Can I trigger hardwired security devices through the panel?
Yes, the S567 includes 8 alarm input zones, 1 relay output, 1 bell input, and an RS485 interface to connect external hardware security devices directly.
5. How is the panel powered?
It can be powered via Power over Ethernet (802.3af PoE) using an Ethernet cable or through an auxiliary 12V DC power connection.
6. Where can I buy genuine Akuvox indoor monitors in Australia?
Genuine Akuvox products, including indoor monitors and door stations, are supplied directly through Total Security Equipment.
