SKU:GS1028PS2
Cudy 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports
Login to buyFeatures:
- IEEE 802.3af/802.3at standard compliant
- 300 watts total PoE power budget, up to 30-watt per port
- 24 x GbE PoE+ Port and 2 x SFP Port
- CCTV Mode supports remote power & data feeding up to 250 meters
- VLAN mode supports 24 POE+ ports isolated from each other
- LED indicators for network diagnostics
- 19-inch metal case, internal power design
-
Vendor:
Cudy
- Tags: Poe
- Description
Product Overview

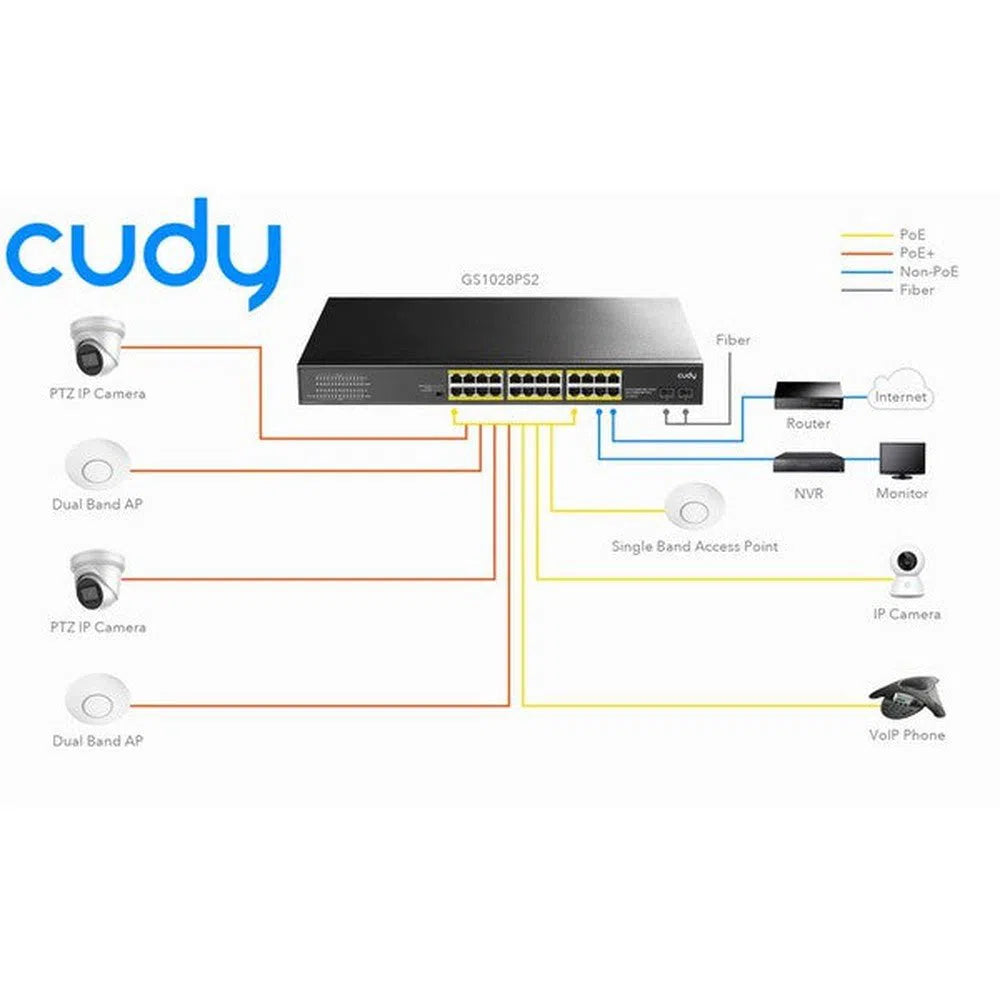

The Cudy GS1028PS2 is a 26-port Gigabit switch built to power and connect a large-scale PoE camera or access-control deployment. Twenty-four of its ports supply PoE/PoE+ power directly over the same cable that carries data, while 2 Gigabit SFP slots give you a fibre uplink option back to your core network or NVR.
With a 300W total PoE budget shared across the 24 PoE ports, CCTV-oriented long-range power/data mode, and VLAN isolation between PoE ports, it is built with larger camera installations in mind. Housed in a 19-inch rackmount metal case. Supplied through Total Security Equipment.
Key Capabilities
24 PoE+ Ports, 300W Total
Ports 1–24 supply IEEE 802.3af/at PoE power, up to 30W per port and 300W shared across all twenty-four.
2 Gigabit SFP Slots
Dedicated fibre uplink slots for connecting back to your core network or NVR over longer distances.
CCTV Long-Range Mode
A CCTV-oriented mode supports extended power and data transmission for longer camera cable runs.
19-Inch Rackmount
Metal rackmount case with internal power supply, brackets included.
Best For
Large-Scale CCTV Deployments
Powers up to 24 IP cameras directly, with fibre uplink headroom via the SFP slots.
Rack-Based Installations
19-inch metal case fits standard equipment racks and comms cabinets.
Budget-Conscious PoE Jobs
A lower-cost 24-port PoE option compared to premium-brand equivalents.
Why Choose This Switch
Larger camera and access-control jobs need real port count and real PoE headroom. The Cudy GS1028PS2 gives you 24 PoE ports, a 300W power budget, and fibre-ready SFP uplinks in a rackmount metal case, at a competitive price point. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | GS1028PS2 |
| PoE standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Network Media(Cable) | 10 BASE-T: UTP category 3, 4, 5 cable (≤100m) 100 BASE-TX: UTP category 5 cable (≤100m) 1000 BASE-T: UTP category 5e cable (≤100m) 1000 BASE-X: MMF or SMF SFP module |
| MAC Address Table | 8K, Auto-learning, Auto-aging |
| Transfer mode | Store-and-Forward |
| Frame Forward Rate | 10 Base-T: 14881pps/Port 100 Base-TX: 148810pps/Port 1000 Base-T/X: 1488095pps/Port |
| Switching Capacity | 56Gbps |
| Dimensions (L*W*H) | 440 * 207 * 44 mm |
| Fan | 2/Fanless |
| Power Input | AC: 100~240V, 50/60Hz |
| PoE Port | Port1~24 |
| PoE Power on RJ45 | Mode A 1/2(-), 3/6(+) |
| PoE Power Output | 30W (Max) |
| PoE Power budget | 300Watts |
| Temperature | Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F ) Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F ) |
| Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
Ideal Use Cases
Multi-Camera CCTV Installs
Powers up to 24 IP cameras from one rackmount unit.
Fibre-Uplinked Sites
The 2 SFP slots suit sites connecting back to core networking over fibre.
Comms Cabinet Installs
19-inch rackmount case fits standard equipment racks.
Budget PoE Expansion
A cost-effective way to add 24-port PoE without stepping up to a premium brand.
FAQs
1. How many ports supply PoE power?
24 of the 26 ports supply PoE/PoE+ power; the remaining 2 are Gigabit SFP slots for fibre uplinks.
2. What is the total PoE power budget?
Up to 300W total across the 24 PoE ports, with up to 30W available per port.
3. Is this the same as the Cudy GS1026PS2?
No — Cudy sells several similarly-named 24-port switches with different specs. This listing is for the GS1028PS2. Ask our team to confirm the exact model if you're comparing against another listing.
4. Is Cudy a well-established brand?
Cudy is a newer addition to our range alongside our longer-established TP-Link and Ruijie switches. If brand history and Australian support track record matter most to you, ask our team about our TP-Link or Ruijie PoE alternatives.
5. Where can I buy this switch in Australia?
It's available directly from Total Security Equipment — confirm current stock and delivery timing with our team.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Trade accounts and volume pricing
- Phone support on PoE budgeting & camera counts
- Download Spec Sheet
