SKU:DHI-ARA24-W2

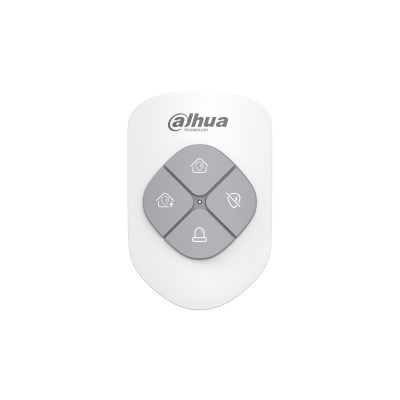

Dahua DHI-ARA24-W2 Wireless Alarm Keyfob Remote
Login to buyDahua Wireless Keyfob
- SOS emergency call;
- Frequency hopping function and two-way communication technology ensure communication stability;
- Cloud update and automatic recovery from update failure.
-
Vendor:
Dahua
- Description
Product Overview
The Dahua DHI-ARA24-W2 is a compact 4-button wireless keyfob for Dahua's AirShield wireless alarm platform, giving you Home, Away, Disarm and SOS control from your keyring without walking to a keypad. It communicates with the alarm hub over an encrypted, frequency-hopping 433MHz link rated to 500m in open space, so it stays responsive even at the far end of a property.
A single CR2032 coin-cell battery keeps it running for years between changes, and a two-colour status LED plus low-battery warning mean you always know it's working before you rely on it. Supplied directly through Total Security Equipment.
Key Capabilities
4-Button Control
Dedicated Home, Away, Disarm and SOS buttons for one-touch control at the door or from anywhere on site.
Encrypted, Long-Range Link
Two-way, frequency-hopping 433MHz communication with AES-128 encryption, rated up to 500m in open space.
Multi-Year Battery Life
Runs on a single replaceable CR2032 coin-cell battery with a low-battery warning built in.
Compact & Keyring-Ready
Small, lightweight PC+ABS housing (≈20g) built to live on a keyring or in a pocket.
Best For
Add a spare keyfob for another household or staff member, or replace a lost or damaged one.
Arm and disarm without walking to the keypad — handy for garages, side entries and elderly residents.
A dedicated SOS button for a fast, discreet emergency alert from anywhere on the property.
Why Choose This Keyfob
This is a genuine Dahua accessory for the AirShield wireless alarm platform, so it pairs cleanly with a compatible Dahua alarm hub without the reliability issues of a generic aftermarket remote. Encrypted two-way communication and frequency hopping keep the link resistant to interference and jamming attempts, and the long CR2032 battery life means it's a low-maintenance addition to a system rather than one more thing to remember to charge. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | DHI-ARA24-W2 |
| Product Type | 4-button wireless alarm keyfob remote (Dahua AirShield platform) |
| Buttons | 4 — Home, Away, Disarm, SOS |
| Operating Frequency | 433.1–434.6MHz |
| Communication | Two-way, frequency hopping, AES-128 encryption |
| Range | Up to 500m in open space |
| Battery | 1 × CR2032 coin-cell (replaceable) |
| Battery Life | ≈3–5 years typical (varies by source — confirm with our team) |
| Power Consumption | Max. 85mW |
| Dimensions | ≈60mm × 40mm × 15–19mm (L×W×H, varies slightly by source) |
| Weight | ≈20g |
| Housing | PC + ABS plastic |
| Status Indicator | Two-colour LED (green = normal, red = abnormal); low-battery warning |
| Operating Temperature | -10°C to +55°C, indoor use, 10–90% humidity |
| Compatibility | Dahua AirShield wireless alarm hubs (e.g. ARC3000H series) — confirm hub compatibility with our team |
| Certification | CE |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
Dahua AirShield System Owners
A spare or replacement keyfob for an existing Dahua AirShield wireless alarm installation.
Households With Multiple Users
Give each family member or staff member their own fob instead of sharing one code.
Garages & Side Entries
Arm or disarm quickly from a vehicle or side gate without a keypad nearby.
Elderly or Vulnerable Residents
A simple, one-touch SOS button for fast help in an emergency.
FAQs
1. Will this work with any alarm panel?
No — this keyfob is built for Dahua's AirShield wireless alarm platform and pairs with a compatible Dahua hub, such as the ARC3000H series. It is not a universal remote for other brands. Check with our team if you're unsure whether your existing system is compatible.
2. What do the four buttons do?
Home arms selected zones for at-home protection, Away arms the full system, Disarm switches the system off, and SOS sends an immediate emergency alert.
3. How long does the battery last?
It runs on a single replaceable CR2032 coin-cell battery, with a typical life of a few years under normal use — the fob will show a low-battery warning before it needs replacing. Confirm the exact expected lifespan with our team.
4. What's the difference between this and the 868MHz version?
This DHI-ARA24-W2 is the 433MHz version used in Australia. Dahua also makes a DHI-ARA24-W2(868) variant for regions using 868MHz — the two frequencies are not compatible with each other, so make sure you order the version that matches your hub.
5. Where can I buy this keyfob in Australia?
It's available directly from Total Security Equipment.
