SKU:HA-ALARM-KIT1
Hilook HA-ALARM-KIT1 HiLook Alarm Kit
Login to buy8 on-board zones, 4 on-board outputs (2 relay outputs and 2 I/O outputs)

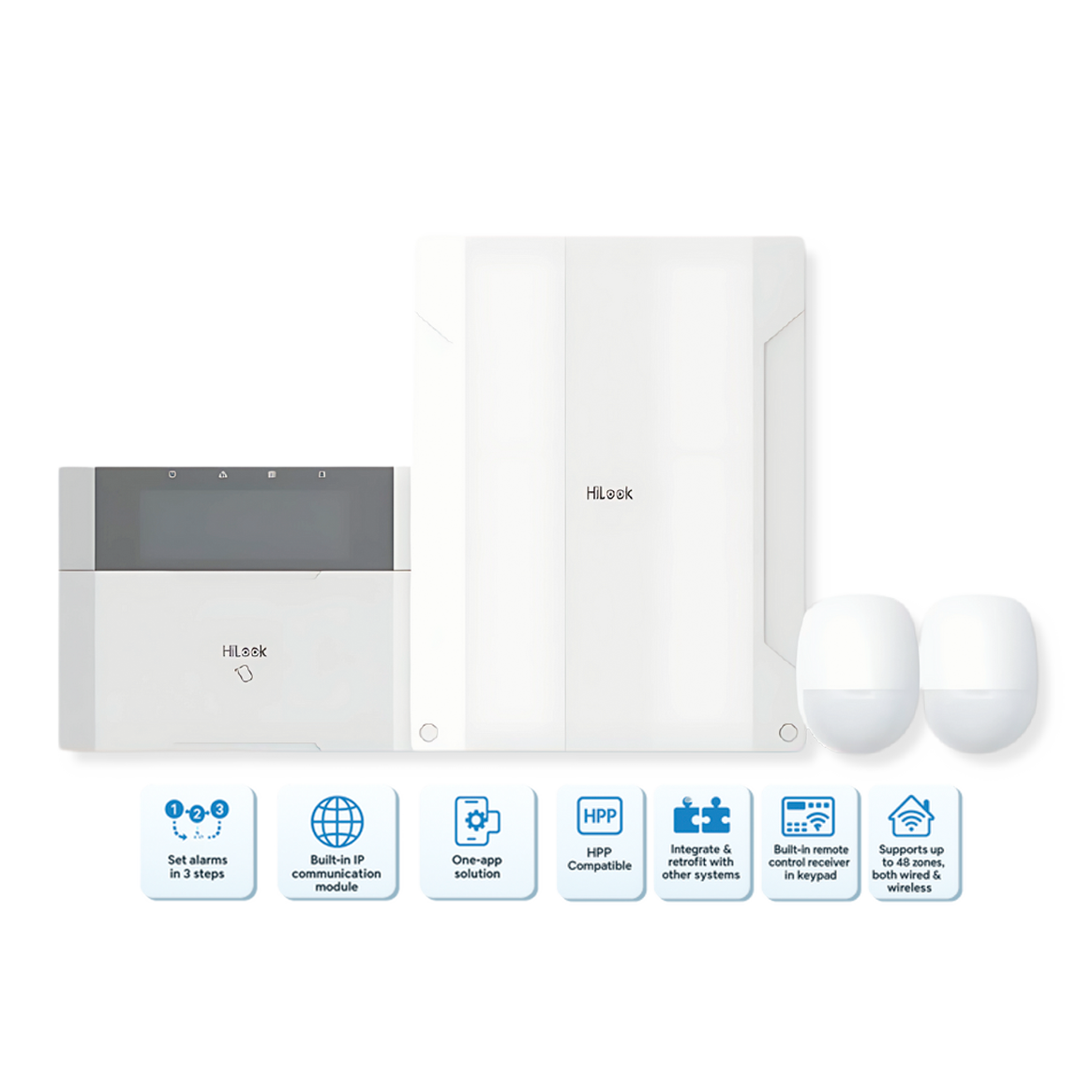

Kit includes:
- 1 Alarm Panel.
- 1 Keypad.
- 2 PIR
-
Vendor:
HiLook
- Description
Product Overview
The HiLook HA-ALARM-KIT1 is an affordable entry-level hybrid alarm kit built around the HA-ALARM-P48 control panel — 8 on-board wired zones, 4 outputs, and room to expand with additional wired or 433MHz wireless devices as the site grows. HiLook is Hikvision's value-focused sub-brand, so you get Hikvision-backed hardware and app support at a lower price point than the full AX PRO range.
The kit pairs the panel with a wired LCD keypad that includes a built-in tag reader and wireless transceiver, two wired PIR motion detectors, and RFID tags for quick arm/disarm — giving you a working starter system out of the box that can still take on more zones and wireless accessories later. Supplied directly through Total Security Equipment.
Key Capabilities
8 On-Board Zones, Expandable
8 wired zones and 4 outputs (2 relay + 2 I/O) on-board, with room to expand as your site grows.
Hybrid Wired + Wireless
Wired zones out of the box, with 433MHz wireless expansion available for extra sensors and sounders.
Tag-Based Arm/Disarm
Included RFID tags let household or staff members arm and disarm at the keypad without remembering a code.
Hikvision-Backed Hardware
HiLook is Hikvision's value sub-brand, giving you familiar build quality and support at a lower entry price.
What's Included
8 on-board zones, 4 outputs (2 relay + 2 I/O)
Built-in tag reader and wireless transceiver
Passive infrared motion sensors
For quick arm/disarm at the keypad (confirm quantity with our team)
Power supply, backup battery and any external siren/strobe are not included in this base kit and are ordered separately — confirm exactly what your install needs with our team.
Best For
A straightforward, budget-friendly starter alarm for a small property.
An affordable way into a Hikvision-backed system without committing to the full AX PRO range.
Wired zone expansion plus 433MHz wireless expansion for adding coverage later.
Why Choose This Kit
The HA-ALARM-KIT1 is a sensible entry point if you want proper wired alarm hardware without the price tag or zone count of a large commercial system. It's genuinely expandable rather than a closed box — the panel takes more wired zones and 433MHz wireless devices, so a small install today doesn't have to be replaced outright if the site grows. Because it carries the Hikvision name behind the HiLook brand, you also get the benefit of a well-established manufacturer's support and parts availability. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | HA-ALARM-KIT1 |
| Brand | HiLook (Hikvision sub-brand) |
| Control Panel | HA-ALARM-P48 |
| On-Board Zones | 8 wired zones |
| Maximum Expansion | ≈40–48 wired/wireless zones (figure varies by source — confirm exact limit with our team) |
| Outputs | 4 on-board (2 relay outputs + 2 I/O outputs) |
| Wireless Expansion | 433MHz — supports additional wireless keyfobs and sounders (confirm exact device counts with our team) |
| Keypad | Wired LCD keypad with built-in tag reader and wireless transceiver |
| Detectors Included | 2 × wired PIR motion detectors |
| Arm/Disarm Tags | 3 × RFID tags included (confirm with our team) |
| Power Input | 15VDC 2.5A (per third-party spec listing — confirm with our team; power supply/adapter not included in this kit) |
| Backup Battery | Requires external 12V 7Ah lead-acid battery, sold separately — up to ≈36 hours backup runtime reported |
| Dimensions | ≈261mm × 199mm × 86.4mm (panel enclosure) |
| Weight | ≈997g (panel, net) |
| Housing | White plastic enclosure |
| Operating Temperature | -10°C to 40°C, 10–90% humidity (per third-party spec listing — confirm with our team) |
| Warranty | Confirm current warranty term with our team (reseller listings vary between 12 months and 3 years) |
Ideal Use Cases
Units & Small Homes
8 zones is plenty for a compact property's entry points and living areas.
Budget-Conscious Installs
An affordable way to get genuine wired hardware in place rather than a basic DIY sensor kit.
Rental Properties
Tag-based arm/disarm is simple to hand over to tenants without sharing a code.
Staged Installs
Start with the 8-zone base kit and add wired or wireless devices as budget allows.
FAQs
1. Does this kit include a power supply and backup battery?
No — this base kit includes the panel, keypad, 2 PIR detectors and tags. A power supply and a 12V 7Ah backup battery are ordered separately. Speak with our team about what you'll need for your install.
2. Can I add more zones or wireless sensors later?
Yes — the HA-ALARM-P48 panel supports additional wired zones plus 433MHz wireless devices through the keypad's built-in wireless transceiver. Confirm your maximum expansion needs with our team when planning the install.
3. How do the included tags work?
The keypad has a built-in tag reader — simply present an included RFID tag to arm or disarm the system without entering a code.
4. What's the difference between this and the Hikvision AX PRO hub range?
HA-ALARM-KIT1 is a HiLook (value sub-brand) wired-first hybrid kit aimed at smaller, budget-conscious installs. Hikvision's AX PRO hubs are a larger, fully wireless, app/cloud-centric platform with video verification, suited to bigger or more feature-rich sites. Ask our team which fits your job.
5. Where can I buy this alarm kit in Australia?
It's available directly from Total Security Equipment.
