SKU:VTH1020J-T
Dahua 4-Wire Analog Indoor Monitor - VTH1020J-T
Login to buyFully digital, security monitoring ensuring high performance and very cost-effective. It is embedded with a video intercom function you can unlock, voice call, video call, and volume adjust.
Features
- 7″ TFT screen
- Video intercom function: Unlock, voice call, video call, volume adjustment
- Touch keypad
- Multiple bell sounds
- Take snapshots
-
Vendor:
Dahua
- Tags: Intercom
- Description
Product Overview

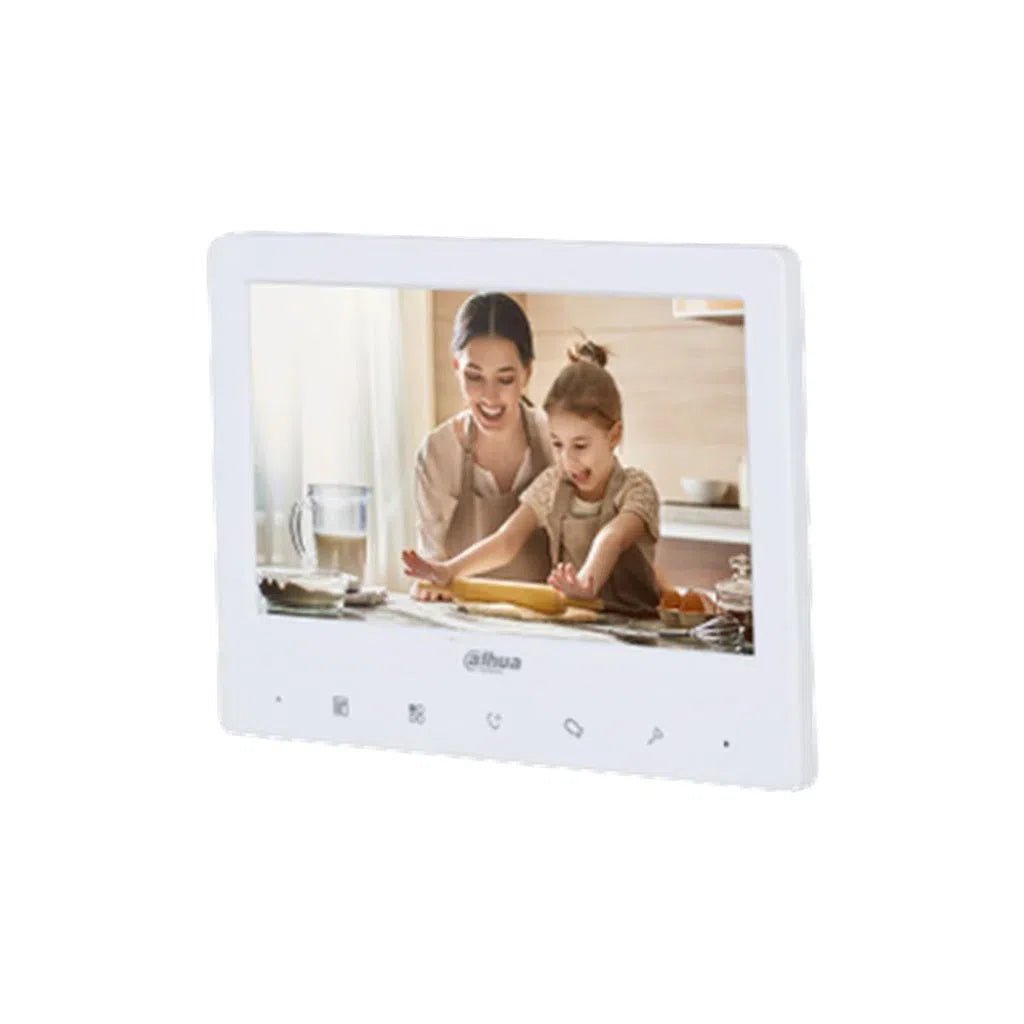

The Dahua VTH1020J-T is a 7" TFT indoor monitor built for homes, offices, and small commercial sites running a traditional 4-wire analog intercom system. Fully digital on the inside despite its analog wiring, it delivers a cost-effective, high-performance display for visitor video calls, with a 1024×600 touch keypad interface for unlocking the door, adjusting volume, and taking snapshots.
Housed in a white PC + ABS casing and supplied with a mounting bracket included, the VTH1020J-T pairs with a compatible Dahua 4-wire analog door station — such as our Dahua VTO1000JM Door Station — for a simple, low-cost video intercom setup. Supplied directly through Total Security Equipment.
Key Capabilities
7" TFT Touch Display
A 1024×600 TFT screen with a responsive touch keypad for calls, unlocking, and settings.
4-Wire Analog Connection
Fully digital processing over simple 4-wire analog cabling — no network switch or router required.
Video Intercom & Remote Unlock
Answer visitor video calls, speak two-way, and unlock the door directly from the monitor.
Snapshot Capture
Takes snapshots of visitors at the door for a simple visual record.
Multiple Bell Tones
Selectable bell sounds and adjustable volume for a personalised call alert.
Expandable Setup
Part of Dahua's 4-wire KTA02-style system, supporting expansion up to 2 door stations and 3 indoor monitors.
Best For
A simple indoor display for a single-door analog intercom setup.
Replaces or extends an existing 4-wire analog intercom without rewiring to IP.
A low-cost, high-performance monitor for straightforward video verification.
Expandable to up to 3 monitors so more than one room can answer the door.
Why Choose the Dahua VTH1020J-T
The VTH1020J-T pairs a crisp 7" touch display with simple, reliable 4-wire analog wiring — no network configuration required. It's fully digital on the inside for smooth performance, while staying compatible with straightforward analog cabling that's easy and inexpensive to install. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | VTH1020J-T |
| Product Type | 4-Wire Analog Indoor Monitor |
| Display | 7.0" TFT, 1024 × 600 resolution |
| Controls | Touch keypad, 1x power indicator light |
| Communication Mode | 4-Wire Analog (not IP/network) |
| System Expansion | Up to 2 door stations, 3 indoor monitors |
| Power Supply & Draw | DC 12V/1A; ≤2W standby, ≤5W working |
| Operating Environment | -10°C to +55°C, 10%–95% RH humidity |
| Material & Finish | PC + ABS casing, white |

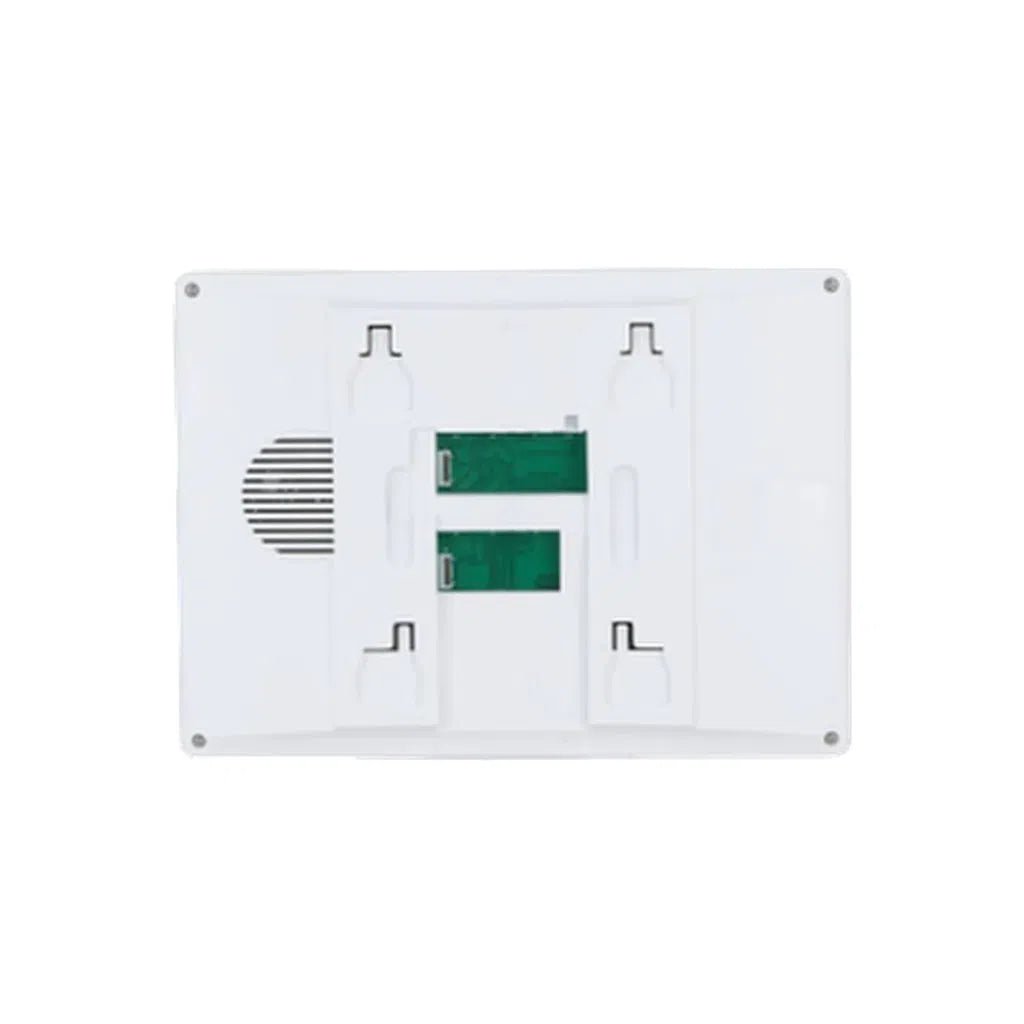

| Mounting Type | Surface mount (bracket included) |
| Approx. Dimensions & Weight | ≈133.90mm × 182.70mm × 17.70mm | Net weight: ≈0.25kg |
Ideal Use Cases
Single-Family Homes
A clear, easy-to-use indoor display for a main front door intercom.
Analog System Retrofits
Replaces a failed or outdated 4-wire analog indoor monitor without touching existing cabling.
Small Offices & Shopfronts
A budget-friendly way to add a video intercom display to a reception or staff area.
Multi-Room Coverage
Add extra monitors around the home so calls can be answered from more than one room.
Choosing the Right Model
Choose this model (VTH1020J-T) if…
- You already have (or want) a 4-wire analog intercom system, not an IP network.
- You want a simple 7" touch display for video calls and door unlocking.
- You need a low-cost, easy-to-install indoor monitor.
Choose a different model if…
- You want IP/PoE networking or smartphone app access. Ask our team about Dahua's IP indoor monitors instead.
- You need more than 3 indoor monitors. Larger multi-monitor households or sites need a different system configuration — ask our team.
FAQs
1. Is the VTH1020J-T an IP or analog monitor?
It's a 4-wire analog indoor monitor, designed to pair with a compatible Dahua analog door station — it does not connect to an IP network on its own.
2. Which door station does this pair with?
Any compatible Dahua 4-wire analog door station, such as our Dahua VTO1000JM. Confirm compatibility with our team before ordering.
3. Can I have more than one monitor in my home?
Yes — the system supports expansion up to 2 door stations and 3 indoor monitors. Confirm your planned setup with our team.
4. Does it come with a mounting bracket?
Yes, a mounting bracket is included for surface-mount installation.
5. Where can I buy the Dahua VTH1020J-T in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Dahua Australian stock
- Compatible 4-wire analog door stations in stock
- Trade accounts and volume pricing
- Phone support on compatibility and wiring
- Download Spec Sheet
Not sure whether your existing system is 4-wire analog or IP, or which door station pairs with the VTH1020J-T? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your setup and we will tell you honestly which components fit.
