SKU:VTH2621G-P

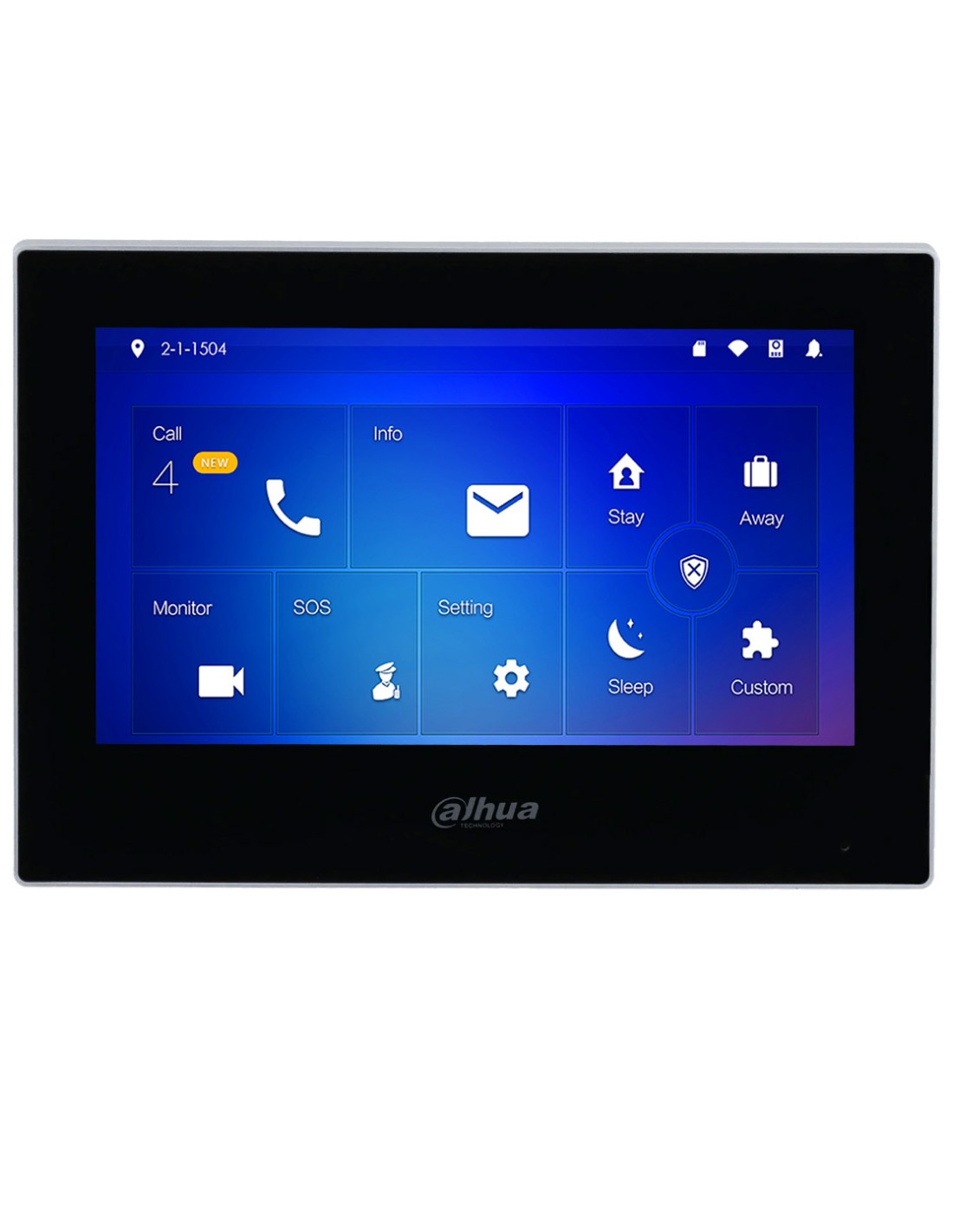

Dahua IP Indoor Monitor - VTH2621G-P
It connects to your system using standard Power over Ethernet (PoE) and allows you to monitor both door stations and IP cameras. The monitor decodes video in H.265 and H.264 formats, offering compatibility with a wide range of security devices. Additionally, it boasts a 6-channel alarm input and 1-channel output for integrating with your existing security system.
Features
- 7″ TFT capacitive touch screen, 1024 × 600
- 6-channel alarm input and 1-channel alarm output
- Standard PoE
- Outdoor station and IPC monitor
- H.265 and H.264 video coding
- High performance & cost-effective
- Description
Product Overview
The Dahua DHI-VTH2621G-P is a 7-inch touch screen IP indoor monitor built as the in-home control point for a Dahua video intercom system. Pair it with a compatible Dahua IP villa or apartment door station and it lets residents see and speak with visitors, release the door, and manage alarm inputs — all from a bright 1024×600 capacitive touchscreen mounted just inside the entry.
Powered by a dual-core 1.2GHz processor running embedded Linux, the monitor connects over a single 10/100Mbps Ethernet cable with standard PoE (36–57V), so no separate power adapter is needed at the mounting point. Two-way audio with echo suppression, six alarm inputs, MicroSD storage for visitor messages, and a compact PC+ABS housing in black make it a practical upgrade for homes, apartments, and small offices already running — or planning — a Dahua IP intercom system. Supplied directly through Total Security Equipment.
Key Capabilities
7" Capacitive Touchscreen
A 1024×600 TFT display with capacitive touch gives a clear, responsive interface for answering calls, browsing the menu, and reviewing visitor snapshots.
Single-Cable PoE Connectivity
One 10/100Mbps Ethernet cable delivers both power (standard PoE, 36–57V) and data; a 12V DC input is also supported where PoE isn't available.
Dual-Core Processor
A 1.2GHz dual-core CPU running embedded Linux keeps the touch interface, live video, and call handling responsive.
Clear Two-Way Audio
Built-in speaker and microphone with echo suppression and G.711a/G.711u/PCM audio deliver crisp conversation with visitors at the door station.
6-Channel Alarm Input
Six alarm inputs and one alarm output let the monitor connect to door/window sensors or a doorbell button, with one alarm output for local signalling.
MicroSD Visitor Storage
A MicroSD slot (up to 64GB) stores visitor snapshots and leave-messages, so residents have a record of who called while they were out.
Best For
A clear, wall-mounted indoor point for answering visitor calls and releasing the door.
A modern black finish suits reception desks and small business entry points.
Supports up to 9 villa door stations or 4 apartment extensions from a single monitor.
Pairs directly with Dahua IP villa and apartment door stations for a complete entry system.
Why Choose the DHI-VTH2621G-P
The Dahua DHI-VTH2621G-P brings the visitor experience indoors with a fast, responsive 7" touchscreen and single-cable PoE installation that keeps cabling simple for new builds and retrofits alike. Six alarm inputs mean it can double as a local doorbell and sensor hub, while MicroSD storage keeps a visual record of missed calls. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | DHI-VTH2621G-P |
| Product Type | 7" Touch Screen IP Indoor Monitor |
| Display | 7" TFT, 1024 × 600 resolution, capacitive touchscreen |
| Processor | Dual-core 1.2GHz, embedded Linux OS |
| Memory | 128MB RAM / 128MB ROM |
| Storage | MicroSD card slot, up to 64GB |
| Network | 1× 10/100Mbps Ethernet |
| Power Supply & Draw | Standard PoE (36–57V, 0.35A) or 12V DC 1A | Standby ≤2W, Working ≤6W |
| Audio | Two-way audio, built-in speaker, echo suppression, G.711a/G.711u/PCM, 16kHz/16bit |
| Alarm I/O | 6× alarm inputs, 1× alarm output (any input can be used as a doorbell trigger) |
| Operating Conditions | –10°C to +55°C, 10%–95% RH non-condensing, below 3,000m altitude |
| Dimensions & Weight | 189.6 × 134.6 × 26.0 mm | Net weight: 0.34kg, Gross weight: 0.58kg |
| Housing & Mounting | PC + ABS casing, surface mount, Black finish |
Ideal Use Cases
New Home & Apartment Builds
A complete indoor point for a new-build Dahua IP intercom system, installed alongside a matching villa or apartment door station.
Intercom Retrofits
Single-cable PoE installation makes it straightforward to add or replace an indoor monitor on an existing IP network run.
Multi-Extension Villas
Supports up to 9 villa door stations or 4 apartment extensions, suiting larger properties with multiple entry points.
Offices & Small Businesses
A compact black monitor for reception areas that need clear visitor screening and door release from inside.
Choosing the Right Model
Choose this model (DHI-VTH2621G-P) if…
- You need a compact 7" touchscreen indoor monitor with single-cable PoE installation.
- You're pairing it with a compatible Dahua IP villa or apartment door station.
- You want built-in alarm inputs to also handle a doorbell button or door sensor.
Choose a different model if…

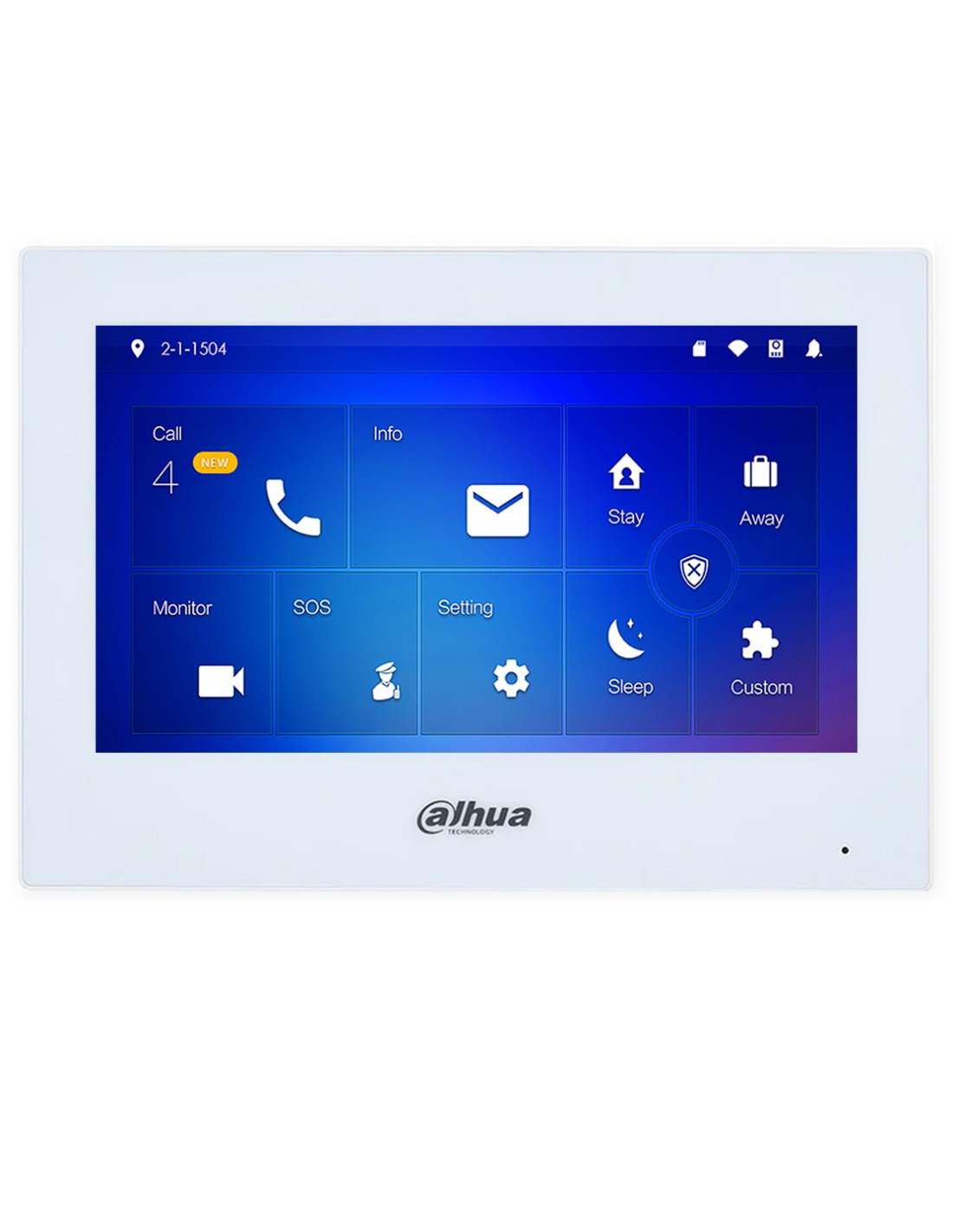

- You want a white finish instead of black. Ask our team about the white variant of this monitor.
- You need a larger screen or a multi-apartment directory panel. Speak to our team about other monitors in the Dahua range.
FAQs
1. Does the DHI-VTH2621G-P need a separate power supply?
No — it can be powered over the same Ethernet cable using standard PoE (36–57V, 0.35A). A 12V DC 1A power supply can be used instead where PoE isn't available.
2. What resolution is the touchscreen?
The monitor uses a 7" TFT display at 1024 × 600 resolution with capacitive touch.
3. Can it store visitor snapshots or messages?
Yes, it has a MicroSD card slot supporting up to 64GB for visitor snapshots and leave-messages.
4. How many door stations or extensions can it support?
It supports up to 9 villa door stations or 4 apartment extensions, depending on your system configuration.
5. Can I connect a doorbell button or door sensor to it?
Yes, any of its 6 alarm inputs can be configured as a doorbell trigger or connected to a door/window sensor.
6. Where can I buy the Dahua DHI-VTH2621G-P in Australia?
The Dahua DHI-VTH2621G-P is available directly from Total Security Equipment.
