SKU:VTO1000JM

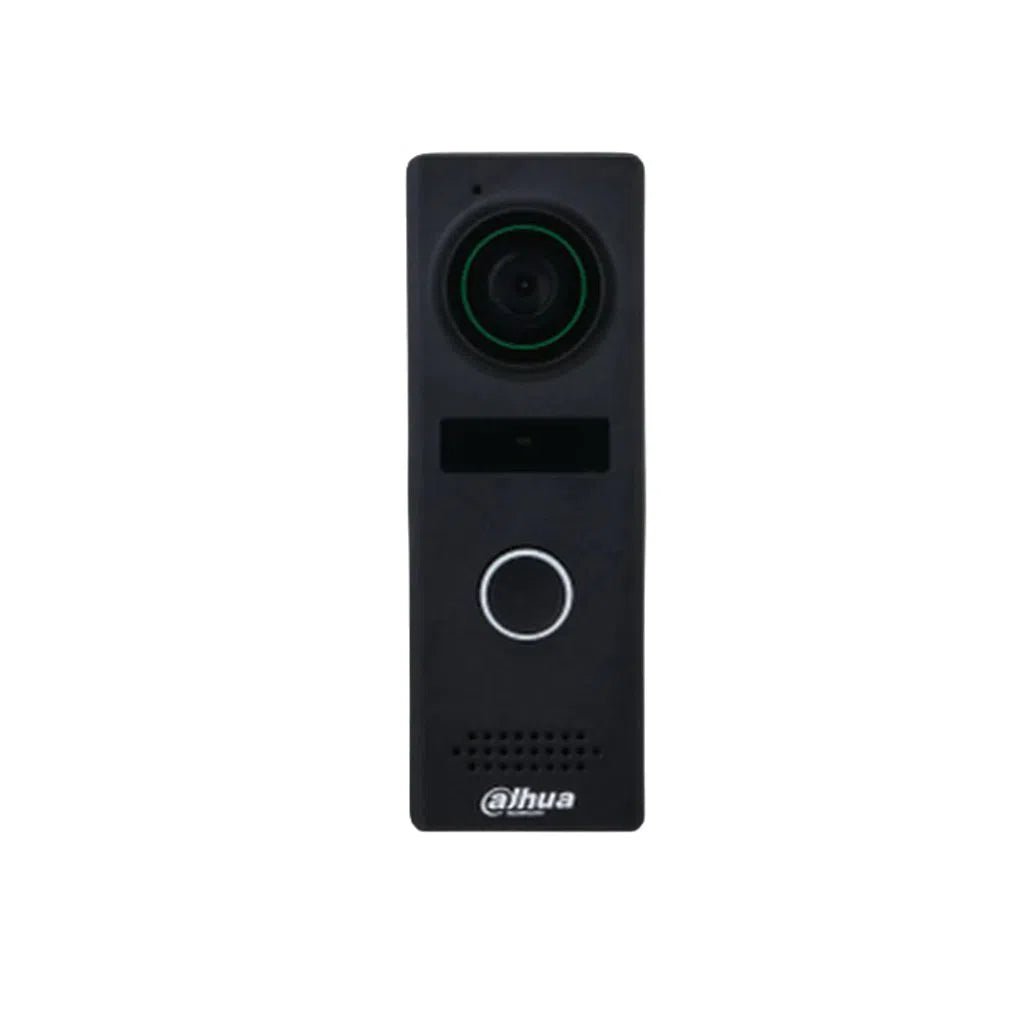

Dahua 4-Wire Analog Door Station - VTO1000JM
Login to buyFeatures:
- Video intercom function: Unlock, voice call, video call and volume
- Multiple bell sounds
- Supports digital wide dynamic range (DWDR)
- Mechanical button
- Metallic appearance
- IK07/IP66
-
Vendor:
Dahua
- Tags: Intercom
- Description
Product Overview
The Dahua VTO1000JM is a compact 4-wire analog video door station built for homes, offices, and small commercial entrances that use a traditional analog intercom system rather than an IP network. Featuring a 1.3MP CMOS camera with a 70° horizontal field of view, digital wide dynamic range (DWDR), and auto IR day/night switching, it delivers clear visitor video and two-way voice calling straight to a compatible analog indoor monitor.
Housed in a rugged metallic ADC12 aluminum alloy casing, the VTO1000JM carries IP66 weather-resistance and IK07 impact-protection ratings, and ships with a rain cover included. Powered directly by the connected indoor monitor with no separate power supply needed, it's a straightforward, low-cost entry-video solution for single-door residential and light commercial sites. Supplied directly through Total Security Equipment.
Key Capabilities
4-Wire Analog Connection
Connects directly to a compatible analog indoor monitor over 4-wire cabling — no network, switch, or separate power supply required.
1.3MP Visitor Camera
A 1/4-inch 1.3MP CMOS sensor with a 70° horizontal field of view and DWDR captures clear visitor footage even in high-contrast light.
Auto IR Day/Night Vision
Built-in IR illuminator with ICR auto-switching keeps visitor video usable after dark.
Video Intercom & Remote Unlock
Two-way voice and video calling with volume control and remote door unlock from the paired indoor monitor.
IP66 Weather & IK07 Impact Protection
Rugged ADC12 aluminum alloy housing rated IP66 against dust and water, and IK07 for impact resistance. Rain cover included.
Multiple Bell Tones
Selectable bell sounds and a durable mechanical call button for reliable, low-maintenance daily use.
Best For
A simple, single-button door station for one main entrance.
Replaces or extends an existing 4-wire analog intercom without rewiring to IP.
A low-cost way to add video verification and remote unlock to a single door.
IP66/IK07 protection with an included rain cover suits weather-exposed doorways.
Why Choose the Dahua VTO1000JM
The VTO1000JM is a simple, reliable way to add video and voice verification to a single entrance without the cost or complexity of an IP network install. It draws power directly from the connected indoor monitor, so there's no separate power supply to run, and its rugged, weatherproof aluminum housing (with rain cover included) is built to handle exposed entrances. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | VTO1000JM |
| Product Type | 4-Wire Analog Door Station with Mechanical Call Button |
| Camera Sensor | 1/4-inch 1.3MP CMOS |
| Field of View | Horizontal: 70°, Vertical: 40° |
| Image Enhancement | DWDR, Auto IR Night Vision (ICR auto switch) |
| Communication Mode | 4-Wire Analog (not IP/network) |
| Call Button | Single mechanical button, multiple selectable bell tones |
| Power Supply & Draw | Powered by indoor monitor (no separate supply); ≤1W standby, ≤3W working |
| Protection Ratings | IP66 Ingress Protection, IK07 Impact Resistance |
| Operating Environment | -30°C to +60°C, 10%RH–95%RH humidity |
| Material & Finish | ADC12 aluminum alloy, metallic black |
| Mounting Type | Surface mount (rain cover included) |
| Dimensions & Weight | 131.45mm × 46.00mm × 33.80mm | Net weight: 0.18kg |
Ideal Use Cases
Single-Family Homes
Straightforward video and voice verification for a main front door.
Analog System Retrofits
Replaces a failed or outdated 4-wire analog door station without touching existing cabling.
Small Offices & Shopfronts
A budget-friendly way to add video-verified entry to a single staff or delivery door.
Weather-Exposed Doorways
IP66/IK07 protection and an included rain cover suit entrances without an eave overhead.
Choosing the Right Model
Choose this model (VTO1000JM) if…
- You already have (or want) a 4-wire analog intercom system, not an IP network.
- You need a simple, single-button door station for one entrance.
- You want a low-cost, weatherproof video door station with minimal setup.
Choose a different model if…
- You want IP/PoE networking or smartphone app access. Ask our team about Dahua's IP villa door stations instead.
- You're equipping a multi-tenant building. This single-button station suits one entrance — multi-apartment sites need a multi-button or digital directory station.
FAQs
1. Is the VTO1000JM an IP or analog door station?
It's a 4-wire analog door station, designed to pair with a compatible Dahua analog indoor monitor — it does not connect to an IP network on its own.
2. Do I need a separate power supply?
No — it's powered directly by the connected indoor monitor, drawing ≤1W on standby and ≤3W when in use.
3. Is it weatherproof?
Yes, it's rated IP66 for dust and water resistance and IK07 for impact resistance, and ships with a rain cover included.
4. Does it support night vision?
Yes, it has a built-in IR illuminator with automatic ICR day/night switching for clear video after dark.
5. Where can I buy the Dahua VTO1000JM in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Dahua Australian stock
- Compatible analog indoor monitors in stock
- Trade accounts and volume pricing
- Phone support on compatibility and wiring
- Download Spec Sheet
Not sure whether your existing system is 4-wire analog or IP, or which indoor monitor pairs with the VTO1000JM? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your setup and we will tell you honestly which components fit.
