SKU:SOL6-GFX-2WRL
Bosch Alarm Wireless Solution 6000 Kit with Smart Card Reader, 2 Wireless PIRs
Login to buyBosch Alarm Wireless Solution 6000 Kit is the fully integrated security solution that has the alarm features you’ve always loved, with the access control capabilities you’ve always needed. Supporting both wired and wire-free options, the combination of its intuitive user interface and high-speed programming software make it an easy-to-use complete security solution ideal for commercial premises and larger homes.
Features
- 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
- Integrated access control for up to 16 doors
- Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
- 5 on-board outputs (expandable to 37)
- GSM/GPRS and Ethernet options
-
Vendor:
Bosch
- Description
Product Overview

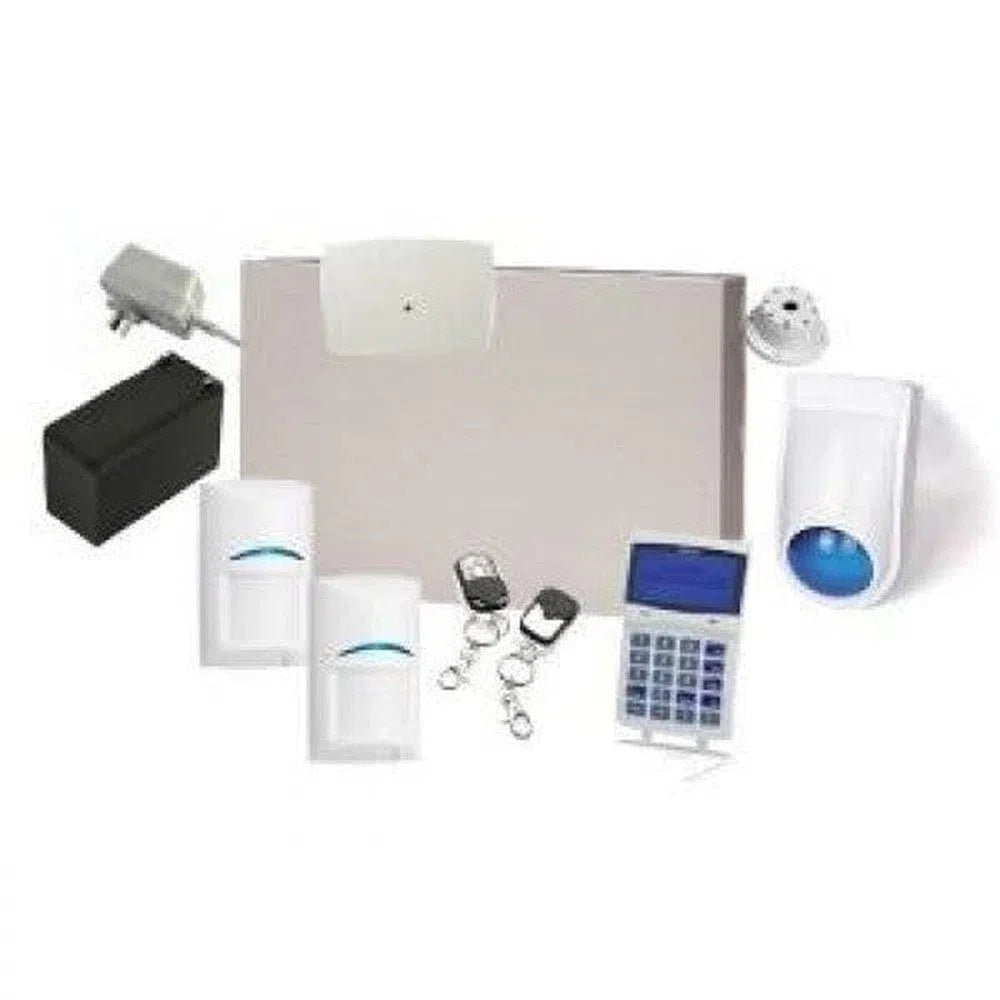

The Bosch Wireless Solution 6000 Kit with Smart Card Reader (SOL6-GFX-2WRL) brings wireless detector flexibility to the Solution 6000 platform — control panel, keypad, wireless receiver, 2 keyfobs, 2 wireless PIR detectors, metal enclosure, battery, power supply, and siren, all in the one box.
The included RFPR-12 wireless PIR detectors are genuinely pet-immune (up to a 13kg dog, two 27kg dogs, or up to 10 cats), and pairing them with the Solution 6000 panel gives you 16-to-144 zone scalability and integrated access control for up to 16 doors — well beyond what a residential wireless kit offers. Supplied directly through Total Security Equipment.
Key Capabilities
Wireless Detector-Ready
Includes the RFRC-STR2 wireless receiver, so wireless devices work straight out of the box.
2 x Pet-Immune Wireless PIRs
RFPR-12 detectors: 12m x 12m coverage, pet-immune to 13kg (or two 27kg dogs / 10 cats), ≈5-year CR123A battery.
16 to 144 Zones
16 zones onboard, expandable to 144 zones (wired or wireless) for larger installs.
2 Keyfobs Included
Remote arm/disarm without needing to reach the keypad.
Integrated Access Control
Access control for up to 16 doors built into the same panel, alongside intrusion detection.
990 Users
Supports up to 990 users via PIN, token, keyfob, or fingerprint credentials.
What's Included in the Kit
Best For
Pet-immune wireless PIRs reduce false alarms from dogs and cats at home.
Wireless detectors and receiver avoid running new cable through finished walls.
Solution 6000's 144-zone, 8-partition scale beyond a residential wireless kit.
Installers wanting door access control and alarm monitoring from one panel.
Why Choose This Kit
This is the only kit in our Solution 6000 range built around wireless detectors rather than wired ones — the receiver, keyfobs, and wireless PIRs are all included, so there's no need to source them separately. It's the option to reach for when you want Solution 6000's zone and access-control capacity but need to avoid running new detector cabling. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | SOL6-GFX-2WRL |
| Product Type | Complete boxed wireless alarm kit — panel, keypad, receiver, keyfobs, 2x wireless PIR, enclosure, battery, PSU, siren |
| Control Panel PCB | Bosch Solution 6000 (CC610PB) |
| Zones | 16 onboard, expandable to 144 (wired or wireless) |
| Partitioning | Up to 8 separate areas |
| Users | Up to 990, via PIN, token, keyfob, or fingerprint |
| Access Control | Integrated, up to 16 doors |
| Keypad | CP722B — alphanumeric LCD, up to 4 lines × 20 characters with icons, built-in proximity reader (RS485), illuminated keys, adjustable contrast/backlight, real-time clock & temperature display |
| Wireless Receiver | RFRC-STR2 (Radion wireless receiver) |
| Keyfobs Included | 2x wireless keyfobs (exact model to be confirmed with our team at order time) |
| PIR Detectors Included | 2x RADION RFPR-12 wireless, 12m x 12m coverage, pet-immune (≤13kg dog / ≤27kg two dogs / ≤10 cats), 433.42MHz, CR123A battery (≈5-year life) |
| Enclosure | Metal, MW350, ≈385mm × 260mm × 90mm |
| Battery | 12V 7Ah backup battery |
| Power Supply | 18VAC 1.3A transformer (TF008-B) |
| Siren | External strobe/siren + internal piezo sounder |
| Warranty | ≈3 years (36 months) on panel, keypad, receiver, keyfobs, enclosure and power supply; ≈1 year (12 months) on battery and siren — confirm current terms with our team |
Ideal Use Cases
Pet-Friendly Homes
Genuine pet immunity on the included detectors means fewer false alarms.
Heritage & Finished Homes
Wireless detectors avoid disturbing walls, cornices, or finished surfaces.
Multi-Tenant Buildings
Up to 8 partitions let separate tenants or zones arm independently.
Growing Sites
16-to-144 zone scalability and receiver support for more wireless devices later.
Choosing the Right Kit
Choose this kit (SOL6-GFX-2WRL) if…
- You want wireless detectors instead of running new cabling.
- You have pets that will be home while the system is armed.
- You want Solution 6000's zone and access-control capacity in a wireless-ready kit.
Choose a different kit if…
- You want a colour graphic keypad. Ask our team about our wired Solution 6000 kits with the CP736B/CP737B keypad.
- You prefer wired detectors. Ask our team about our Standard, Quad, or Pet Tritech Solution 6000 kits.
- You only need basic intrusion detection for a home. A Solution 3000 wireless kit is likely simpler and more cost-effective.
FAQs
1. Are the wireless PIR detectors in this kit pet-immune?
Yes — the included RFPR-12 detectors can distinguish pets (up to a 13kg dog, two 27kg dogs, or up to 10 cats) from human intruders.
2. Does this kit have a colour touchscreen keypad?
No — this kit ships with the CP722B alphanumeric LCD keypad with a built-in proximity reader. If you'd like a full colour graphic keypad, ask our team about our wired Solution 6000 kits instead.
3. Can I add more wireless detectors later?
Yes — the included RFRC-STR2 receiver and Solution 6000 panel support well beyond the 2 detectors included in this kit. Ask our team about compatible wireless devices to add.
4. Does this kit include smartphone app control?
Not by default — this kit doesn't include an IP module. Ask our team if you'd like to add one for app control or monitoring.
5. Where can I buy the Bosch Wireless Solution 6000 Kit in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Bosch Australian stock
- Extra wireless PIRs, keyfobs, and IP modules in stock
- Trade accounts and volume pricing
- Phone support on system design and zone planning
- Download Spec Sheet
Not sure whether this wireless kit or one of our wired Solution 6000 kits suits your site better? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your property and we will tell you honestly what fits.
