SKU:SOL6-GFX-NONE
Bosch Alarm Solution 6000 Kit With Graphic Keypad, No PIRs
Login to buySupporting both wired and wire-free options, the combination of its intuitive user interface and high-speed programming software make it an easy-to-use complete security solution ideal for commercial premises and larger homes.
Features
- 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
- Integrated access control for up to 16 doors
- Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
- 5 on-board outputs (expandable to 37)
- GSM/GPRS and Ethernet options
-
Vendor:
Bosch
- Description
Product Overview

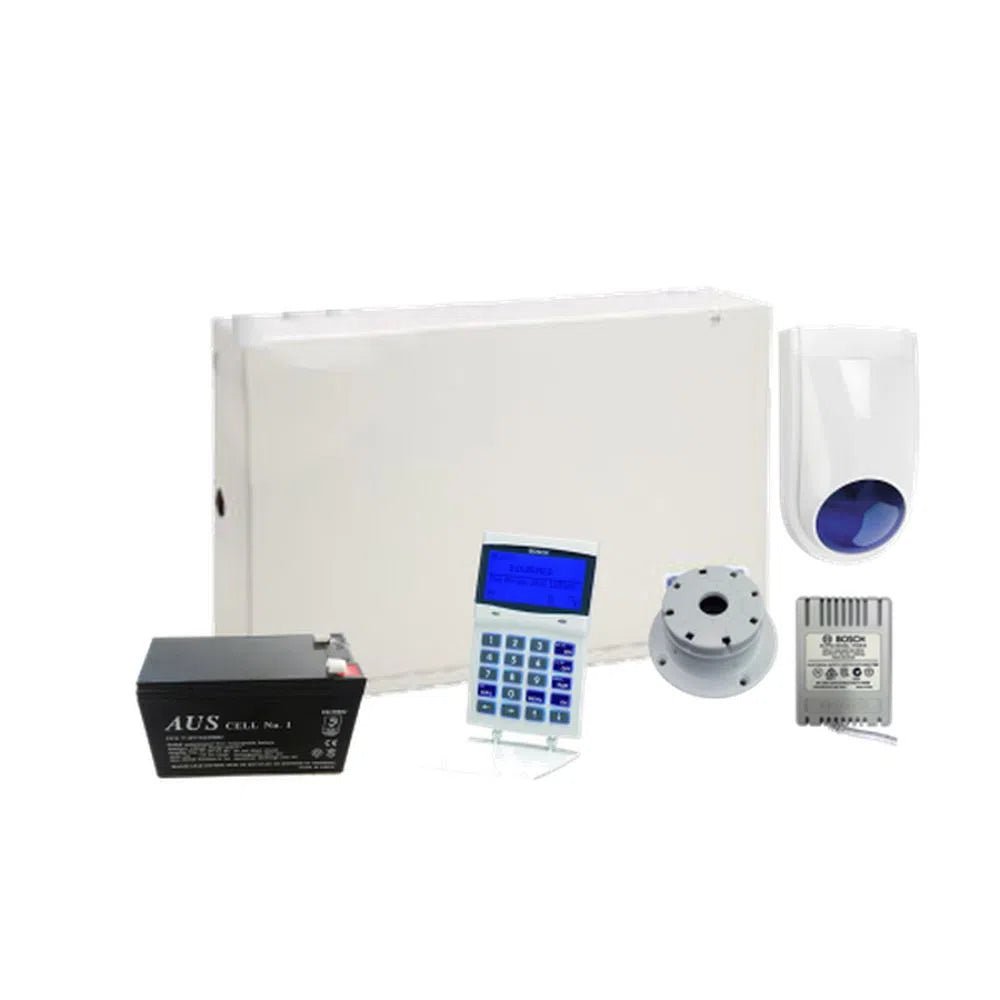

The Bosch Solution 6000 Kit with Graphic Keypad (SOL6-GFX-NONE) is a complete, boxed Solution 6000 install — control panel, keypad, metal enclosure, battery, power supply, and siren — with no PIR detectors included. It's built for installers and buyers who want to specify their own detectors (wired, wireless, pet-immune, long-range, or a mix) rather than take a fixed detector bundle.
Unlike our bare PCB upgrade kits (CC610GWP / CC610GWF), this kit includes the full enclosure, battery, and power supply — everything you need except the detectors themselves. With 16 zones expandable to 144 and integrated access control for up to 16 doors, it scales from a mid-size home to a full commercial site. Supplied directly through Total Security Equipment.
Key Capabilities
Complete Boxed Kit
Panel, keypad, metal enclosure, battery, power supply, and siren all included — just add detectors.
16 to 144 Zones
16 zones onboard, expandable to 144 zones (wired or wireless) for larger installs.
Choose Your Own Detectors
No PIRs included — pick wired, wireless, or pet-immune detectors to suit the site.
Up to 8 Partitioned Areas
Split the system into up to 8 independently armed areas for multi-tenant or multi-zone sites.
Integrated Access Control
Access control for up to 16 doors built into the same panel, alongside intrusion detection.
990 Users
Supports up to 990 users via PIN, token, keyfob, or fingerprint credentials.
What's Included in the Kit
Best For
Installers who want to specify pet-immune, wireless, or long-range detectors themselves.
Up to 8 partitions and 144 zones suit larger, more complex sites than a residential kit.
Installers wanting door access control and alarm monitoring from one panel.
A complete enclosure, power, and siren setup — just add detectors.
Why Choose This Kit
This kit gives you everything a Solution 6000 install needs except the detectors — panel, keypad, enclosure, battery, power supply, and siren, all boxed and ready to mount. That makes it a good middle ground between our bare PCB upgrade kits (which assume you already have an enclosure and power) and a fixed kit with pre-selected PIRs that may not suit every room. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | SOL6-GFX-NONE |
| Product Type | Complete boxed alarm kit — panel, keypad, enclosure, battery, PSU, siren (no detectors) |
| Control Panel PCB | Bosch Solution 6000 (CC610PB) |
| Zones | 16 onboard, expandable to 144 (wired or wireless) |
| Partitioning | Up to 8 separate areas |
| Users | Up to 990, via PIN, token, keyfob, or fingerprint |
| Outputs | 5 onboard, expandable to 37 |
| Access Control | Integrated, up to 16 doors |
| Keypad | CP736B, white, 3.5" colour graphic display, integrated smart card/proximity reader, 4 lines × 20 characters with icons |
| Enclosure | Metal, MW350, ≈385mm × 260mm × 90mm |
| Battery | 12V 7Ah backup battery |
| Power Supply | 18VAC 1.3A transformer (TF008-B) |
| Siren | Internal siren + external siren/strobe (standard or slimline options) |
| PIR Detectors Included | None — sold separately |
| Warranty | Varies by component (typically ≈3 years panel/keypad/enclosure/PSU, ≈1 year battery/siren) — confirm current terms with our team |
Ideal Use Cases
Custom Detector Layouts
Mix wired and wireless detectors, or use pet-immune models throughout, without paying for a fixed bundle.
Offices & Commercial Premises
Combined access control and intrusion detection across multiple doors and areas.
Multi-Tenant Buildings
Up to 8 partitions let separate tenants or zones arm independently.
New Builds & Full Rewires
A ready-to-mount enclosure and power setup for a fresh install from the ground up.
Choosing the Right Kit
Choose this kit (SOL6-GFX-NONE) if…
- You want a complete boxed system, but want to choose your own detectors.
- You need more than 16 zones, more than 2 partitions, or integrated door access control.
- You're doing a new install and need the enclosure, battery, and power supply included.
Choose a different kit if…
- You already have an enclosure and power supply. Ask our team about the CC610GWP or CC610GWF bare PCB upgrade kits instead.
- You want detectors included and ready to go. Ask our team about fixed Solution 6000 kits bundled with PIRs.
- You only need basic intrusion detection for a home. A Solution 2000/3000 kit is likely simpler and more cost-effective.
FAQs
1. Does this kit include motion detectors?
No — this kit specifically doesn't include PIR detectors, so you can choose wired, wireless, or pet-immune detectors to suit your site. Ask our team for recommendations.
2. Does this kit include the enclosure, battery, and power supply?
Yes — unlike our bare PCB upgrade kits, this is a complete boxed system with a metal enclosure, 12V 7Ah battery, 18VAC power supply, and internal/external siren all included.
3. How many zones and areas does this panel support?
16 zones onboard, expandable to 144, with partitioning into up to 8 separate areas.
4. Can I get this kit with a WiFi keypad instead?
This kit ships with the standard CP736B smart card keypad. Ask our team about pairing a CP737B WiFi keypad with the same enclosure and components if you want built-in IP connectivity.
5. Where can I buy the Bosch Solution 6000 Kit in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Bosch Australian stock
- Wired and wireless PIR detectors available to complete your install
- Trade accounts and volume pricing
- Phone support on system design, zones, and access control planning
- Download Spec Sheet
Not sure which detectors to add to this kit, or whether the WiFi keypad suits your site better? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your site and we will tell you honestly what fits.
