SKU:9U-DOUBLE
9U Cabinet Double Section
Login to buyImported 9U Cabinet Double Section for 19″ rack-mounted equipment with removable side panels and lockable front glass door. Constructed from cold rolled steel with folded edges for strength and stability. Front and rear rack strip is supplied and mounted to rails inside the cabinet, enabling the mounting depth to be adjusted to accommodate equipment with overhanging fittings or to support the rear of heavy units. The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required. The front door is removable and has a pane of 5mm tempered glass flanked by folded steel edge panels which can be mounted to open to either the left or right. The rear panel has fixing apertures for wall mounting or alternatively, the cabinet can be free standing. Superbly designed, secure containment for professional rack installations.
Features
- 19″ Standard installation welled frame, reliable structure.
- Assembled frame structure, easy handling, transportation, to maximize save shipping cost
- Easy mounting installation(patent)
- Removable side panels, side locks optional
- Knock out hole for entering cable on both of top cover and bottom panel
- Toughened glass front door, turning angle is over 180 degree
- Dimension: 600mm x 600mm x 501mm
-
Vendor:
TotalSE
- Tags: 9u, Double section
- Description
Product Overview
This 9U wall-mount or free-standing cabinet uses a double-section, hinged swing-frame design: instead of a fixed one-piece body, the equipment-carrying frame swings open on reversible hinges for full rear access to your cabling without unbolting a rear panel. It's designed so one person can install and work on it, with a lockable 5mm tempered glass door on the front that opens over 180° and is reversible left or right.
Built in a cold rolled steel body with folded edges, sized at 600mm wide × 501mm high (9U), with a stated depth of 600mm on this listing (independent sourcing points to ≈550mm being the more common figure for this exact unit — see the Buyer Decision Tips below for what to confirm), it suits comms cupboards, small server nooks, and equipment rooms where easier rear cable access matters. This is a generic/unbranded cabinet rather than a major racking brand. Supplied through Total Security Equipment.
Key Capabilities

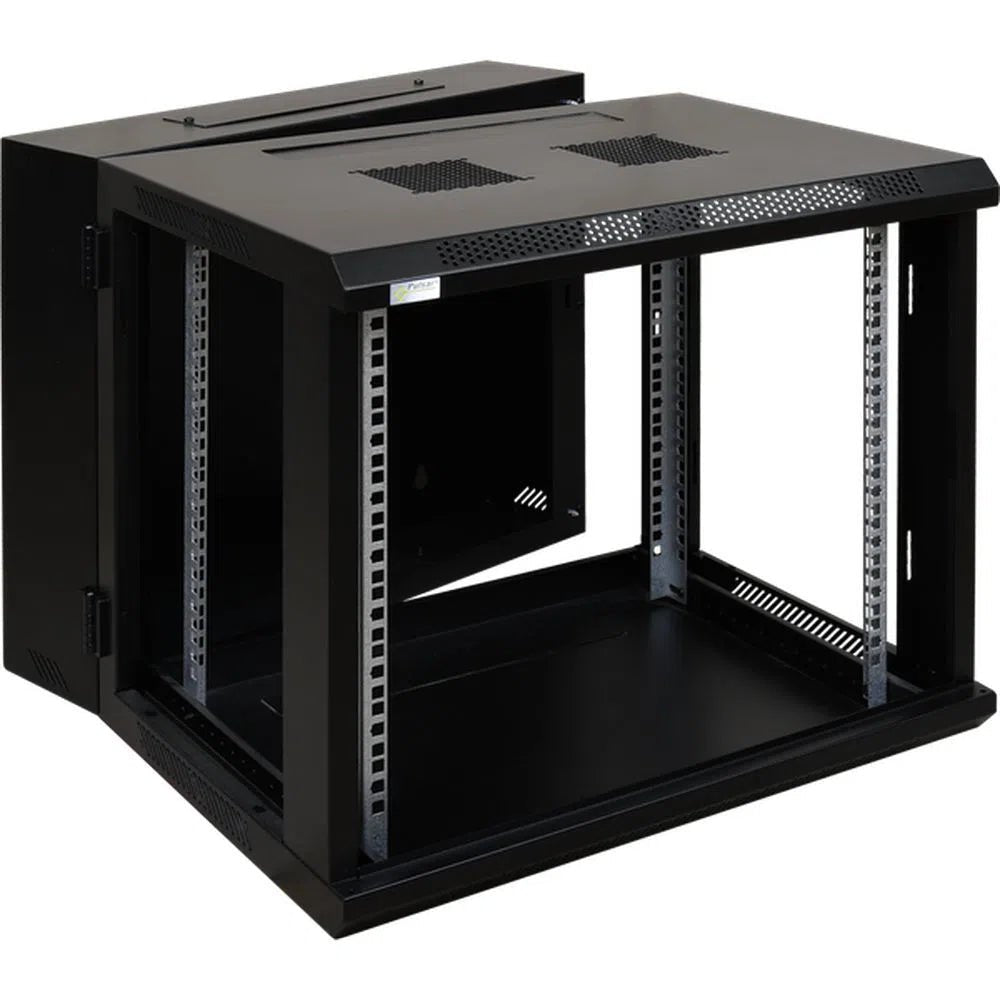

Swing-Open Rear Frame
The double-section hinged design lets the whole equipment frame swing open for full rear cable access.
Wall-Mount or Free-Standing
The rear panel has fixing points for wall mounting, or the cabinet can be used free-standing.

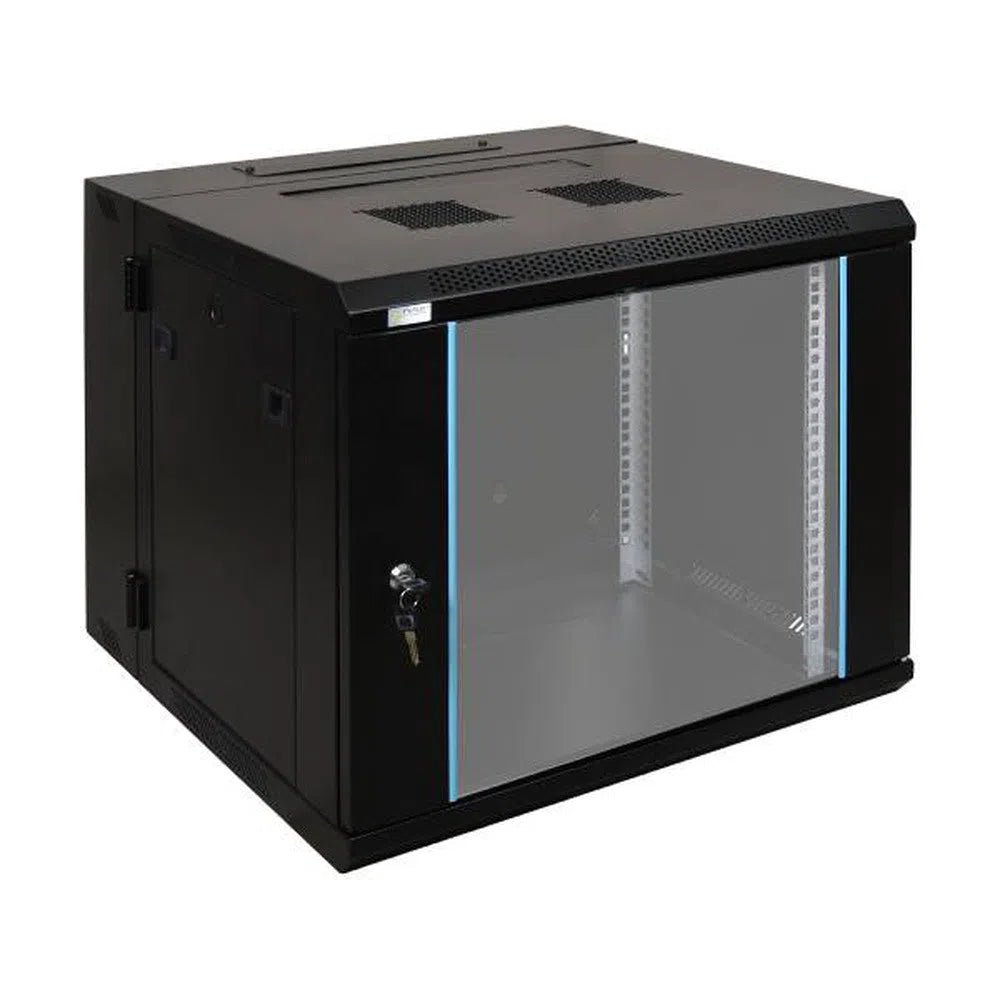

Lockable Tempered Glass Door
A removable 5mm tempered glass door opens over 180° and is reversible left or right.
9U of Rack Space
Fits standard 19-inch rack-mount equipment up to 9U tall.
Best For
Mid-Sized Comms Rooms
Enough room for a switch, patch panel, small UPS, and a bit of extra kit in one lockable enclosure.
Frequent Rear Cabling Access
Ideal where you'll be working behind the equipment often, without unbolting a rear panel each time.
Flexible Installs
Wall-mount or free-standing options suit sites where mounting space is limited.
Why Choose This Cabinet
If you'll be back inside this cabinet regularly for cable changes or troubleshooting, a fixed one-piece cabinet with a bolted rear panel gets old fast. This 9U double-section cabinet swings the whole equipment frame open for full rear access, in a lockable steel enclosure with room for a mid-sized equipment stack. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | 9U-DOUBLE |
| Brand | Generic/unbranded — not tied to a single named racking manufacturer |
| Type | Rack cabinet, double section (hinged swing-frame), with tempered glass door |
| Rack Capacity | 9U of usable 19-inch rack space |
| Dimensions | 600mm (W) × 501mm (H, 9U) — depth stated as 600mm on this listing, though independent sourcing on this exact cabinet points to ≈550mm; confirm with our team |
| Material | Cold rolled steel body with folded edges |
| Door | 5mm tempered glass, removable, opens over 180°, reversible left or right |
| Ventilation | Vented top panel with fan cutout, top and bottom cable knockouts |
| Mounting | Wall-mount or free-standing, with a hinged swing-open equipment frame |
| Weight | Not published by the manufacturer — confirm with our team before planning a wall installation |
| Maximum Load Capacity | Not published by the manufacturer — confirm with our team, especially if mounting a switch, patch panel, and UPS together |
| Warranty | Not published — confirm current warranty term with our team |
Ideal Use Cases
Mid-Sized Switch & Server Housing
Lockable enclosure with room for a switch, patch panel, and small UPS with easy rear access.
Sites With Frequent Re-Cabling
The swing-open frame suits sites where cabling changes happen regularly.
Comms Room Upgrades
A step up in capacity from 6U for growing comms cupboards and plant rooms.
Flexible-Mount Installations
Wall-mount or free-standing options suit a range of site layouts.
FAQs
1. What does "double section" mean?
It refers to the cabinet's hinged, two-piece frame construction — a fixed base plus a swinging equipment-carrying frame — rather than a fixed one-piece body. This lets the whole loaded frame swing open for full rear cable access, rather than requiring you to unbolt a rear panel.
2. How is this different from the standard 9U Single Section cabinets?
Our Single Section 9U cabinets are fixed one-piece bodies with rear access only through a removable bolted panel. This Double Section version has a hinged swing-open frame instead, for easier repeated rear access, at a higher price point.
3. Can this cabinet be free-standing, or is it wall-mount only?
Both — the rear panel has fixing points for wall mounting, or it can be used free-standing, unlike some of our smaller cabinets in this range which are wall-mount only.
4. What's the maximum weight this cabinet can hold?
This isn't published by the manufacturer. Please ask our team to confirm before mounting equipment, especially given the larger equipment loads a 9U cabinet is likely to carry.
5. Where can I buy this cabinet in Australia?
It's available directly from Total Security Equipment — confirm current stock and delivery timing with our team.
