SKU:A02-KEYPAD

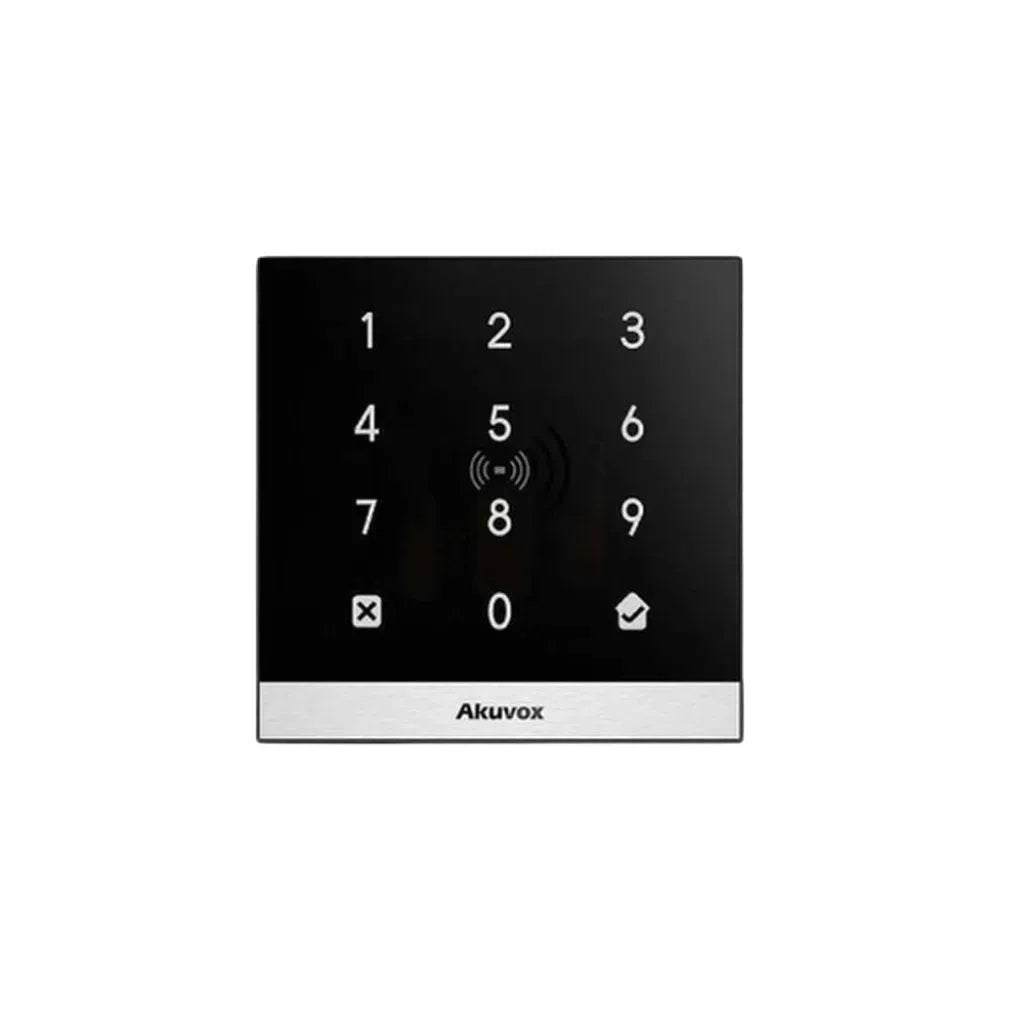

Akuvox A02 RFID Keypad Access Control Terminal
Login to buyIt supports multiple modes of door access authentication for the users ( PIN code, NFC and RFID). And it can be easily connected to a POE using an Ethernet cable for data transmission. A02 provides you with greater security and flexibility than those traditional access control systems.
Features
- Touch keypad front panel & Aluminum alloy frame
- 13.56MHz & 125kHz RFID card reader & NFC
- 20,000 card capacity &100,000 event logs
- Support tamper alarm
- Identification Mode:PIN,RFID Card,Two factor authentication
- Water-proof & Dust-proof:IP65
- Installation:Wall mount & Flush mount
- 802.3af Power-over-Ethernet and 12V DC connector (if not using PoE)
-
Vendor:
Akuvox
-
Type:
Access Control
- Description
Product Overview
The Akuvox A02 Compact IP Access Control Terminal integrates a door controller, proximity card scanner, and integrated keypad into a single streamlined enclosure. Engineered for streamlined credential management, the A02 supports PIN authentication, dual-frequency RFID cards, and NFC mobile verification, delivering flexible entry methods tailored to modern commercial sites, offices, and multi-tenant facilities. Supplied by Total Security Equipment, it offers simplified web browser setup and PoE connectivity for fast, reliable installation across standalone or multi-door security networks.
By consolidating essential control components into one hardware unit, this terminal minimizes external cabling and eliminates complex multi-box setups while maintaining complete operational control at key entry points.
Why Choose the A02
Select the Akuvox A02 when your facility requires a high-security, space-saving access reader that simplifies installation and cuts overall equipment costs. Housing the controller, reader, and keypad inside a single rugged chassis reduces mounting effort and cabling complexity. Supporting PIN codes, RFID cards, and smartphone NFC access, it gives organizations complete freedom to adjust entry policies and upgrade to mobile credentials over time. Protected by an IP65-rated housing and flexible mounting options, the A02 delivers dependable day-to-day operation for high-traffic doorways and outdoor entry gates with straightforward web-based administration.
Key Capabilities
All-in-One Access Controller
Combines the door controller, RFID reader, and illuminated keypad inside one IP unit, streamlining hardware overhead and ensuring a clean installation.
Flexible Credential Options
Supports PIN entry, multi-frequency RFID cards (13.56 MHz and 125 kHz), and NFC mobile credentials, matching authentication methods to user preferences.
IP Networking & PoE Support
Operates over standard network infrastructure using 802.3af Power-over-Ethernet (PoE) to deliver power and data through a single cable, eliminating extra wiring.
Durable Outdoor-Ready Design
Engineered with an IP65 weather-resistance rating and robust aluminum frame to endure dust, rain, and variable outdoor working environments.
User and Event Logging
Stores up to 20,000 user credentials and records up to 100,000 access events onboard, giving administrators complete event history and audit capability.
Key Features
- • Multi-mode authentication: Allows access via PIN codes, RFID proximity badges, or NFC mobile devices to maintain seamless entry flexibility for staff and guests.
- • Compact IP design: Space-saving chassis fits tightly onto slim doorframes while maintaining robust full-scale network integration options.
- • Web-based administration: Easily complete setup and adjust settings through an intuitive web interface without installing proprietary local software.
- • PoE or 12V DC power: Power via Ethernet cabling for efficient installation, or switch to an auxiliary 12V DC power supply when network power is absent.
- • Relay output and inputs: Integrated relay contacts and input ports connect directly with door locks, exit buttons, and sensor contacts for full door automation.
- • IP65 weather resistance: Weatherproof enclosure seals out water and dust penetration to maintain reliable performance on semi-exposed and outdoor entry points.
Specifications Summary
| Feature | Specification |
|---|---|
| Product Type | IP access control terminal with keypad and reader |
| Authentication Methods | PIN code, RFID cards, NFC mobile |
| RFID Frequencies | 13.56 MHz & 125 kHz |
| User Capacity | Up to 20,000 credentials |
| Event Log Capacity | Up to 100,000 events |
| Network | 10/100 Mbps Ethernet |
| Power | 802.3af PoE or 12V DC |
| Relay Output | 1 relay output |
| Inputs | 2 inputs |
| Protection Rating | IP65 |
| Mounting | Flush- or wall-mount |
| Dimensions | 86 × 86 × 33 mm |
| Material | Aluminium alloy frame |
Ideal Use Cases
Office Entrances
Secure staff entry doors using custom access methods with complete activity tracking and audit logs.
Commercial Buildings
Deliver versatile keyless verification at lobby barriers, elevator floors, or common facility entry points.
Outdoor Gates
Rugged IP65-rated body resists outdoor weather while securing vehicle or pedestrian perimeter gates.
Single-Door Sites
Deploy a self-contained networked door security system without the need for an expensive central panel controller.
Frequently Asked Questions
1. Can the A02 be installed outdoors?
The Akuvox A02 features an IP65 weather-resistant rating combined with a sturdy aluminum alloy body, making it ideal for exterior entry doors and exposed perimeter gates. Proper mounting and sealing in line with installation guidelines ensure maximum protection against rain and dust.
2. What access methods does the A02 support?
The terminal supports entry via PIN codes, dual-frequency RFID badges (13.56 MHz and 125 kHz), and NFC mobile credentials. This flexibility allows users to choose keypad access, physical cards, or smartphone authentication depending on operational rules.
3. Does the A02 require special management software?
No, administrators can configure and manage the device directly through a web browser interface without needing extra software installations. Standard IP connectivity also enables smooth integration into broader central management systems when required.
