SKU:A03-BLE
Akuvox A03 Bluetooth RFID Access Control Terminal
Login to buyIt offers flexible credentials, including wave-to-unlock via Bluetooth, mobile access via NFC, and RFID cards.
Features
- Front panel: Toughened Glass
- Frame: Aluminum
- 13.56MHz & 125kHz RFID card reader & NFC
- Up to 20,000 cards and 100,000 card event logs
- Water-proof & Dust-proof: IP65
- BLE 5.0
- Installation: Flush mount or Wall-mount
- PoE (IEEE802.3af, Power-over-Ethernet);
-
Vendor:
Akuvox
-
Type:
Access Control
- Description
Product Overview

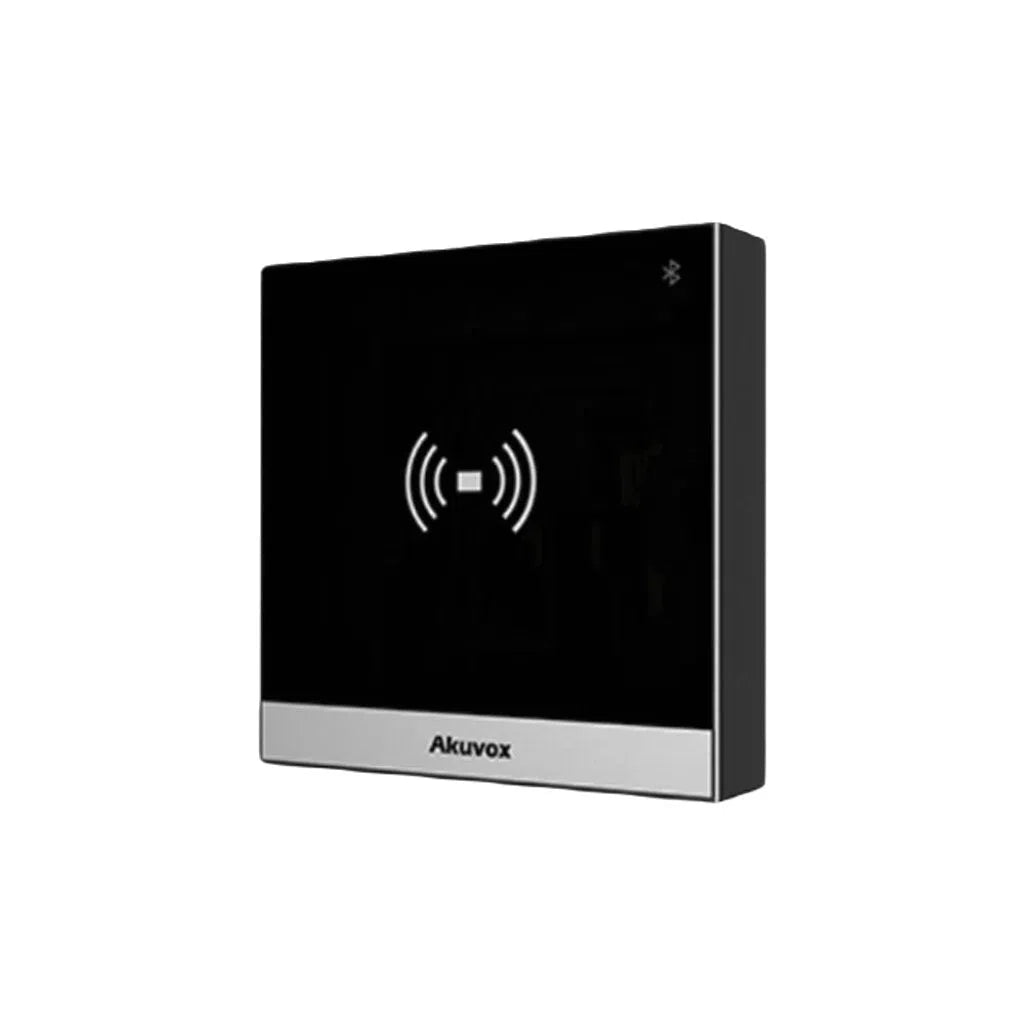

The Akuvox A03 is an all-in-one IP access control terminal that combines a door controller and a multi-credential card reader in a single weatherproof unit. It reads dual-frequency RFID cards (13.56MHz and 125kHz), NFC on a smartphone, and Bluetooth "wave-to-unlock" from the Akuvox app — so residents or staff can get in with a card, a tap, or just their phone in their pocket.
Behind a toughened glass front panel and aluminium alloy frame, the A03 stores up to 20,000 credentials and 100,000 event log entries, runs over a single PoE Ethernet cable, and is rated IP65 for reliable outdoor use at a gate, door or building entry. Supplied directly through Total Security Equipment.
Key Capabilities
Three Ways to Unlock
RFID card, NFC tap, or Bluetooth wave-to-unlock from the Akuvox app — all on one terminal.
Large Credential Capacity
Stores up to 20,000 cards/credentials and 100,000 event log entries.
Built for Outdoor Use
IP65-rated, toughened glass front and aluminium alloy frame for exposed entry points.
Single-Cable PoE Install
Powered and networked over one Ethernet cable via 802.3af PoE, with a Wiegand/relay interface for door hardware.
Best For
Flush or surface mount at a main door, lobby or gate with a single access terminal.
Let staff or residents unlock with a phone via Bluetooth or NFC instead of only physical cards.
IP65 weatherproofing suits an external door, gate or car park entry.
Why Choose This Reader
The A03 covers three credential types in one device rather than forcing you to choose between a card reader and a mobile-access system — useful when a site has a mix of staff cards, visitor NFC access and residents who'd rather use their phone. Its 20,000-credential capacity and 100,000-event log put it well ahead of basic single-door readers, and a single PoE cable for both power and data keeps installation straightforward. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | A03-BLE |
| Product Type | IP-based access control terminal (reader + door controller combo) |
| Credential Types | RFID card, NFC (smartphone), Bluetooth (BLE 5.0) wave-to-unlock |
| RFID Frequency | Dual-frequency — 13.56MHz & 125kHz |
| Card/Credential Capacity | Up to 20,000 |
| Event Log Capacity | Up to 100,000 entries |
| Door Interface | Wiegand output, 1 relay output, 2 inputs |
| Network & Power | RJ45 10/100Mbps; 802.3af PoE (12V DC input also supported per some regional datasheets — confirm with our team) |
| IP Rating | IP65 |
| Housing | Toughened glass front panel, aluminium alloy frame |
| Dimensions | ≈86mm × 86mm × 33mm (per manufacturer literature — confirm with our team) |
| Weight | ≈425g (≈0.94lb) |
| Operating Temperature | -20°C to +55°C, 10–90% humidity (non-condensing) |
| Audio | Built-in speaker with tamper-proof alarm |
| Mounting | Flush-mount or surface/wall-mount |
| Management | Web browser configuration; compatible with Akuvox cloud/Smart Access platforms |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
Apartment & Unit Blocks
One terminal at the main entry with resident cards, NFC and phone-based access.
Office & Commercial Entries
High credential capacity suits offices with larger staff numbers and visitor turnover.
Gates & Car Park Entries
IP65 weatherproofing handles exposed outdoor mounting locations.
Upgrading From Card-Only Access
Add mobile and NFC credentials alongside existing RFID cards without replacing the whole system.
FAQs
1. What kinds of credentials does it support?
Three: dual-frequency RFID cards (13.56MHz & 125kHz), NFC via a compatible smartphone, and Bluetooth wave-to-unlock through the Akuvox app.
2. Does it include the door strike, exit button or power supply?
No — this is the access control terminal itself. Door hardware (strike/lock, exit button) and any additional power supply for that hardware are sold separately. Speak with our team about a complete door package.
3. Is it suitable for an outdoor entry?
Yes — it's IP65-rated with a toughened glass front and aluminium alloy frame, suitable for exposed doors, gates and car park entries.
4. How is it powered?
Via 802.3af PoE over a single Ethernet cable, which also carries the network connection for configuration and event logging.
5. Where can I buy this access terminal in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Akuvox stock
- Trade accounts and volume pricing
- Phone support on door hardware & wiring
- Download Spec Sheet
Not sure if this reader suits your door hardware, or what else you'll need to complete the install? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your setup and we will tell you honestly what fits.
