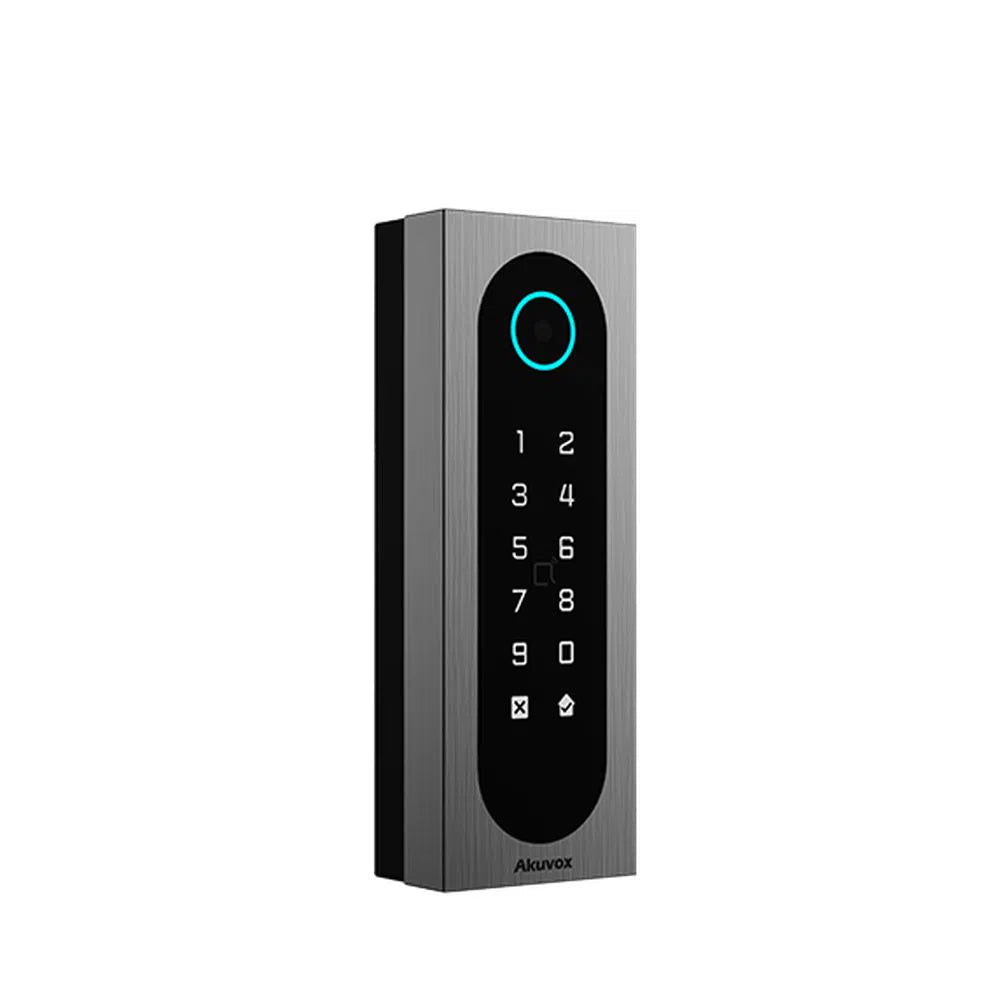

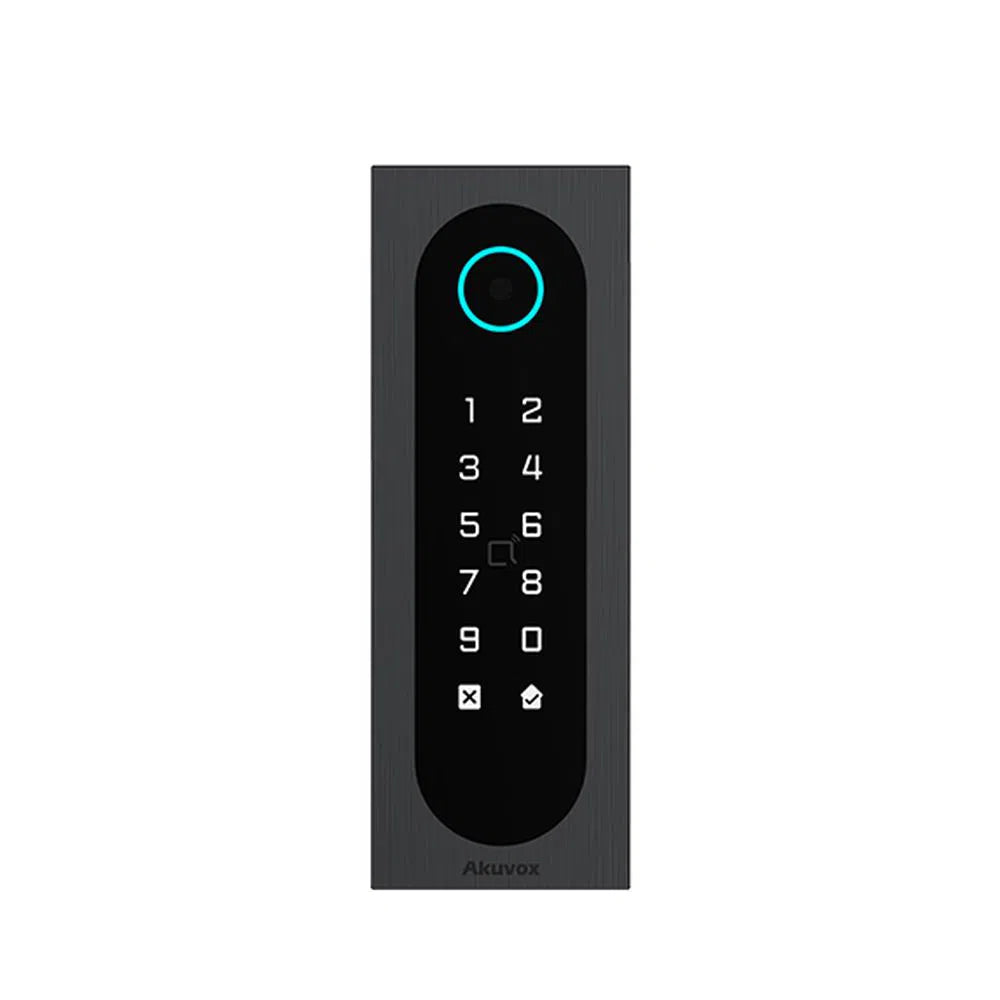

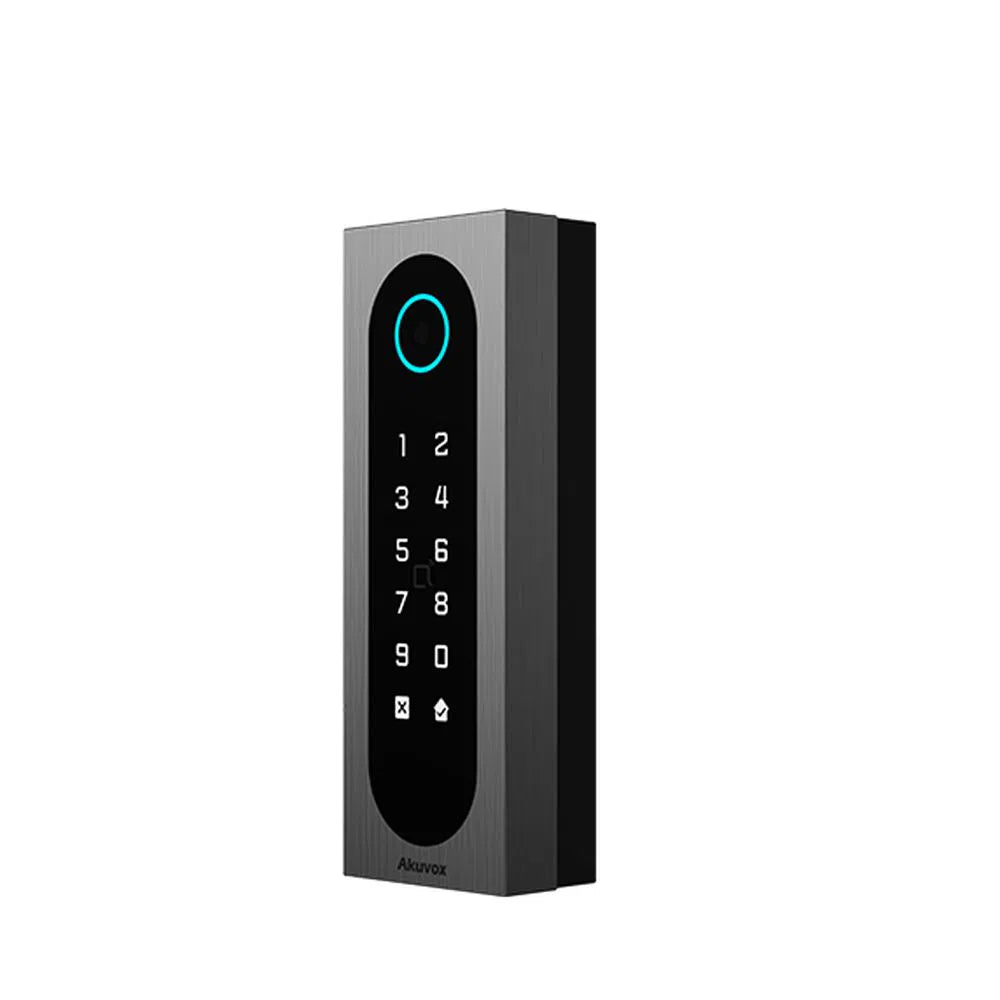

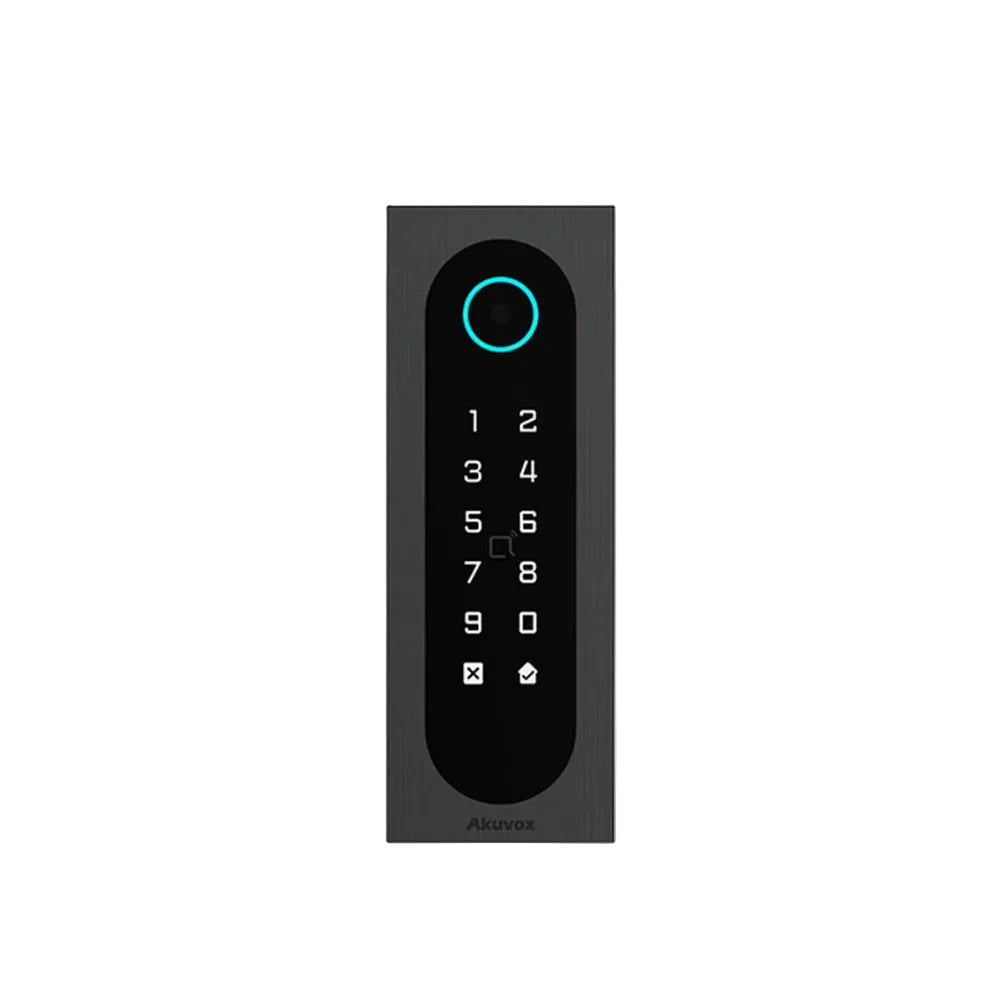

Akuvox A08 Multi-frequency RFID Card Reader
Login to buyIt offers flexible credentials, including PIN code, QR scanning, wave-to-unlock via Bluetooth, mobile access via NFC and RFID cards.
Features
- Front panel: Toughened Glass
- Aluminum alloy frame with toughened glass
- 20,000 card capacity & 100,000 Event Log
- Multi-frequency RFID card reader
- Identification Mode: RFID Card, QR code
- Bluetooth supported
- Water-proof & Dust-proof: IP65
- Installation: Flush-mounted or Wall-mounted
- 802.3af Power-over-Ethernet and 12V DC Connector (if not using PoE)
-
Vendor:
Akuvox
- Tags: New arrival, Offers
- Description
The Akuvox A08K Smart Access Control Terminal, Keypad Version (RF Card + PIN) delivers a secure, streamlined entryway solution engineered for high-efficiency identity verification. Combining dual-frequency RFID card scanning with a tactile PIN keypad, this unit simplifies access management while elevating overall site security. Designed with a sleek, minimalist footprint that accents modern architectural layouts, it offers a dependable access control endpoint suited for both corporate environments and multi-dwelling residential buildings.
Product Overview
The Akuvox A08K is a compact access control terminal purpose-built to unify identity verification and door control hardware in one streamlined housing. Engineered to simplify entrance setups, it cleanly processes credentials, electric lock outputs, and door state signals across a wide range of door configurations.
Featuring integrated IP connectivity, Power over Ethernet (PoE), and dual PIN/card authentication methods, this device gives security installers the flexibility to secure doors efficiently. Supplied by Total Security Equipment, it serves as an economical, robust foundation for scalable access control networks.
Why Choose the A08K
Choose the Akuvox A08K when your facility requires a reliable, budget-friendly access control terminal without redundant digital features. By focusing core functionality on physical RFID credentials and PIN authentication, the A08K offers high entry security at lower hardware costs. Featuring an IP65 weather rating, IK09 vandal resistance, toughened glass front, and web-based administration, the A08K ensures reliable long-term performance across commercial offices, staff entrances, and residential complexes.
Key Capabilities
Dual Authentication Modes
Supports both RFID card reading (13.56 MHz & 125 kHz) and PIN passcode entry, enabling single or two-factor authentication workflows.
PoE & IP Networking
Communicates over Ethernet via TCP/IP and draws power directly over 802.3af PoE, minimizing wiring requirements to a single Cat5e/6 run.
IP65 & IK09 Weather Protection
Built with a dust-tight, water-jet resistant body rated IK09 for high impact protection, ideal for harsh outdoor or perimeter gate installations.
Centralized Remote Management
Allows real-time event logging, configuration backup, and remote administration through standard web portals or Akuvox Cloud / SDMC software.
Third-Party System Integration
Equipped with Wiegand and RS485 interfaces to seamlessly integrate with existing door controllers and third-party security management platforms.
Key Features
- • Multi-Frequency Card Reader: Reads 13.56MHz and 125kHz RFID credentials, maintaining backwards compatibility with legacy proximity cards.
- • Power Over Ethernet (PoE): Eliminates local power supplies by receiving power and data over one network cable (12V DC auxiliary input also supported).
- • Integrated Door Hardware Support: Features 1 lock relay output, 2 digital inputs for exit buttons/door sensors, and 12V 600mA power output for auxiliary accessories.
- • Tamper Alarm Security: Built-in tamper detection triggers immediate system alerts if the unit is forcibly removed or manipulated.
- • Energy-Saving Auto Keypad Wake-Up: Keypad illumination activates automatically upon motion detection, saving energy while ensuring easy night operation.
- • Durable Vandal-Resistant Enclosure: Features toughened glass and aluminum alloy housing with IK09 impact resistance for long service life.
Akuvox A08K vs A08S Comparison
Both models share the same robust hardware core and access control platform. The A08K is the economical baseline version for PIN and card entry, while the A08S adds Bluetooth mobile and QR-code scanning.
| Feature | A08K | A08S |
|---|---|---|
| PIN Keypad | Yes | Yes |
| 125 kHz & 13.56 MHz RFID Cards | Yes | Yes |
| NFC Credentials | Yes (firmware dependent) | Yes |
| Bluetooth Mobile Access | No | Yes |
| QR-Code Access | No | Yes |
| Lock Relay / Inputs | 1 Relay / 2 Inputs | 1 Relay / 2 Inputs |
| Wiegand & RS485 Interfaces | Yes | Yes |
| Power Options | PoE or 12V DC | PoE or 12V DC |
| Weather & Vandal Rating | IP65, IK09 | IP65, IK09 |
Key Features & Technical Specifications
| Front Panel | Toughened Glass |
| Frame Material | Aluminum Alloy |
| RFID Card Frequencies | 13.56 MHz & 125 kHz |
| Relay Outputs / Inputs | 1 Relay Output / 2 Inputs |
| Communication Interfaces | Wiegand & RS485 Supported |
| Audio Speaker | 8Ω / 0.5W Built-in Speaker |
| Tamper Protection | Tamper Proof Alarm Supported |
| Ethernet Port | RJ45, 10/100 Mbps Adaptive |
| Power Options | PoE (802.3af) or 12V DC Connector |
| Power Output | 12V DC, up to 600mA |
| Protection Ratings | IP65 (Weatherproof) & IK09 (Vandal Resistant) |
| Mounting Options | Surface-mounted or Flush-mounted |
| Dimensions | 50 × 140 × 26.7 mm |
| Operating Temperature | -20°C to +55°C |
| Network Protocols | IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP |
Ideal Use Cases
Corporate Office Buildings
Control employee entry to primary doors or restricted interior zones using keycard or PIN credentials.
Apartment & Condo Complexes
Provide residents with secure key fob and keypad entry at common doors, lobbies, and amenity spaces.
Industrial Facilities & Gates
Deploy on exposed external doors or entry gates with confidence thanks to IP65 water and IK09 vandal protection.
Staff & Service Entrances
Economical terminal option for secondary doors where temporary guest QR codes are not required.
