SKU:S539

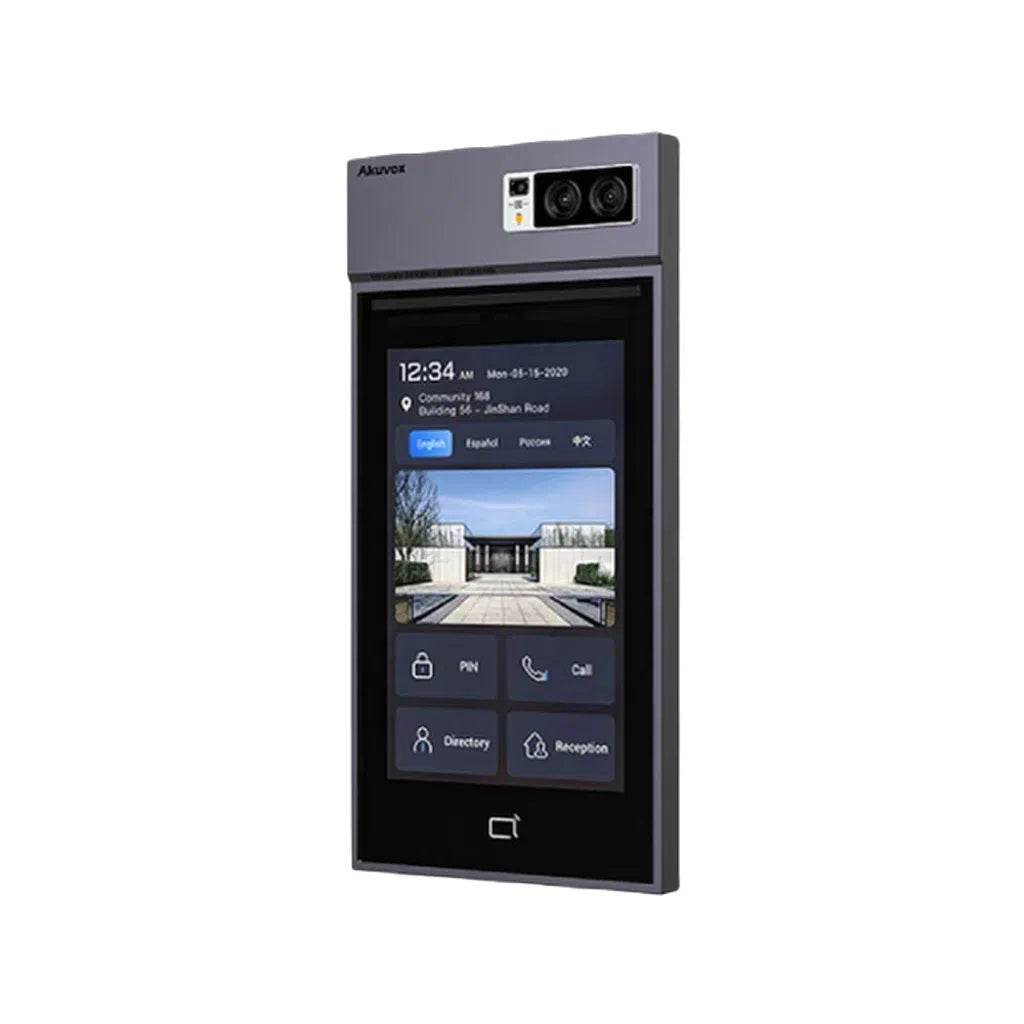

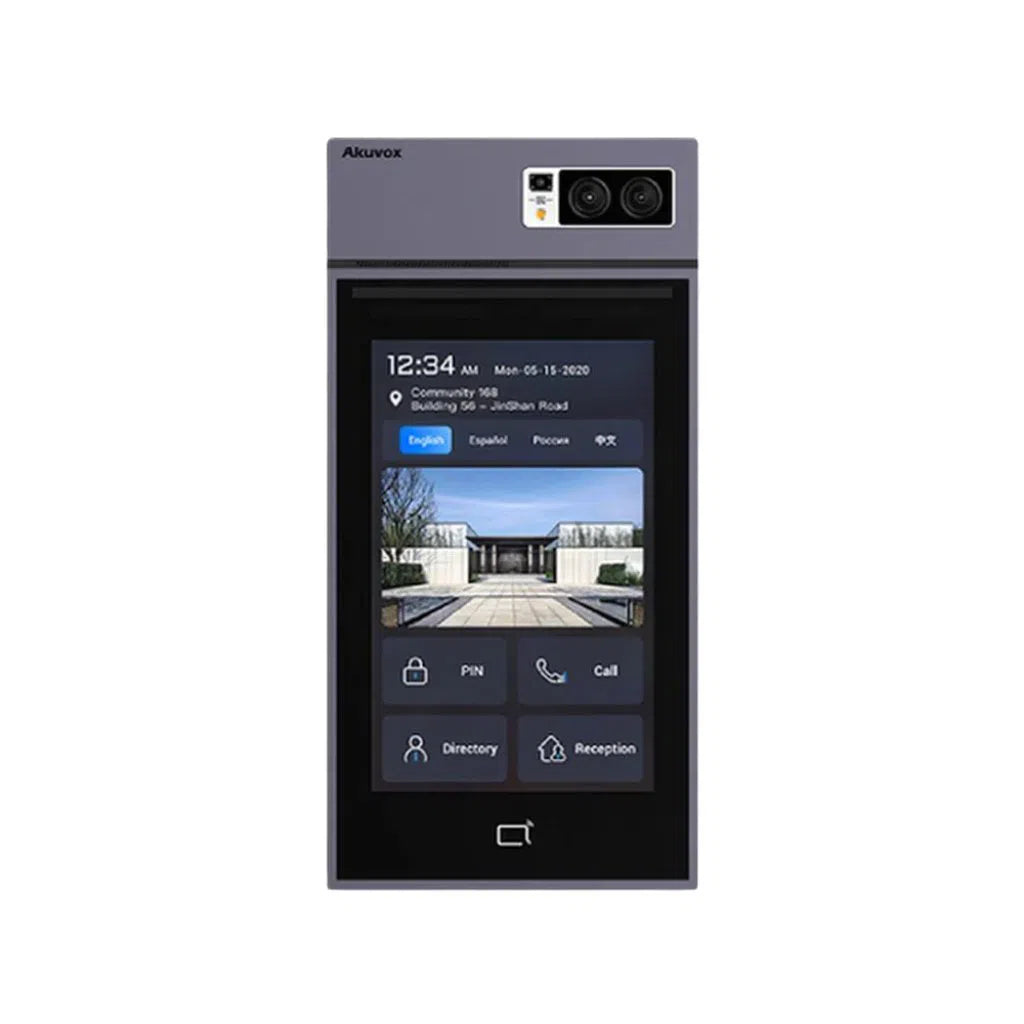

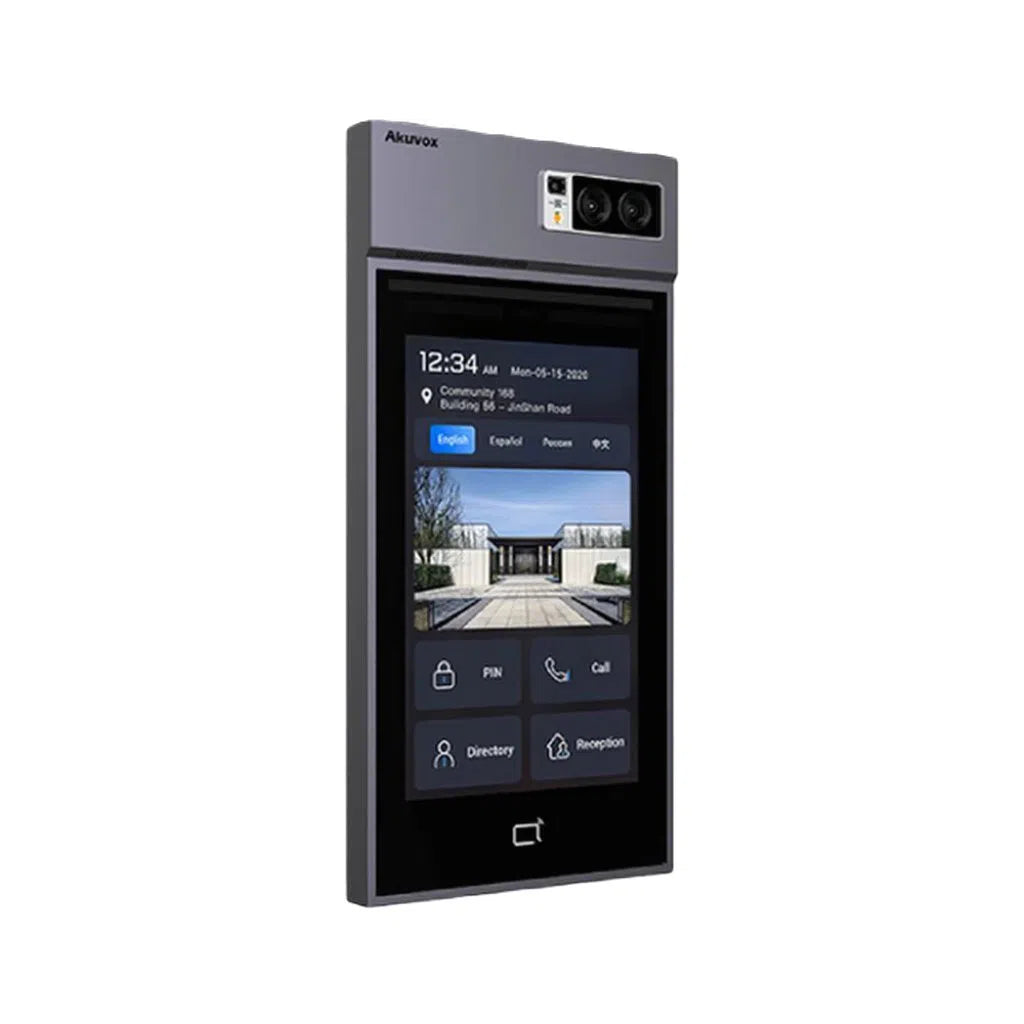

Akuvox S539 IP 10" Android Video Door Phone
Login to buyEquipped with innovative features, it allows for complete customization to manage tenant and visitor access in various settings, from apartment buildings to industrial facilities.
Key Features:
Enhanced Security & Performance:
Main camera with built-in HDR mode for clear identification in challenging lighting conditions.
Superior facial recognition technology:
- High accuracy (>99%) for reliable identification.
- Fast processing speed (<0.2 seconds per person) for seamless entry.
- Low false recognition rate (<0.1%) for enhanced security.
Intuitive User Experience:
- Large, 10-inch, full-color touch display with ultra-wide viewing angles for clear information presentation.
- User-friendly interface with customizable options for tenant/visitor navigation
Seamless Communication and Integration:
- SIP support for reliable two-way voice and video communication.
- ONVIF compliance for easy integration with existing network surveillance systems.
Flexible Customization:
- Ability to tailor information and user navigation options to your specific needs (details omitted for brevity).
-
Vendor:
Akuvox
- Tags: Offers
- Description
Product Overview
The Akuvox S532 is a high-performance Linux-based SIP video door phone designed to deliver versatile access control and crystal-clear IP communication. Featuring a 2.8-inch color LCD display and an integrated physical numeric keypad, it provides an easy-to-use interface for PIN entry, directory navigation, and visitor interaction across residential, commercial, and multi-tenant environments.
Built with an IP66 weatherproof and IK08 impact-resistant aluminum die-cast body, the S532 is engineered for demanding outdoor installations. It features a 2MP wide-angle camera (130° H / 90° V), multi-card RFID/NFC reading, Bluetooth authentication, and dual relay outputs for locking control. Additionally, it offers exceptional retrofit flexibility, allowing seamless upgrades from legacy analog systems to modern IP networks without complex rewiring. Supplied directly through Total Security Equipment.
Key Capabilities
2.8" Color LCD & Keypad
Combines a clear 2.8-inch screen with a physical numeric keypad for PIN authentication, menu navigation, and direct unit dialing.
Multi-Access Authentication
Supports contactless RFID & NFC card access (13.56 MHz & 125 kHz), secure PIN codes, and mobile Bluetooth entry options.
Wide-Angle 2MP Video
Equipped with a 2-megapixel camera delivering (~130° H x ~90° V) ultra-wide coverage to ensure full visual recognition of incoming visitors.
Analog Retrofit Upgrade
Designed with conversion capability to bridge older analog intercom wiring into a modern IP network, eliminating costly cable overhauls.
IP66 & IK08 Rugged Build
Constructed with die-cast aluminum housing offering heavy-duty protection against severe weather, rain, dust, and physical impact.
Flexible Mounting & Power
Supports both surface and flush installation options, powered conveniently via standard 802.3at PoE+ or a 12V DC auxiliary supply.
Best For
The ultimate replacement unit for updating older legacy analog door stations to modern IP systems without rewiring.
Provides residents with PIN access, RFID keyfob credentials, and direct keypad dialing for incoming guests.
Supports employee Bluetooth/NFC entry while allowing visitors to contact specific offices or reception.
Features IP66 weatherproofing and IK08 vandal resistance for exposed exterior doors and perimeter gates.
Why Choose the S532
The Akuvox S532 acts as an essential bridge between classical analog door stations and modern IP intercom ecosystems. Rather than requiring costly full-building recabling, it integrates seamlessly into existing infrastructure while granting modern security advantages—such as Bluetooth smartphone entry, wide-angle 2MP camera views, and open SIP connectivity. Sourced directly through Total Security Equipment, it blends durable metal construction with multi-factor authentication in a compact footprint.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | Akuvox S532 |
| Operating System | Linux |
| Display | 2.8" Color LCD Screen |
| Integrated Keypad | Physical Numeric Keypad for PIN Code Access |
| Camera Specs | 2 MP Wide-Angle Camera (~130° H x ~90° V) |
| Authentication Methods | PIN Code, RFID / NFC Cards (125 kHz & 13.56 MHz), Bluetooth |
| Communication Protocol | SIP Protocol (IP Intercom & VoIP Networks) |
| Protection & Durability | IP66 Weatherproof / IK08 Vandal Impact Resistance |
| Power Supply | PoE+ (802.3at) or 12 V DC Input |
| Relay Outputs | 2 Independent Relays (Door Strikes / Auxiliary Gate Control) |
| Installation Type | Surface Mount & Flush Mount Supported |
Ideal Use Cases
Residential Complex Entrances
Delivers secure PIN and card entry for residents alongside multi-unit dialing for guest arrivals.
Commercial Office Entrances
Enables flexible employee access using Bluetooth or RFID badges with standard SIP voice/video routing.
Retrofit Intercom Upgrades
Replaces older analog door terminals through integrated conversion mechanisms without full building rewiring.
Exposed Outdoor Gates
Offers IP66 weatherproofing and die-cast aluminum IK08 impact resistance for outdoor perimeter barriers.
Choosing the Right Model
Choose this model (S532) if…
- You are upgrading an older analog intercom system to IP without replacing existing building cabling.
- You require a physical numeric keypad alongside a compact 2.8" screen and multi-access reading (PIN, RFID, NFC, BLE).
- You need high IP66 and IK08 outdoor durability in an aluminum die-cast body.
Choose a different model if…
- You want a large full-screen touch interface & facial recognition. Consider flagship touchscreen terminals like the Akuvox R29C-L.
- You only need simple direct physical call buttons for 5 units. Look at dedicated multi-button door phones such as the Akuvox R20BX5.
FAQs
1. Can the S532 work with existing analog systems?
Yes, the S532 supports integration with older analog systems via built-in conversion mechanisms, enabling phased upgrades without full rewiring while retaining core communication functions.
2. What access methods does the S532 support?
This door phone supports PIN codes via the physical keypad, contactless RFID/NFC cards (125 kHz & 13.56 MHz), and mobile Bluetooth credentials.
3. Is the S532 suitable for exposed outdoor installation?
Yes, featuring an aluminum die-cast body with IP66 weatherproofing and IK08 impact resistance, the S532 is built to withstand heavy outdoor weather and physical wear.
4. How are door locks controlled by the unit?
The unit features two independent relay outputs to trigger electric door strikes, magnetic locks, or automated vehicular gates directly.
5. How is the S532 powered?
It offers flexible power options, supporting standard Power-over-Ethernet Plus (802.3at PoE+) or an auxiliary 12V DC power input.
6. Where can I purchase genuine Akuvox door phones and accessories?
Genuine Akuvox door phones, mounting kits, and professional technical advice are provided directly through Total Security Equipment.
