SKU:CP736B

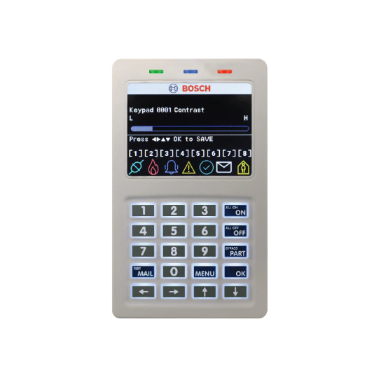

BOSCH 6000 Smart Keypad CP736B
- Designed for the Bosch 6000
- Customizable Installer banner display
- 3.5” Color graphical display with LED backlight
- 40bit MiFare smart card reader built-in
- Alpha-numeric text prompting/programming
-
Vendor:
Bosch
- Specifications
Connectivity
Connectivity Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported
Electrical
Power +12VDC, 110mA Max (LAN powered +9VDC – +16VDC)
Environmental
Operating temperature (°C) 0 °C – 55 °C
Operating relative humidity, non-condensing (%) 5% – 85%
Mechanical
Color White
Dimension (H x W x D) (mm) 149 mm x 88 mm x 21.5 mm
Colour Display
