SKU:C313W-2

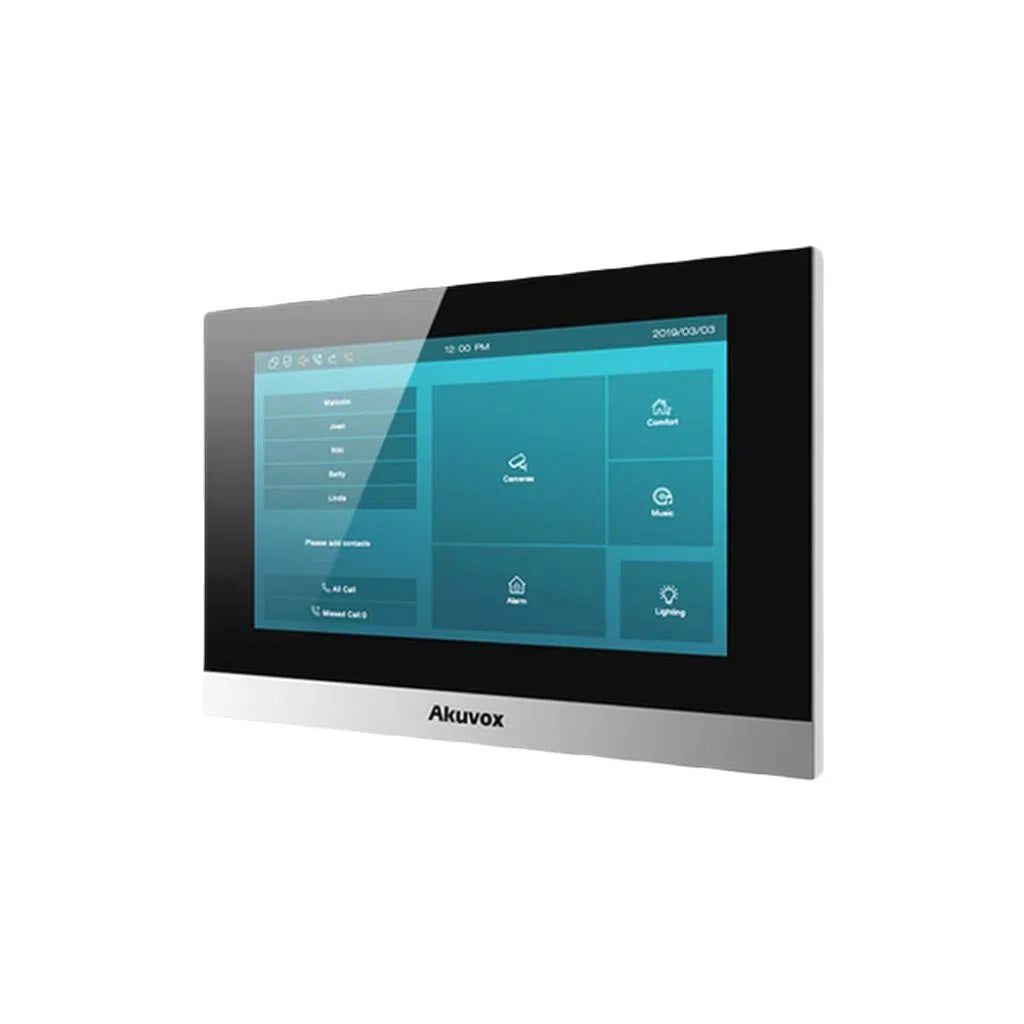

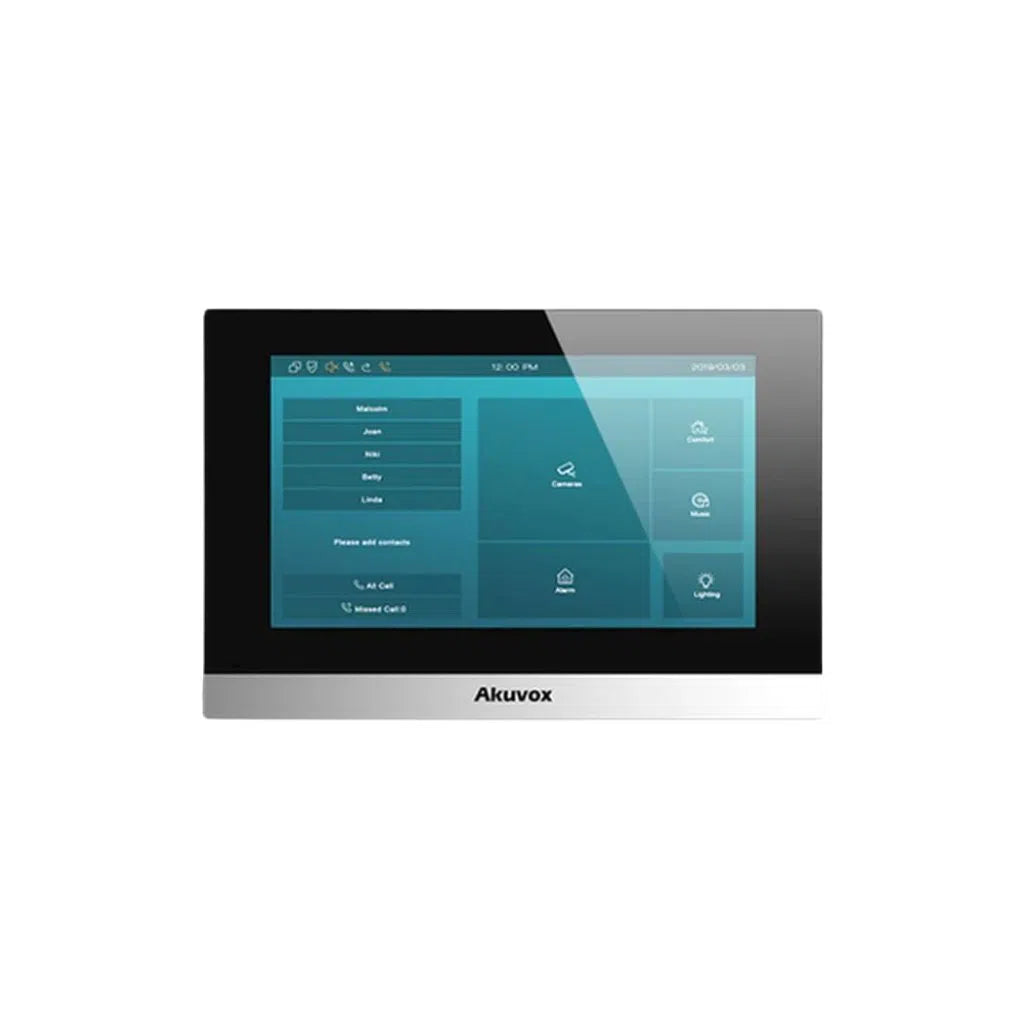

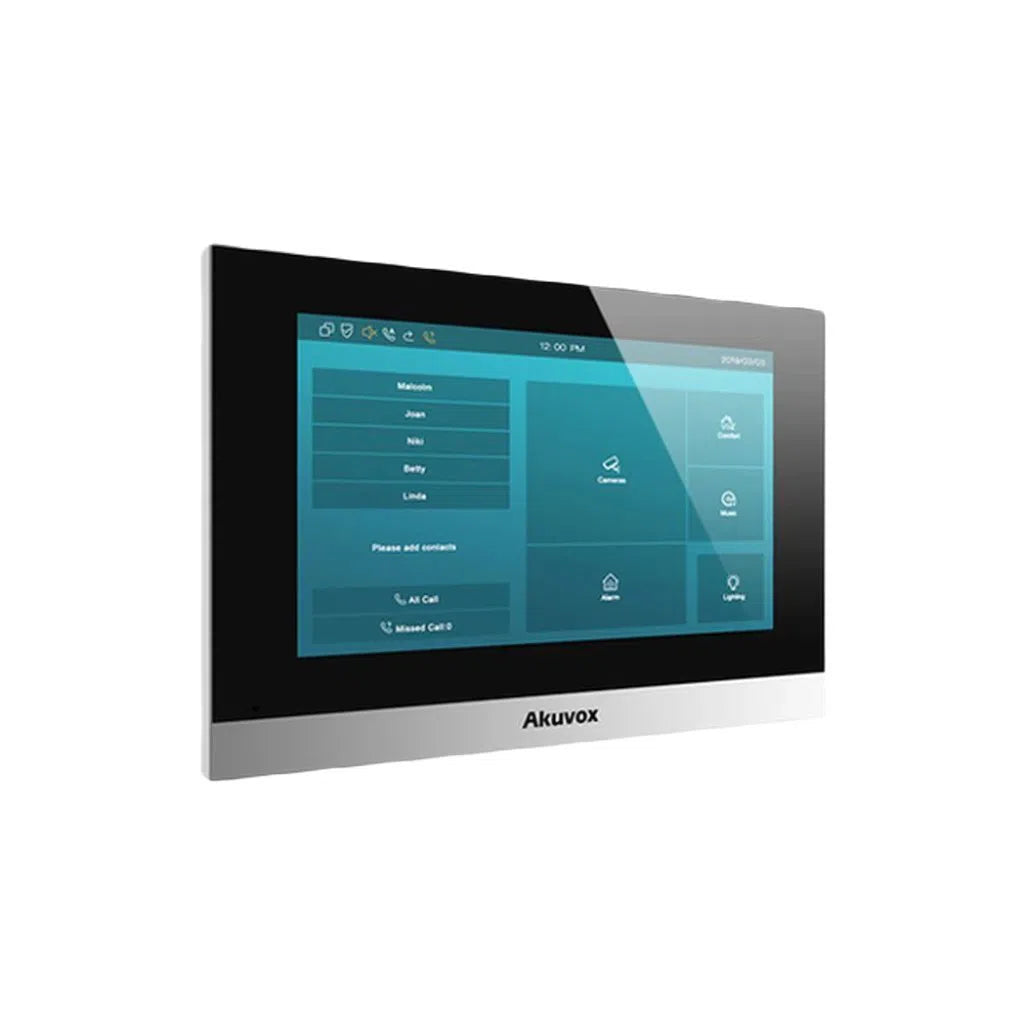

Akuvox C313W-2 2-Wire SIP Indoor Monitor
Login to buyFeatures:
- Super long transmission distance via 2-wire cable
- 7" Capacitive touch screen
- Linux
- Bluetooth and Wireless feature
- Support US or European electrical wall box mounting
- Powered by NS-2 or external source
- Support connection with R20A-2 or NS-2 by 2-wire cable
Effortless Communication:
- High-Quality Video and Audio: See and talk to visitors clearly with a stunning 7-inch capacitive touchscreen display.
- Seamless Integration: Works flawlessly with existing door phone systems using SIP 2.0 protocol for a smooth transition.
- Long-Distance Communication: Enjoy reliable communication with door phones even over long distances thanks to the super long transmission distance via 2-wire cable.
-
Vendor:
Akuvox
- Tags: 7" touch screen, Linux os
- Description
Product Overview
The Akuvox C313W-2 is a sophisticated 2-wire SIP indoor answering monitor designed to modernise residential and commercial access control systems using existing cabling infrastructure. Featuring a compact 7-inch capacitive touchscreen with an 800 x 480 resolution display, it blends seamlessly into contemporary apartment interiors and home automation setups. Powered by a stable Linux operating system, it provides crisp two-way audio and real-time SIP video verification with door stations before granting entryway access.
Engineered specifically for retrofit applications, the C313W-2 supports long-distance 2-wire data and power transmission up to 300 metres, eliminating the cost and labor of pulling new network cabling. It comes equipped with built-in 2.4GHz Wi-Fi and Bluetooth connectivity, 8 alarm input zones, an RS485 port, and an energy-saving standby mode. Supplied directly through Total Security Equipment.
Key Capabilities
2-Wire Retrofit Infrastructure
Transmits data and power over legacy 2-wire cabling up to 300 metres, ideal for upgrading older intercom installations without rewiring.
7" Capacitive Touch Display
Delivers responsive touch control and clear 800 x 480 visual feeds from SIP door stations for fast visitor verification.
Integrated Wi-Fi & Bluetooth
Built-in 2.4GHz Wi-Fi and Bluetooth provide flexible network integration and wireless connection with peripheral smart devices.
8 Alarm Zone Inputs
Features 8 dedicated alarm inputs, 1 bell input, 1 relay output, and RS485 for connecting local security sensors and door triggers.
Linux Platform Reliability
Operates on a lightweight, secure Linux OS optimized for high uptime, low latency, and efficient energy consumption.
Remote Web Management
Supports web-based administration for effortless remote configuration, firmware updates, and maintenance monitoring.
Best For
Upgrades legacy intercom networks in multi-dwelling units using pre-existing 2-wire lines.
Delivers IP video door answering capabilities without running new Cat5/Cat6 cables through solid walls.
Significantly cuts labor costs and project timelines by reusing existing infrastructure.
Acts as a central unit for monitoring up to 8 hardwired security sensors or emergency buttons.
Why Choose the C313W-2
The Akuvox C313W-2 solves the challenge of modernising legacy intercoms by bridging traditional 2-wire physical infrastructure with modern IP and SIP communication. Capable of sending video, audio, and power over long cable runs up to 300m, it combines an intuitive 7" display with wireless Wi-Fi and Bluetooth functionality for a flexible, cost-effective security solution. Sourced directly through Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | Akuvox C313W-2 (2-Wire Edition) |
| Operating System | Linux OS |
| Display Panel | 7" TFT LCD Capacitive Touchscreen (800 x 480 Resolution) |
| Memory | 64MB RAM / 128MB ROM |
| Transmission Distance | Up to 300 metres over 2-wire connection |
| Wireless & Network | Wi-Fi 2.4GHz (802.11 b/g/n) | Bluetooth | 1x RJ45 10/100 Mbps Port |
| Audio Codecs | G.711a, G.711μ, G.729, G.722 |
| Video Codec | H.264 |
| I/O Interfaces | 8x Alarm Inputs | 1x Bell Input | 1x Relay Output | RS485 |
| Power Supply | Akuvox NS-2 Switch or 48V DC External Power |
| Dimensions & Mount | 200.2 x 132.2 x 27.2 mm | Wall-Mounted & Desktop Support |
Ideal Use Cases
Apartment & MDU Upgrades
Modernises older multi-dwelling intercom systems into SIP video-enabled platforms without disturbing existing building wiring.
Long-Distance Cable Runs
Maintains high audio/video quality across large villas or expansive properties with wire runs up to 300 metres.
Smart Home Ecosystem Linkage
Connects wirelessly via built-in Wi-Fi and Bluetooth to simplify home network integration and access monitoring.
Integrated Security Zone Hub
Monitors up to 8 hardwired security zones directly from the panel, triggering local notifications and relay outputs.
Choosing the Right Model
Choose this model (C313W-2) if…
- You are retrofitting an installation using existing 2-wire cabling.
- You prefer a compact 7-inch display footprint on a stable Linux platform.
- You want built-in Wi-Fi and Bluetooth without needing to pull Cat5/6 Ethernet cable.
Choose a different model if…
- You have IP Cat5/Cat6 cabling. Choose the standard Akuvox C313S or C313W standard IP models.
- You need a larger Android screen. Consider the 10" Akuvox S567 with Android 12 for third-party apps.
FAQs
1. Can the C313W-2 be installed using existing wiring?
Yes, the Akuvox C313W-2 is specifically engineered for 2-wire retrofits, permitting complete reuse of existing intercom cabling commonly found in older villas and apartments.
2. How far can data and power transmit over 2-wire cabling?
The C313W-2 supports long-distance transmission up to 300 metres over 2-wire lines, making it suitable for large residential buildings.
3. Does this monitor support wireless connectivity?
Yes, it features integrated 2.4GHz Wi-Fi and Bluetooth support for flexible network communication and smart device integration.
4. Is remote management and maintenance supported?
Yes, administrators can perform remote configuration, firmware updates, and system diagnostics through its web-based management portal.
5. What power supply options are compatible with the C313W-2?
It can be powered via an Akuvox NS-2 2-wire distributor/switch or an external 48V DC power supply.
6. Where can I buy genuine Akuvox products in Australia?
Genuine Akuvox intercoms and indoor monitors are supplied directly through Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Hikvision Australian stock
- Compatible NVRs, brackets and junction boxes in stock
- Trade accounts and volume pricing
- Phone support on framing, zone setup and NVR compatibility
- Download Spec Sheet
Not sure whether you need the motorised zoom or whether a fixed-lens deterrence bullet would do? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe the position and we will tell you honestly which model fits.
