SKU:CC610GWF
Bosch Alarm 6000 Upgrade kit (PCB & Wifi Keypad) - CC610GWF
Login to buyThe Solution 6000 Access and Intrusion alarm panel offers an extensive feature list including integrated proximity, numerous wire free options, high speed windows programming software and the simplest user / installer interface on the market today.
Features
- 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
- Integrated access control for up to 16 doors
- Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
- 5 on-board outputs (expandable to 37)
- GSM/GPRS and Ethernet options
-
Vendor:
Bosch
- Description
Product Overview

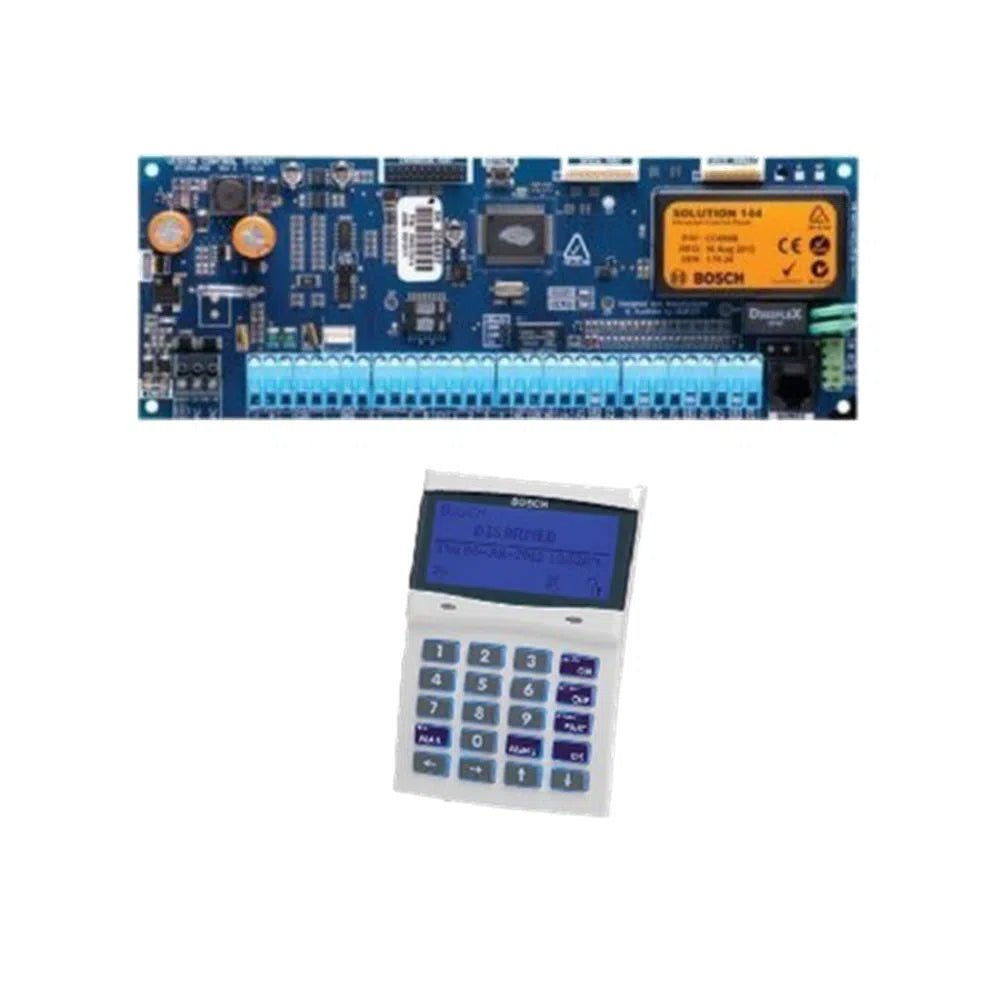

The Bosch Solution 6000 Upgrade Kit (CC610GWF) is the electronic core of a Bosch Solution 6000 system — a control panel PCB paired with a white CP737B WiFi graphic keypad. Built for installers upgrading an existing Solution 6000 enclosure or assembling a new commercial-grade install, this kit starts at 16 onboard zones and scales all the way to 144 zones with integrated access control for up to 16 doors.
Unlike our standard CC610GWP smart card kit, the CP737B keypad in this kit has built-in 802.11 b/g/n WiFi as well as an integrated smart card/proximity reader — giving installers IP connectivity for monitoring and remote access straight out of the keypad, without needing to add a separate IP module. This is a PCB and keypad kit only — it does not include an enclosure, battery, external power supply, or siren. Supplied directly through Total Security Equipment.
Key Capabilities
Built-In WiFi Keypad
The CP737B keypad has 802.11 b/g/n WiFi built in for IP connectivity without an extra module.
16 to 144 Zones
16 zones onboard, expandable to 144 zones (wired or wireless) for larger commercial installs.
Up to 8 Partitioned Areas
Split the system into up to 8 independently armed areas for multi-tenant or multi-zone sites.
Integrated Access Control
Access control for up to 16 doors built into the same panel, alongside intrusion detection.
990 Users
Supports up to 990 users via PIN, token, keyfob, or fingerprint credentials.
Smart Card Reader Built In
The keypad also has a 40-bit MiFare smart card/proximity reader built in alongside the WiFi.
What's Included in the Kit
Best For
Built-in WiFi means IP connectivity without sourcing a separate module.
Replacing the PCB and keypad in an existing Solution 6000 enclosure.
Up to 8 partitions and 144 zones suit larger, more complex sites than a residential kit.
Installers wanting door access control and alarm monitoring from one panel.
Why Choose the WiFi Keypad Upgrade Kit
This kit uses the same Solution 6000 control panel PCB as our standard CC610GWP kit, but pairs it with the CP737B keypad, which has WiFi and a smart card reader built in. That means IP-based reporting, app control options, and remote monitoring are available straight from the keypad — a genuinely useful upgrade for sites where you know you'll want IP connectivity, without paying for and fitting a separate module later. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | CC610GWF |
| Product Type | Control panel PCB + WiFi graphic keypad (upgrade/retrofit kit, no enclosure) |
| Control Panel PCB | Bosch Solution 6000 (CC610PB); PCB ≈235mm(W) × 85mm(H) × 40mm(D) |
| Zones | 16 onboard, expandable to 144 (wired or wireless) |
| Partitioning | Up to 8 separate areas |
| Users | Up to 990, via PIN, token, keyfob, or fingerprint |
| Outputs | 5 onboard, expandable to 37 |
| Access Control | Integrated, up to 16 doors |
| Keypad | CP737B, white, 3.5" colour graphic LCD display with LED backlight, built-in 802.11 b/g/n WiFi, built-in 40-bit MiFare smart card/proximity reader, alphanumeric text prompting, touch tone & backlit keys |
| Communications | CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP — IP connectivity via the keypad's built-in WiFi module |
| Power Input | 16–18V AC via external transformer, or 220–240V AC to 18V AC via internal transformer; 10.2VDC operating voltage; 1A continuous / 4A alarm max |
| Backup Battery (Compatible, Not Included) | Bosch 12V 7.2Ah sealed rechargeable battery |
| Operating Environment | 0°C to +55°C, 5%–85% RH non-condensing |
| Enclosure, Battery, PSU, Siren | Not included — sold separately (compatible enclosures: MW720B/MW730B) |
| Warranty | ≈3-year Bosch factory warranty (confirm current term with our team) |
Ideal Use Cases
IP Monitoring & App Control
Sites that want remote monitoring or app access without a separate IP module.
Existing Solution 6000 Sites
Swap in a fresh PCB and WiFi keypad without replacing the enclosure or wiring.
Offices & Commercial Premises
Combined access control and intrusion detection across multiple doors and areas.
Multi-Tenant Buildings
Up to 8 partitions let separate tenants or zones arm independently.
Choosing the Right Kit
Choose this kit (CC610GWF) if…
- You want built-in WiFi/IP connectivity without adding a separate module.
- You're upgrading an existing Solution 6000 enclosure with a fresh PCB and keypad.
- You need more than 16 zones, more than 2 partitions, or integrated door access control.
Choose a different kit if…
- You don't need WiFi/IP connectivity. Ask our team about the lower-cost CC610GWP kit with the standard smart card keypad.
- You want a complete boxed system, ready to install. Ask our team about the Bosch Solution 2000 or Solution 3000 residential kits.
- You only need basic intrusion detection for a home. A Solution 2000/3000 kit is likely simpler and more cost-effective.
FAQs
1. Does this keypad really have WiFi built in, or do I need a separate module?
The CP737B keypad in this kit has 802.11 b/g/n WiFi built in, so IP connectivity is available without adding a separate module.
2. Does this kit include an enclosure, battery, or power supply?
No — this kit includes only the control panel PCB and keypad, plus mounting hardware, a resistor pack, and manuals. The enclosure, battery, external power supply, and siren are sold separately.
3. What's the difference between this kit and the CC610GWP kit?
Both use the same Solution 6000 panel. This kit's CP737B keypad adds built-in WiFi alongside its smart card reader, while the CC610GWP kit's CP736B keypad has the smart card reader only, without WiFi.
4. How many zones and areas does this panel support?
16 zones onboard, expandable to 144, with partitioning into up to 8 separate areas.
5. Where can I buy the Bosch Solution 6000 WiFi Upgrade Kit in Australia?
It's available directly from Total Security Equipment.
