SKU:CC610GWP

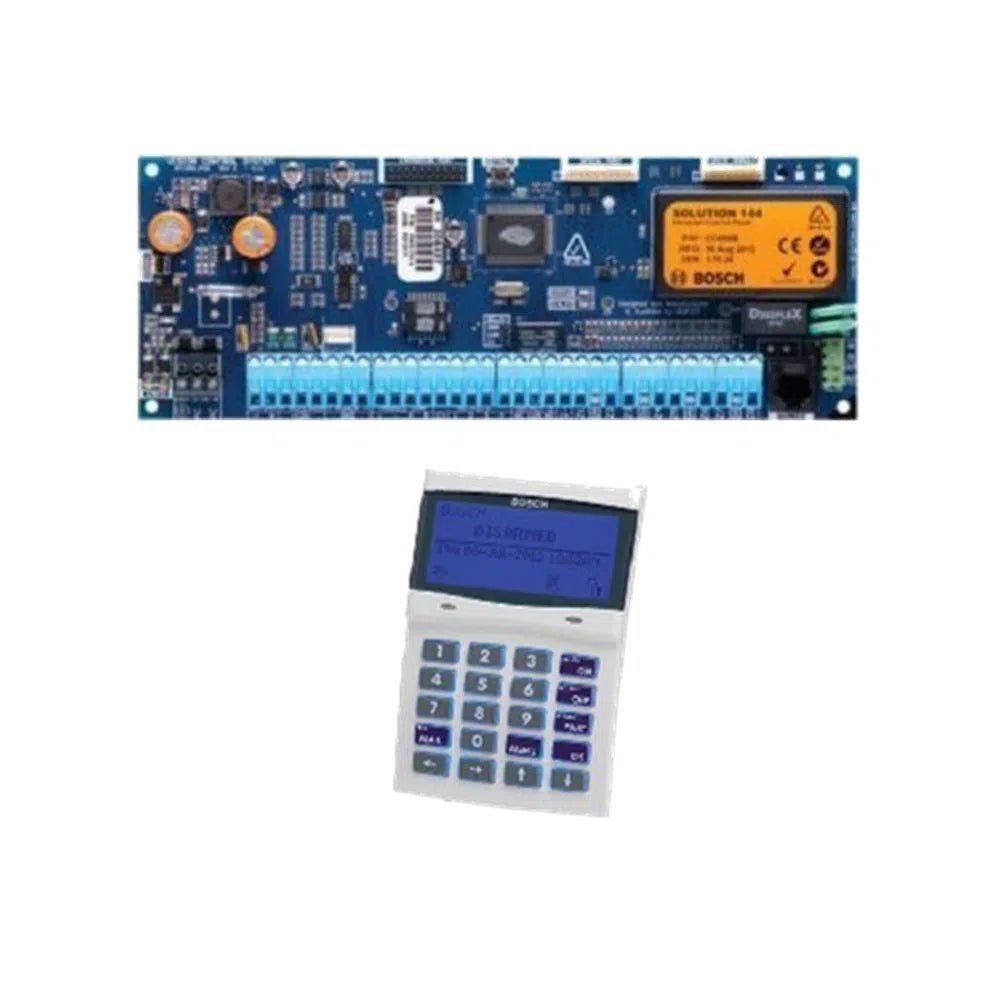

Bosch Alarm 6000 Upgrade kit (PCB & Graphic Keypad) - CC610GWP
Login to buyThe Solution 6000 Access and Intrusion alarm panel offers an extensive feature list including integrated proximity, numerous wire free options, high speed windows programming software and the simplest user / installer interface on the market today.
Features
- 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
- Integrated access control for up to 16 doors
- Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
- 5 on-board outputs (expandable to 37)
- GSM/GPRS and Ethernet options
-
Vendor:
Bosch
- Description
Product Overview
The Bosch Solution 6000 Upgrade Kit (CC610GWP) is the electronic core of a Bosch Solution 6000 system — a control panel PCB paired with a white CP736B smart card graphic keypad. Built for installers upgrading an existing Solution 6000 enclosure or assembling a new commercial-grade install, this kit starts at 16 onboard zones and scales all the way to 144 zones with integrated access control for up to 16 doors.
This is a PCB and keypad kit only — it does not include an enclosure, battery, external power supply, or siren. It's designed to slot into an installer's existing cabinet and power setup, or to be specified alongside those components separately. Supplied directly through Total Security Equipment.
Key Capabilities
16 to 144 Zones
16 zones onboard, expandable to 144 zones (wired or wireless) for larger commercial installs.
Up to 8 Partitioned Areas
Split the system into up to 8 independently armed areas for multi-tenant or multi-zone sites.
Integrated Access Control
Access control for up to 16 doors built into the same panel, alongside intrusion detection.
990 Users
Supports up to 990 users via PIN, token, keyfob, or fingerprint credentials.
3.5" Colour Smart Card Keypad
The included CP736B keypad has a 3.5" colour graphic display with an integrated smart card/proximity reader.
5 to 37 Outputs
5 onboard outputs, expandable to 37 — enough for sirens, strobes, and door hardware across larger sites.
What's Included in the Kit
Best For
Replacing the PCB and keypad in an existing Solution 6000 enclosure.
Up to 8 partitions and 144 zones suit larger, more complex sites than a residential kit.
Installers wanting door access control and alarm monitoring from one panel.
Installers sourcing their own enclosure, battery, and power supply to suit the site.
Why Choose the Bosch Solution 6000 Upgrade Kit
The Solution 6000 platform is Bosch's step up from the Solution 2000/3000 range, built for sites that need more zones, more partitions, and integrated access control rather than intrusion detection alone. Buying the PCB and keypad as an upgrade kit keeps costs down for installers who already have a suitable enclosure and power supply, or who are specifying those components to match the site. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | CC610GWP |
| Product Type | Control panel PCB + graphic smart card keypad (upgrade/retrofit kit, no enclosure) |
| Control Panel PCB | Bosch Solution 6000 (CC610PB) |
| Zones | 16 onboard, expandable to 144 (wired or wireless) |
| Partitioning | Up to 8 separate areas |
| Users | Up to 990, via PIN, token, keyfob, or fingerprint |
| Outputs | 5 onboard, expandable to 37 |
| Access Control | Integrated, up to 16 doors |
| Keypad | CP736B, white, 3.5" colour graphic display, integrated smart card/proximity reader; ≈149mm(H) × 88mm(W) × 21.5mm(D); +12VDC, 110mA max; 0°C–55°C, 5%–85% RH non-condensing |
| Communications | CID, SIA, and GSM-SMS text reporting standard; GSM/GPRS and Ethernet connectivity options available (confirm module requirements with our team) |
| Power Input | 16–18V AC via external transformer, or 220–240V AC to 18V AC via internal transformer; 10.2VDC operating voltage; 1A continuous / 4A alarm max |
| Backup Battery (Compatible, Not Included) | Bosch BA 12V 7.2Ah |
| Enclosure, Battery, PSU, Siren | Not included — sold separately |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
Existing Solution 6000 Sites
Swap in a fresh PCB and keypad without replacing the enclosure or wiring.
Offices & Commercial Premises
Combined access control and intrusion detection across multiple doors and areas.
Multi-Tenant Buildings
Up to 8 partitions let separate tenants or zones arm independently.
Custom-Built Installs
Installers who prefer to specify their own enclosure, battery, and power supply.
Choosing the Right Kit
Choose this kit (CC610GWP) if…
- You're upgrading an existing Solution 6000 enclosure with a fresh PCB and keypad.
- You need more than 16 zones, more than 2 partitions, or integrated door access control.
- You're sourcing your own enclosure, battery, and power supply for a new install.
Choose a different kit if…
- You want a complete boxed system, ready to install. Ask our team about the Bosch Solution 2000 or Solution 3000 residential kits.
- You only need basic intrusion detection for a home. A Solution 2000/3000 kit is likely simpler and more cost-effective.
- You want wireless PIR detectors included. Ask our team about the Solution 3000 wireless kits.
FAQs
1. Does this kit include an enclosure, battery, or power supply?
No — this kit includes only the control panel PCB and keypad, plus mounting hardware, a resistor pack, and manuals. The enclosure, battery, external power supply, and siren are sold separately.
2. How many zones and areas does this panel support?
16 zones onboard, expandable to 144, with partitioning into up to 8 separate areas.
3. Can this panel control door access as well as the alarm?
Yes — it has integrated access control for up to 16 doors alongside standard intrusion detection.
4. What battery does this panel use for backup power?
It's designed for a Bosch BA 12V 7.2Ah battery, sold separately. Confirm with our team for the correct battery to add to your order.
5. Where can I buy the Bosch Solution 6000 Upgrade Kit in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Bosch Australian stock
- Enclosures, batteries, PSUs, and sirens available to complete your install
- Trade accounts and volume pricing
- Phone support on system design, zones, and access control planning
- Download Spec Sheet
Not sure whether you need the full enclosure, battery, and power supply alongside this PCB kit? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your site and we will tell you honestly what fits.
