SKU:CP1208-16A-4K

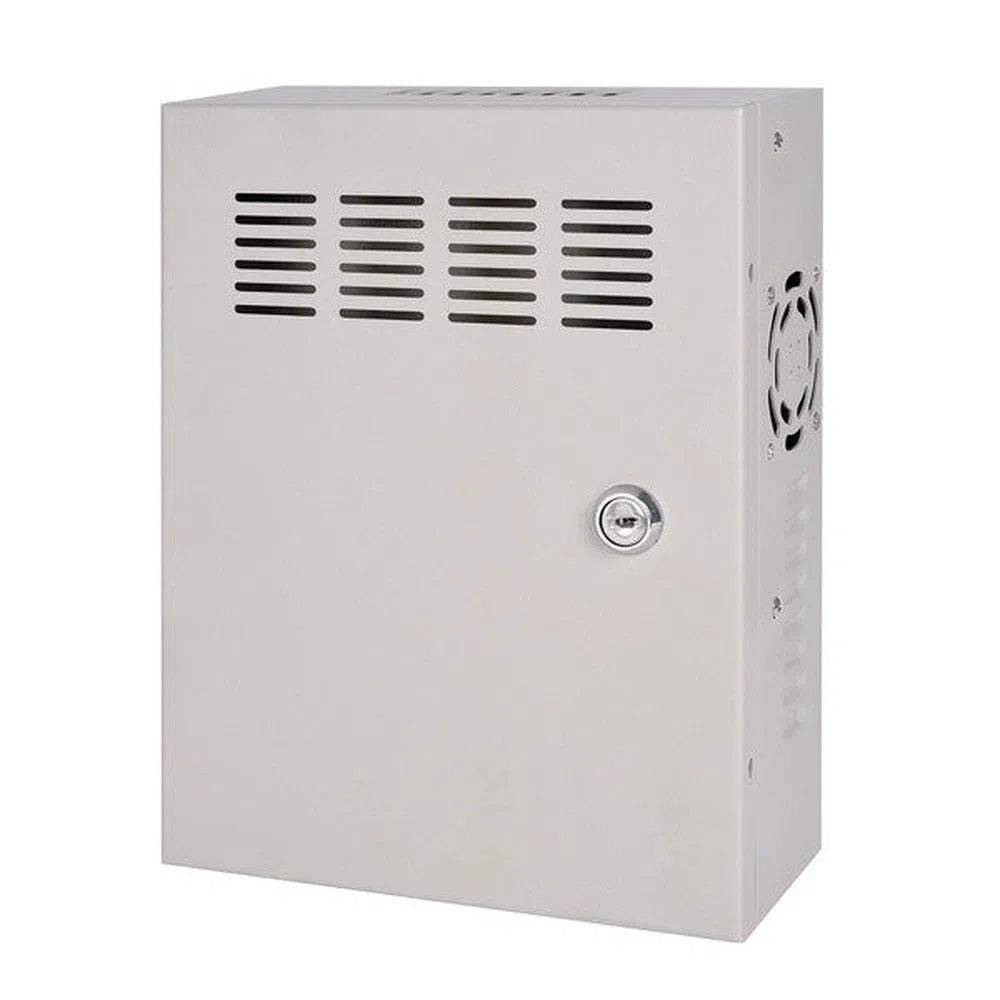

Power 16AMP 12V 8CH 4K Power Unit

  • Vendor:

    TotalSE

View Product Details

Buying from us? You get more than just the product.

Free Pre-Programming

We can pre-configure eligible products so they're ready to install.

Free 45 Mins Onsite Support

Stuck on the job? We'll come to you. Eligible purchases include up to 45 minutes of onsite support.

Project Management

From plans to handover. We assist with design, equipment selection, programming and commissioning.

End-User Support

We help support your customers too. Give your customers the confidence with reliable local support.


Features:

  • Input Voltage 100V – 240V
  • Channels 8
  • Inrush Current ≤ 50A
  • DC Output voltage range 12V – 15V
  • DC Output Current 2A
  • Output Ripple and Noise ≤ 200mVpp
  • Overshoot at turn-on/off ≤ 110%
  • Over Voltage Protection 16V
  • Input Frequency 50/60Hz
  • Fuse Type PTC 2.6A (Resettable)
  • Unit size 260 × 201 × 86.8 mm
  • Unit weight 2.15Kg(4.8LB)
  • Gift box 305 × 240 × 125 mm
  • Operating Temperature 0 ~ 40°C / Less than 85% RH (Non-condensing)
  • Storage Temperature -20 ~ 75°C / Less than 90% RH (Non-condensing)
