SKU:GS1020PS2

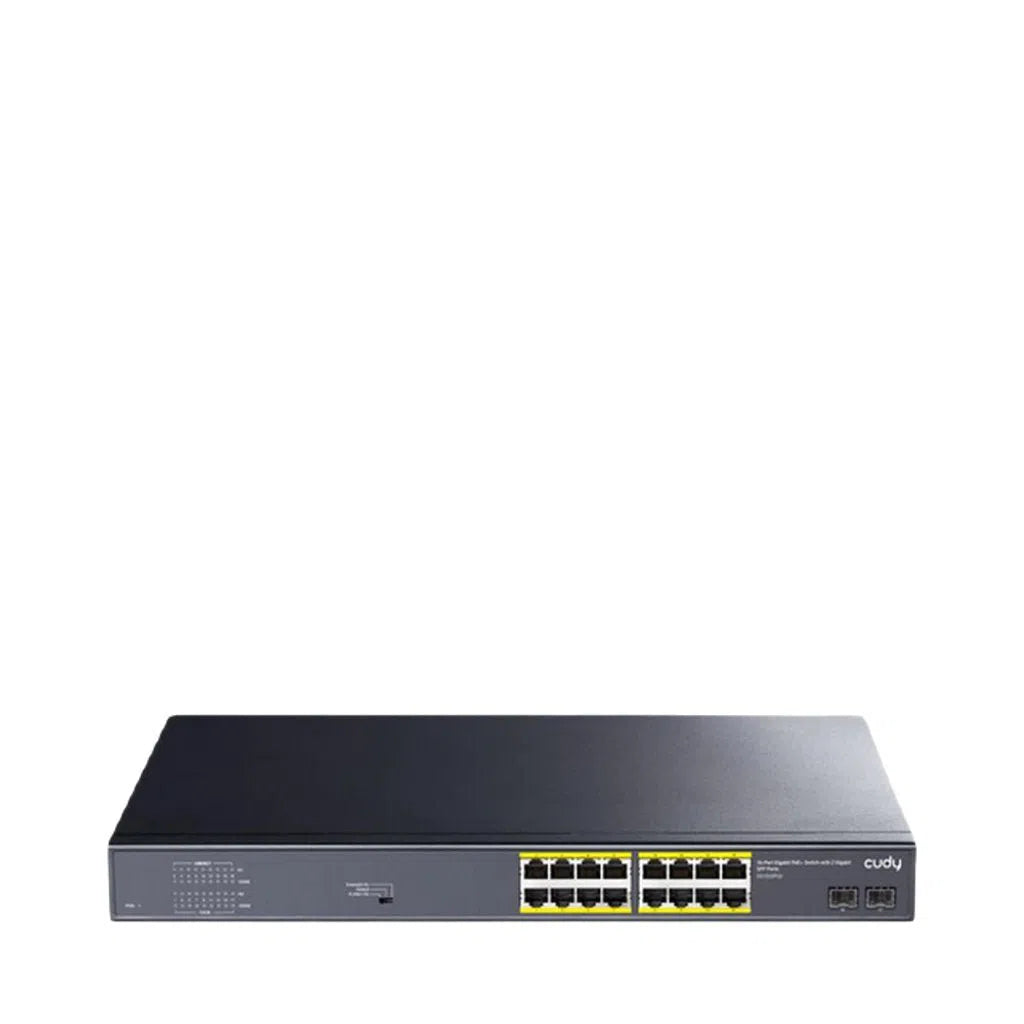

Cudy 16-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports
Login to buyFeatures:
- IEEE 802.3af / 802.3at standard compliant
- 200-watt total PoE power budget, up to 30-watt per port
- 16xGbE PoE+Port+2 x SFP Port
- CCTV Mode supports remote power&data feeding up to 250M
- VLAN mode supports 16 POE+ ports isolated from each other
- LED indicators for network diagnostics

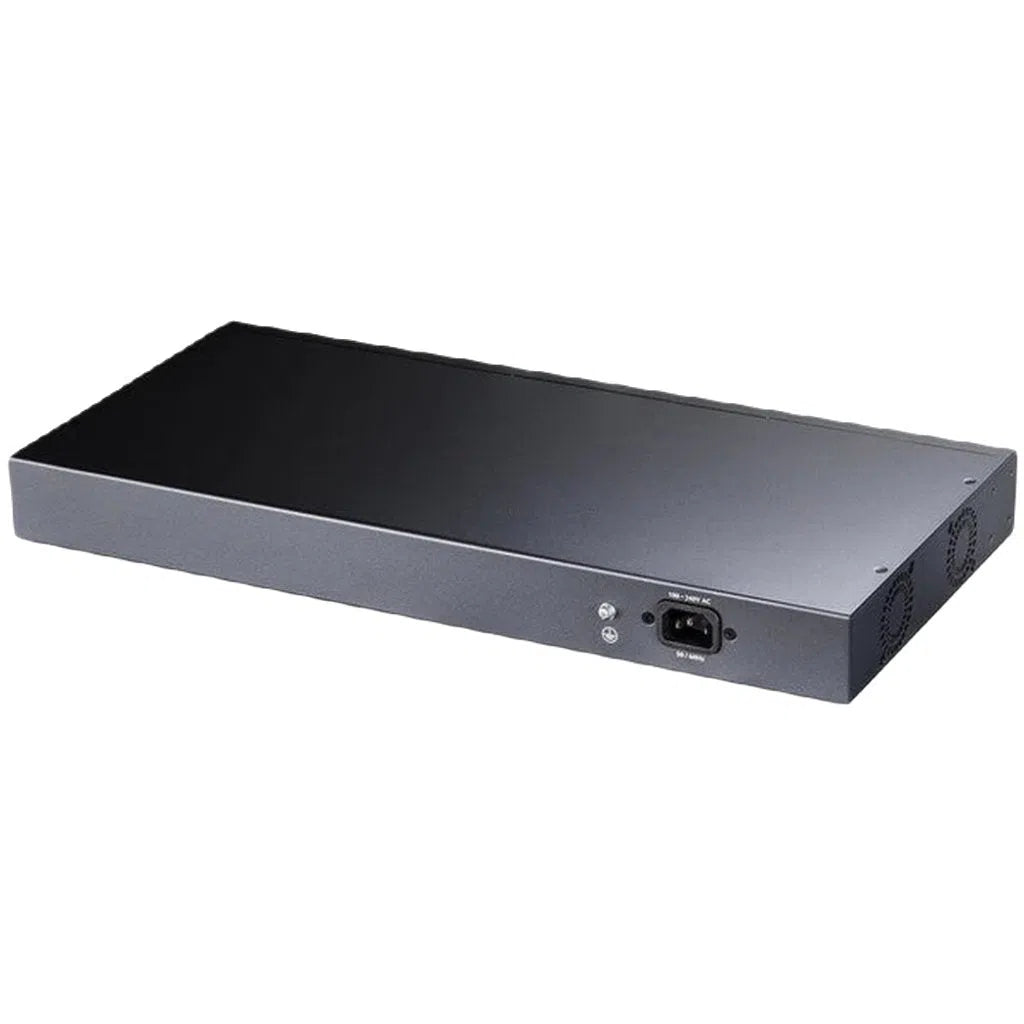

- 19-inch metal case, internal power design
-
Vendor:
Cudy
- Tags: Poe
- Description
Product Overview
The Cudy GS1020PS2 is an 18-port Gigabit switch built to power and connect a larger PoE camera or access-control deployment. Sixteen of its ports supply PoE/PoE+ power directly over the same cable that carries data, while 2 Gigabit SFP slots give you a fibre uplink option back to your core network or NVR.
With a 200W total PoE budget shared across the 16 PoE ports, CCTV-oriented long-range power/data mode, and VLAN isolation between PoE ports, it is built with camera installations in mind. Housed in a 19-inch rackmount metal case. Supplied through Total Security Equipment.
Key Capabilities
16 PoE+ Ports, 200W Total
Ports 1–16 supply IEEE 802.3af/at PoE power, up to 30W per port and 200W shared across all sixteen.
2 Gigabit SFP Slots
Dedicated fibre uplink slots for connecting back to your core network or NVR over longer distances.
CCTV Long-Range Mode
A CCTV-oriented mode supports extended power and data transmission for longer camera cable runs.
19-Inch Rackmount, Fanless
Metal rackmount case with internal power supply, silent fanless operation.
Best For

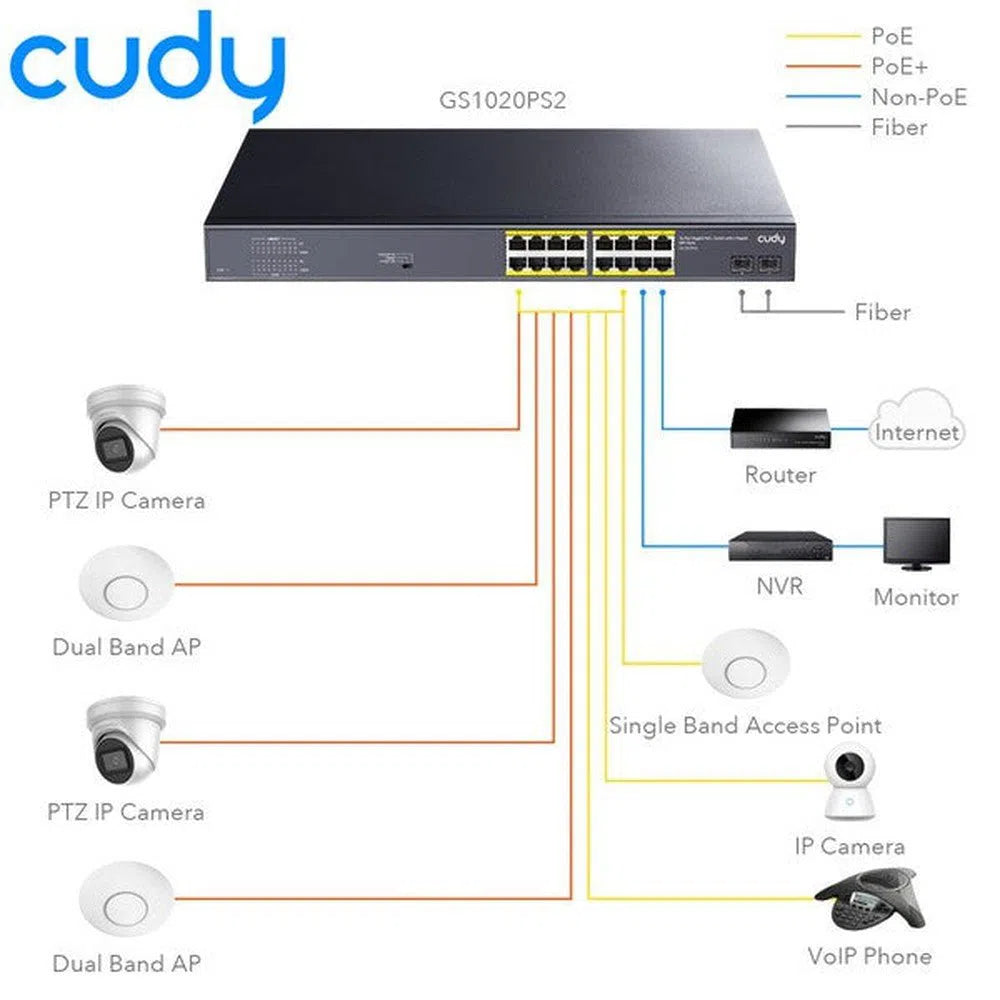

Larger CCTV Deployments
Powers up to 16 IP cameras directly, with fibre uplink headroom via the SFP slots.
Rack-Based Installations
19-inch metal case fits standard equipment racks and comms cabinets.
Budget-Conscious PoE Jobs
A lower-cost 16-port PoE option compared to premium-brand equivalents.
Why Choose This Switch
Larger camera and access-control jobs need real port count and real PoE headroom. The Cudy GS1020PS2 gives you 16 PoE ports, a 200W power budget, and fibre-ready SFP uplinks in a rackmount metal case, at a competitive price point. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | GS1020PS2 | ||
| Connector Type | 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports | ||
| Network Media (Cable) |
IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z |
||
|
PoE Parameters |
PoE Standard: IEEE802.3af /IEEE802.3at | ||
|
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) |
|||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media |
10BASE-T: Cat 5E UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||
| Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||
| Performance Specification | Bandwidth: 52Gbps | ||
| MAC: 8K | |||
| Packet Buffer Memory: 4M | |||
| Packet Forwarding Rate: 38.7Mpps | |||
| Power Supply | Power input: AC100-240V 50/60Hz, Power Budget: 200W | ||
| LED Indicator | PWR |
Power supply indicator (Red) |
Lighting：Powered No Light：No Power |
| 1-26 |
RJ-45 LINK indicator (Green) |
Lighting：1000M Connect No Light：100M or Disconnect |
|
| 1-26 |
RJ-45 ACT indicator (Green) |
Lighting：Connecting Flashing：Data Transmit No Light：Disconnect |
|
| Working Environment |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 80℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
||
Ideal Use Cases
Multi-Camera CCTV Installs
Powers up to 16 IP cameras from one rackmount unit.
Fibre-Uplinked Sites
The 2 SFP slots suit sites connecting back to core networking over fibre.
Comms Cabinet Installs
19-inch rackmount case fits standard equipment racks.
Budget PoE Expansion
A cost-effective way to add 16-port PoE without stepping up to a premium brand.
FAQs
1. How many ports supply PoE power?
16 of the 18 ports supply PoE/PoE+ power; the remaining 2 are Gigabit SFP slots for fibre uplinks.
2. What is the total PoE power budget?
Up to 200W total across the 16 PoE ports, with up to 30W available per port.
3. Do I need SFP modules to use the fibre ports?
Yes — SFP transceiver modules aren't typically included and are matched to your specific fibre run. Ask our team if you need help selecting compatible modules.
4. Is Cudy a well-established brand?
Cudy is a newer addition to our range alongside our longer-established TP-Link and Ruijie switches. If brand history and Australian support track record matter most to you, ask our team about our TP-Link or Ruijie PoE alternatives.
5. Where can I buy this switch in Australia?
It's available directly from Total Security Equipment — confirm current stock and delivery timing with our team.
