SKU:FS1010P

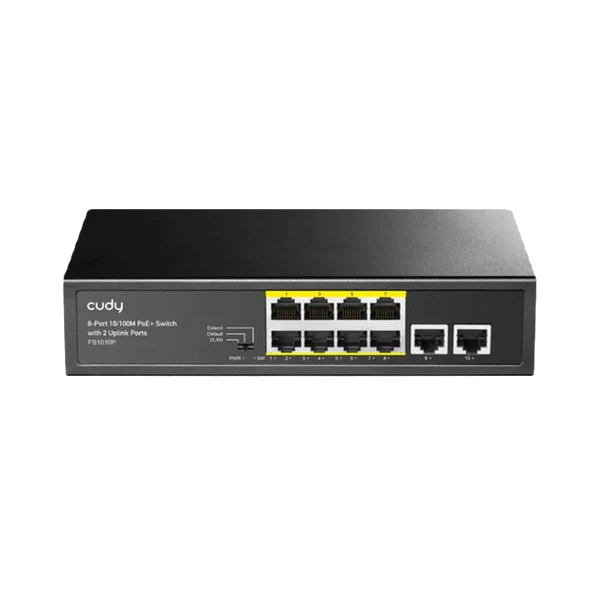

Cudy 8-Port 10/100M PoE+ Switch with 2 Uplink Ports
Heading
Extended Technical Support Available!
Fast responses on all orders!
- Sweet Choice
- Easy Return
- Quick Support
- Fast Delivery
About the Product
Features:
- Support IEEE802.3at and IEEE802.3af Standard
- 120W PoE power output up to 32W for one PoE port
- Support IEEE802.3x full duplex and half duplex flow control
- Support VLAN and CCTV Function
- Panel lights to monitor working state and help fault analysis
- Perfect security mechanism
- Line-speed forwarding intelligent identification
| Model | FS1010P |
| PoE standard | IEEE802.3af/at |
| Interface | 10*10/100Mbps The RJ45 port through consultationa |
| Key function | CCTV&VLAN |
| PoE port | 1~8 port |
| PoE Total | 120W |
| Power supply | 120W |
| RJ45 PoE power supply | Mode A Anode1/2 Cathode3/6 |
| PoE output-port | Max 32W |
| Indicator | PWR, LNK/ACT, PoE |
| Network media | 10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)； |
| MAC Address Table | 8K, Automatic study, automatic updates |
| Jumbo frame | 1528Bytes |
| Packet buffer | 2M bit |
| Transfer Mode | Store-and-forward |
| Packet forwarding rate | 1.48Mpps |
| Bandwidth | 2M bit |
| Fan | Fanless |
| Device Dimension | 200*118*44mm |
| Machine Weight | >1kg |
| Green energy saving | Support IEEE（802.3az) |
| Mains Input | 100~240V AC， 50/60Hz |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Surge Protection | ±4KV |
| MTBF | >50000 hour |
| Electrostatic standard | Contact 4KV, air 6KV |
