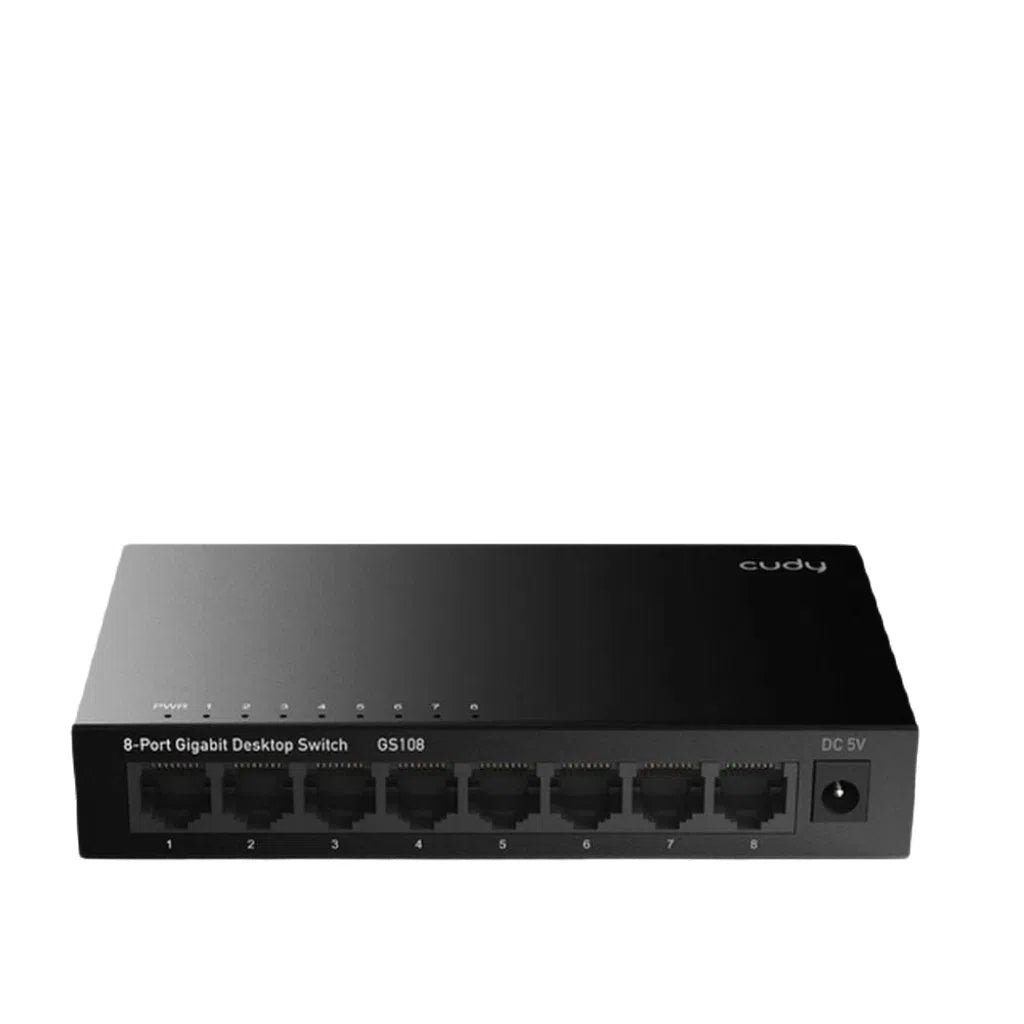

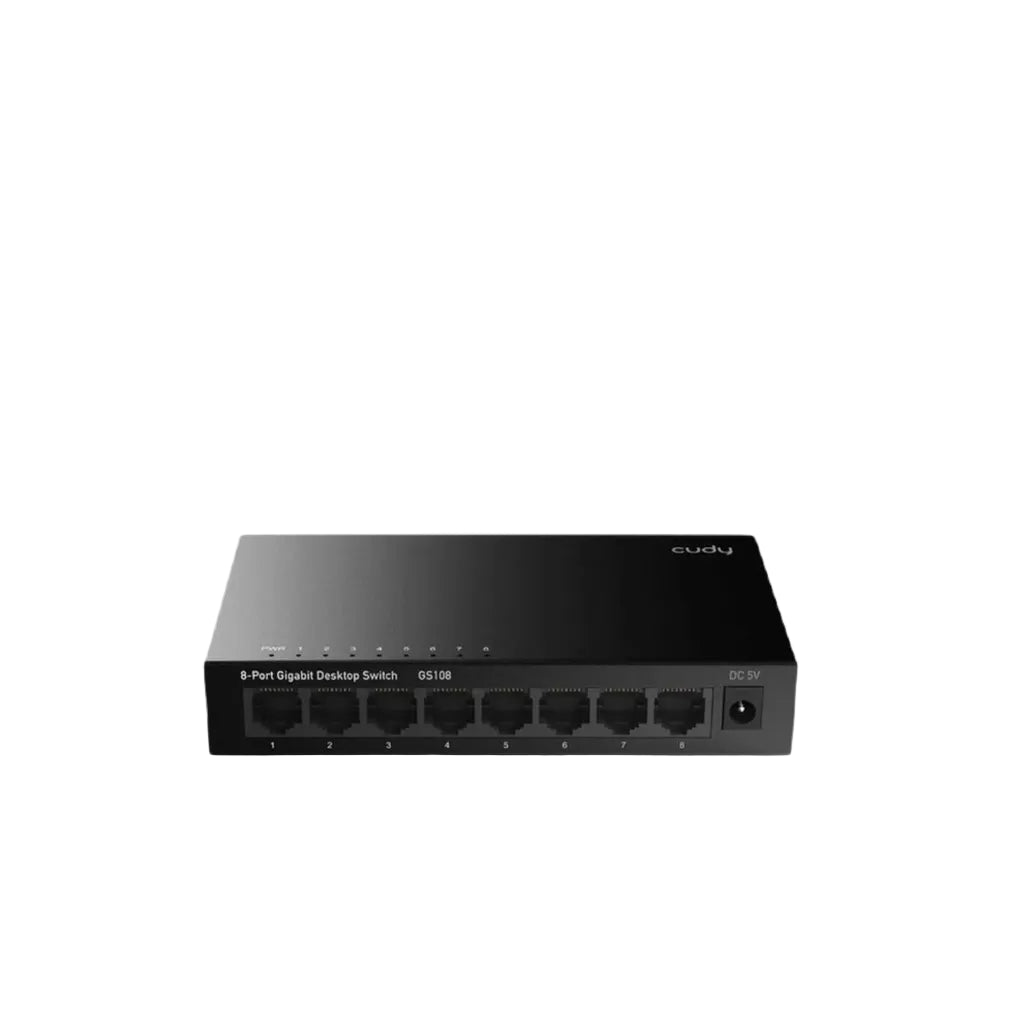

Cudy 8-Port Gigabit Desktop Switch

Product SKU: GS108
Available:
Only 44 items in stock
44 items in stock
In stock
Pre-order
Out of stock
$50.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description

Features:

  • Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
  • 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
  • Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
  • Store-and-Forward switching method
  • Supports 16K MAC address auto-learning & auto-aging



Model GS108
Standard configuration 8 10/100/1000M RJ-45 adaptive ports
Switching Capacity 16Gbps
Throughput 11.9Mpps
Packet Buffer 2.5M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour
Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)
Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment

Working Temperature：-10~50°C

Storage Temperature：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing

Working Height：Maximum10,000 feet

Storage heigh：Maximum 10,000 feet
Structure Size

Product Size：138*78*25mm

Product Net-Weight：0.3kg

Product Gross-Weight：0.5kg
Power Voltage

Power Input Voltage ：AC 100-240 V

Switch Input Voltage:：DC 5V
