Product description
- Compatible with IEEE802.3af and IEEE802.3at
- Extends the range of PoE and Ethernet an additional 100 meters
- No additional power supply is required
- Automatically detects and protects PoE equipments from being
- damaged by incorrect installation
- Full-rate network throughout the whole extended distance
- Compact size, Wall-Mountable design
- Easy plug-and-play installation
- EMI standards complies with FCC, CE class B
| Product Name | POE15 |
| No. of channels | 1(PoE IN) into 1(PoE OUT) |
| Pass Through Data Rates | 10/100/1000 Mbps half/full duplex |
| Power over Ethernet input | Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| Power over Ethernet Output |
Pin Assignment and Polarity:1/2 (+), 3/6 (-) Output Power: up to 25W |
| Indicators | LED indicators are located on the RJ45 connectorPower indicator: PoE enabledNetwork indicator: Link/Act |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Network cables | Shielded category 5 (or higher) |
| Dimensions | 185mm x 45mm x 45mm |
| Mounting | Wall of shelf |

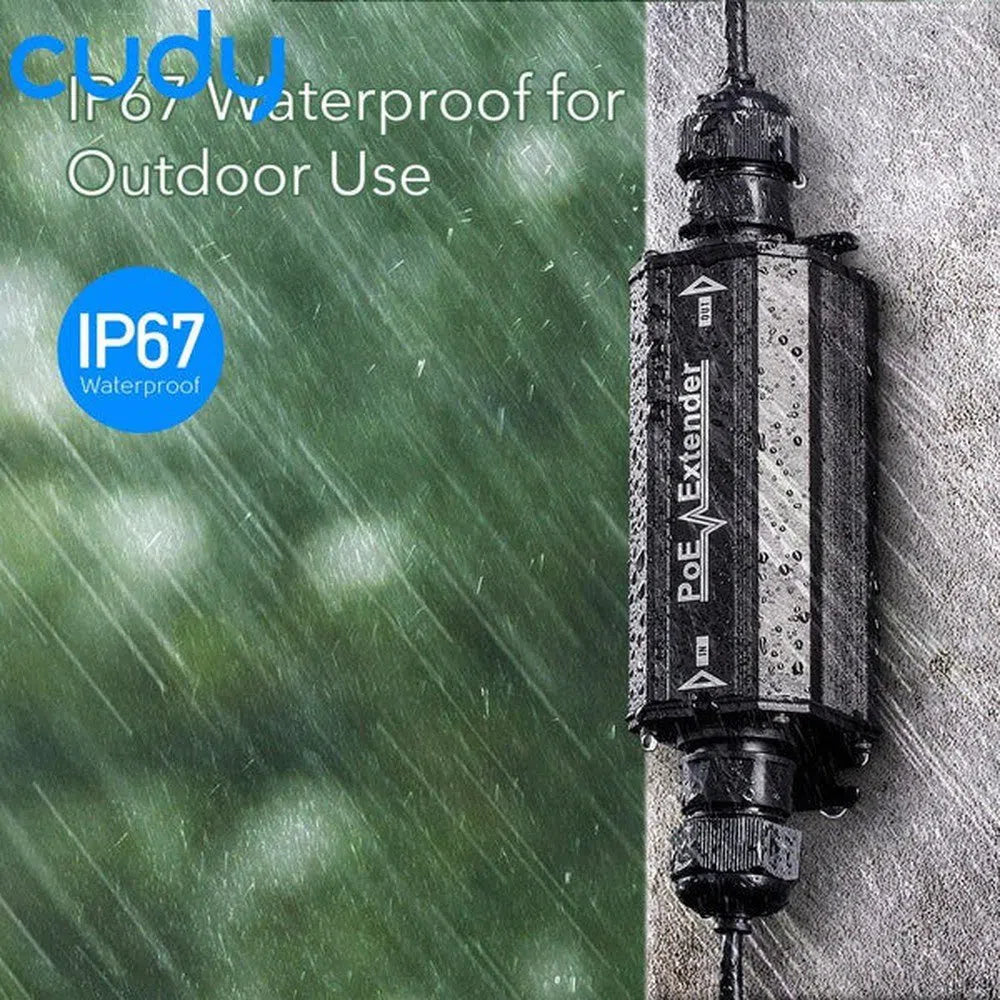

| Environment | Indoor or Outdoor |
| Environmental Conditions |
Operating Ambient Temperature: -25 to 55℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -30 to 70℃ Storage Humidity: Maximum 95%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
Additional Info
| Name | Cudy Power over Ethernet Extender |
|---|---|
| SKU | POE15 |
| Vendor | Cudy |
| Title | Default Title |
