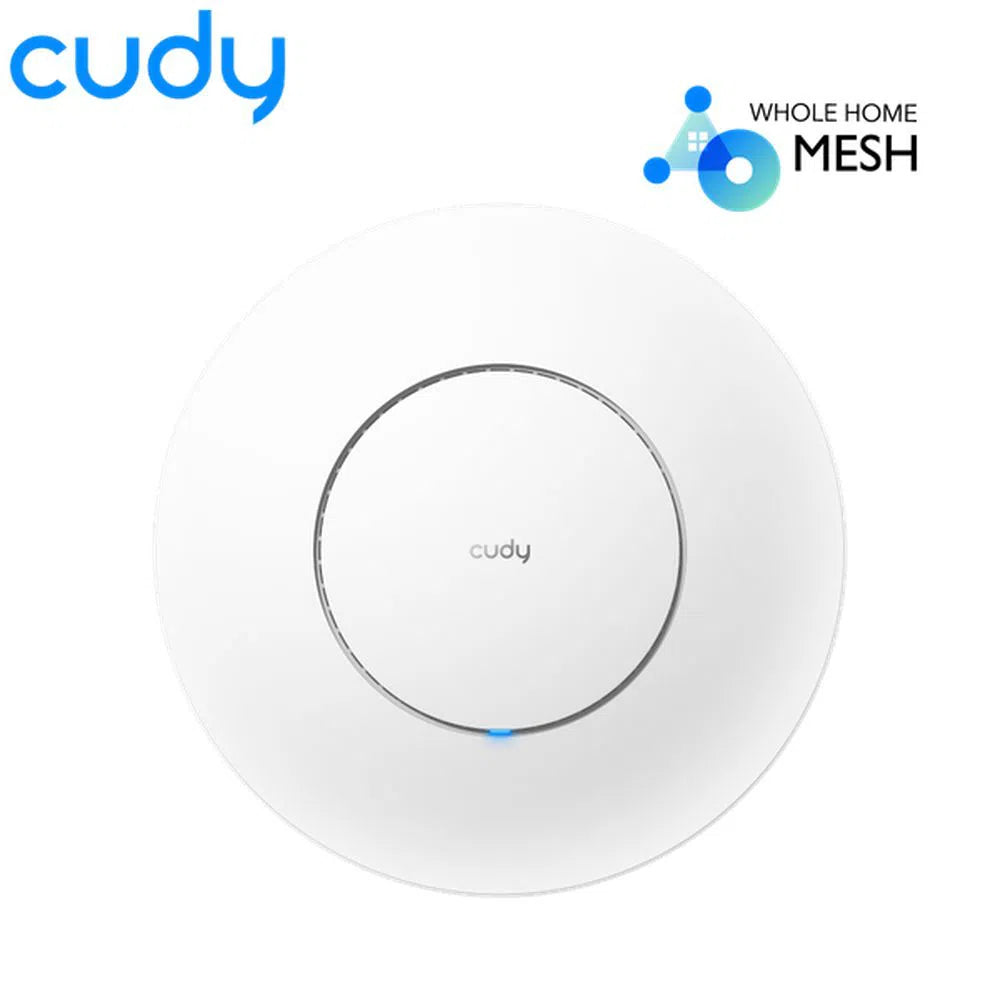

Cudy WiFi 6 Ceiling Mount 2.5Gbps Access Point
Heading
Extended Technical Support Available!
Fast responses on all orders!
- Sweet Choice
- Easy Return
- Quick Support
- Fast Delivery
About the Product
- Premium AX3000 Wi-Fi 6
- Shielded 2.5G Port for Multi-Gig Throughput
- Maximum 512 Clients with 512 MB Large RAM
- Five Antennas for Broader Wi-Fi Coverage
- 802.3at/af PoE, Passive PoE, or DC Powering
- Mesh with Cudy Mesh Router / AC
- Config Radius Server for AAA Feature
- PoE Adapter Included
Specifications
| Hardware Features | Highlights | CPU: 1.3 GHz Dual-Core ARM CPU |
| Flash: 256 MB NAND (2 Gbit) | ||
| DDR: 512 MB DDR4 (4 Gbit) | ||

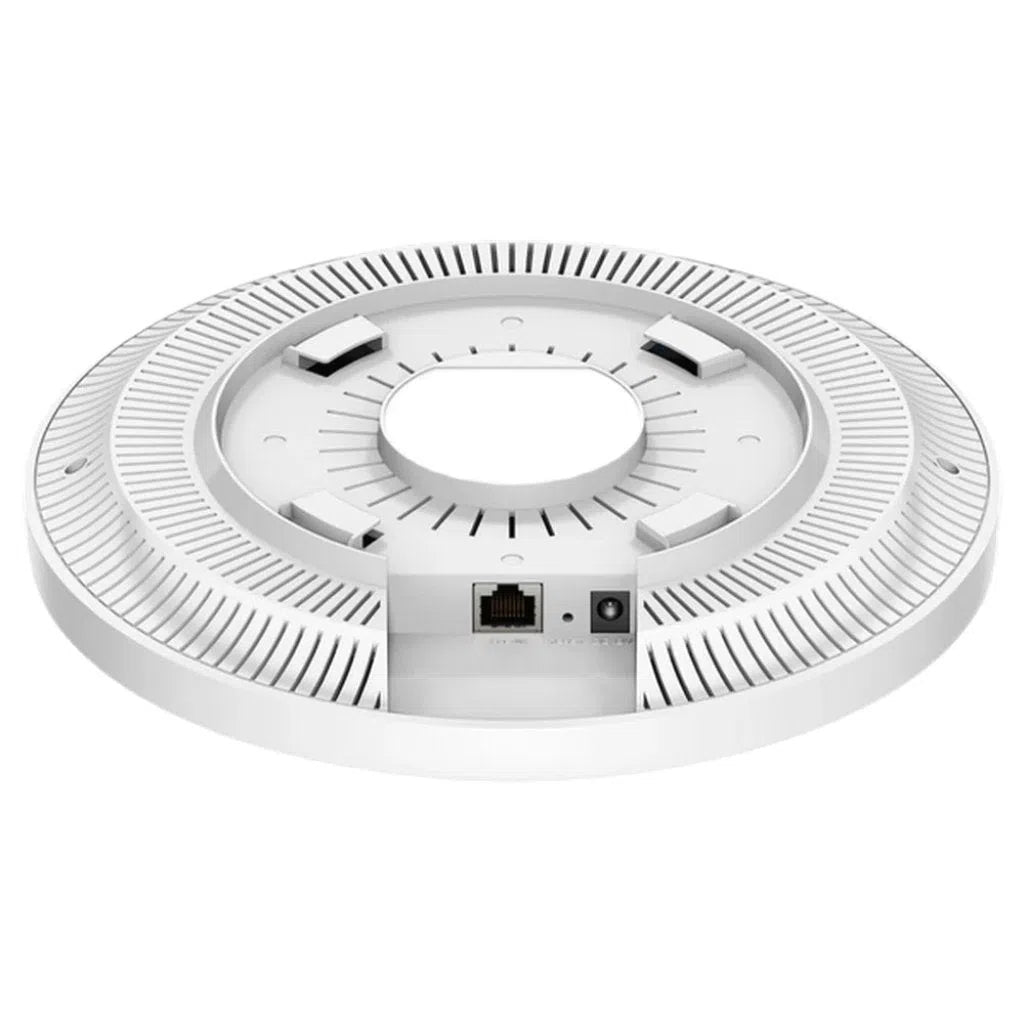

| Interface | 1× 2.5 Gbps Ethernet Port (PoE In) | |
| 1× Reset Button | ||
| 1× DC Jack | ||
| Power Supply | 802.3af/at PoE | |
| 48-57 V Passive PoE (+4,5pins; -7,8pins) | ||
|
12 V ⎓ 1.5 A DC |
||
| Power Consumption |
PoE Idle: 5.7 W 12 V DC Idle: 6.1 W |
|
|
PoE Max: 12 W 12 V DC Max: 11 W 48 V DC Max: 12 W |
||
| Dimensions (Dia.×H ) | Φ231.9×57.1 mm (Φ9.13×2.25 inches) | |
| Antenna Type |
4× Internal Omni-directional Antennas |
|

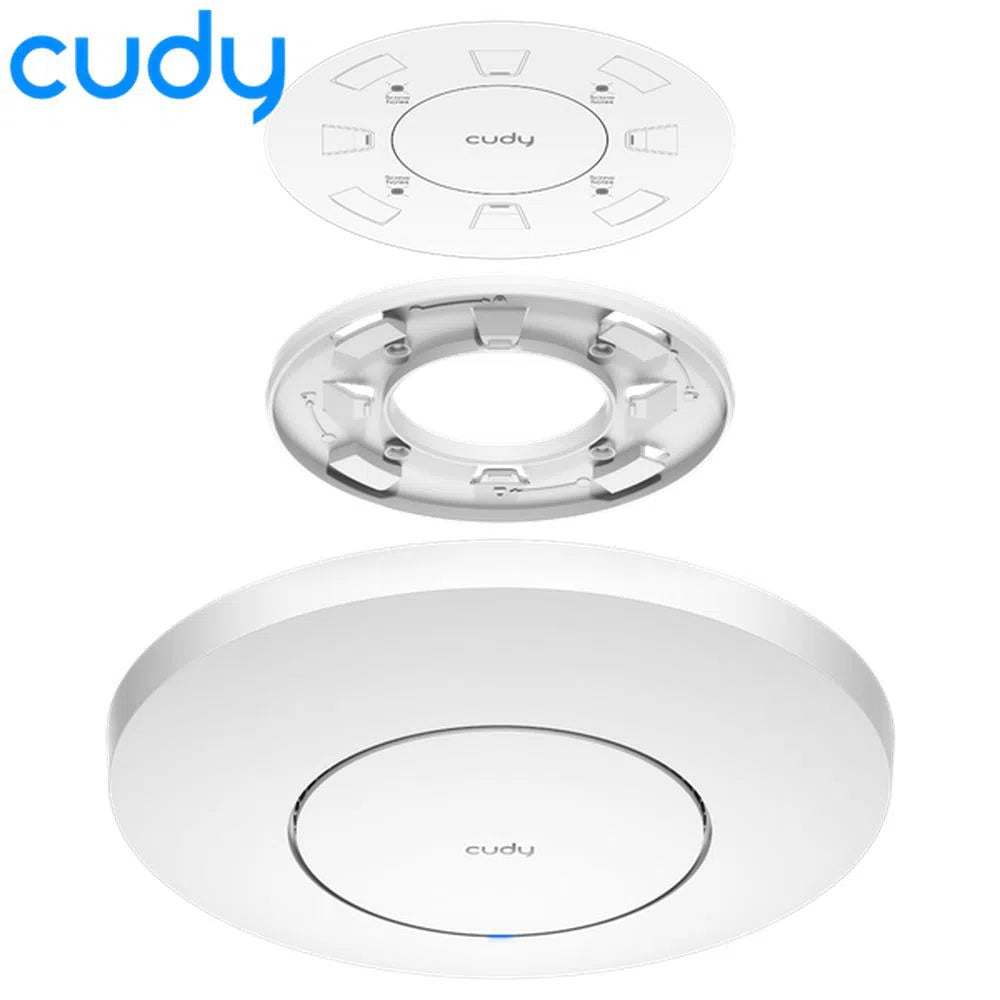

| Mounting | Ceiling/Wall Mounting (Kit included) | |
| Wireless Function | Wireless Standards |
Wi-Fi 6 (802.11ax/ac/n/g/b/a) |
| Frequency | 2.4 GHz and 5 GHz | |
| Signal Rate | 5 GHz: Up to 2402 Mbps | |
| 2.4 GHz: Up to 571 Mbps | ||
| Channel Width | 20/40/80/160 MHz | |
|
Wireless Functions (Features with * require a Cudy AC as the gateway. Cudy AC is coming soon) (Features with ** require a Cudy WR1300/WR3000 or Cudy AC as the gateway) |
||
| Multiple SSID * | ||
| Captive Portal ** | ||
| Seamless Roaming Mesh | ||
| Self-Organizing Mesh | ||
| Band Steering * | ||
| Auto Channel Optimization * | ||
| Enable/Disable Wireless Radio | ||
| Transmit Power Control | ||
| QoS (WMM) | ||
| MU-MIMO | ||
| Beamforming | ||
| Rate Limit | ||
| Reboot Schedule | ||
| Wireless Schedule | ||
| Wireless Encryption | WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE | |
|
Security (Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023) |
IP/MAC Filtering | |
| AP Isolation* | ||
| Operating Modes | Wireless Access Point Mode | |
| Wireless Router Mode | ||
| Wireless Extender Mode | ||
| WISP Mode | ||

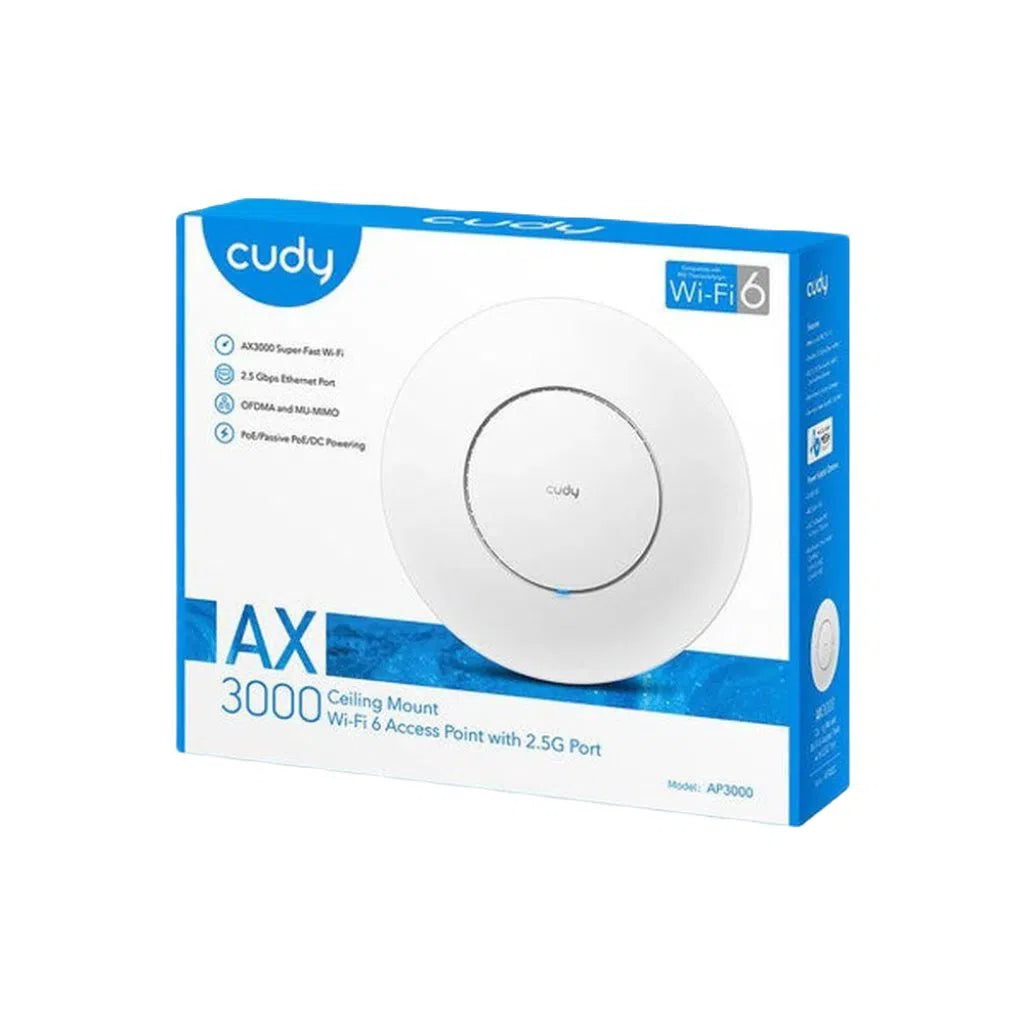

| Package Content | Access Point | |
| PoE Adapter | ||
| Mounting Kit | ||
| Installation Guide | ||
| Environments | Operating Temperature: 0~40 °C (32~104 °F) | |
| Storage Temperature: -40~70 °C (-40~158 °F) | ||
| Operating Humidity: 10~90% RH non-condensing | ||
| Storage Humidity: 5~90% RH non-condensing | ||
