SKU:IPC-HDW3849H-AS-PV-ANZ-BLK

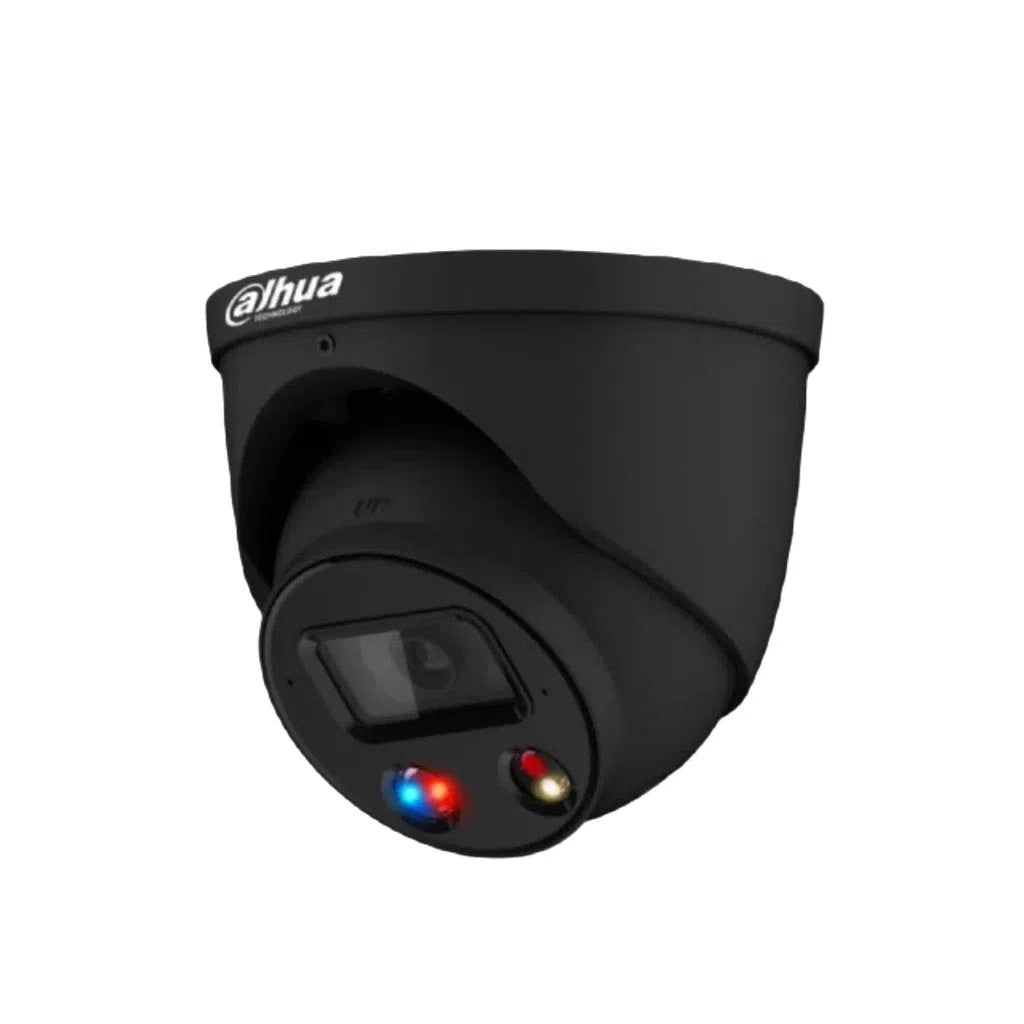

Dahua 8MP IPC-HDW3849H-AS-PV-ANZ-BLK (4K) TIOC 2.0 BLACK Eyeball WizSense Network Camera
Login to buyKey Features
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 ×2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 4.0.
- Supports AI SSA and one-tap arming and disarming.
- SMD area can be set in warm light areas that support triggering alarms.
-
Vendor:
Dahua
- Tags: 8mp, Turret camera, Wizsense
- Description
Product Overview
When reviewing security footage, you rarely need to inspect the full scene at once. Most often, the goal is to zoom in on a precise detail—such as a vehicle plate, a face, or an object in hand—to verify whether there is enough clarity for identification.
That is where 8MP resolution proves its value. The Dahua IPC-HDW3849H-AS-PV-ANZ-S2-BLK captures 4K video, delivering roughly four times the pixel count of standard 1080p. This gives you substantial headroom to crop tightly into recorded video while preserving critical details. Across key coverage areas like main entrances, driveways, or cash registers, that extra clarity turns simple footage into dependable evidence.
Built on Dahua’s advanced TiOC 3.0 platform, it features Smart Dual Illumination (Infrared and Warm White LED) for full-color night vision, 120 dB True WDR for high-contrast doorways, and SMD 4.0 AI detection to accurately classify people and vehicles while suppressing false alarms. It also includes active deterrence features like red and blue flashing lights, a built-in 110dB speaker with wailing siren or custom audio alerts, dual built-in microphones for two-way audio, efficient video encoding, and an IP67 weatherproof housing for outdoor installation.
The sleek black turret design mounts neatly under eaves and offers flexible eyeball positioning during setup. Powered via PoE over a single network cable, it serves as an all-in-one active deterrence camera for home and commercial setups.
Which Dahua Security Camera Do You Need?
We offer multiple models sharing core Dahua platforms—featuring intelligent AI detection, advanced low-light imaging, and true WDR. Primary differences center on housing style, resolution, night vision type, and active deterrence capabilities.
| Model | Res. | Housing | Extra features | Choose it when |
| IPC-HDW3849H-AS-PV-ANZ-S2-BLK | 8MP | Turret (Black) | Red/Blue Strobes, 110dB Speaker, Dual Mics, Full-Color | This page — maximum 4K detail with proactive active deterrence in black finish |
| IPC-HDW3449H-AS-PV | 4MP | Turret (White) | Active Deterrence, Full-Color, Dual Mics | General coverage where lower bandwidth and budget take priority |
| IPC-HFW3849T1-AS-PV | 8MP | Bullet | Red/Blue Strobes, Speaker, Extended Range IR/LED | Wall mounting long perimeters or open driveways needing visible deterrents |
| IPC-HDBW3841E-S | 8MP | Dome | IK10 Vandal-proof, WizSense AI | Low mounting heights or locations vulnerable to physical tampering |
Combining various models on a single project is common—deploying 8MP TiOC active deterrence cameras on critical entry points, vandal domes on reachable outer walls, and long-range bullets along boundary lines while maintaining unified control.
Key Capabilities
8MP 4K Ultra HD Resolution
Delivers exceptionally detailed 3840×2160 video at up to 30fps. The true benefit is realized during playback, enabling clean digital zooming into key areas without severe pixelation.
Proactive Active Deterrence
Features red and blue warning strobe lights combined with a built-in speaker reaching up to 110dB. Triggers wailing sirens, recorded voice prompts, or customized audio to warn off intruders before an incident occurs.
Smart Dual Illumination & Full Color
Combines stealthy IR night vision with warm white LED fill lights. The camera uses discrete IR in standby, switching to warm white LEDs upon target detection to record full-color footage up to 30 meters in night conditions.
SMD 4.0 AI Target Classification
Uses Dahua Smart Motion Detection 4.0 to differentiate humans and vehicles from background environmental movement. Keeps false alert rates below 2%, ignoring sway from branches, rain, or small animals.
Dual Mics & Two-Way Audio
Equipped with dual built-in microphones and an integrated speaker, supporting clear two-way communication directly through the camera to converse with visitors or warn off unwanted callers.
120 dB True WDR
Wide Dynamic Range technology resolves high-contrast scenes containing extreme highlights and deep shadows simultaneously. Perfect for glass entries, brightly lit thresholds, and backlit driveways.
Sleek Black Turret Design
The compact eyeball turret housing finished in dark black blends cleanly into modern architecture or dark eaves. Adjusts smoothly in 3 axes for straightforward aiming during installation.
IP67 Weatherproofing & Storage
Constructed with IP67 weather protection to endure outdoor wind and rain. Features an onboard MicroSD card slot supporting standalone recording alongside PoE power operation.
Best For
Full 4K identification paired with active strobe warnings
Vehicle target detection with bright floodlight illumination
110dB siren and customizable audio voice alerts
Black housing integrates seamlessly into dark finishes
Two-way audio talkback directly from mobile apps
120 dB WDR eliminates silhouetting in bright sunlight
Why Choose the 8MP TiOC Turret in Black
The TiOC (Three-in-One Camera) series integrates full-color night vision, artificial intelligence target detection, and active deterrence into a single compact housing, offering comprehensive protection rather than simple passive monitoring.
Deploy 8MP TiOC where deterrence and clarity matter most. Primary focal points like driveways, front gates, or store entrances benefit from 4K resolution. When an intrusion is detected, red and blue flashes combined with a 110dB siren actively interrupt suspicious behavior on site.
Smart Dual Illumination provides flexible lighting options. Keep the camera inconspicuous in the dark using infrared night vision, allowing it to automatically activate warm white fill lights only when a human or vehicle triggers the boundary line for crisp full-color identification.
Discreet aesthetic blending. The dark black housing is tailored for modern homes, dark gutters, or commercial structures where standard white camera bodies stand out too visibly.
Total Security Equipment provides genuine Dahua products covered by official 3-year Australian warranties along with compatible NVRs, mounting hardware, and local support.
Buyer Decision Tips
Key Features & Technical Specifications
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
3840 (H) × 2160 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
2 G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto;Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
1 (IR LED); 1 (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle Adjustment |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
2.8 mm: H: 106°; V: 55°; D: 125° 3.6 mm: H: 85; V: 45°; D: 102° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8 mm: 1.5 m (4.92 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8 mm |
66.0 m (216.54 ft) |
26.4 m (86.61 ft) |
13.2 m (43.31 ft) |
6.6 m (21.65 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
78.0 m (255.91 ft) |
22.2 m (102.36 ft) |
15.6 m (51.18 ft) |
7.8 m (25.59 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD |
SMD 4.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AcuPick |
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI SSA |
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Coding |
AI H.265 (Compression rate ≥25%) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
Main stream: 3840 × 2160 @(1 fps–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stream Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR/ABR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scene Self-adaptation (SSA) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest (RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Defog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LDC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in Speaker |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (Profile S; Profile G;Profile T); CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
20 (Total bandwidth: 64 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP;SFTP; Micro SD card (support max. 256 GB); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE: IE 9/11 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS Lite; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Client |
iOS;Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cyber Security |
Video encrypton;Firmware encrypton;Confguraton encrypton;Digest;WSSE;Account lockout;Security logs;IP/ MAC fltering;Generaton and importng of X.509 ce rtfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted executon;Trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN 62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
1 channel in: wet contact, 5 mA 3–5 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 channel out: wet contact, 300 mA 12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC; PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Basic: 4.5 W (12 VDC); 5.8 W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
Φ122.0 mm × 110.9 mm (4.80" × Φ4.37") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.75 kg (1.65 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.92 kg (2.03 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ideal Use Cases
Main Residential Gates
Entry points benefit from 8MP clarity and two-way talkback capability. The dual illumination provides clean color footage when visitors arrive at night.
Commercial Frontage
Red and blue strobes coupled with a 110dB siren serve as a visible warning to discourage loitering and vandalism after store hours.
Driveways & Garages
Accurately filters vehicle activity using SMD 4.0 AI, triggering white floodlights upon vehicle arrival to capture full-color footage of registration plates.
Dark Eave & Soffit Mounts
The dark black chassis integrates seamlessly against dark gutters and wood eaves, preventing the high-visibility distraction of standard white housings.
Targeted Active Deterrence
Deploying 8MP TiOC cameras on key exterior perimeter positions provides early active deterrence, while standard inner cameras offer general indoor coverage, balancing system costs and security effectiveness.
Choosing the Right Model
Choose this model if…
- You want active warning features like red/blue strobes and a 110dB siren.
- You need full 4K (8MP) resolution for detailed zooming during playback.
- You require dual-way audio communication and dual built-in microphones.
- Your mounting location has dark eaves or cladding requiring a black housing.
- You want full-color night video paired with smart dual illumination.
- You plan to use SMD 4.0 AI detection and AcuPick searching with a Dahua NVR.
Choose a different model if…
- You prefer discreet recording without sirens or lights. Opt for a standard WizSense turret.
- You need high physical impact resistance. Select an IK10 vandal-rated dome camera.
- You are mounting to standard light soffits. A white finish housing may blend better.
- You want simplified budget-friendly coverage. Consider a 4MP TiOC or WizSense model.
- You need narrow, long-distance perimeter protection. A bullet housing camera is recommended.
FAQs
What does Dahua TiOC stand for?
TiOC stands for "Three-in-One Camera." It merges 24/7 full-color imaging, active deterrence (strobes and sound), and artificial intelligence target detection into a single unit.
How does Smart Dual Illumination operate at night?
The camera uses non-visible infrared LEDs during normal standby monitoring. When SMD 4.0 AI identifies a person or vehicle, the warm white light activates automatically to capture full-color details.
Can I turn off the red and blue flashing lights?
Yes. The active deterrence features (strobe lights, siren, voice alerts) can be completely configured, scheduled, or disabled via the recorder settings or mobile application.
What is Dahua SMD 4.0 AI detection?
Smart Motion Detection 4.0 uses deep-learning algorithms to categorize motion specifically as human or vehicle, eliminating false alarms caused by animals, leaves, or rain shadows.
What is required to use Dahua AcuPick?
AcuPick provides rapid video search capabilities across target types. It requires pairing this camera with a compatible Dahua NVR (such as 5 Series models).
Can I speak through the camera using a phone?
Yes. Thanks to dual onboard microphones and an integrated speaker, you can talk in real-time to visitors or warning targets via the Dahua mobile application.
Does this camera require PoE or local power?
It can be powered via Power over Ethernet (802.3af PoE) using a single network cable, or alternatively via a standard 12V DC power plug.
Can I record locally without an NVR?
Yes, the camera includes an onboard MicroSD card slot allowing standalone recording directly to a memory card without requiring a centralized recorder.
