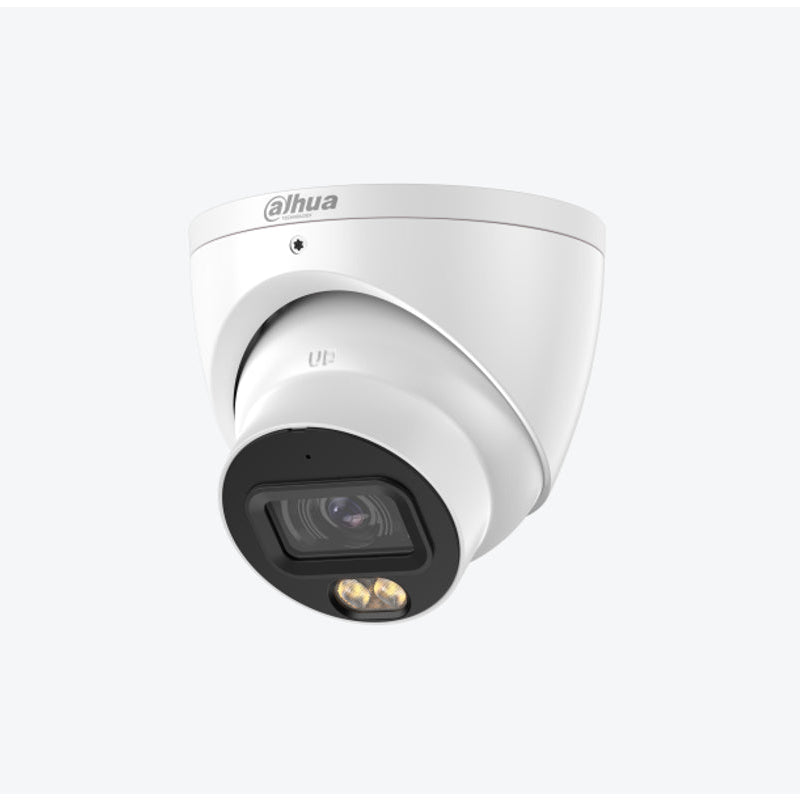

Dahua IPC-HDW2549EMP-S-PRO-ANZ 5MP WizColor Fixed‐focal Eyeball WizSense Camera

WizColor Full-Colour Night Vision

Three elements work together. The 1/1.8″ sensor has physically larger pixels than the 1/2.8″ sensors in budget cameras, gathering more light before processing begins. The wide-aperture lens passes more of that light, reducing the digital gain that creates smeary low-light noise. AI-ISP processing then cleans the frame using scene analysis rather than blunt averaging, so moving subjects stay defined instead of ghosting.

5MP Imaging With Flexible Frame Rates

Records at 2960 × 1668 at 20 fps, or steps down to 2688 × 1520 to gain the smoother 25/30 fps better suited to busy entries and retail floors. The resolution gain over a 2MP camera converts directly into usable facial and object detail at the distances found on a typical Australian residential frontage.

SMD 4.0 Human and Vehicle Classification

Smart Motion Detection 4.0 evaluates what caused the motion, not merely that motion occurred. People and vehicles raise alerts; possums on the fence line, gum leaves in the wind, spiders crossing the lens and shifting shadows do not. In practice this is the difference between checking notifications twice a day and muting the app within a week.

Built-In Microphone With Audio Detection

Audio records alongside video and frequently supplies the context a silent clip is missing. The camera can also treat sudden abnormal sound — breaking glass, raised voices — as its own trigger, independent of anything moving within the frame.

Tripwire and Intrusion Detection

Tripwire, intrusion zones with entry and exit direction, video tampering and conventional motion detection are all supported. You can draw a line across a side gate or a boundary around a shed and be notified only when it is actually crossed.

Image Enhancement Suite

WDR, HLC, BLC, 3D NR and ROI are all on board. HLC earns its keep on driveways in particular, suppressing headlight glare that would otherwise white out the upper third of the frame every time a vehicle turns in.

IP67 Weatherproof Housing

Fully dust-tight and rated for water immersion. It copes with Melbourne's swing between frost and heat, coastal salt exposure and inland dust — provided the cable run is terminated and sealed correctly at the camera end.

Smart H.265+ Compression

Smart H.265+ lowers the bitrate during static scenes and lifts it when activity occurs. On a typical residential site this meaningfully extends how far back NVR history reaches without buying additional drive capacity.

PoE or 12 VDC Power

Accepts either input. PoE is the usual choice — one Cat6 run carries data and power together, and there is no plug pack sitting in the roof cavity waiting to fail.

Home Driveways and Front Gates

A driveway is where most residential incidents start, and it is almost always dark when they do. Full-colour capture here produces the descriptors that make a report actionable: vehicle colour and body type, clothing colour, build and approach direction. Mounted under an eave and angled across the entry rather than down the street, one camera covers the approach, the vehicle and the front door in a single frame.

Retail and Shopfront Surveillance

Retail sites generate constant motion through trading hours, which is why unfiltered motion alerts become useless within days. SMD 4.0 restricts alerts to people and vehicles, while 5MP resolution supplies the detail needed to review a counter incident or a dispute over an exchange with confidence rather than guesswork.

Outdoor Perimeter and Eave Mounting

The turret housing repositions inside its base after the base is fixed, which makes eave and soffit installation far more forgiving than a fixed bullet — you mount first and aim second, from the ladder, without re-drilling. IP67 sealing sustains that performance through rain, dust and coastal salt air across seasons.

Car Parks and Open Forecourts

Open parking areas rarely have anyone watching them, so recorded evidence is the whole point. Vehicle classification narrows event review to the moments a car actually entered or left, and colour retention gives body corporates and property managers something concrete to submit when a claim or complaint follows.

Choose this model if…

• Colour retention at night matters and the site has some ambient light — street lighting, shop lighting, or a sensor flood you are willing to add.
• You want smart human and vehicle filtering rather than raw motion alerts.
• You want audio recorded alongside video at an entry or perimeter point.
• You want one sealed unit covering outdoor housing, smart detection, onboard microSD storage and PoE without buying separate accessories.

Choose a different model if…

• Your site is genuinely dark with no ambient or supplementary lighting and you need coverage beyond 30 m — a WizSense model with extended infrared range fits better.
• You need to adjust the field of view after mounting. This is a fixed lens, so a varifocal dome or bullet gives you framing flexibility.
• You specifically need readable number plates on moving vehicles. That requires a dedicated ANPR/LPR camera with the correct lens, shutter settings and mounting geometry.
• You need to cover a wide open area from one point and follow subjects as they move. A PTZ is the right tool for that.

How is WizColor different from standard infrared night vision?

An infrared camera illuminates the scene with light the eye cannot see, and the footage that results is greyscale. WizColor instead uses a large sensor, wide aperture, AI-ISP processing and a warm white LED to keep the image in colour. For evidence purposes the difference is significant, because colour is among the first descriptors anyone asks for when an incident is reported.

Will it still record if I turn the LED off?

Yes. In adequately lit environments the camera can produce colour footage from ambient light alone, and illuminator behaviour is configurable. In genuinely dark conditions with the LED disabled, image quality will degrade as it would on any camera.

Can I use this camera without an NVR?

Yes — the microSD slot takes cards up to 256 GB for continuous or event-triggered local recording. Beyond two cameras we generally recommend an NVR regardless, for centralised playback, redundancy if a camera is removed, and full access to smart event management.

Does it work with a non-Dahua NVR?

It supports ONVIF, so basic streaming and recording will function with most third-party NVRs. The intelligent features — SMD 4.0 classification, WizColor AI-ISP tuning, audio abnormality detection and event linkage — rely on native Dahua firmware integration and will not be fully available on a third-party platform.

Is it legal to record audio in Australia?

Surveillance device laws are set at state and territory level and they differ meaningfully. As a general principle, recording private conversations without any party's knowledge is restricted. Entrances, external perimeters, yards and commercial premises with clear signage are usually the appropriate places to enable audio. Check the surveillance devices legislation applying in your state — in Victoria this is the Surveillance Devices Act 1999 — before switching the microphone on, and seek legal advice where the site is shared or sensitive.

How far can I run the cable?

Standard PoE over Cat5e or Cat6 is rated to 100 m from switch or NVR port to camera. Beyond that you need a PoE extender or an intermediate switch. Use solid copper cable rather than copper-clad aluminium — CCA is a frequent cause of PoE dropouts on longer runs.

Can it be mounted under an eave without an extra bracket?

In most cases yes. The turret head repositions inside its base once the base is fixed, so you mount to the eave and then aim. Wall-corner and pole installations usually require a junction box or corner bracket, and we stock the Dahua accessory range for both.

What exactly does SMD 4.0 filter out?

It classifies the moving object and raises alerts only for people and vehicles. Animals, foliage movement, shadows, rain, insects near the lens and headlight sweep are treated as non-events. No classifier is perfect across every scene, but on a typical residential property it removes the large majority of nuisance alerts.

Where can I buy this camera and what support comes with it?

The DH-IPC-HDW2549EMP-S-PRO-ANZ is available from Total Security Equipment online and across both showrooms, with Australia-wide shipping. Trade accounts and volume pricing are available for installers, and our team can assist with camera placement, NVR pairing and PoE budgeting before purchase.
