SKU:ES15

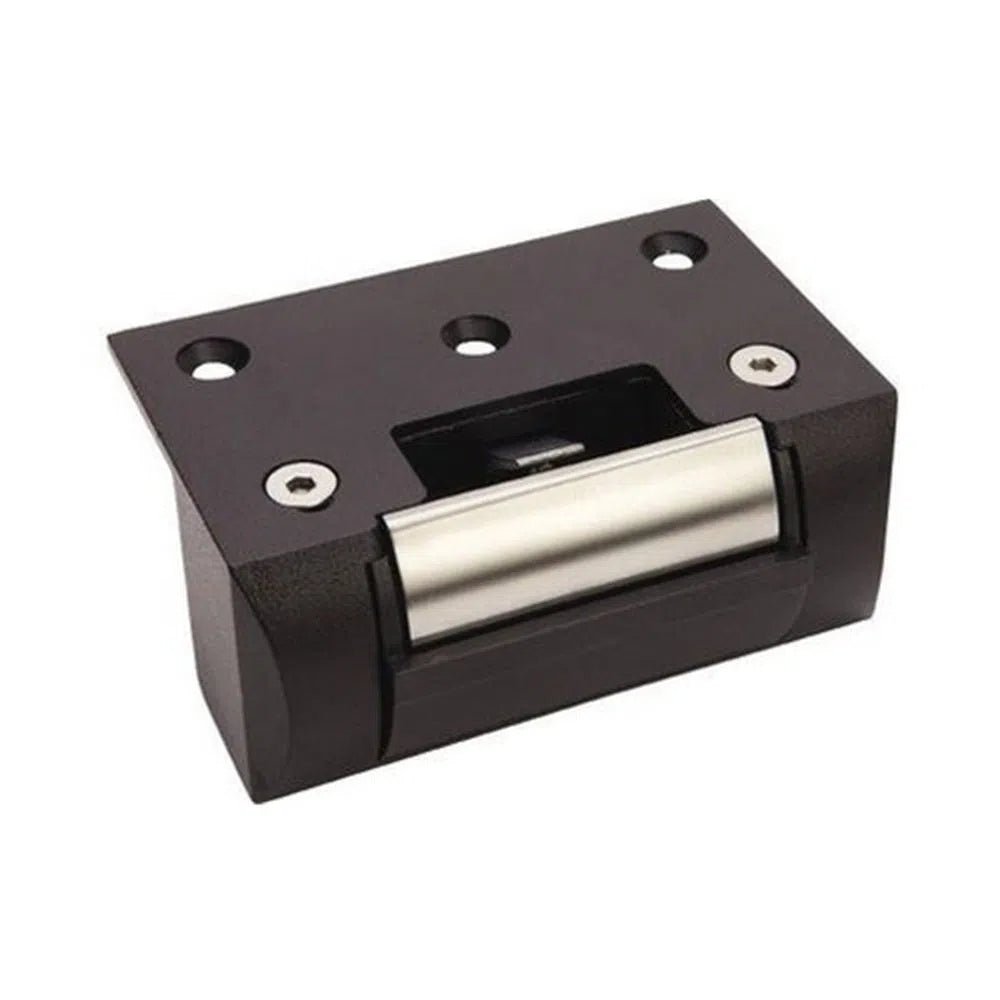

Lox Electric Strike Surface Mounted Non Monitor Weather Resistant - ES15
Login to buyLox Electric Strike Surface Mounted (RIM Mounted) Weather Resistant (ES15) are site interchangeable from Fail-Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screwdriver. The ES15 Series Strikes have a holding strength of up to 1200kg. The non-monitored ES15 version is weather resistant IP56 rated. It can be used for pedestrian gates and light commercial applications. They are dual voltage products accepting voltages of either 12 or 24VDC.
Features
- ES2000 equiv Electric Strike
- 4Hr fire rating
- 12v/24v DC selectable
- 200mA
- monitored
-
Vendor:
TotalSE
- Description
Product Overview
The Lox ES15 is a surface-mounted (RIM-mounted) electric strike designed for pedestrian gates and light commercial doors. It's field-selectable between fail-secure and fail-safe operation — a small screwdriver is all it takes to switch between Power-to-Lock and Power-to-Release modes on site, so one strike covers both common configurations rather than needing two different products.
Built for outdoor and semi-exposed applications, the ES15 is IP56 weather resistant and runs on dual voltage (12VDC or 24VDC), with a holding strength of up to 1200kg. It's a non-monitored strike — it doesn't include a door-position or strike-status sensing switch — so if your access control system needs to report door or strike status back to a controller, confirm compatibility with our team first. Supplied through Total Security Equipment.
Key Capabilities
Field-Selectable Fail-Safe/Fail-Secure
Switch between Power-to-Lock and Power-to-Release on site with a small screwdriver — no need to order two different products.
IP56 Weather Resistant
Rated for outdoor and semi-exposed installs, including pedestrian gates.
Up to 1200kg Holding Strength
Strong holding force suited to light commercial doors and gates.
Dual Voltage 12/24VDC
Runs on either 12VDC or 24VDC, giving you flexibility with your existing power supply.
Best For
Pedestrian Gates
Weather-resistant construction suits outdoor gate applications.
Light Commercial Doors
A cost-effective electric strike for offices, shops, and light commercial entries.
Access Control Upgrades
Pairs with a card reader, keypad, or intercom release for controlled entry.
Why Choose This Electric Strike
Fitting out a door or gate with access control usually means committing to fail-safe or fail-secure operation up front. The ES15's field-selectable design removes that guesswork — install it, then set the mode on site with a screwdriver. Combined with IP56 weather resistance and strong holding strength, it's a practical option for both indoor and outdoor pedestrian access points. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | ES15 |
| Brand | Lox (Lox Locking) |
| Type | Surface-mounted (RIM-mounted) electric strike, non-monitored |
| Operating Mode | Field-selectable Fail-Secure (Power-to-Lock) or Fail-Safe (Power-to-Release), switchable on site with a small screwdriver |
| Voltage | Dual voltage — 12VDC or 24VDC |
| Current Draw | 200mA at 12VDC / 100mA at 24VDC |
| Holding Strength | Up to 1200kg |
| Weather Rating | IP56 weather resistant — suits pedestrian gates and semi-exposed installs |
| Monitoring | Non-monitored (no built-in door-position/strike-status sensing switch) |
| Dimensions | Approx. 93.5mm × 35mm × 32mm |
| Weight | 2.0kg |
| Operating Temperature | -20°C to 60°C |
| Warranty | 5 years |
Ideal Use Cases
Pedestrian Gate Access
Weather-resistant construction suits outdoor gates and yard entries.
Office & Shopfront Doors
Pairs with a card reader or keypad for controlled office or retail entry.
Intercom-Released Entries
Works with an intercom or buzzer system to release the door remotely.
Light Commercial Fit-Outs
A cost-effective strike for light commercial access control projects.
FAQs
1. Is the ES15 fail-safe or fail-secure?
It's field-selectable — you can set it to either fail-secure (Power-to-Lock) or fail-safe (Power-to-Release) on site using a small screwdriver. Please confirm the correct mode for your door's fire/egress requirements with a licensed installer or our team.
2. Does this strike monitor door or strike status?
No — the ES15 is a non-monitored strike, without a built-in door-position or strike-status sensing switch. Ask our team if your system requires a monitored strike instead.
3. Can this be used outdoors?
Yes — it's IP56 weather resistant and suited to pedestrian gates and other semi-exposed installations.
4. What voltage does the ES15 run on?
It's dual voltage, accepting either 12VDC or 24VDC.
5. Should I install this myself?
We recommend having it installed and wired by a licensed locksmith or security technician to ensure correct wiring, mode selection, and safe, compliant operation.
