SKU:DS-2CD2367G2P-LSU/SL

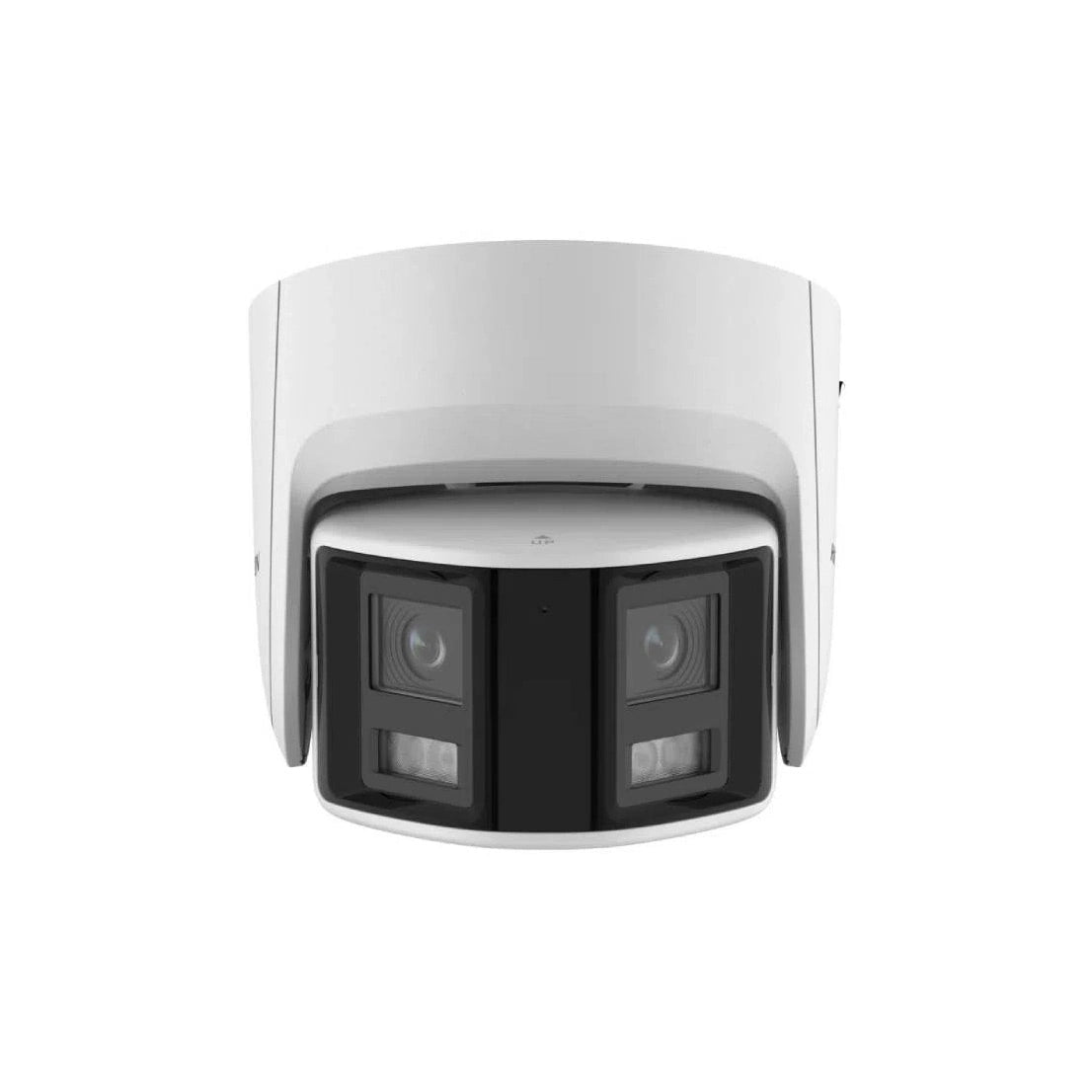

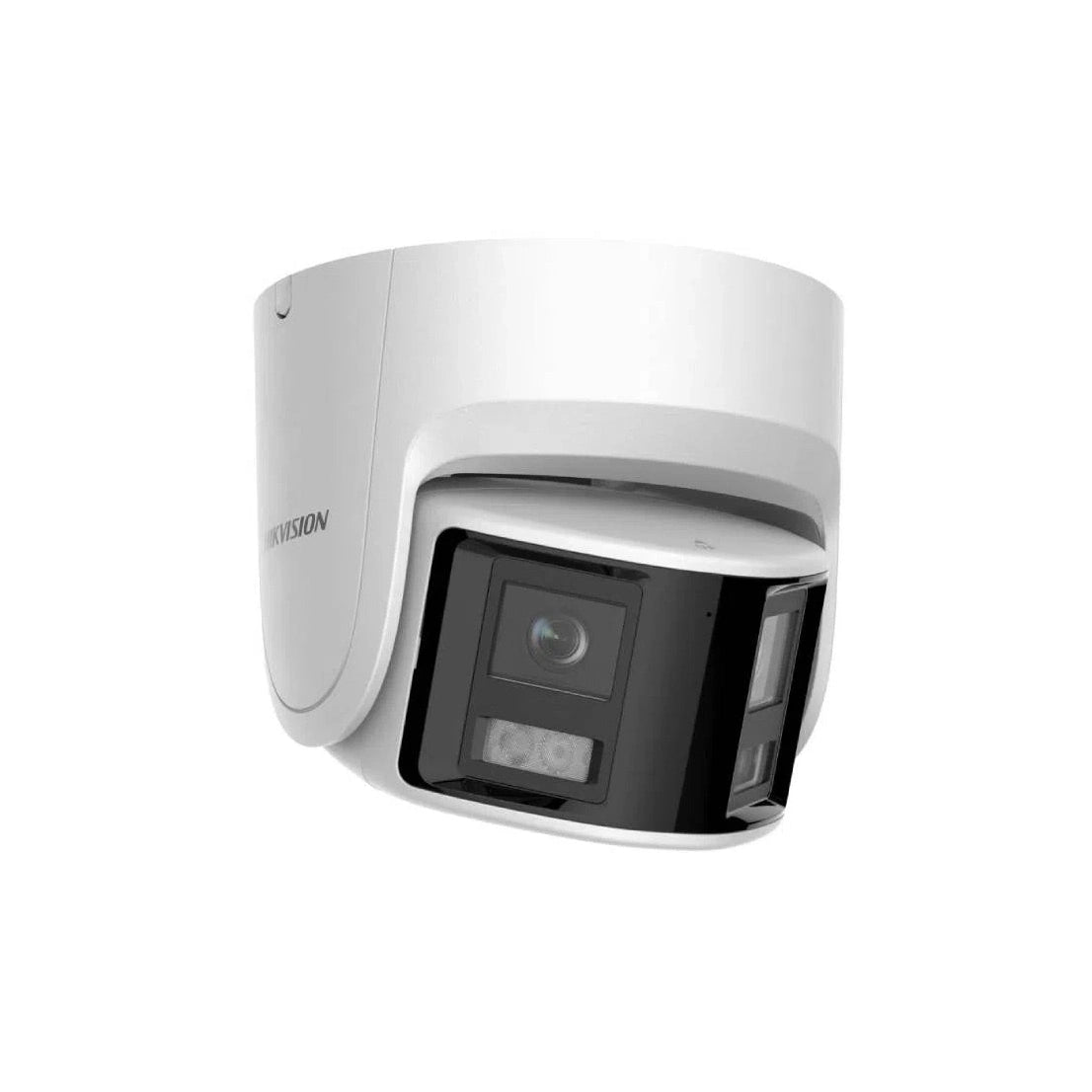

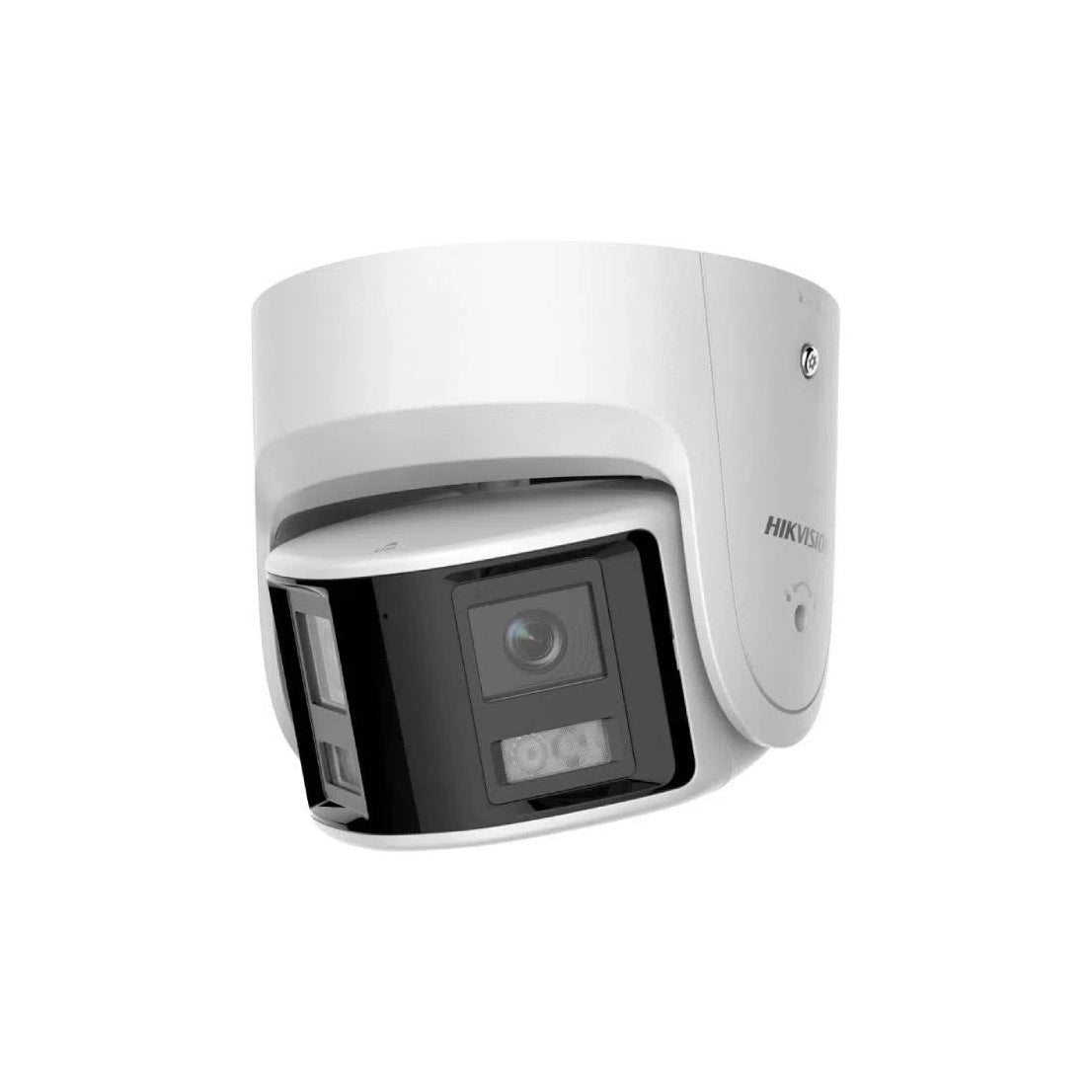

HIKVision 6 MP Panoramic ColorVu Fixed Turret Network Camera
Login to buyKey Features
- High quality imaging with 6 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
-
Vendor:
HIKVision
- Description
Product Overview
Engineered specifically to monitor expansive open locations such as commercial parking areas, warehouse bays, or grand entranceways from a single location, the DS-2CD2367G2P-LSU/SL is a 6MP ColorVu Gen2 panoramic turret network camera. Outfitted with twin fixed 2.8mm focal lenses and advanced Image Fusion Technology, it constructs a seamless 180° horizontal field of view—dramatically minimizing camera deployments and cabling needs across large footprints. Delivering 24/7 full-colour imaging via an ultra-large F1.0 aperture, AcuSense target classification (human and vehicle identification), Live-Guard flashing strobe and configurable audio deterrence, alongside a integrated microphone and speaker setup, it is built for environments demanding both ultra-wide awareness and active response capabilities. Its IP67-rated enclosure protects internal hardware in exposed outdoor areas like loading ramps, factory facades, and building foyers. A DORI detection limit of 45m ensures subject tracking across the panoramic span, while 130dB WDR handles complex glare and lighting contrast effectively.
Key Capabilities
180° Panoramic Field of View
The twin 2.8mm fixed lens configuration captures a continuous 180° horizontal and 60° vertical view from a single mounting drop, eliminating blind spots across large sites like storage floors, outdoor carparks, and commercial lobbies.
Image Fusion Technology
Instead of presenting dual separate video feeds, hardware Image Fusion Technology merges both optical sensors into a smooth, single panoramic stream, eliminating seam gaps during live monitoring and playback review.
ColorVu 24/7 Full-Colour Imaging
An F1.0 super aperture alongside warm supplemental white light illumination keeps video rendered in vivid color all night long down to 0.0005 Lux—preserving clothing, vehicle, and contextual details during post-event audits.
Live-Guard Active Deterrence
An integrated flashing strobe light and customizable sound alarm trigger instantly upon target detection, offering active deterrence for loading bays, perimeter boundaries, and restricted commercial zones.
AcuSense Human & Vehicle Classification
Deep-learning algorithms filter out non-threatening triggers like foliage, heavy rain, or wildlife, preventing nuisance alarms across the wide 180° field of view and keeping notifications focused on true targets.
Two-Way Audio Hardware
Equipped with both a built-in microphone and speaker, this unit supports bidirectional audio communication—allowing live verbal warnings or greetings at doorways, loading docks, and reception areas.
Best For
The 180° panoramic coverage spans across extensive storage aisles and loading points without requiring multiple fixed cameras.
Broad horizontal view angles allow monitoring of multiple parking lanes and pedestrian walkways from fewer physical points.
ColorVu 24/7 color and AcuSense filtering provide clear evidence collection and precise alert management in busy public environments.
Spans wide equipment layouts and assembly areas cleanly without laying secondary network cabling or additional mount points.
Live-Guard strobe light and audio alarm combine with wide color coverage for exposed outdoor zones where deterrence is essential.
Why Choose the DS-2CD2367G2P-LSU/SL
Where standard turret cameras only cover narrow entryways or pathways, the DS-2CD2367G2P-LSU/SL is designed for wide spaces where standard coverage falls short. The dual-sensor 180° design resolves the issue of covering large open sites that would normally require multiple cameras, extra cable runs, and additional software channels. On top of wide coverage, it merges ColorVu full-colour night vision, AcuSense target classification, Live-Guard active deterrence, and built-in two-way audio into an IP67 weatherproof housing—features not found in traditional wide-angle units. Available at Security Wholesalers, this model is a strong choice for installations prioritizing setup efficiency and broad situational awareness.
Buyer Decision Tips
Key Features & Technical Specifications
| Category | Parameter | Details |
|---|---|---|
| Camera | Image Sensor | 2 × 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 3632 × 1632 | |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light | |
| Shutter Time | 1/3 s to 1/100,000 s | |
| Angle Adjustment | Pan: 0° to 30°, tilt: -75° to 75° | |
| Lens | Lens Type | Fixed focal lens, dual lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 180°, vertical FOV: 81° | |
| Lens Mount | M12 | |
| Aperture | F1.0 | |
| DORI | DORI | 2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m |
| Illuminator | Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m | |
| Video | Main Stream | 50 Hz: 20 fps (3632 × 1632); 60 Hz: 20 fps (3632 × 1632) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| Audio | Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | |
| Network | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket |
| Security | Password protection, HTTPS encryption, 802.1X, IP filter, Watermark, Security audit log, TLS 1.2 |
Ideal Use Cases
Warehouse Floors & Storage Bays
The 180° panoramic view covers internal storage floors and movement corridors from a single point, reducing camera counts and installation complexity across large facilities.
Car Parks & Vehicle Approaches
AcuSense vehicle classification combined with ultra-wide panoramic coverage monitors multiple traffic lanes or open parking zones simultaneously without unnecessary motion alerts.
Loading Docks & Freight Zones
Positioned over loading yards, it monitors broad vehicle and pedestrian movement. Live-Guard active deterrence can trigger strobe and sound warnings across the entire field of view.
Factory Floors & Production Lines
Wide coverage across machinery areas and production lines matches the 180° lens layout, while ColorVu night vision preserves color imaging in dim shift conditions.
Large Commercial Entrances
Shopping mall entryways, building foyers, and open walkways benefit from broad coverage and AcuSense human classification, providing clear full-color evidence during incidents.
Exposed Building Frontages
An IP67 rating allows mounting on exterior walls or soffits. Broad color vision, Live-Guard deterrence, and two-way voice support site monitoring and direct interaction.
Choosing the Right Model
Choose this model if…
- You need 180° panoramic coverage across open commercial spaces using ColorVu night imaging, AcuSense AI, Live-Guard deterrence, and two-way audio in one IP67 camera.
- You want to reduce camera count, mounting locations, and software licenses across an open property floor plan.
Choose a different model if…
- You are covering a narrow space. Select a standard fixed turret for single doorways, narrow paths, or hallways where 180° width is unnecessary.
- You need remote pan, tilt, or zoom capabilities. Choose a PTZ camera if tracking subjects across wide areas is required.
- You need long-distance facial/plate identification. With an identification range of 4.5m, this unit prioritizes wide coverage. Select a varifocal camera for distant gate identification.
FAQs
1. What does the dual-head design mean on the DS-2CD2367G2P-LSU/SL?
The DS-2CD2367G2P-LSU/SL houses two independent 2.8mm lenses inside a single turret housing. These lenses capture overlapping fields of view that Image Fusion Technology merges into one continuous wide image. This delivers a complete 180° horizontal field of view from a single mounting point and cable drop.
2. What resolution does this panoramic camera record at?
This unit captures at 6MP resolution with an aspect ratio of 3840 × 1080 at 25fps. This ultra-wide aspect ratio reflects its dual-sensor panoramic layout. While some sample videos reference an 8MP variant, this model is the 6MP version.
3. Does the DS-2CD2367G2P-LSU/SL record in colour at night?
Yes. Built with ColorVu technology, an F1.0 super aperture, and warm white light illumination, it maintains full-colour video in environments down to 0.0005 Lux. The warm white LEDs cover up to 30m, ensuring clothing and vehicle colors remain identifiable at night without switching to monochrome.
4. How does Live-Guard deterrence work on this camera?
Live-Guard uses a built-in flashing strobe light and custom audio speaker warnings upon event detection. Configured via Hikvision software or NVRs, it actively deters trespassers in car parks, loading docks, and entryways rather than just passively recording.
5. Is two-way audio supported on this model?
Yes. Featuring both an integrated microphone and loudspeaker, it supports bidirectional voice communication through compatible recording systems or apps, enabling real-time voice warnings or interaction during incidents.
6. How does AcuSense assist across a wide panoramic scene?
Because a 180° panoramic view covers a large area, standard motion detection can generate frequent false alarms from foliage, rain, or small animals. AcuSense uses deep learning to classify human and vehicle targets specifically, making event alerts and playback searches accurate.
7. Is the DS-2CD2367G2P-LSU/SL suitable for outdoor installation?
Yes, its IP67 weather-resistance rating ensures complete protection against rain and dust. It is suitable for exposed outdoor positions like building frontages, loading bay overhangs, and open parking structures across Australian weather conditions.
8. Can this camera reduce total camera counts on a project?
Yes. In open commercial sites like warehouses, car parks, or wide entrances, the 180° field of view from one physical drop can replace two or more standard fixed-lens cameras, reducing cabling runs and software channel licenses.
