SKU:DS-2CD2766G2T-IZS

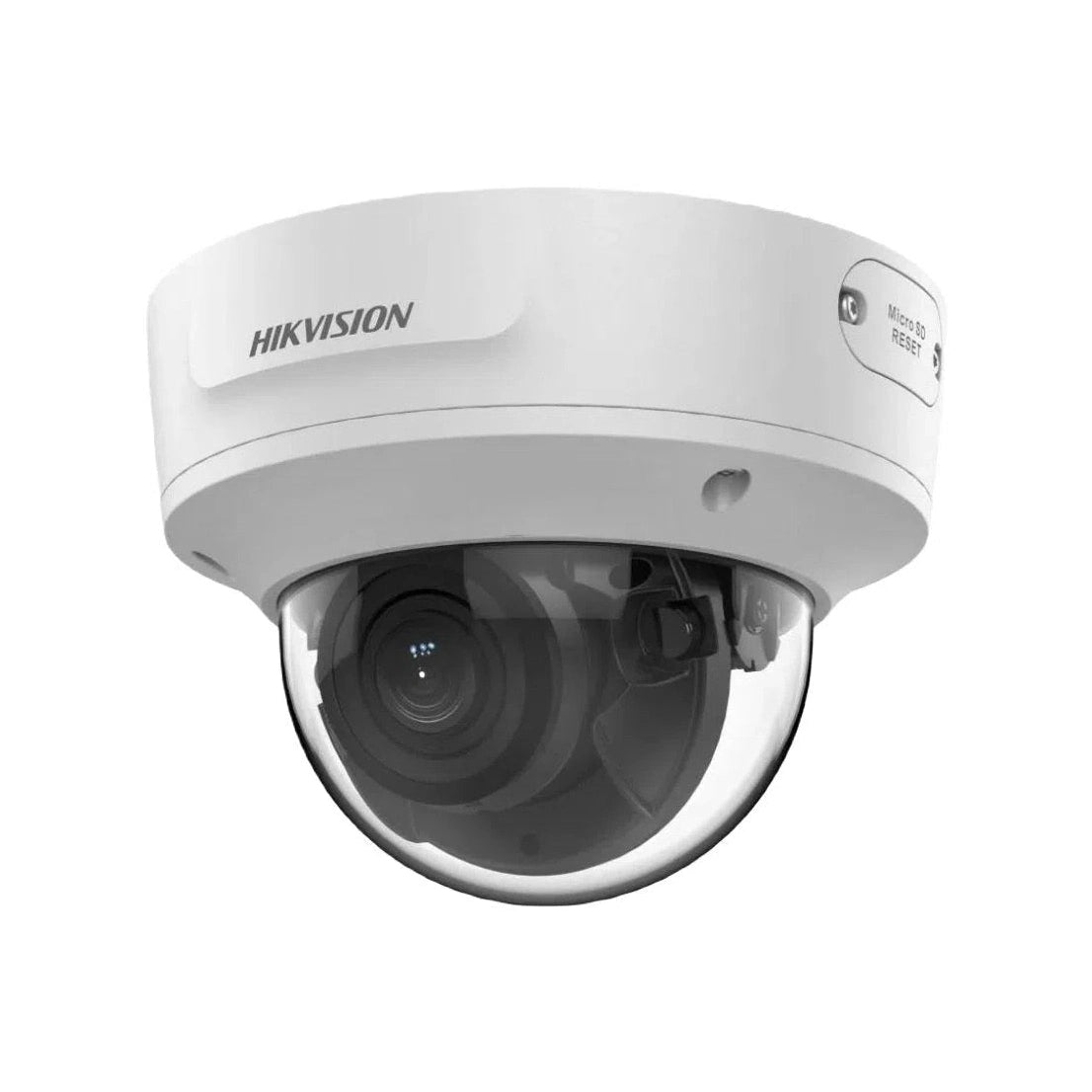

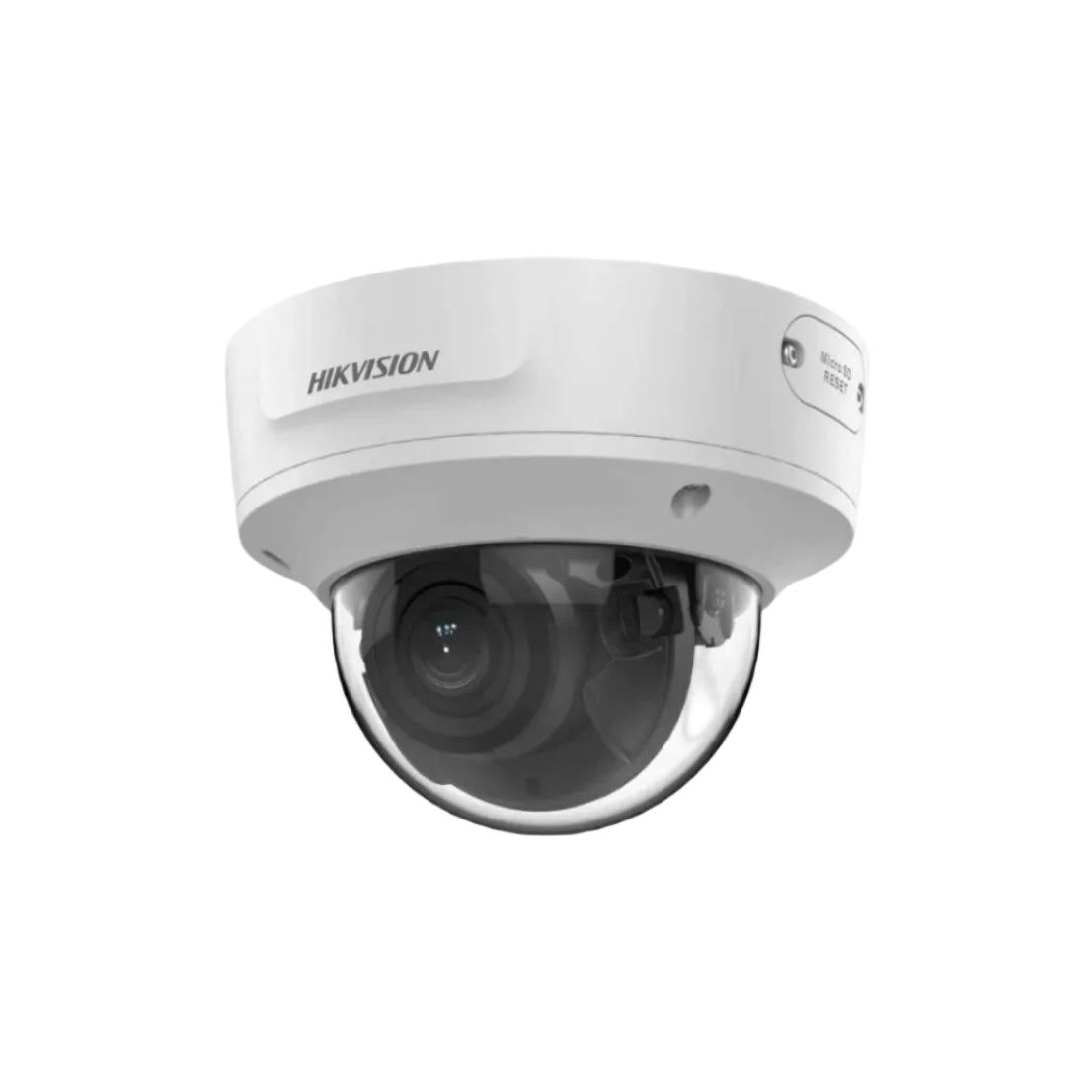

Hikvision 6MP DS-2CD2766G2T-IZS AcuSense Varifocal Dome 2.8~12mm
Login to buyFeatures:
- High quality imaging with 6 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time audio security (-SU)
- Audio and alarm interface available(-SU)
- Water and dust resistant (IP67) and vandal resistant (IK10)
-
Vendor:
HIKVision
- Tags: 6mp, Acusense, Dome camera, New arrival, Offers
- Description
Product Overview
Combining flexible remote zoom capabilities with real-time video verification tools, the DS-2CD2766G2T-IZS-BNC is a 6 MP AcuSense motorized varifocal dome network camera built for versatile indoor and outdoor security deployments. Equipped with a 2.8–12 mm motorized zoom lens, installers can remotely fine-tune the focal length and field of view without needing physical adjustment at the ceiling or wall mount. The addition of a local analogue BNC test/video output makes local monitor setup and on-site testing fast and straightforward. Powered by AcuSense deep-learning algorithms, the camera categorizes human and vehicle targets, filtering out environmental interference to minimize false alarms. Housed inside an IK10 vandal-resistant and IP67 weather-sealed dome enclosure, it is exceptionally suited for commercial lobbies, retail floors, schools, parking garages, and building exteriors that demand physical protection, flexible coverage, and reliable AI detection.
Key Features
- 6 MP High-Resolution Sensor: Delivers crisp 3200 × 1800 resolution video for enhanced detail retention and target identification.
- 2.8–12 mm Motorised Varifocal Lens: Remotely adjust zoom levels and focal positioning for optimal field-of-view configuration post-installation.
- Analogue BNC Video Output: Built-in analog composite output enables quick on-site monitoring, alignment, and test rig connection.
- AcuSense AI Target Classification: Deep-learning analytics isolate human and vehicle movement, filtering out non-critical motion triggers.
- Powered-by-DarkFighter Low-Light Optics: Captures clear low-light colour performance down to 0.003 Lux before IR switching.
- 120 dB True Wide Dynamic Range: Balances high-contrast outdoor light and dark shadowed interiors simultaneously.
- IK10 & IP67 Protection: Vandal-proof dome construction paired with weatherproof sealing for harsh environment resistance.
Key Capabilities
Motorised 2.8–12 mm Varifocal Zoom
Adjust lens magnification and focal zoom remotely via software or NVR tools. Ranging from wide 108° spatial coverage down to focused 30° corridor views, it allows effortless post-installation view framing.
Analogue BNC Test Output Port
Features a dedicated CVBS BNC video output port allowing field technicians to connect CCTV test monitors directly at the camera position for rapid lens focus, angle tuning, and fault diagnostics.
AcuSense Motion & Intrusion Analytics
Deep-learning algorithms analyze target shapes and movement patterns, restricting alarm notifications strictly to human and vehicle incursions while filtering out moving trees, rain, or small animals.
DarkFighter Low-Light Performance
Equipped with DarkFighter hardware enhancements and a high-grade sensor, this model captures vivid full-colour detail in dim conditions before engaging long-range Smart IR up to 40 metres.
120 dB Hardware WDR
True Wide Dynamic Range technology compensates for high-contrast illumination differences, clarifying backlit glass doors, entrance vestibules, and outdoor overhangs without washing out highlights.
IK10 Vandal & IP67 Weather Resistant
Encased in an IK10-rated impact-resistant dome shell with IP67 weather sealing, the camera resists physical tampering, deliberate strikes, heavy dust, and direct rain exposure.
Best For
IK10 vandal protection prevents physical tampering while the motorized zoom allows flexible coverage across wide foyers or entryways.
AcuSense vehicle detection and 120 dB WDR combine to manage vehicle headlamps and dark driving lanes effectively.
Motorized lens allows adjusting coverage directly onto POS counters or wide shop aisles without opening the dome cover.
The integrated BNC test output streamlines local adjustment and physical commissioning for security installers.
Why Choose the DS-2CD2766G2T-IZS-BNC
The DS-2CD2766G2T-IZS-BNC offers outstanding versatility for demanding commercial installations. Its motorized 2.8–12 mm varifocal lens provides instant field-of-view adjustments remotely, saving installers time during commissioning. The added analogue BNC output gives field technicians immediate test monitor verification directly at the mounting location. Combined with 6 MP high-definition imaging, AcuSense target classification, DarkFighter low-light sensitivity, and IK10 vandal resistance, this camera represents a dependable choice for projects requiring flexible optics and robust physical protection. Available at Security Wholesalers with full local warranty coverage.
Buyer Decision Tips
Key Features & Technical Specifications
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 (6 Megapixels) |
| Lens Type | 2.8 to 12 mm motorised varifocal lens |
| Horizontal Field of View | 108° to 30° motorized zoom range |
| Analogue Video Output | 1 Vp-p composite BNC test output (75 Ω) |
| Minimum Illumination | Colour: 0.003 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Low-Light Technology | Powered-by-DarkFighter architecture |
| IR Night Vision Range | Up to 40 metres Smart IR distance |
| Wide Dynamic Range | 120 dB True WDR |
| AI Analytics | AcuSense human and vehicle classification filtering |
| Audio & Alarm I/O | 1 audio input / 1 audio output; 1 alarm input / 1 alarm output |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Onboard Storage | Built-in MicroSD card slot (up to 256 GB supported) |
| Impact & Ingress Protection | IK10 Vandal-proof & IP67 Weatherproof rated |
Ideal Use Cases
Commercial Lobbies and Entrances
The 2.8–12 mm motorized zoom lets you set the field of view precisely onto doorway approaches, while 120 dB WDR balances bright exterior glass and dim interior lighting.
School Corridors and Public Spaces
IK10 impact resistance ensures the dome housing withstands physical impacts or ball strikes in active school hallways and recreation areas.
Underground Parking Structures
DarkFighter low-light imaging and AcuSense AI filtering keep monitoring precise in dim parking levels, while motor zoom allows framing drive lanes accurately.
Retail Supermarkets and Counters
Flexibly switch between wide aisle surveillance and zoomed-in register monitoring directly from the control room without altering hardware setups.
Choosing the Right Model
Choose this model if…
- You need remote optical zoom capability via a motorized 2.8–12 mm varifocal lens.
- You require a local BNC output port for local monitor testing during setup.
- You need IK10 impact resistance for public or low-ceiling mounting locations.
- You want AcuSense AI filtering to eliminate false motion alerts.
Choose a different model if…
- You prefer a fixed lens turret or bullet camera. If motorized zoom and BNC test ports are not required, standard fixed turret models offer a lighter, cost-effective alternative.
- You need active strobe and speaker deterrence. Consider a Hikvision Live-Guard / Active Deterrence camera model with built-in flashing light and siren warning capabilities.
FAQs
1. What is the benefit of the built-in BNC test output?
The local composite BNC port lets installers plug a portable service monitor directly into the camera during installation. This makes framing, focusing, and angle adjustment straightforward without needing network access or an app connection.
2. How does the motorized varifocal lens work?
The 2.8–12 mm motorized lens allows remote focal adjustment via web browser, iVMS software, or NVR controls. The camera automatically focuses after zooming, eliminating manual lens ring adjustments inside the dome.
3. Is an IK10 dome camera suitable for vulnerable outdoor sites?
Yes. The IK10 rating guarantees resistance against up to 20 Joules of physical impact (equivalent to a 5 kg mass dropped from 40 cm), protecting internal camera components from vandalism.
4. How does AcuSense AI technology reduce false alerts?
AcuSense deep learning differentiates human shapes and motor vehicles from background motion like wind-blown trees, light shifts, or animals, ensuring alerts trigger only on genuine threats.
5. Does this model support local onboard storage?
Yes, it features a built-in MicroSD card slot supporting cards up to 256 GB for local edge recording or failover backup during network disconnections.
