SKU:DS-2CD2T67G2P-LSU/SL

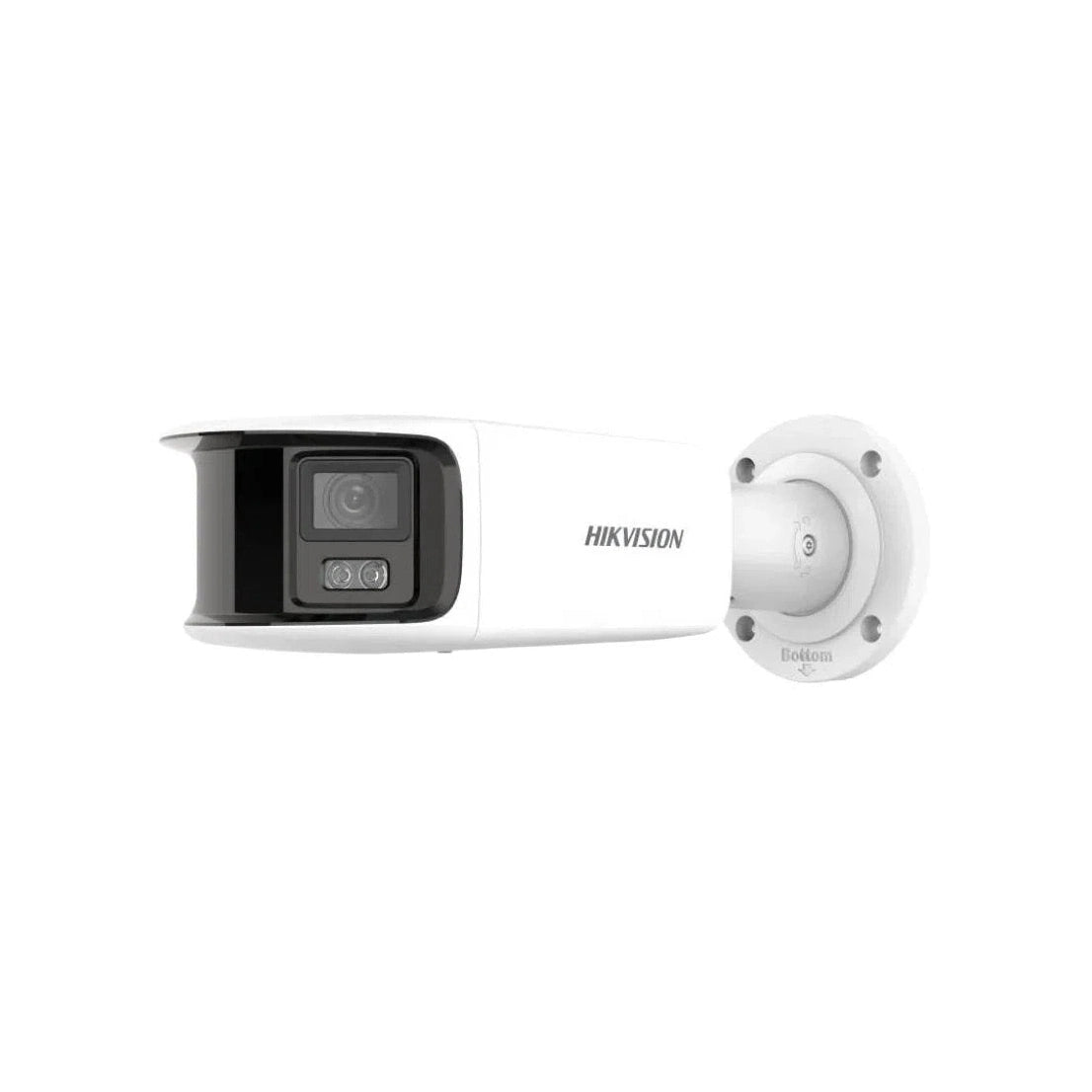

Hikvision 6MP DS-2CD2T67G2P-LSU/SL Panoramic ColorVu Fixed Bullet 2.8mm
Login to buyFeatures:
- High quality imaging with 8 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
-
Vendor:
HIKVision
- Tags: 6mp, Bullet camera, Colorvu, New arrival, Offers, Panoramic
- Description
Product Overview
Broad-scale outdoor observation from a single installation point is the key advantage of the Hikvision DS-2CD2T67G2P-LSU/SL, a 6MP panoramic bullet camera built around dual 2.8mm F1.0 fixed lenses that combine to deliver an uninterrupted 180-degree horizontal perspective. While standard bullet units target narrow focal zones, this hardware captures entire forecourts, vehicle entryways, or facility exteriors in a single frame without distortion gaps or mechanical repositioning. Powered by ColorVu low-light technology, images remain vibrant in illumination as low as 0.0005 Lux prior to engaging the active white light illumination array, which reaches up to 40m. Deep learning AcuSense algorithms filter human and vehicle forms from background interference, while integrated strobe flash and audio sirens provide immediate active deterrence. Complete with IP67 weather resistance, PoE power delivery, and up to 512GB of microSD storage, this camera is tailored for exposed outdoor sites requiring comprehensive coverage alongside proactive defense.
Key Capabilities
Dual-Lens 180° Panoramic View
Two 2.8mm F1.0 fixed optics join to output a continuous 180° horizontal by 81° vertical video stream, replacing multiple conventional cameras to streamline cabling and deployment expenses.
ColorVu Full-Colour Night Optics
F1.0 super-aperture lenses pull in maximum ambient light to preserve true-to-life object, clothing, and vehicle colors down to 0.0005 Lux without reverting to monochrome.
AcuSense Intelligent Target Filtering
Embedded deep learning analytics differentiate human and vehicle motions from environmental noise like rain or foliage, ensuring alerts trigger only on real events.
Active Strobe and Audio Deterrence
A flashing white light strobe and customizable audio siren trigger automatically upon unauthorized perimeter intrusions, warning off trespassers autonomously.
130dB True Wide Dynamic Range
Advanced WDR processing balances extreme contrast gradients between bright exterior daylight and dark interior shadows across the wide panoramic scene.
Two-Way Audio & 512GB Storage
An onboard microphone and speaker allow live verbal communication, backed by support for up to 512GB microSD local storage and reliable network failover.
Best For
Covers expansive parking zones, entry gates, and walkaways in a single wide-angle shot without blind corners.
Pairs AcuSense classification with active strobe lights and audio sirens to deter intruders automatically without manual intervention.
ColorVu imaging ensures nighttime incidents are logged in clear color detail to support security reviews or claims.
130dB WDR handles intense lighting variations at doorways to keep faces and vehicle markings clear.
Why Choose the DS-2CD2T67G2P-LSU/SL
Standard single-lens bullet cameras monitor isolated directions and necessitate strict focal planning. The Hikvision DS-2CD2T67G2P-LSU/SL transforms site layout strategies by delivering a complete 180° sweep from one compact piece of hardware. Beyond its expansive panoramic optics, it merges F1.0 ColorVu night clarity, AcuSense target filtering, proactive strobe and siren deterrence, and two-way audio capability within a rugged IP67 metal enclosure. High-capacity edge storage accommodating up to 512GB with ANR backup ensures recordings continue uninterrupted even during network dropouts, while H.265+ compression keeps 6MP file sizes manageable. Available through Total Security Equipment alongside matching mounting brackets, it stands as an elite option for wide-area outdoor protection.
Buyer Decision Tips
Key Features & Technical Specifications
| Image Sensor | 2 x 1/2.5″ progressive scan CMOS |
| Max Resolution | 3632 x 1632 (6MP) |
| Lens Configuration | Dual 2.8mm fixed, F1.0, M12 mount |
| Field of View | Horizontal 180°, Vertical 81° |
| Minimum Illumination | 0.0005 Lux @ F1.0 (colour); 0 Lux with active white light |
| Supplement Light | Smart white light, range up to 40m |
| Wide Dynamic Range | 130 dB True WDR |
| DORI Metrics | Detect 45m / Observe 17.5m / Recognise 9m / Identify 4.5m |
| Frame Rate | 20fps @ 3632 x 1632 (50/60 Hz) |
| Video Compression | H.265+, H.265, H.264+, H.264, SVC |
| Audio System | Built-in mono mic and speaker; complete audio I/O ports |
| Active Deterrence | Integrated strobe light and active audio speaker alarm |
| Network Protocols | PoE 802.3af, 10/100 Mbps, ONVIF S/G/T compliant |
| Local Storage | MicroSD slot up to 512GB; NAS (NFS/SMB); ANR support |
| Power Requirements | 12V DC ±25% or PoE (max 12.5W consumption) |
| Ingress Protection | IP67 weather-resistant heavy-duty metal chassis |
| Dimensions & Weight | 118.6mm x 105.1mm x 306.5mm / approx. 1.4kg |
| Approvals | FCC, CE-EMC, RCM, UL, CE-LVD, RoHS, WEEE, REACH |
Ideal Use Cases
Open Car Parks & Multilevel Lots
Captures multiple driving lanes and parking bays simultaneously from a single column mounting position, balancing heavy sky-to-ground contrast cleanly.
Industrial Loading Docks
Monitors entire loading bay widths above roller doors while filtering out random motion noise using intelligent AcuSense vehicle categorization.
Retail Storefronts After Hours
Combines full-color night imaging with active strobe and audio warnings to intercept intruders before physical damage occurs.
School Grounds & Perimeter Lines
Reduces total camera counts required across wide boundary fences while enabling remote operator communication via the built-in speaker.
Construction Compounds
Withstands harsh dust and wet weather conditions via IP67 shielding while recording clear after-dark footage across unsecured perimeters.
Choosing the Right Model
Choose this model if…
- You need a wide 180° horizontal perspective from a single housing, complete with full-color night vision, AcuSense filtering, and built-in active deterrence.
- Minimizing hardware counts and cabling runs across broad outdoor areas is a priority.
Choose a different model if…
- You need long-range identification. Select a narrow-lens camera if your main goal is capturing fine facial details or license plates past the 10m threshold.
- You are mounting on an angled corner. Choose a standard turret or adjustable bullet model if a flat wall mount space is unavailable for proper panoramic framing.
FAQs
1. How does the dual-lens system output a 180° image?
The device incorporates two separate 2.8mm F1.0 lenses, merging their visual fields through onboard processing into a single continuous 3632 x 1632 video stream spanning 180 degrees horizontally.
2. Does the camera output color video at night without switching to monochrome?
Yes. ColorVu optics and super-aperture lenses maintain vivid color rendering down to 0.0005 Lux. When ambient light drops further, the smart white light illuminates the scene to 0 Lux while keeping full-color video active.
3. What triggers the strobe flash and audio siren?
The active deterrence features link directly to the AcuSense analytics engine, activating automatically upon verified human or vehicle detection within customized detection zones and schedules.
4. Is the audio capability suitable for two-way communication?
Yes, the camera contains both an integrated microphone and speaker, supporting real-time two-way voice communication via compatible NVR setups or mobile apps.
5. What is the maximum local storage card supported?
The built-in microSD card slot accommodates storage up to 512GB, supplemented by NAS network shares and ANR automatic recording recovery functions.
6. Does this camera require a special high-power PoE switch?
No. Drawing a maximum of 12.5W, it operates smoothly on standard 802.3af (15.4W) PoE switch ports without requiring upgraded PoE+ hardware.
7. Where can official documentation and compliance details be found?
Official datasheets and product support are accessible directly through Total Security Equipment, carrying full RCM approval for Australian compliance.
