SKU:DS-KIS212

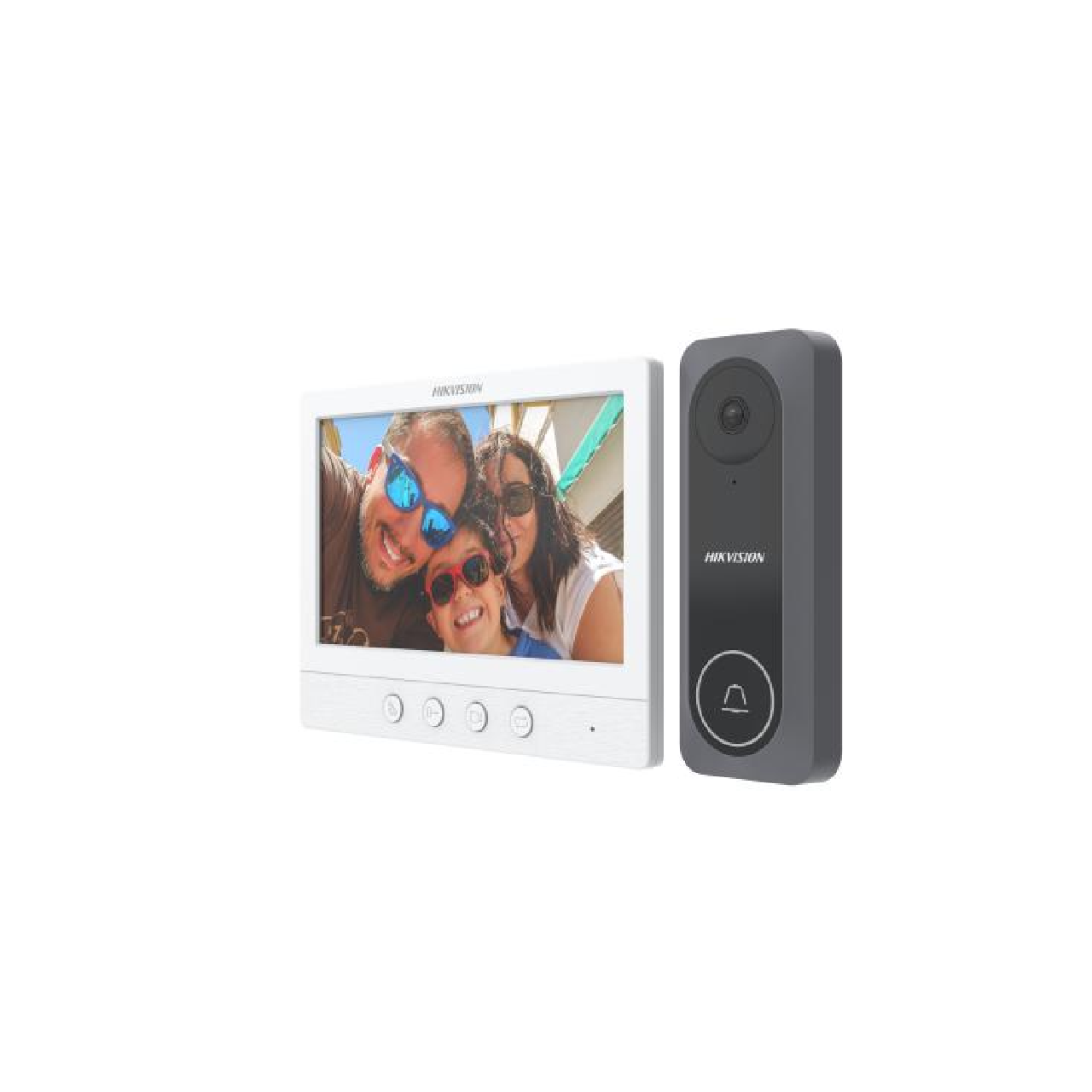

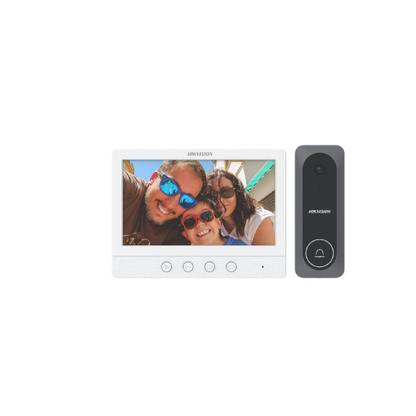

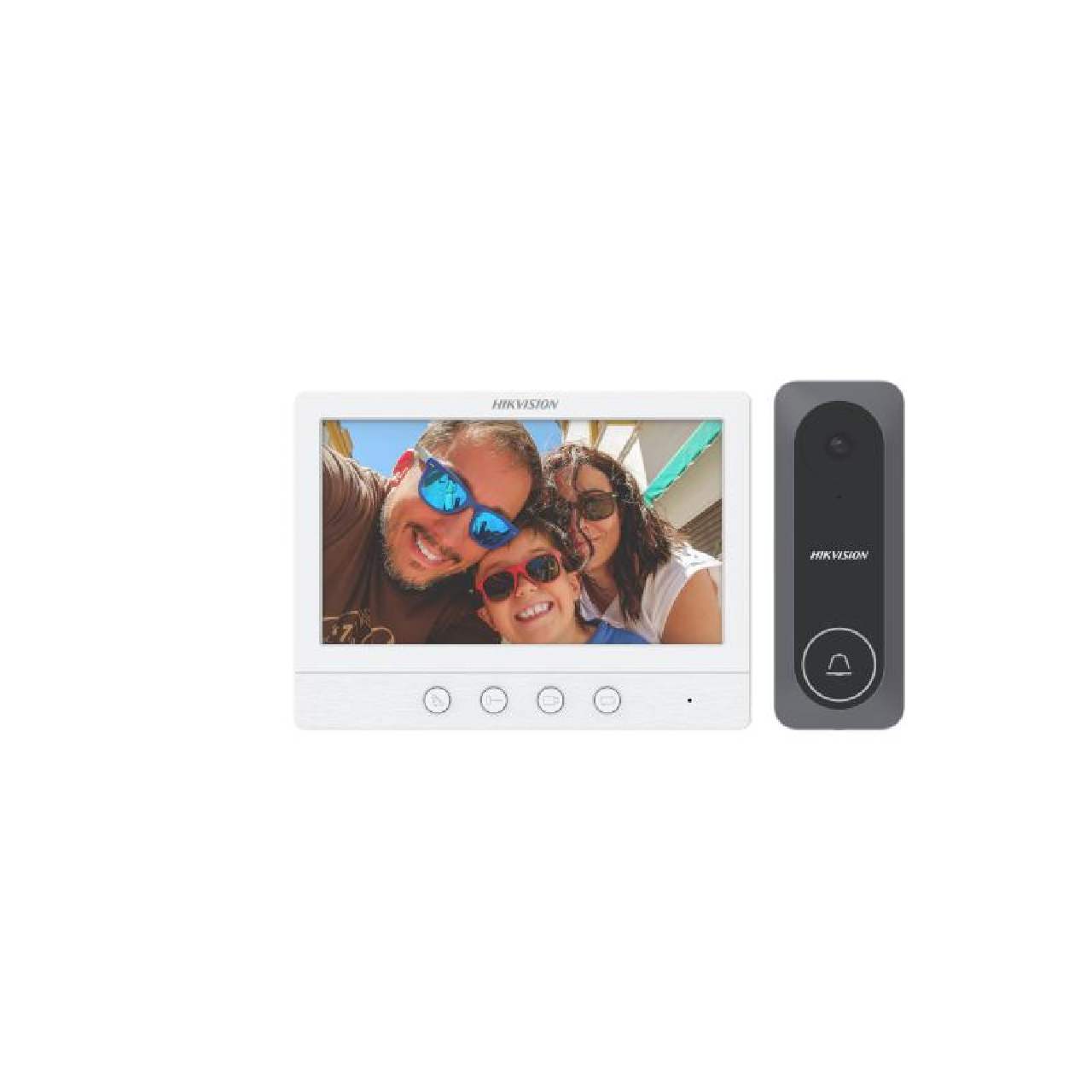

HIKVISION DS-KIS212 4-Wire HD Video Intercom Kit

4-Wire HD Video Intercom Kit

  • HD TVI video quality
  • Plug & play
  • One-press to call
  • One-press to unlock the door
  • Max 2 door stations and 3 indoor stations in one system
  • Vendor:

    HIKVision

  • Tags: 4-wire
View Product Details

Buying from us? You get more than just the product.

Free Pre-Programming

We can pre-configure eligible products so they're ready to install.

Free 45 Mins Onsite Support

Stuck on the job? We'll come to you. Eligible purchases include up to 45 minutes of onsite support.

Project Management

From plans to handover. We assist with design, equipment selection, programming and commissioning.

End-User Support

We help support your customers too. Give your customers the confidence with reliable local support.

  • Door station/Video parameters
  • Supplement lightIR light, up to 3 m
  • ResolutionStream resolution: 1280 * 720@60fps
  • FOVHorizontal: 130°,Vertical: 70°
  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Door station/Device interfaces
  • Lock control1 relay, max 30V 1 A
  • Debugging port1
  • Four-wire1 four-wire interface
  • Door station/General
  • Button1 physical button(s)
  • Indicator/
  • Power supply12 VDC
  • Power consumptionMax. 4W
  • Working temperature-30° C to + 60° C
  • Working humidity10% to 90%
  • Dimensions136mm x 51mm x 20mm
  • Application environmentIndoor
  • InstallationSurface mounting
  • Protective level/
  • MaterialPlastic
  • Indoor station/Display parameters
  • Operation methodPhysical button
  • Type7-inch colorful TFT
  • Resolution1024 x 600
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Indoor station/Capacity parameters
  • Linked indoor extensions capacity2
  • Linked doorphone capacity2
  • Linked analog camera1
  • Indoor station/Device interfaces
  • Power supply input12V DC
  • Debugging port1
  • Four-Wire interface4, 2 for indoor extentions, 2 for doorphones
  • DIP switch1 Bit
  • BNC1
  • Indoor station/General
  • Button4 physical button
  • Power supply12 VDC
  • Power consumption≤5 W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions (W × H × D)178mm x 132mm x 19mm
  • InstallationSurface mounting
  • Application environmentIndoor
  • Protective level/
