SKU:DS-PWA96-M-WB

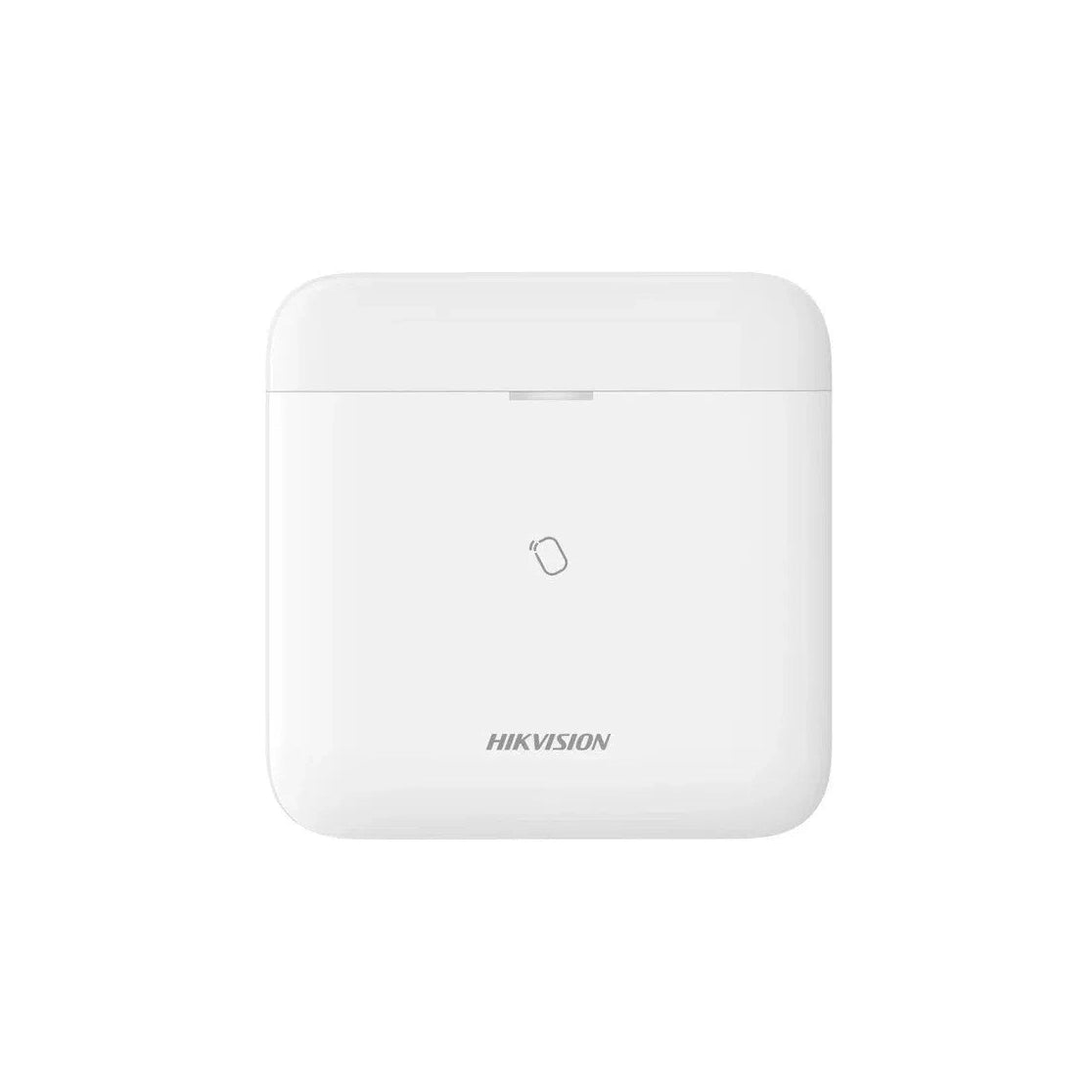

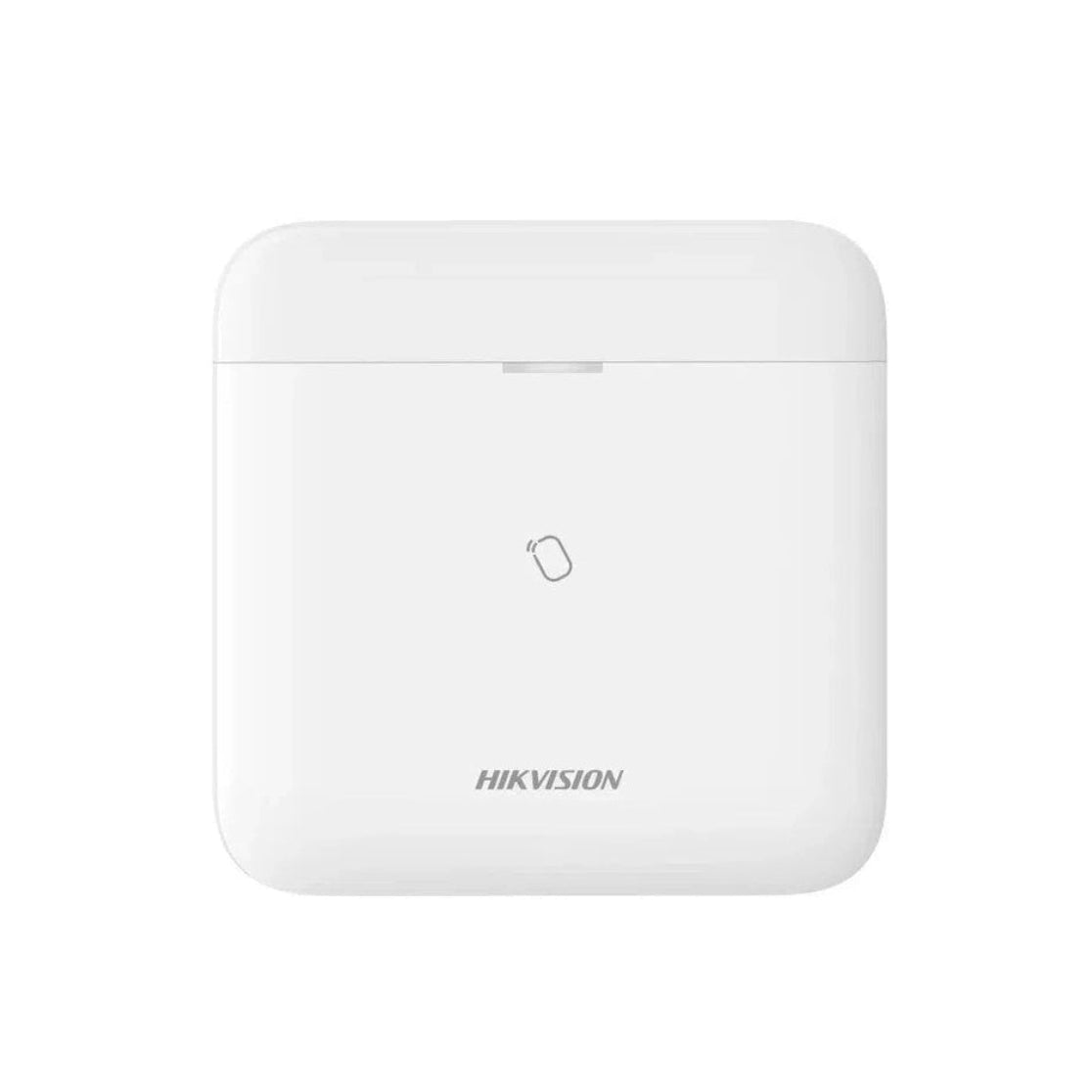

Hikvision DS-PWA96-M-WB AX PRO Series Wireless Alarm Hub
Login to buy- TCP/IP, Wi-Fi, and 3/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers & keypads.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
-
Vendor:
HIKVision
- Description
Product Overview
The Hikvision DS-PWA96-M-WB is the control hub at the heart of the Hikvision AX PRO wireless alarm platform — a 433MHz wireless intrusion panel built to scale from a small home right up to a large commercial site. A single hub supports up to 96 wireless zones and outputs (including 48 video-verification PIRCAM detectors), 48 keyfobs, 4 repeaters, 6 sounders and 8 tag readers or keypads, so most sites never outgrow it.
Where the AX PRO platform stands apart from a traditional alarm panel is connectivity and monitoring: the hub talks over TCP/IP, Wi-Fi and 3G/4G at once, communicates with its wireless devices using Hikvision's encrypted Tri-X/Cam-X protocol, and pushes live status, video-verified alarms and control straight to an app rather than requiring a separate monitoring receiver. This listing is for the DS-PWA96-M-WB hub itself — detectors, keypads, keyfobs and sounders are sold separately to let you configure the system around the site. Supplied directly through Total Security Equipment.
Key Capabilities
Large Wireless Capacity
Up to 96 wireless zones/outputs including 48 PIRCAM video-verification detectors, plus 48 keyfobs, 4 repeaters, 6 sounders and 8 tag readers or keypads.
Triple-Path Connectivity
TCP/IP, Wi-Fi and 3G/4G (dual SIM) connectivity keep the hub reporting even if one path goes down.
Encrypted Two-Way Wireless
Hikvision's Tri-X/Cam-X wireless protocol with AES-128 encryption for supervised, tamper-resistant device links.
Built-In Battery Backup
A built-in 4520mAh lithium battery keeps the hub running for up to 12 hours if mains power is lost.
Best For
96-zone capacity covers large residential properties with room to add detectors as needed.
Enough capacity and repeater support for offices, warehouses and multi-building sites.
Sites that want live status, alarm video clips and remote control from a phone rather than a wall keypad alone.
Why Choose This Hub
The DS-PWA96-M-WB gives you a genuinely scalable base to build on — with 96 wireless zones and support for video-verification PIRCAM detectors, it's sized for sites that would outgrow a smaller wireless panel, while its dual SIM 3G/4G plus Wi-Fi plus TCP/IP connectivity means the system keeps reporting even if one network path fails. Because it's a proper hub-and-device platform rather than a fixed kit, you can spec the detectors, keypads and sounders to match the site instead of paying for a bundle you don't need. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | DS-PWA96-M-WB |
| Product Type | Hikvision AX PRO wireless intrusion alarm hub (control panel only) |
| Wireless Frequency | 433MHz ("WB" variant) |
| Wireless Protocol | Tri-X/Cam-X, two-way communication, AES-128 encryption |
| Network Connectivity | TCP/IP, Wi-Fi, and 3G/4G (dual SIM slot) |
| Wireless Zone Capacity | Up to 96 wireless zones/outputs, including up to 48 PIRCAM video-verification detectors |
| Other Device Capacity | 48 keyfobs, 4 repeaters, 6 sounders, 8 tag readers/keypads |
| User Capacity | Up to 48 network users (1 installer, 1 administrator, 46 normal users) |
| Backup Battery | Built-in 4520mAh lithium battery, up to 12 hours backup at normal temperature (runtime reduces in cold conditions) |
| Power Adapter | Mains-powered with battery backup — exact adapter voltage not published by Hikvision; confirm with our team |
| Monitoring Protocol | SIA-DC09, supports both Contact ID and SIA data formats; RS232 output supported |
| App & Cloud Platform | Web, mobile app and Hikvision Convergence Cloud configuration; live video viewing and alarm video clips via app/email |
| Alarm Notification | App push, SMS and voice call notification; onboard voice prompts and LED status indicators |
| Dimensions | 170.0mm (W) × 170.0mm (H) × 38.6mm (D) |
| Weight | ≈557.5g |
| Housing | White plastic shell |
| Operating Temperature | -10°C to +55°C (adapter must remain connected for battery charging below 10°C) |
| IP Rating & Mounting | Indoor unit; formal IP rating and mounting hardware not stated on the official datasheet — confirm with our team |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
Large Residential Installs
Big homes and rural properties that need more zones than a small wireless kit can offer.
Offices & Retail Fitouts
Commercial sites wanting app-based arm/disarm, user management and video-verified alarms.
Multi-Building Properties
Repeater support extends wireless range across sheds, outbuildings and larger sites.
Installers Standardising on One Platform
One hub platform that scales across small and large jobs, cutting down on stock variety.
Choosing the Right AX PRO Hub
Choose the DS-PWA96-M-WB if:
You want a fully wireless hub with the largest AX PRO zone capacity (96 zones) and plan to select detectors, keypads and sounders separately to suit the job.
Ask our team about alternatives if:
You need onboard wired zone inputs (Hikvision's "M2H" hybrid hub range adds these) or you want a pre-bundled kit with a hub, keypad, sounder and detectors included. TSE currently lists the hub only — ask us what else we can source for your job.
FAQs
1. Does this listing include detectors, a keypad or keyfobs?
No — this is the DS-PWA96-M-WB hub only. PIR/PIRCAM detectors, keyfobs, keypads, tag readers and sounders are sold separately so you can configure the system to suit the site.
2. How many zones and devices can it support?
Up to 96 wireless zones/outputs (including up to 48 PIRCAM video-verification detectors), plus 48 keyfobs, 4 repeaters, 6 sounders and 8 tag readers or keypads.
3. What happens if the internet or mains power goes down?
The hub connects over TCP/IP, Wi-Fi and 3G/4G simultaneously, and a built-in 4520mAh lithium battery keeps it running for up to 12 hours if mains power is lost.
4. Can I view live video or alarm clips from my phone?
Yes — when paired with Hikvision PIRCAM detectors, the system supports video verification, with live viewing and alarm video clips available via the app or email.
5. Where can I buy this hub in Australia?
It's available directly from Total Security Equipment.
