SKU:PHA64-LP/NP

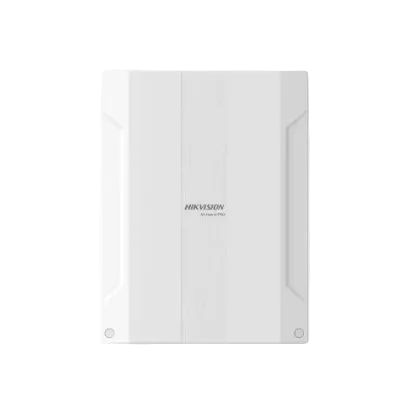

Hikvision PHA64-LP/NP Hybrid Alarm Control Panel
Login to buyThe Hikvision DS-PHA64-LP/NP AX Hybrid PRO Hardwired Alarm Controller is a commercial-grade security mainboard engineered for robust wired and hybrid intrusion alarm setups. Accommodating between 8 and 64 zones, 45 user credentials, 8 independent partitions, and 4 to 64 programmable outputs, it provides scalable control across residences, retail outlets, corporate offices, warehouses, and industrial facilities. Acting as the core backbone of a compatible Hikvision AX Hybrid PRO ecosystem, it handles system inputs, alarm sirens, output relays, and custom access permissions. It serves as the primary choice for sites prioritizing physical cabling stability while retaining future expandability for intricate site layouts.
AX HYBRID PRO
- Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable；4 on-board outputs（2 relay outputs & 2 I/O outputs） and 60 wired/wireless outputs expandable
- Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Pushes alarm notification via messages and Hik-Connect
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
- Supports 1 Speed-X BUS
-
Vendor:
HIKVision
- Description
Product Overview
The DS-PHA64-LP/NP functions as the central management engine for Hikvision AX Hybrid PRO security systems. Engineered specifically for projects requiring hardwired reliability, it delivers seamless centralized coordination over all wired detectors, internal sirens, and auxiliary output modules.
Featuring flexible zone capacity (expandable up to 64 zones) and 8 distinct operational areas, this controller allows facilities to partition security coverage efficiently while regulating access for up to 45 individual users. Supplied by Total Security Equipment, it offers the ultimate foundation for scalable wired security architecture.
Key Capabilities
8 to 64 Zone Support
Scales smoothly from an initial 8 hardwired zones up to 64 total zones, offering installation flexibility for both small properties and expansive commercial sites.
45 User Capacity
Accommodates up to 45 unique user PINs or credentials, making it ideal for multi-tenant buildings, retail staff management, and corporate offices.
8 Area Partitioning
Divides the security footprint into 8 independently controllable areas, allowing separate arming schedules for individual rooms, units, or office suites.
4 to 64 Outputs
Expandable hardware outputs accommodate external sirens, strobe lights, automation triggers, access relays, and third-party monitoring devices.
AX Hybrid PRO Platform
Integrated into Hikvision's professional AX Hybrid PRO product family to ensure unified setup, centralized control, and long-term hardware support.
Best For
Ideal for multi-story homes requiring wired sensors across doors, windows, outbuildings, and perimeters.
Well-suited for shopfronts, stockrooms, staff rooms, and after-hours intruder protection.
Provides organized management where multiple staff levels and separated office zones require individual access control.
Fits large commercial facilities needing multiple detection devices, strobe triggers, and partitioned storage bays.
The go-to choice when a hardwired alarm structure is specified for signal stability and long-term expandability.
Why Choose the DS-PHA64-LP/NP
The DS-PHA64-LP/NP stands out when a project demands a dependable, hardwired alarm platform capable of adapting to growing security needs. Offering up to 64 zones, 45 user profiles, 8 area partitions, and up to 64 outputs, it smoothly handles both simple single-building setups and multi-tenant commercial layouts. Its multi-area partitioning is particularly valuable for properties requiring independent arming across distinct operational sections. Sourced via Total Security Equipment, this controller should be specified after reviewing your site's zone requirements, output triggers, user permissions, keypad placements, sensor types, and expansion hardware.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | DS-PHA64-LP/NP |
| Product Type | AX Hybrid PRO hardwired alarm controller |
| System Architecture | Wired / hybrid intrusion alarm control system |
| Zone Support | 8 to 64 zones |
| User Capacity | Up to 45 users |
| Area / Partition Support | 8 independent areas |
| Output Capacity | 4 to 64 outputs |
| Primary Function | Centralized management for compatible Hikvision wired and hybrid intrusion components |
| Detector Compatibility | Compatible Hikvision wired intrusion detectors and supported AX Hybrid PRO peripherals |
| Partitioning Features | Supports multi-area setup for independent arming/disarming of site sections |
| Output Relay Functions | Sirens, strobes, relays, automation actions, and external monitoring triggers |
| System Setup Essentials | Main controller, system keypad, wired sensors, door contacts, sirens, backup battery, expander cards, and cellular/IP comms modules |
| Recommended Environment | Homes, offices, retail spaces, warehouses, workshops, medical clinics, and industrial facilities |
| Installation Requirements | Confirm zone allocation, output mapping, area design, cabling routes, keypad locations, power supplies, and battery backup before deployment |
Ideal Use Cases
Commercial Intrusion Protection
Serves business premises needing distinct security zones, multiple staff codes, and targeted output control for automated response.
Warehouse Infrastructure
Manages extensive spaces requiring high numbers of hardwired sensors, perimeter reed switches, exterior strobes, and isolated security zones.
Multi-Partition Buildings
Enables independent arming routines across shared commercial sites such as office suites, storage bays, and customer reception desks.
Large Residential Estates
Delivers comprehensive protection for expansive private residences needing hardwired coverage across main living quarters, garages, and gatehouses.
Legacy System Upgrades
Modernizes existing hardwired alarm infrastructure by replacing aging control panels with Hikvision's advanced AX Hybrid PRO platform.
Choosing the Right Model
Choose this model if:
You require a hardwired Hikvision AX Hybrid PRO mainboard configured for 8 to 64 zones, 45 users, 8 areas, and 4 to 64 outputs.
Choose a different controller if:
Your site calls for a completely wireless AX PRO hub, expanded user limits, standard un-partitioned control, integrated communication cards not supplied in this variant, or a fully wireless topology.
Check before ordering:
Confirm the total required inputs, outputs, keypads, hardwired sensors, sirens, auxiliary battery capacity, enclosure dimensions, network interface type, and expander cards prior to purchasing.
Frequently Asked Questions
What is the primary function of the Hikvision DS-PHA64-LP/NP?
The DS-PHA64-LP/NP serves as the main control board for Hikvision AX Hybrid PRO intrusion alarm installations. It coordinates wired detection zones, user codes, area partitions, and output triggers as defined by system configuration.
How many zone inputs can the DS-PHA64-LP/NP accommodate?
It supports between 8 and 64 total zones depending on system expansion hardware, making it suitable for both small business setups and multi-zone commercial structures.
How many individual user accounts can be assigned?
The panel supports up to 45 unique user accounts, providing ideal access control for homes, commercial facilities, and multi-staff office environments.
What does 8-area partitioning provide?
Partitioning allows the system to be split into 8 independently controlled sections. This enables users to arm specific areas—such as a store showroom, back office, or warehouse—while leaving other sections disarmed.
How many relay and automation outputs are available?
The unit supports between 4 and 64 outputs (with expansion modules). These outputs drive internal/external sirens, warning strobes, lighting relays, or external event monitoring equipment.
Is this controller designed for hardwired or wireless installations?
The DS-PHA64-LP/NP is an AX Hybrid PRO hardwired alarm controller built for physical cable infrastructure. For deployments requiring 100% wireless connectivity, a Hikvision AX PRO wireless hub supplied through Total Security Equipment is recommended.
Is the DS-PHA64-LP/NP appropriate for commercial installations?
Yes. With capacity for up to 64 zones, 8 partitions, and multiple programmable outputs, it is engineered to protect office buildings, retail centers, warehouses, and commercial spaces.
What prerequisites should be verified prior to installation?
Before setting up, review zone counts, sensor types, keypad positions, output loads, siren power demands, communication methods, area partitions, backup battery size, and cabinet layout to ensure full alignment with project requirements.
