SKU:NVR-216MH-C/16P

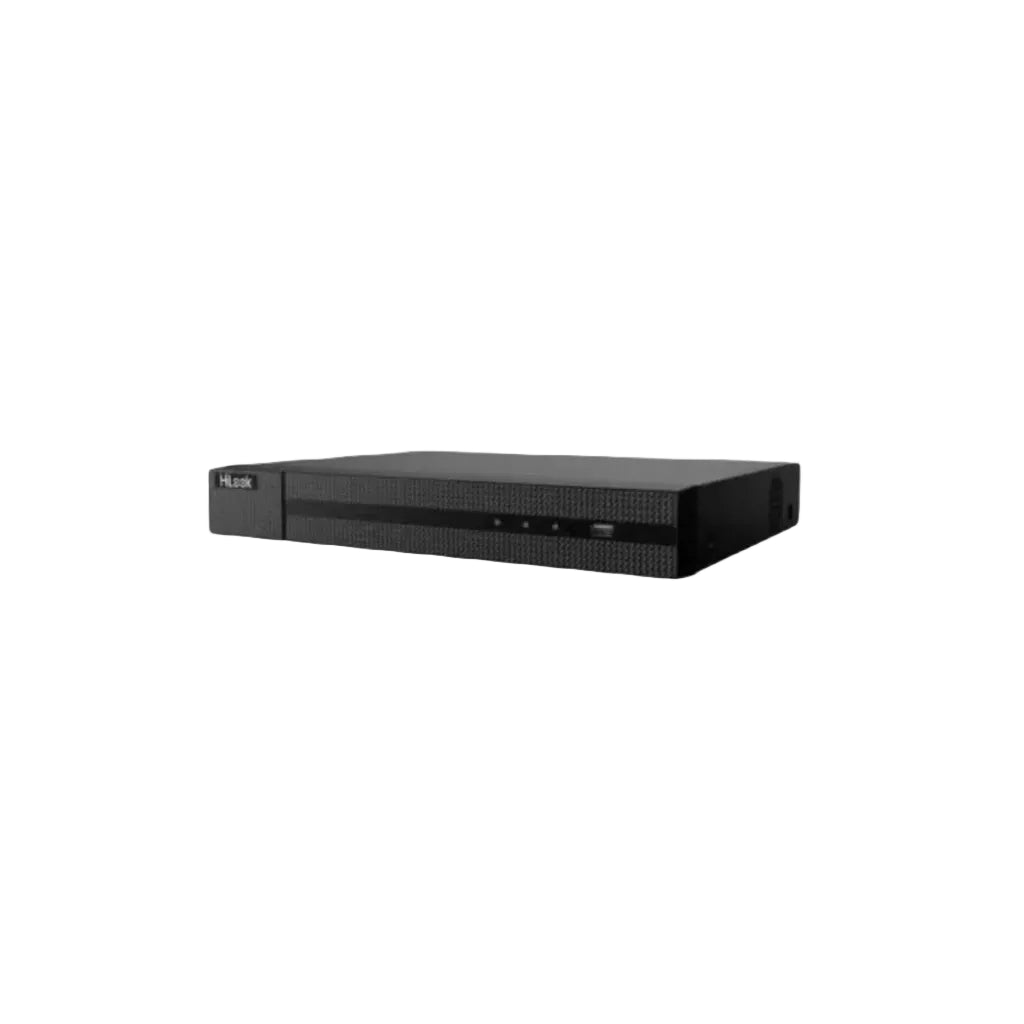

HiLook 16 Channel NVR-216MH-C/16P 2U 16 PoE 4K NVR
Login to buyThis 48V DC powered recorder boasts a spacious 6TB HDD for extensive audio storage and utilizes premium materials for a sturdy build. Its efficient design (90W power consumption) and small footprint make it ideal for various environments, while its connection to the trusted Hikvision brand ensures quality and performance.
Features:
- 16 independent PoE network interfaces
- H.265+/H.265/H.264+/H.264 video formats
- 2 SATA interface
- 160Mbps Bit Rate Input Max (up to 16-ch IP video)
-
Vendor:
HiLook
- Tags: New arrival, Offers
- Description
Product Overview
The HiLook NVR-216MH-C-16P is a robust 16-channel Network Video Recorder designed to provide reliable central management for IP surveillance systems. Featuring 16 independent Power over Ethernet (PoE) ports, it enables direct plug-and-play connectivity for IP cameras using a single Ethernet cable per channel for both power transmission and data streaming. With 160Mbps incoming bandwidth and support for high-efficiency H.265+ video compression, it delivers smooth 4K recording up to 8MP resolution while significantly saving bandwidth and storage space. Equipped with HDMI and VGA display outputs, dual HDD bay storage options, and seamless remote management via the HiLookVision mobile app, it offers an economical yet powerful recording backbone for homes, retail stores, offices, and commercial sites across Australian environments.
Key Features
- 16-Channel IP Video Input: Connect and record up to 16 IP cameras simultaneously across a high-speed network.
- Integrated 16 PoE Interfaces: Features 16 built-in Plug & Play PoE ports for simplified wiring without requiring extra power adapters.
- 4K & 8MP Recording Support: High-resolution decoding up to 8MP (3840 × 2160) captures crystal-clear footage for fine detail identification.
- Efficient H.265+ Compression: Reduces bandwidth utilization and video storage overhead by up to 75% compared to conventional formats.
- Dual SATA Storage Options: Accommodates up to 2 SATA hard drives (up to 8TB capacity per disc) for long-term video retention.
- 4K HDMI Output Interface: Simultaneous HDMI and VGA video outputs support ultra-high-definition local display up to 4K resolution.
- HiLookVision Remote Access: Enjoy easy smartphone, tablet, or desktop live monitoring, playback, and alert notifications anytime, anywhere.
Key Capabilities
Simplifying 16-Port PoE Deployment
Integrated Power over Ethernet interfaces supply power and transfer network data over single Cat5e/Cat6 cables, streamlining multi-camera installation.
Ultra HD 4K & 8MP Decoding
Supports up to 8MP resolution recording with local 4K HDMI video display output, ensuring sharp details during both live monitoring and playback.
Smart H.265+ Data Efficiency
Uses smart compression algorithms to reduce file sizes substantially while retaining video quality, extending total hard drive recording days.
Dual SATA Storage Bays
Equipped with 2 SATA hard disk interfaces supporting up to 8TB capacity per drive (up to 16TB total) for long-term surveillance archiving.
High-Throughput 160 Mbps Bandwidth
Robust 160 Mbps incoming and 80 Mbps outgoing network throughput guarantees fluid multi-channel high-definition video streams without delay.
Mobile Control via HiLookVision
Connect effortlessly with the HiLookVision mobile app or PC client software for easy live viewing, instant event notifications, and video searches.
Buyer Decision Tips
Technical Specifications
| Model Number | NVR-216MH-C-16P |
| Video Input Channels | 16-Channel IP Camera Inputs |
| PoE Interfaces | 16 RJ-45 10/100 Mbps independent PoE Ethernet ports (Max 150W) |
| Max Recording Resolution | Up to 8MP (4K) / 6MP / 5MP / 4MP / 3MP / 1080p |
| Network Throughput | 160 Mbps Incoming / 80 Mbps Outgoing Bandwidth |
| Decoding Formats | H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability | 1-ch @ 8MP (30 fps) / 5-ch @ 1080p (30 fps) |
| Video Outputs | 1x HDMI (up to 4K 3840×2160), 1x VGA (up to 1920×1080) |
| Storage Support | 2 SATA interfaces (Up to 8TB capacity per hard disk) |
| USB Interfaces | 2x USB 2.0 (Front and Rear) |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz (Max 280W) |
| Chassis Dimensions | 385 × 315 × 52 mm (1U Rack-mountable form) |
Best For
Centralized 16-channel recording hub covering perimeter, yard, and driveway views
Plug-and-play PoE setup for multi-camera store surveillance with 4K HDMI monitor output
High-bandwidth IP video recording with remote access via HiLookVision platform
Dual HDD bay capacity allows extended retention for critical activity tracking
Choosing the Right Model
Choose this model if…
- You require a cost-effective 16-channel NVR with 16 integrated PoE ports.
- You plan to use up to 8MP (4K) IP cameras for high-definition video surveillance.
- You need dual SATA drive bays to support extended recording retention (up to 16TB).
- You want easy plug-and-play PoE cabling without extra external network switches.
- You want remote smartphone live viewing via HiLookVision software.
Choose a different model if…
- You need a smaller 4 or 8-channel system. Consider the HiLook NVR-104MH-C/4P or NVR-108MH-C/8P NVR models.
- You need advanced AI analytics built directly into the NVR. Select a Hikvision AcuSense NVR (e.g. DS-7616NXI-K2/16P).
- You require 4 or more SATA HDD bays. Look at a 4-SATA rack-mount Hikvision NVR series.
FAQs
Are non-HiLook IP cameras compatible with this NVR?
Yes. Beyond fully supporting HiLook and Hikvision IP cameras, the NVR supports standard ONVIF protocol connections, allowing third-party IP cameras to connect smoothly.
Does this NVR come pre-installed with a hard drive?
NVR units are typically sold as standalone chassis or bundled with optional surveillance-grade hard drives (e.g. 2TB, 4TB, 6TB, 8TB). Check your selected purchase options to confirm HDD selection.
How does Plug and Play PoE simplify setup?
Simply plug your compatible IP camera into any of the 16 rear PoE ports via Network Cable. The NVR automatically supplies power, assigns network parameters, and connects video streams without manual IP setup.
Can I view video remotely on my mobile phone?
Yes. Simply connect the NVR to your internet router, scan the device QR code using the HiLookVision app (iOS/Android), and view live or recorded video remotely.
What is the total maximum hard drive storage capacity supported?
The NVR features 2 internal SATA ports, each accepting hard drives up to 8TB capacity, providing a maximum total system capacity of 16TB storage.
