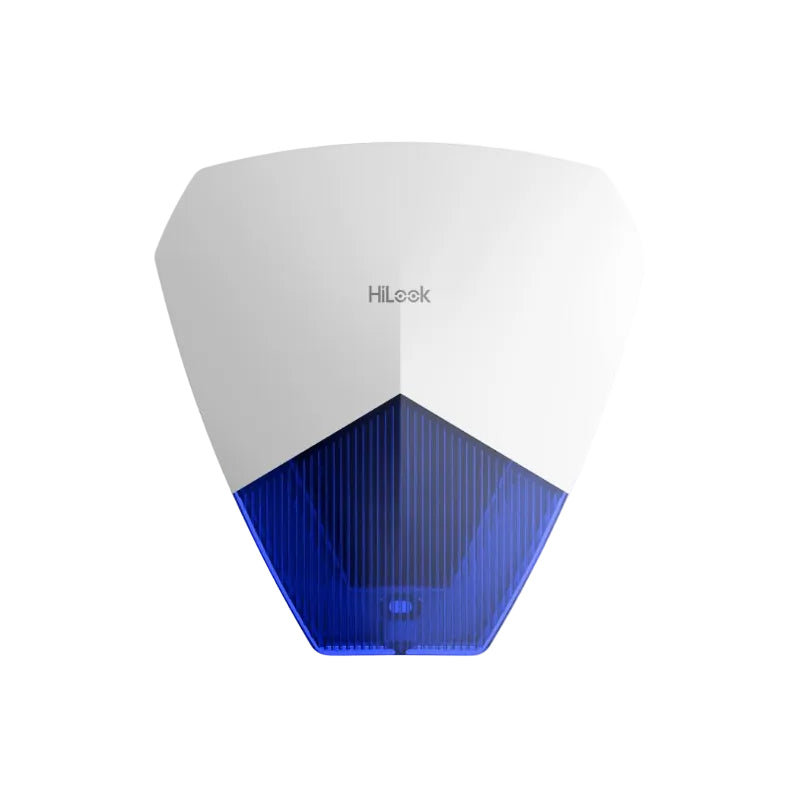

Hilook HA-ALARM-SIREN1

Product Overview

The HiLook HA-ALARM-SIREN1 External Wired Sounder is the ideal compact solution for property owners and installers wanting to boost the audio-visual deterrence of a hardwired alarm system. Designed specifically for outdoor wall mounting, it delivers a piercing 105dB alert (measured at 30cm) that easily projects beyond your property line to notify the neighborhood of an intrusion. Housed in a tough, IP54-rated PC+ABS casing, it effortlessly withstands dust and splashing water, making it perfect for exposed residential and commercial facades.

For added versatility, the built-in LED strobe can be programmed independently from the siren, allowing for visual-only alerts or combined sound and light depending on your panel setup. Operating on a standard 8 to 16VDC input (12VDC typical) and drawing a maximum of just 70mA, it is highly energy-efficient and won't strain your control panel's power supply. Its slim 140mm x 134mm x 33mm design ensures a discreet and tidy installation.

Key Capabilities

Best For

• Residential Perimeter Alerting: Perfect for front or backyard exterior walls, offering strong visual and auditory deterrence when the alarm is tripped.
• Commercial Shopfronts and Offices: Great as an after-hours deterrent for businesses using 12V wired panels. Can be customized to flash, sound, or both based on the activated security zone.
• Garages, Sheds, and Outbuildings: The flexible voltage input (8-16VDC) and low power consumption make it simple to connect to secondary panel outputs for detached structures without overloading the system.
• Alarm System Upgrades and Retrofits: Seamlessly integrates into any existing wired control panel with a spare siren output, avoiding the need for expensive panel replacements.

Why Choose the HA-ALARM-SIREN1

Unlike basic siren accessories, the HA-ALARM-SIREN1 features an independently controlled LED strobe—a feature rarely found on entry-level models. This allows installers to customize the visual and audio responses to suit specific site needs, rather than settling for a fixed, combined alarm. Its IP54-certified housing guarantees durability in permanently exposed outdoor environments without the need for extra weatherproofing. Despite its powerful 105dB volume, it draws a mere 70mA of current, meaning it won't tax your system's power supply. Weighing just 185g with a slim footprint, it provides a panel-agnostic, practical upgrade to any 12V wired intrusion system.

Key Features & Technical Specifications

Ideal Use Cases

• External Home Walls: Installing on a front or side facade projects the 105dB siren across your property bounds, while the IP54 casing handles typical rain and dust.
• Commercial Shopfronts: The split audio/visual control lets retail spaces utilize a silent flashing alert during open hours, and a full sound-and-light alarm after closing—all without extra outputs.
• Garages and Detached Sheds: Thanks to the low 70mA draw and flexible voltage, this siren easily connects to secondary panel outputs for standalone outbuildings without draining the main supply.
• Alarm System Retrofits: Its compact footprint and straightforward two-wire installation make it a breeze to add to any older wired panel that has a spare siren output.

Choosing the Right Model

• Choose this model if: You own a 12V hardwired alarm panel with an available siren output and require an energy-efficient, weather-rated (IP54) outdoor sounder with separate LED flash control.
• Choose a different model if: You are using a wireless or RF alarm system (this device requires a physical wire connection). Alternatively, if you need to cover a massive industrial yard, you may want to look for a commercial siren that exceeds 105dB.

FAQs

1. Will the HA-ALARM-SIREN1 work with my brand of wired alarm panel?
   Yes. It accepts an 8 to 16VDC input, which includes the industry-standard 12VDC output found on almost all hardwired alarm panels, regardless of the brand.
2. Can I trigger the LED flash without the siren making noise?
   Yes. The LED strobe can be wired to operate independently, which is ideal for businesses that want a silent visual warning during the day.
3. Is it fully waterproof for outdoor use?
   It is IP54-rated, meaning it is highly resistant to dust and can handle splashing rain from any direction. While perfect for most outdoor walls and eaves, it should not be submerged or placed where it takes direct, heavy water runoff.
4. Will it drain my alarm panel's power?
   No. It draws just 45mA on standby and 70mA when alarming. This low consumption means you can safely run it alongside your detectors and keypads on a standard panel.
5. What type of cable is required?
   Standard 2-core alarm cable (0.5mm or 0.75mm) is sufficient. Just ensure your cable run isn't so long that it causes a voltage drop below 8V at the siren end.
