SKU:IPC-T289PH-MU/SL

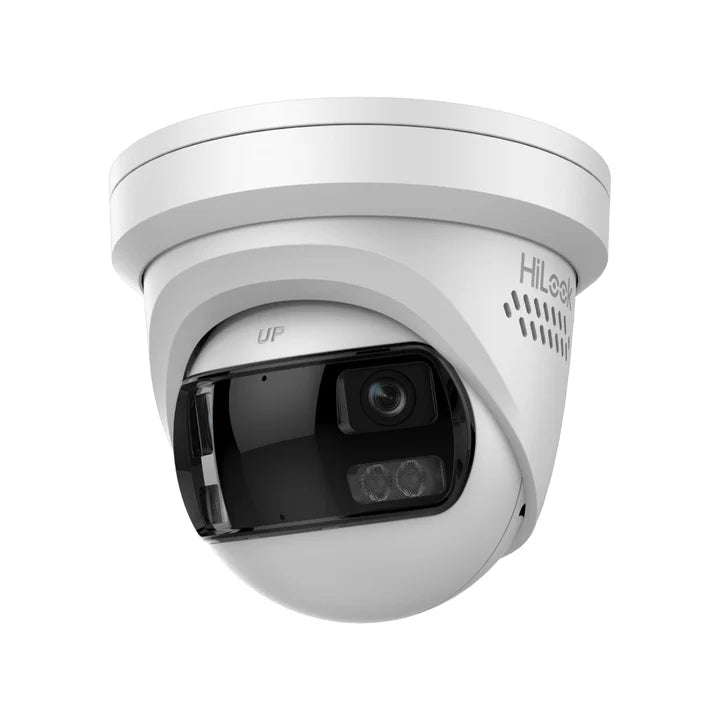

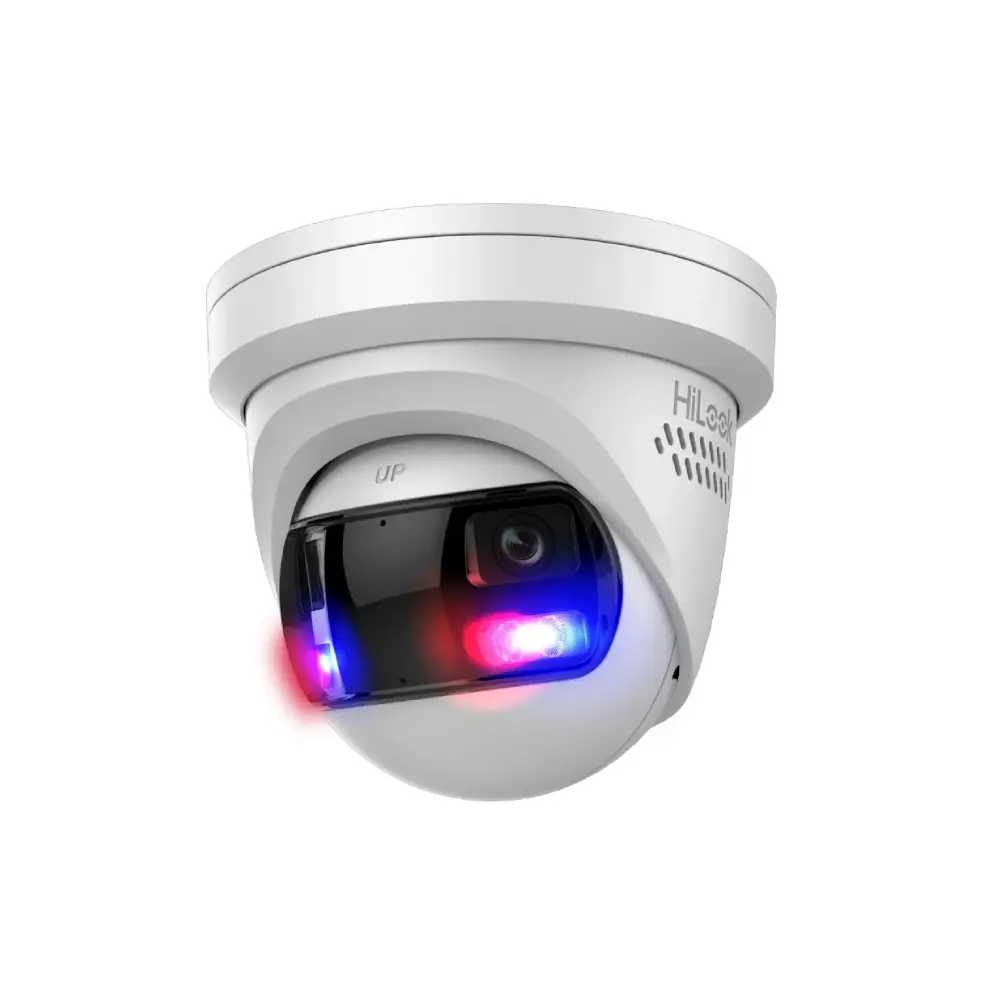

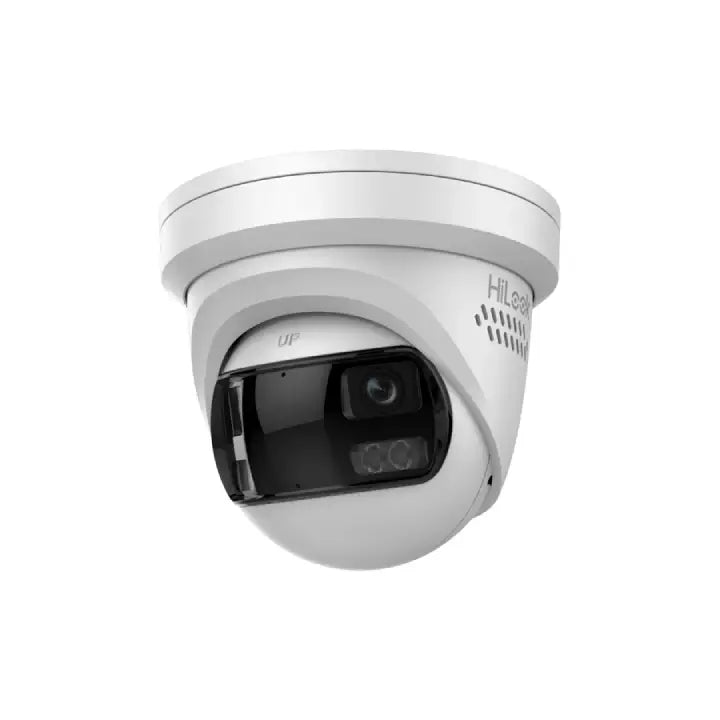

Hilook IPC-T289PH-MU/SL 4K All-in-One 180°Fixed Turret Network Camera

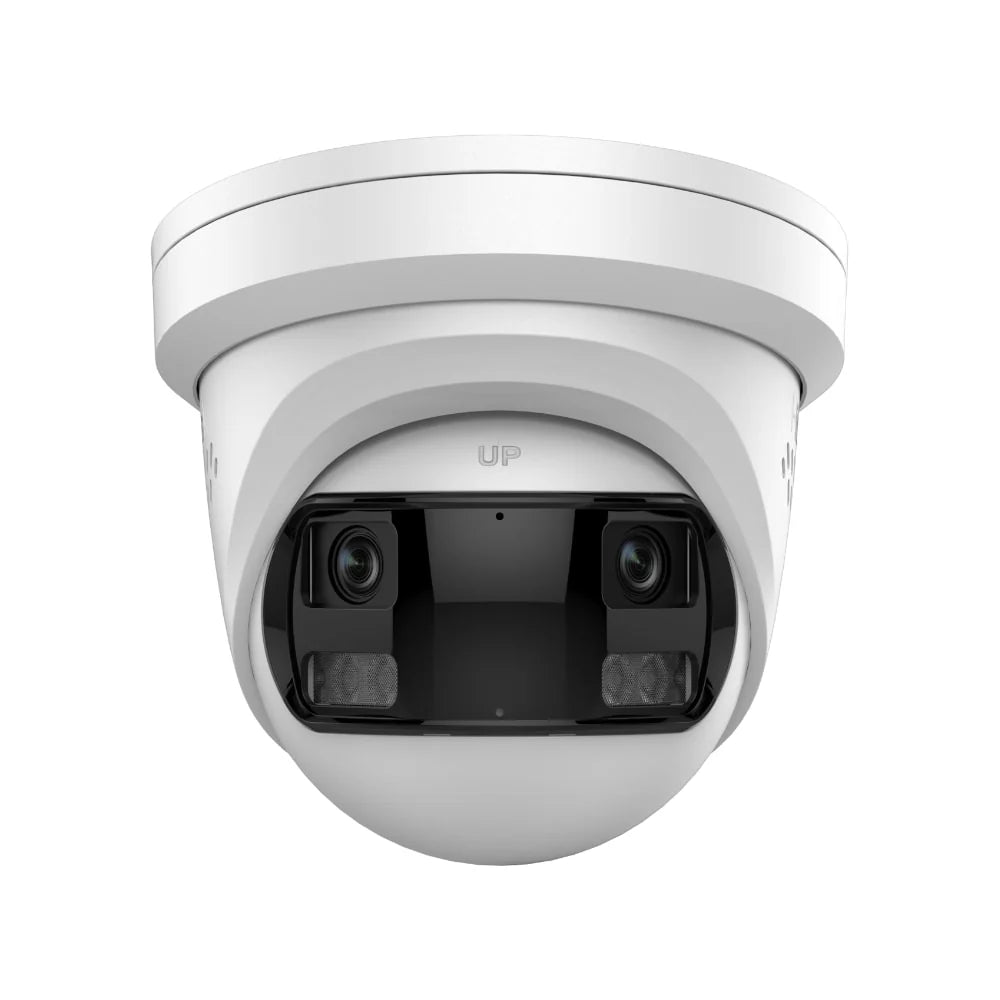

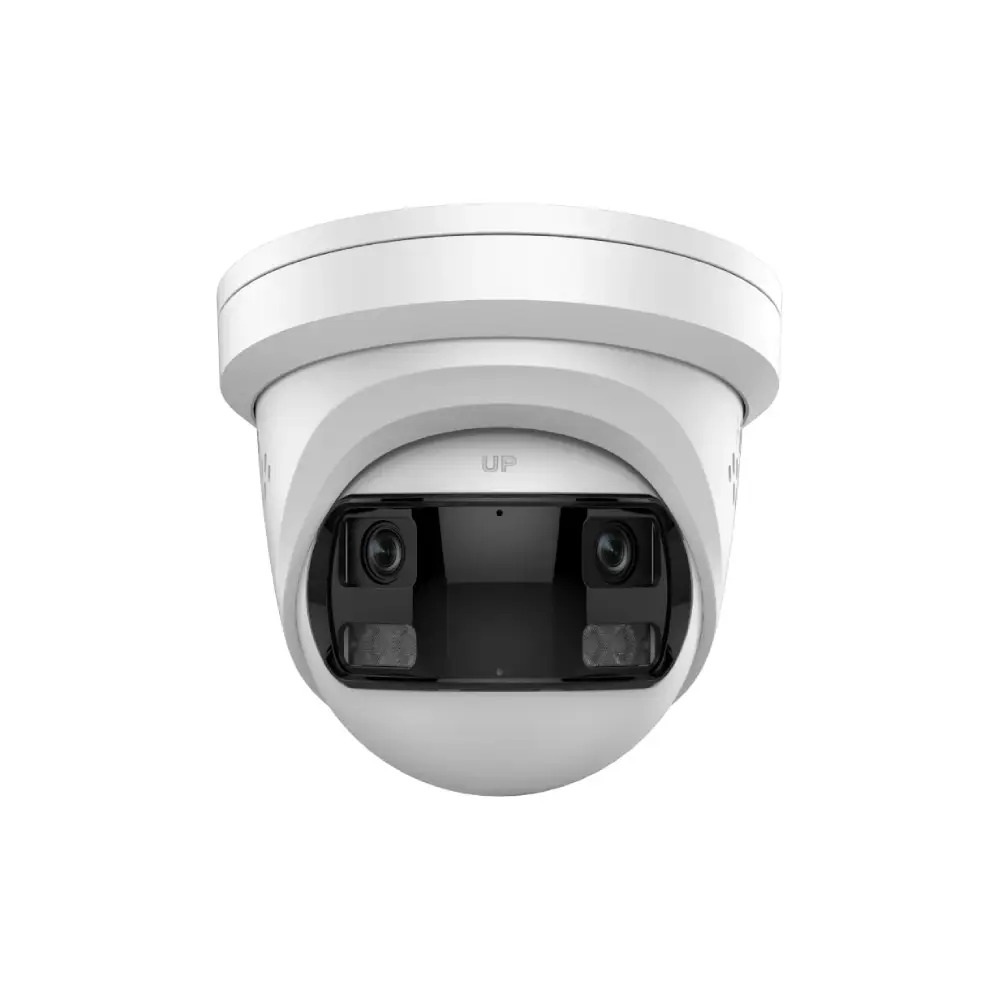

8 MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- 180° Field of view

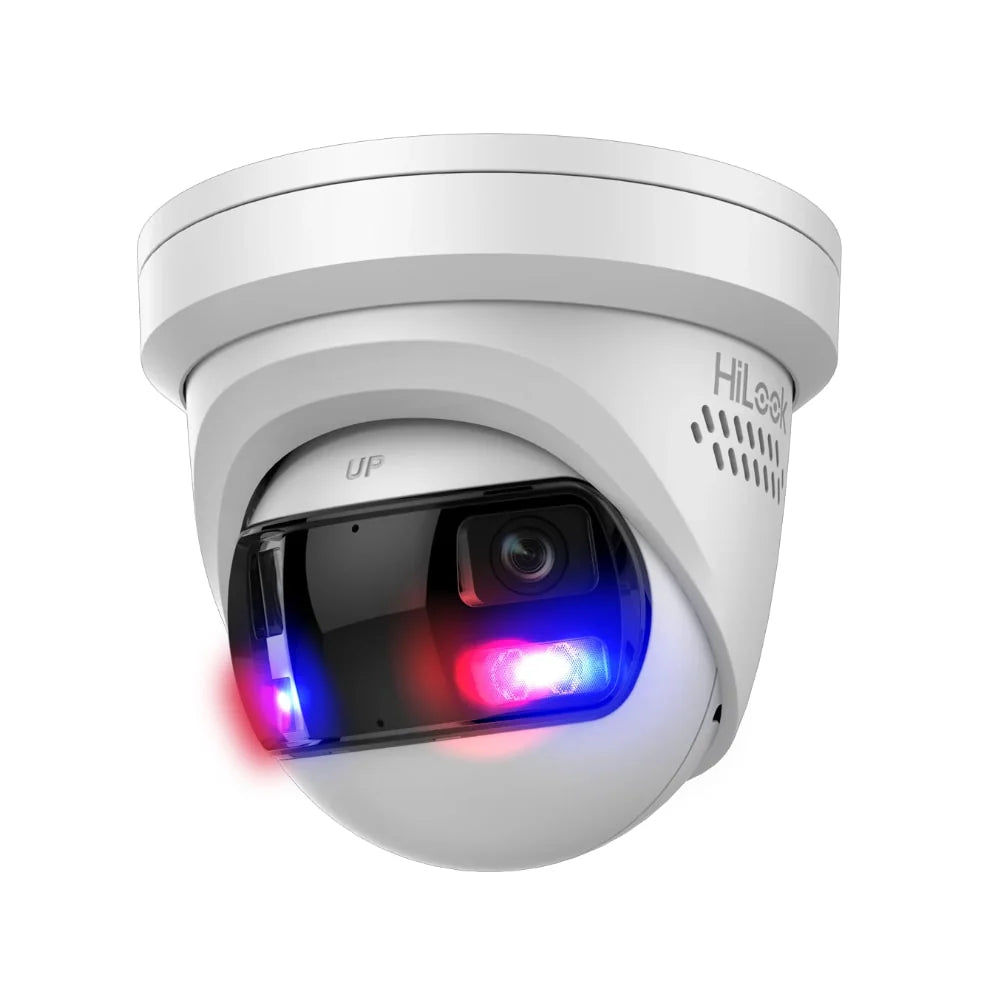

- Active strobe light and audio alarm to warn intruders off
- Specifications
| Category | Parameter | Details |
|---|---|---|
| Camera | Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 4256 × 1888 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light | |
| Shutter Time | 1 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
| Lens | Lens Type | Fixed focal lens, 2 mm |
| Focal Length & FOV | 2 mm, horizontal FOV 180°, vertical FOV 77° | |
| Lens Mount | M12 | |
| Iris Type | Fixed | |
| Aperture | F1.6 | |
| Video | Main Stream | 50 Hz: 20 fps (4256 × 1888), 60 Hz: 20 fps (4256 × 1888) |
| Video Compression | H.265+/H.265/H.264+/H.264 | |
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| General | Power | 12 VDC ± 25%, max. 10 W; PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| Protection | IP67: IEC 60529-2013 | |
| Dimensions | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
