SKU:IPC-EB5541-AS

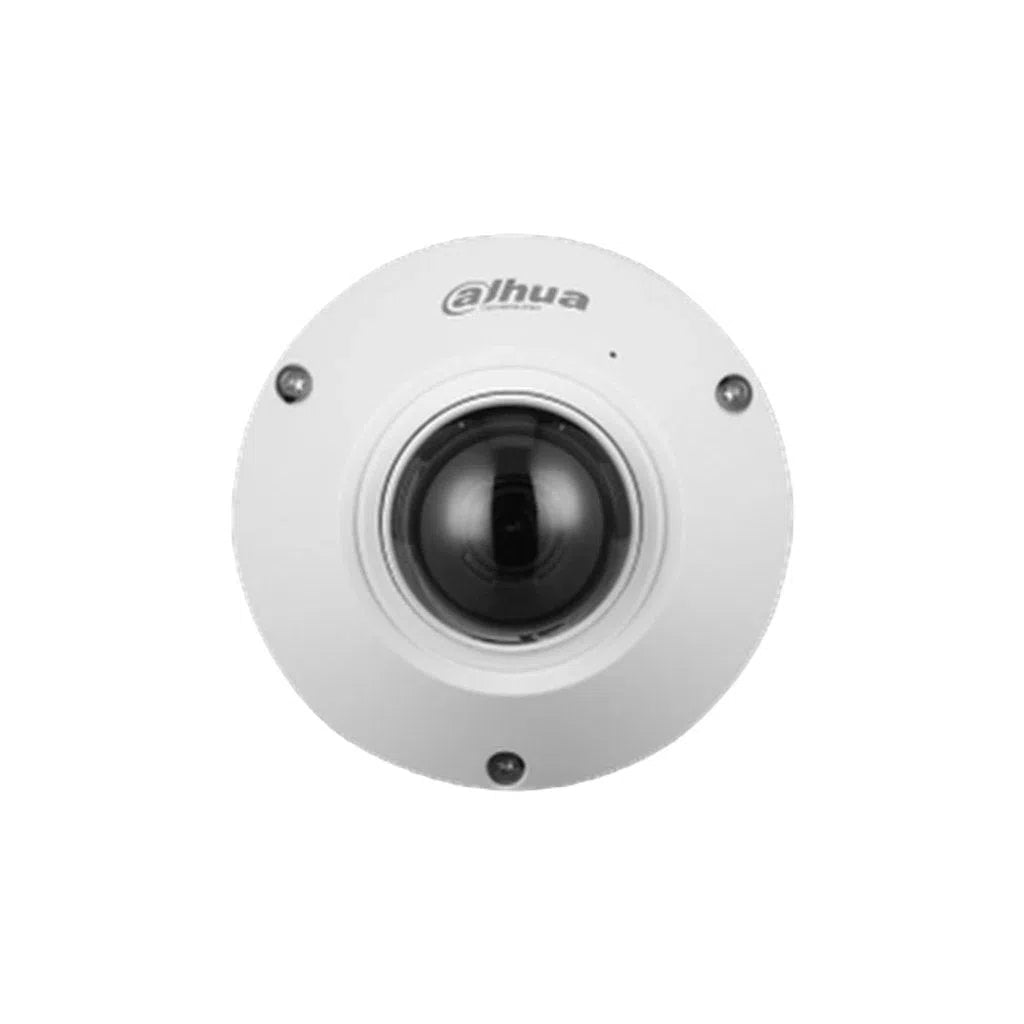

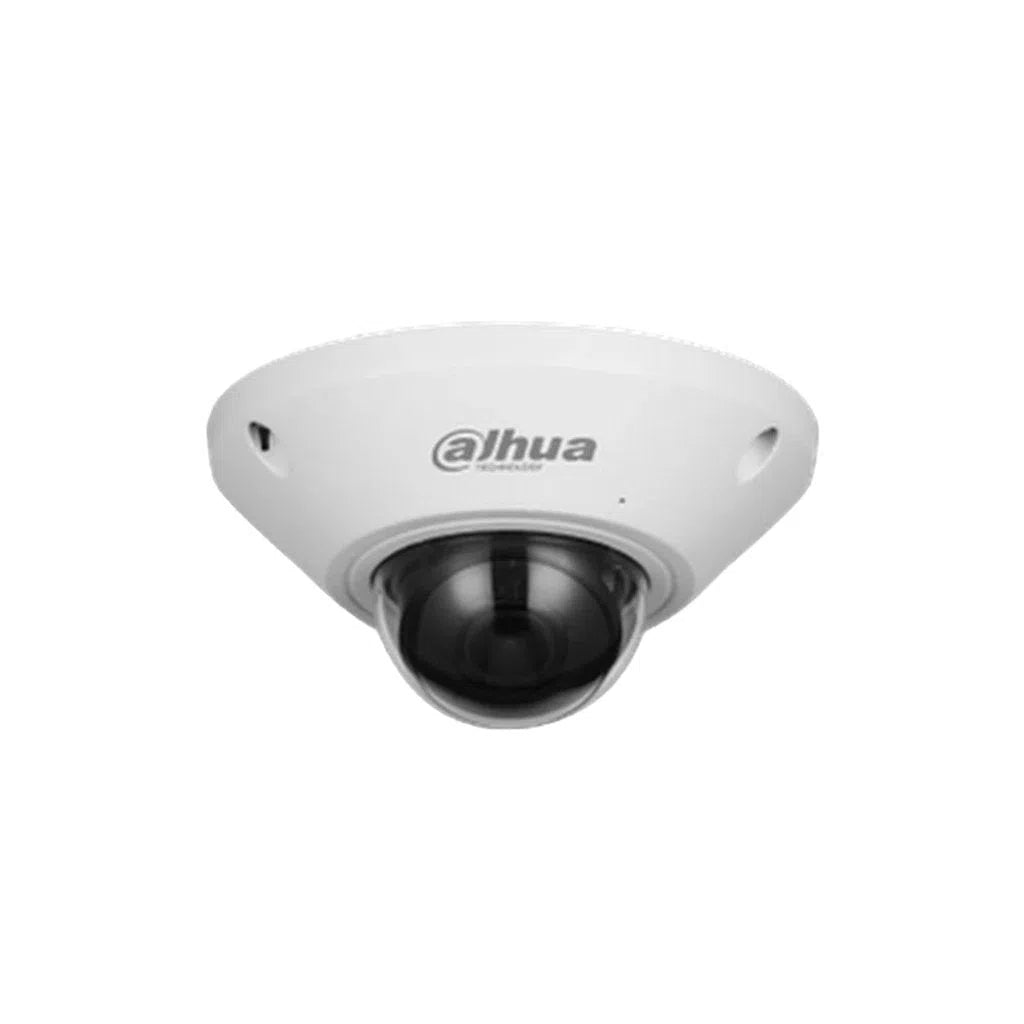

Dahua 5MP WizMind Fisheye Network Camera - IPC-EB5541-AS
Login to buyKey Features:
- Panoramic Coverage:
- Fisheye lens captures a complete 360° view, eliminating blind spots and reducing the number of cameras needed.
- 5MP resolution delivers sharp and detailed visuals for clear identification.
- Outputs various resolutions and frame rates to meet diverse needs.
- Supports additional intelligent detection features such as intrusion, tripwire, motion detection, and tampering detection.
- Efficient Storage & Bandwidth Usage:
- H.265+ and H.264+ encoding technologies significantly reduce storage requirements and bandwidth consumption.
- Wide Dynamic Range (WDR) ensures clear visuals in high-contrast lighting environments.
- 3D Digital Noise Reduction (DNR) delivers clearer images in low-light conditions.
- IP67 and IK10 rated for dustproof, waterproof, and vandal-proof operation.
Additional Features:
- Built-in IR illuminator for night vision (range may vary depending on model).
- Two-way audio support with built-in microphone (on select models).
- Supports SD card storage (up to 256GB) for local recording.
- PoE (Power over Ethernet) for simplified installation.
- Heat Map Technology: Visually displays crowd density and people appearance probability, aiding in crowd management decisions.
- In Area No. Technology: Accurately counts people in designated areas with real-time alerts, ideal for enforcing occupancy limits.
-
Vendor:
Dahua
- Tags: Fisheye camera, Panoramic camera
- Description
Product Overview
The Dahua IPC-EB5541-AS delivers a 5 MP 360° panoramic fisheye network camera engineered for wide-area surveillance in demanding environments. Integrated with WizMind AI analytics including tripwire, intrusion detection, people counting, and heat mapping, it captures 2592×1944 resolution video with high-sensitivity low-light performance. Built in a robust metal housing rated IP67 and IK10, it is well-suited for both indoor and outdoor applications. H.265 compression and Power over Ethernet (PoE) support streamline installation while minimizing bandwidth and storage overhead.
Key Features
- 5 MP 360° Fisheye Lens: Captures complete panoramic coverage at 2592×1944 resolution with a wide 180°×180° field of view.
- WizMind AI Analytics: Features line crossing, perimeter intrusion, crowd counting, and heat map visualization for intelligent surveillance.
- Low-Light Image Capture: Provides crisp video in challenging low-light scenes without demanding supplemental illumination.
- IP67 & IK10 Vandal Resistance: Weather-sealed metal housing ensures complete protection against dust, water, and direct physical impact.
- H.265 Smart Compression: Optimizes network bandwidth and storage efficiency while maintaining image clarity.
- PoE Power Supply: Single Ethernet cable carries both power and data transmission, simplifying deployment.
Key Capabilities
5 MP 360° Panoramic Vision
Eliminates blind spots by monitoring entire open areas with a single 180°×180° fisheye view at 2592×1944 resolution.
WizMind Intelligence
Deep learning algorithms support tripwire, perimeter intrusion detection, and advanced target categorization for active security monitoring.
Heat Mapping & People Counting
Tracks foot traffic patterns and generates visual density heat maps, providing valuable operational insights for retail and commercial spaces.
Multiple Dewarping Modes
Supports diverse viewing perspectives including original fisheye, panoramic, and multi-quadrant dewarped display modes via NVR or software.
Audio & Alarm Interfaces
Equipped with a built-in microphone and external audio/alarm ports to integrate environmental sound capture with external security equipment.
Rugged IP67 / IK10 Enclosure
Vandal-resistant metal housing protects internal components against water jets, dust ingress, and severe physical impacts.
Best For
360° coverage paired with heat mapping provides complete aisle monitoring and customer traffic analysis.
Single camera placement covers broad floor areas, significantly reducing total device and cabling overhead.
Monitors multiple entry points continuously while maintaining a sleek, unobtrusive ceiling presence.
IK10 vandal resistance and people counting analytics suit high-density, public-facing infrastructure.
Why Choose the IPC-EB5541-AS
Instead of deploying multiple fixed cameras to monitor a wide area, the Dahua IPC-EB5541-AS offers complete 360-degree scene coverage from a single ceiling or wall mount location. Its built-in WizMind AI features do more than basic motion detection—enabling intelligence like people counting, heat mapping, and line crossing to gather actionable security and business analytics. Combined with IK10 vandal resistance, IP67 weather sealing, and simple PoE connectivity, this camera lowers installation complexity while delivering robust long-term reliability.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | IPC-EB5541-AS |
| Resolution | 5 Megapixels (2592 × 1944) |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Lens Type | Fixed-focal Panoramic Fisheye Lens (1.4mm) |
| Field of View | Horizontal: 180° / Vertical: 180° |
| Minimum Illumination | 0.006 Lux @ F2.0 (Color, 30IRE) |
| WizMind AI Analytics | Tripwire, Intrusion, People Counting, Heat Map |
| Wide Dynamic Range | 120 dB True WDR |
| Audio Feature | Built-in microphone; 1-ch audio in / 1-ch audio out |
| Alarm In / Out | 1 input channel / 1 output channel |
| Video Compression | H.265 / H.264 / H.265H / MJPEG |
| Local Storage | MicroSD card slot (supports up to 256 GB) |
| Protection Ratings | IP67 Weatherproof / IK10 Vandal-proof |
| Power Options | 12 VDC / PoE (802.3af) |
Choosing the Right Model
Choose this model if…
- You want 360-degree panoramic coverage to minimize required camera count.
- You need WizMind AI analytics like heat mapping and people counting.
- You require a vandal-resistant IP67 / IK10 housing for public or tough environments.
- You prefer single-cable PoE installation with onboard audio recording.
Choose a different model if…
- You need higher resolution for long-distance detail. Consider a 12MP Dahua Fisheye camera (e.g. IPC-EBW81242-AS-S2).
- You require active red/blue light deterrence or loud sirens. Look at the Dahua TiOC series.
FAQs
1. How does a 360° fisheye camera compare to traditional fixed cameras?
A fisheye camera utilizes an ultra-wide lens to capture an entire room or open area without dead zones, effectively replacing multiple directional fixed cameras and lowering equipment and cabling expenses.
2. What is image dewarping and how does it work?
Dewarping mathematically corrects the circular fisheye distortion into standard, flat video perspectives (such as 180° panoramas or quad views), allowing users to navigate the scene smoothly during live monitoring or video playback.
3. Can the IPC-EB5541-AS be installed outdoors?
Yes. Possessing an IP67 weather-resistance rating and IK10 impact protection, the unit withstands harsh rain, dust, and physical impact in outdoor locations.
4. How does the Heat Mapping feature help commercial operations?
Heat mapping records target dwelling times and movement concentration across defined spaces, rendering high-density activity in warm colors to help business owners optimize floor layouts and marketing displays.
