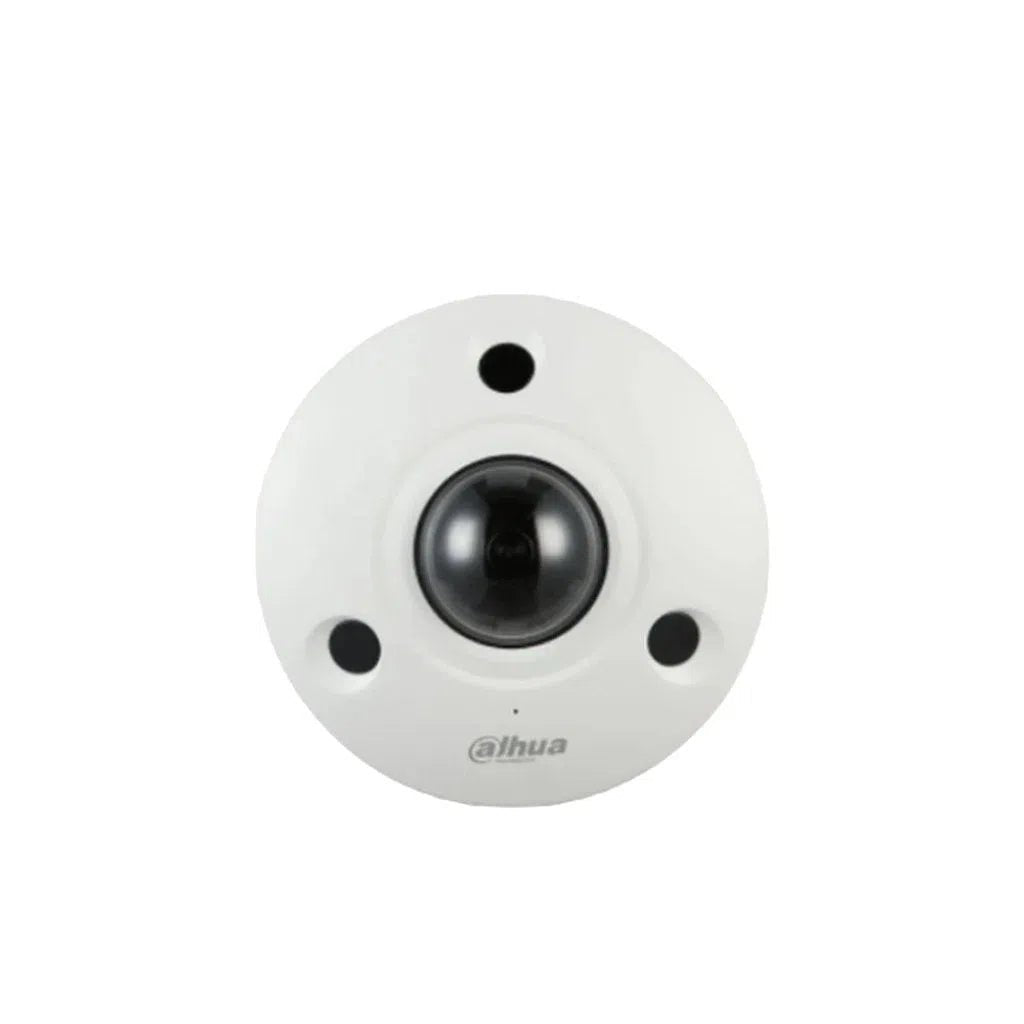

Dahua 12MP Panoramic Network IR Fisheye Camera - IPC-EBW81242
Login to buyThis camera is ideal for monitoring large open areas like airports, shopping centers, and transportation hubs.
Key Features:
High-Definition Panoramic View:
- 12MP resolution captures sharp and detailed visuals across the entire 360° field of view.
- Supports multiple resolutions (including 8MP) for flexible video configuration.
- Supports intelligent functions like people counting in multiple areas, queue management, and heat maps for crowd density and dwell time analysis.
- Provides valuable insights for optimizing space utilization and enhancing customer experience.
Enhanced Image Quality:
- Built-in IR LED provides night vision up to 10 meters for clear visuals in low-light conditions.
- H.265+ and H.264+ encoding technologies significantly reduce storage requirements and bandwidth consumption.
- Built-in dual-array microphone and speaker enable real-time two-way audio communication.
Durable Construction:
- IP67 and IK10 rated for dustproof, waterproof, and vandal-proof operation.
Flexible Integration:
- Panomorph lens offers compatibility with various third-party platforms for seamless integration into existing security systems.
-
Vendor:
Dahua
- Tags: Fisheye camera, Panoramic camera
- Description
Product Overview
For comprehensive, single-point overhead monitoring without the complexity of a multi-camera array, the Dahua DH-IPC-EBW81242-AS-S2 delivers an advanced 12MP fisheye network camera capable of capturing a complete 360-degree field of view from a single ceiling fixture. Built around a high-performance 1/1.7″ CMOS sensor, it streams crystal-clear video up to 4000 x 3000 resolution at 25fps. Integrated IR illumination extends up to 10m to sustain visibility in unlit or low-light spaces. Packed with WizMind edge intelligence—including people counting across multiple zones, queue management, and heat mapping—it functions as both an all-seeing security device and a retail business intelligence tool. Secured by an IK10 vandal-resistant and IP67 weather-sealed housing, this model is distributed through Total Security Equipment.
Key Capabilities
12MP Ultra-HD Resolution
Outputs a detailed 4000 x 3000 video stream at 25fps, ensuring sharp clarity for reviewing facial features and signage across wide areas.
360-Degree Fisheye Coverage
A true fisheye optic sweeps the entire horizontal plane from a single overhead mount, replacing multiple directional cameras to eliminate blind spots.
WizMind Advanced Analytics
Embedded deep-learning capabilities deliver multi-area people counting, queue management, heat maps, and track maps for business insights.
IVS Tripwire & Intrusion Detection
Configurable smart perimeter rules trigger instant alerts via onboard alarm interfaces or audio outputs upon unauthorized boundary breaches.
Integrated Audio & Storage
Features a built-in dual-array microphone and speaker setup alongside a MicroSD card slot supporting up to 256GB for edge recording backups.
IP67 & IK10 Rugged Protection
Heavy-duty weather-sealed and vandal-resistant enclosure built to withstand demanding public-facing indoor or semi-outdoor locations.
Best For
Monitors entire shop spaces while tracking customer flow patterns and heat maps.
Covers sprawling concourses to maintain crowd situational awareness and manage queues.
Discreet overhead placement secures high-ceiling public zones without cluttered walls.
IK10 protection resists tampering while capturing broad room activity from a central point.
Why Choose the DH-IPC-EBW81242-AS-S2
Standard fixed cameras restrict viewing angles to a single direction, often requiring multiple devices to cover large public spaces. The Dahua DH-IPC-EBW81242-AS-S2 resolves this by integrating a high-resolution 12MP fisheye lens with WizMind business intelligence tools into a compact ceiling unit. Sourced through Total Security Equipment, it combines edge analytics like people counting and heat mapping with robust IP67 and IK10 hardware, delivering maximum situational awareness and operational value from a single installation point.
Buyer Decision Tips
Key Features & Technical Specifications
| Model | DH-IPC-EBW81242-AS-S2 |
| Image Sensor | 1/1.7″ CMOS |
| Resolution | 12MP (4000 x 3000) @ 25fps; 8MP @ 25/30fps |
| Lens Type | Fisheye, 360-degree horizontal coverage |
| IR Illumination | Built-in IR LED, max distance 10m |
| Video Compression | Smart H.265+ / H.264+ |
| Intelligent Analytics | WizMind intrusion, tripwire, heat map, people counting, queue management, track map |
| Alarm Interface | 2 in, 2 out |
| Audio System | 1 in, 1 out; built-in dual-array microphone and speaker |
| Local Storage | Micro SD card slot up to 256GB |
| Power Supply | 12V DC / PoE (Power over Ethernet) |
| Protection Ratings | IP67 weather ingress and IK10 impact resistance |
Ideal Use Cases
Retail Stores & Supermarkets
Provides full floor overview while generating heat maps and occupancy counts.
Airport & Transit Terminals
Manages queues and tracks crowd flow patterns across wide public spaces.
Bank Branches & Receptions
Secures customer spaces securely from a single discreet overhead fixture.
Hotel Lobbies & Venues
Combines IK10 vandal resistance with complete panoramic check-in visibility.
Open Commercial Offices
Tracks movement paths across shared workspace layouts efficiently.
Choosing the Right Model
Choose this model if…
- You need 360-degree overhead coverage across a broad open indoor or semi-outdoor space.
- On-camera WizMind analytics such as heat maps, queue management, and people counting are required.
Choose a different model if…
- Long-range identification is required. Select a traditional directional bullet or PTZ camera if you need to capture detailed facial features at long distances.
- Your application is a narrow corridor. Fixed turret or bullet cameras offer better directional reach for confined pathways.
FAQs
1. What resolution does the DH-IPC-EBW81242-AS-S2 output?
It delivers up to 12MP resolution at 4000 x 3000 pixels at 25fps, and also supports 8MP at 25/30fps for bandwidth-conscious streaming setups.
2. How does a fisheye camera reduce hardware requirements?
By capturing a complete 360-degree horizontal plane from a single ceiling mount, one camera replaces three or four standard directional units, lowering cabling and installation overhead.
3. What WizMind analytics are built into the device?
Features include multi-area people counting, queue management, heat map generation, track map movement analysis, and IVS tripwire/intrusion detection.
4. Is the camera suitable for outdoor use?
It carries an IP67 weather-resistance rating and IK10 impact protection, making it suitable for semi-exposed or outdoor ceiling placements, though primarily optimized for indoor public spaces.
5. Does it support Power over Ethernet (PoE)?
Yes, it supports both 12V DC and PoE, allowing a single network cable to transmit power and data to simplify ceiling deployment.
6. Can footage be saved locally without an external NVR?
Yes, it includes a MicroSD card slot supporting up to 256GB for standalone edge recording or network backup redundancy.
7. Where can I buy this unit with official support?
Authentic systems with complete warranty backing are available directly through Total Security Equipment.
