IPC-HDW2531T-ZS-S2

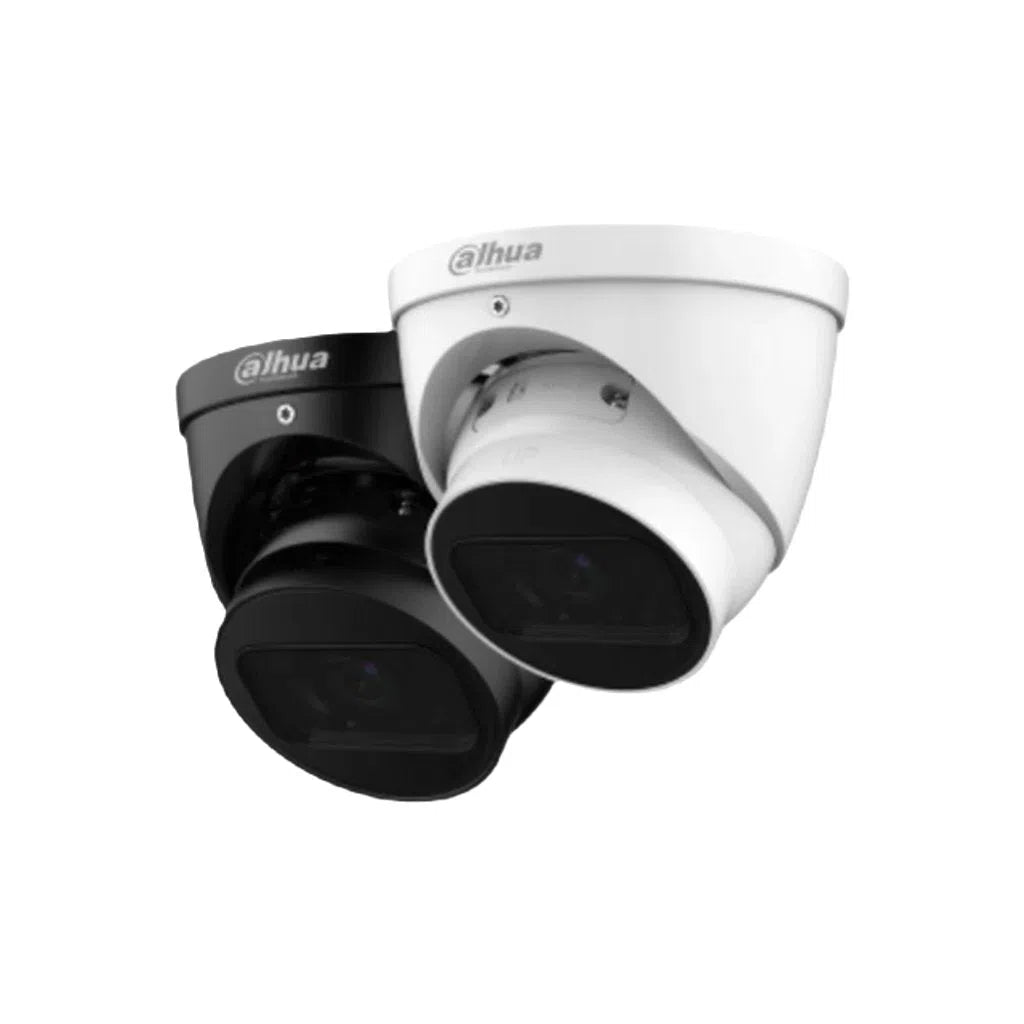

Dahua 5MP Lite IR Vari-focal Eyeball Network Camera - IPC-HDW2531T-ZS-S2

Key Features:

  • 1/2.7” 5Megapixel progressive CMOS
  • H.265& H.264 dual-stream encoding
  • 15fps@5M(2592×1944)&25/30fps@3M(2304×1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Micro SD card slot, up to 128GB
  • 2.7~13.5mm varifocal lens
  • Max IR LEDs Length 50m
  • IP67, PoE
View Product Details

Buying from us? You get more than just the product.

Free Pre-Programming

We can pre-configure eligible products so they're ready to install.

Free 45 Mins Onsite Support

Stuck on the job? We'll come to you. Eligible purchases include up to 45 minutes of onsite support.

Project Management

From plans to handover. We assist with design, equipment selection, programming and commissioning.

End-User Support

We help support your customers too. Give your customers the confidence with reliable local support.

  • Description

Camera

Image Sensor

1/2.7” 5Megapixel progressive CMOS

Effective Pixels

2592(H) x1944(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.02Lux/F1.6( Color,1/3s,30IRE)

0.2Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m(164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.7mm~13.5mm

Max. Aperture

F1.6

Angle of View

H:85°~27.1°, V:62.4°~20.1°

Focus Control

Motorized

Close Focus Distance

0.3m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64m(210ft)

26m(85ft)

13m(43ft)

6m(20ft)

T

222m(728ft)

89m(292ft)

44m(144ft)

22m(72ft)

PTZ

Pan/Tilt Range

Pan:0°~360 ° ;Tilt:0°~78° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

5M(2592×1944)/4M(2688x1520)/3M(2304×1296/2048x1536)/1080P(1920×1080)/720P(1280×720)/

D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 5M (1 ~ 15fps)/3M(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12K ~ 6400Kbps

H.264: 32K ~ 10240Kbps
