SKU:SOL6-GFX-STD
Bosch Alarm Solution 6000 Kit With Graphic Keypad, 3 Standard PIRs
Login to buySupporting both wired and wire-free options, the combination of its intuitive user interface and high-speed programming software make it an easy-to-use complete security solution ideal for commercial premises and larger homes.
Features
- 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
- Integrated access control for up to 16 doors
- Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
- 5 on-board outputs (expandable to 37)
- GSM/GPRS and Ethernet options
-
Vendor:
Bosch
- Description
Product Overview

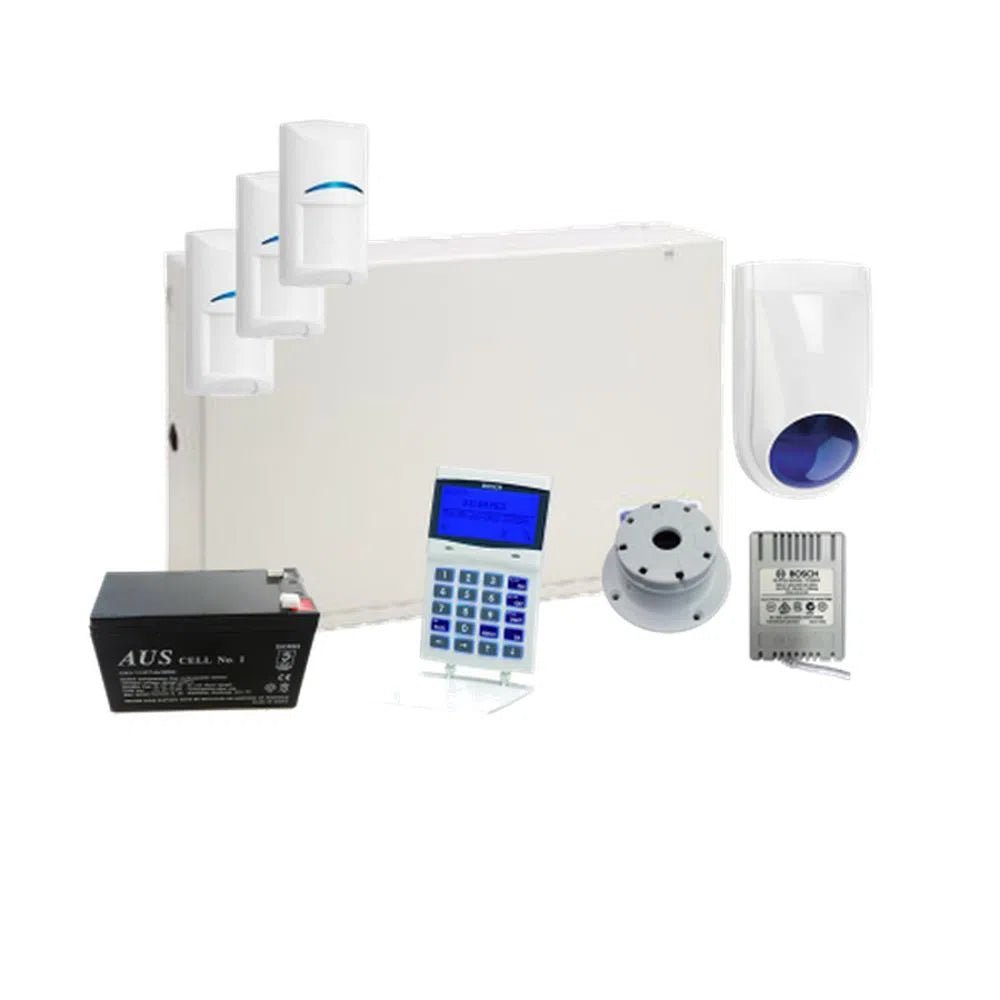

The Bosch Solution 6000 Kit with Graphic Keypad and 3 Standard PIRs (SOL6-GFX-STD) is a complete, ready-to-install Solution 6000 system — control panel, keypad, metal enclosure, battery, power supply, siren, and 3 wired PIR detectors, all in the one box. It's the fixed-bundle counterpart to our "No PIR" version of this kit, for buyers who'd rather take a pre-selected detector set than choose their own.
The 3 included detectors are Bosch Blue Line Gen2 Standard PIRs (ISC-BPR2-W12) — general-purpose wired motion sensors without pet immunity. With 16 zones expandable to 144 and integrated access control for up to 16 doors, this kit still has plenty of headroom to add more detectors or doors later. Supplied directly through Total Security Equipment.
Key Capabilities
Complete, Ready-to-Install Kit
Panel, keypad, enclosure, battery, power supply, siren, and 3 detectors all included.
3x Blue Line Gen2 Standard PIRs
Wired detectors with 12m x 12m coverage and flexible mounting height (no pet immunity).
16 to 144 Zones
16 zones onboard, expandable to 144 zones (wired or wireless) for larger installs.
Up to 8 Partitioned Areas
Split the system into up to 8 independently armed areas for multi-tenant or multi-zone sites.
Integrated Access Control
Access control for up to 16 doors built into the same panel, alongside intrusion detection.
990 Users
Supports up to 990 users via PIN, token, keyfob, or fingerprint credentials.
What's Included in the Kit
Best For
A pre-selected 3-detector kit for buyers who don't need to customise the detector mix.
The included detectors are standard PIRs, not pet-immune — a good fit where that's not a concern.
Up to 8 partitions and 144 zones suit larger, more complex sites than a residential kit.
Installers wanting door access control and alarm monitoring from one panel.
Why Choose This Kit
This kit takes the guesswork out of specifying a Solution 6000 install — everything from the enclosure down to the detectors is already selected and boxed together. It's the same complete hardware as our "No PIR" version of this kit, just with 3 Blue Line Gen2 Standard detectors already fitted, so it's ready to mount and wire without a separate detector order. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | SOL6-GFX-STD |
| Product Type | Complete boxed alarm kit — panel, keypad, enclosure, battery, PSU, siren, 3x wired PIR |
| Control Panel PCB | Bosch Solution 6000 (CC610PB) |
| Zones | 16 onboard, expandable to 144 (wired or wireless) |
| Partitioning | Up to 8 separate areas |
| Users | Up to 990, via PIN, token, keyfob, or fingerprint |
| Outputs | 5 onboard, expandable to 37 |
| Access Control | Integrated, up to 16 doors |
| Keypad | CP736B, white, 3.5" colour graphic display, integrated smart card/proximity reader |
| PIR Detectors Included | 3x Blue Line Gen2 Standard (ISC-BPR2-W12), 12m x 12m coverage, flexible mounting height with integrated bubble level, dynamic temperature compensation — not pet-immune |
| Enclosure | Metal, MW350, ≈385mm × 260mm × 90mm |
| Battery | 12V 7Ah backup battery |
| Power Supply | 18VAC 1.3A transformer (TF008-B) |
| Siren | Slimline external strobe/siren + surface-mounted internal piezo |
| Warranty | ≈36-month (3-year) Bosch factory warranty on core components — confirm current terms with our team |
Ideal Use Cases
Quick, Straightforward Installs
Everything needed for a standard 3-zone detector layout, already boxed together.
Offices & Commercial Premises
Combined access control and intrusion detection across multiple doors and areas.
Multi-Tenant Buildings
Up to 8 partitions let separate tenants or zones arm independently.
Growing Sites
16-to-144 zone scalability leaves room to add detectors or doors later.
Choosing the Right Kit
Choose this kit (SOL6-GFX-STD) if…
- You want a complete kit with detectors already included, ready to install.
- Standard (non-pet-immune) wired PIR coverage suits your site.
- You need more than 16 zones, more than 2 partitions, or integrated door access control.
Choose a different kit if…
- You have pets that will be home while armed. Ask our team about pet-friendly detector options.
- You want to choose your own detector mix. Ask our team about the Solution 6000 Kit with Graphic Keypad, No PIRs.
- You already have an enclosure and power supply. Ask our team about the CC610GWP or CC610GWF bare PCB upgrade kits instead.
FAQs
1. Are the included PIR detectors pet-immune?
No — the included ISC-BPR2-W12 detectors are Bosch's standard (non-pet) model. A separate pet-friendly version exists; ask our team if you'd like that instead.
2. What's included besides the detectors?
The panel, keypad, metal enclosure, 12V 7Ah battery, 18VAC power supply, external strobe/siren, and internal piezo sounder are all included.
3. How many zones and areas does this panel support?
16 zones onboard, expandable to 144, with partitioning into up to 8 separate areas.
4. Can I add more detectors later?
Yes — the panel supports up to 144 zones in total, well beyond the 3 detectors included in this kit. Ask our team about compatible wired or wireless detectors to add.
5. Where can I buy the Bosch Solution 6000 Kit in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Genuine Bosch Australian stock
- Pet-friendly and wireless detector options available
- Trade accounts and volume pricing
- Phone support on system design, zones, and access control planning
- Download Spec Sheet
Not sure if the standard detectors suit your site, or whether you need pet-friendly coverage instead? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your site and we will tell you honestly what fits.
