SKU:KP-1168A

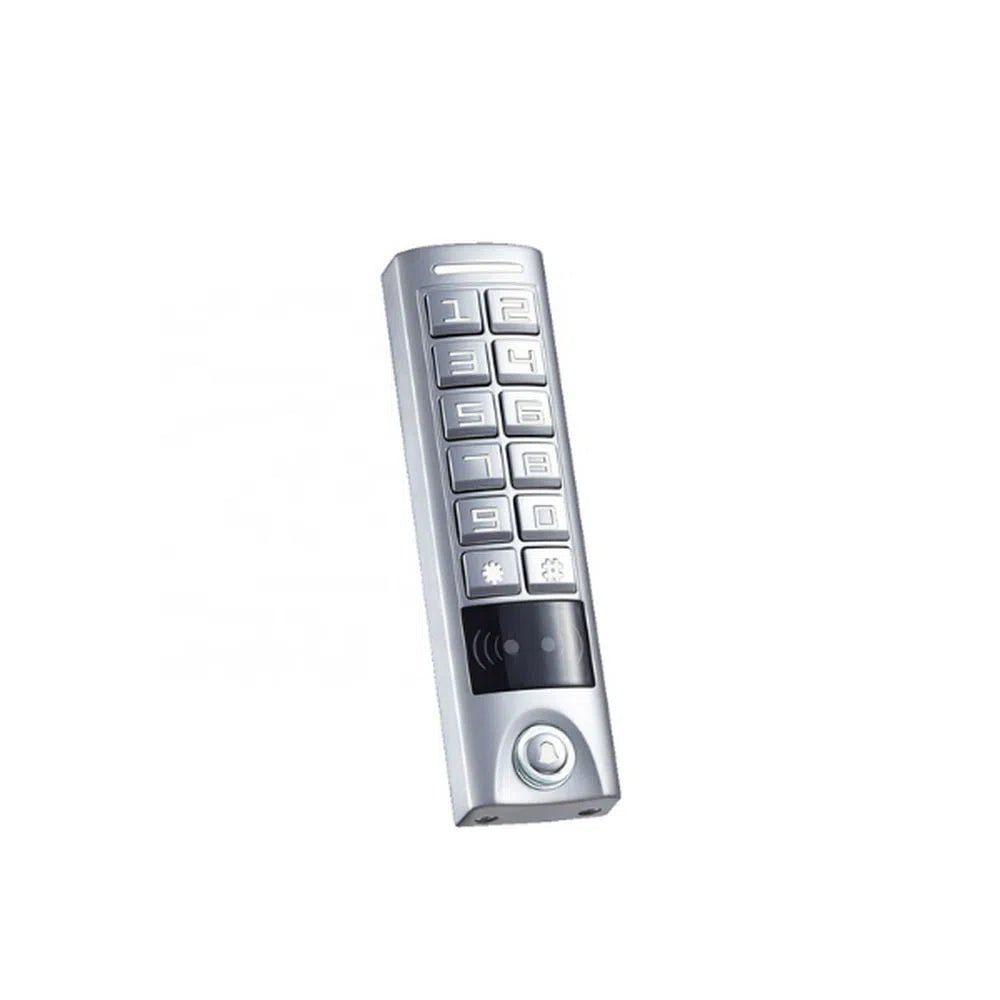

Standalone Access Control Keypad Waterproof Access Controller - KP-1168A
Login to buyIt can store up to 2,000 users with individual cards and passwords, offering secure access with master card control and replay prevention.
Features
- Slim design
- Aluminium alloy case, waterproof, fully potted, meets IP-65 waterproof standard
- Capacitive touch control keypad digits light, normal on, normal off or automatic models optional for backlight
- Built-in doorbell
- Built-in 125KHz card reader
- 2000 users available, each has a card and a 4-6 digits password
- Has a master card
- 2000 serial number cards can be recorded at a time
- 2-10 cards to entry supportable
- Replay control to open, 1A
- Password keypad supported, single press 4 Bit, single press 8 bit, 4-6 digits code output
- Special card reader model: Wiegand 26-37 output card number, button entering multiple outputs
-
Vendor:
TotalSE
- Description
Product Overview
The KP-1168A is a standalone electronic access control keypad for a single door, storing up to 2,000 users with their own card and PIN credentials — no separate control panel or software needed. It steps up from a basic keypad with a capacitive touch keypad, an adjustable backlight (on, off or automatic), and a built-in doorbell button for visitors.
A slim aluminium alloy housing rated IP65 handles indoor or outdoor mounting, and a configurable multi-card mode can require anywhere from 2 to 10 cards presented together before the door opens — useful anywhere you need more than one person's authorisation to gain entry. Supplied directly through Total Security Equipment.
Key Capabilities
2,000-User Capacity
Stores up to 2,000 cards/users, each with their own credentials, managed via master card control.
Capacitive Touch & Backlight
A capacitive touch keypad with adjustable backlight (on, off or automatic) for easy use day or night.
Configurable Multi-Card Entry
Set the keypad to require anywhere from 2 to 10 cards presented together before it unlocks.
Built-In Doorbell
A doorbell function is built into the same unit, so visitors have a way to call without their own credentials.
Best For
A self-contained card + PIN keypad for one door without a networked system.
The 2-10 card multi-entry mode suits server rooms, safes or areas needing more than one person present.
The built-in doorbell gives non-credentialed visitors a way to announce themselves.
Why Choose This Keypad
The KP-1168A brings a few genuinely useful extras over a basic standalone keypad — a capacitive touch surface and adjustable backlight for everyday usability, a built-in doorbell so visitors aren't left without an option, and a configurable multi-card mode for situations where a single credential shouldn't be enough to gain entry on its own. With 2,000-user capacity and an IP65-rated aluminium housing, it's built for real day-to-day use at an entry point, indoors or out. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | KP-1168A |
| Product Type | Standalone electronic access control keypad with doorbell |
| Card Frequency | 125kHz EM proximity card |
| User/Card Capacity | Up to 2,000 users/cards |
| Password Options | 4-digit single-press, 8-digit single-press, or 4-6 digit codes |
| Multi-Card Entry Mode | Configurable — requires 2 to 10 cards presented together to unlock |
| Keypad | Capacitive touch, adjustable backlight (on/off/automatic) |
| Relay Output | 1A relay for door release |
| Reader-Mode Output | Wiegand 26-37 (special card-reader-mode variant — confirm with our team) |
| Doorbell | Built-in doorbell function |
| Security | Master card control, replay-attack prevention |
| Housing | Slim aluminium alloy, IP65-rated |
| Dimensions & Weight | Not published on this specific model — confirm with our team (a similar-series sibling keypad measures ≈159×43×22mm) |
| Power Supply | DC 12–24V (typical for this keypad series — confirm exact rating with our team) |
| Operating Temperature | Not published for this specific model — confirm with our team |
| Mounting | Wall or gate-post mount, indoor or outdoor |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
Server Rooms & Secure Storage
Multi-card mode enforces more than one authorised person present to gain entry.
Front Doors & Reception Entries
Built-in doorbell gives visitors a way to call through without a card or code.
Low-Light Entry Points
Adjustable/automatic backlight keeps the keypad usable after dark.
Sites Wanting an Upgrade Path
A step up from our basic TKP-1068A keypad for sites that want the extra features.
Choosing the Right Keypad
Choose the KP-1168A if:
You want capacitive touch, adjustable backlight, a built-in doorbell, or the ability to require multiple cards for entry.
Choose the TKP-1068A instead if:
You just need straightforward single-card + PIN access for one door without the extra features. Ask our team to compare the two side by side.
FAQs
1. How many users can it store?
Up to 2,000 users/cards, managed with master card control.
2. What is the multi-card entry mode?
You can configure the keypad to require between 2 and 10 different cards presented together before it unlocks — useful for restricted areas that need more than one person's authorisation.
3. Does it need a separate control panel?
No — it runs standalone by default, managing users directly at the unit. A special reader-mode variant with Wiegand 26-37 output is also available if you want to feed it into a third-party access control panel instead — confirm with our team which mode you need.
4. How is this different from the TKP-1068A?
The KP-1168A adds a capacitive touch keypad with adjustable backlight, a built-in doorbell, and a configurable multi-card entry mode that the TKP-1068A doesn't have.
5. Where can I buy this keypad in Australia?
It's available directly from Total Security Equipment.
