SKU:KP-1168B

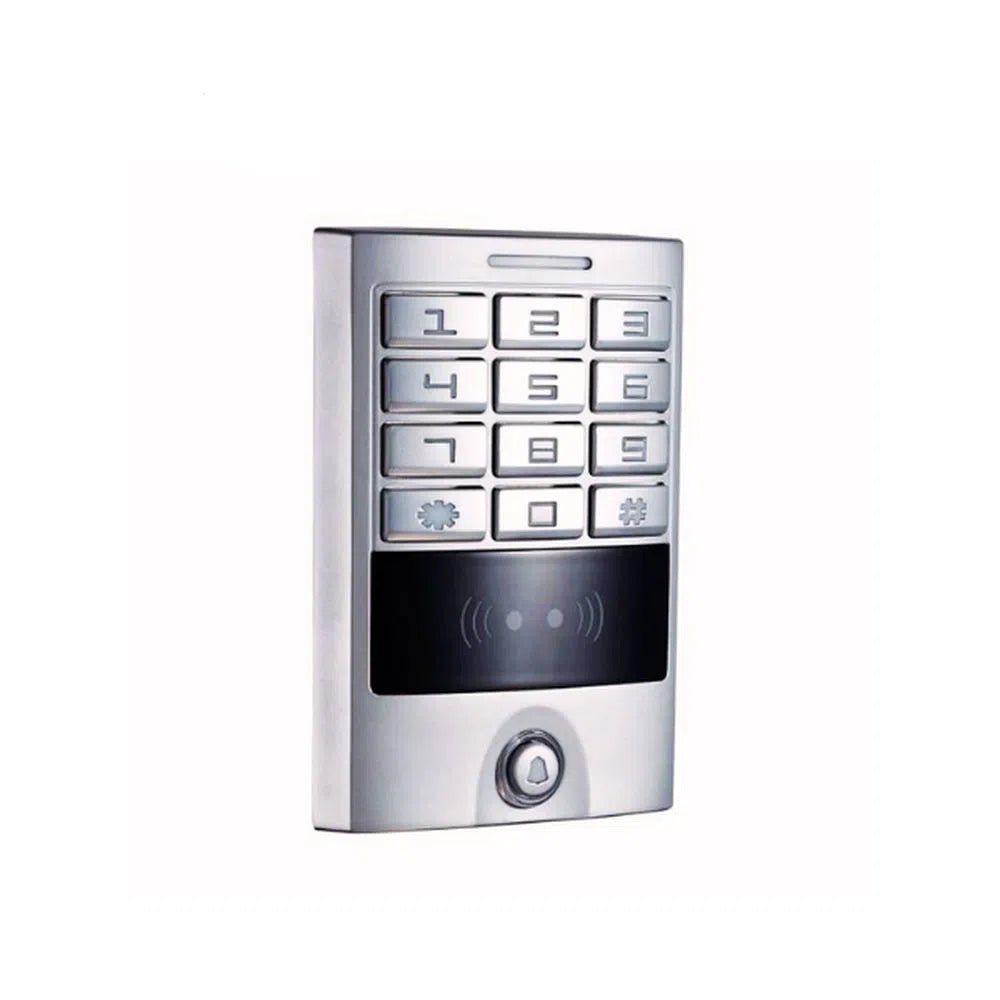

Standalone Access Control Keypad Waterproof Access Controller - KP-1168B
Login to buyIt features a capacitive touch keypad with customizable backlighting, a built-in doorbell, and a 125KHz card reader. The system can manage up to 2,000 users, each with a card and a PIN (4-6 digits), and offers advanced features like master card control, replay prevention, and support for various password entry formats (single or double press, 4-8 bits).
Features
- Aluminium alloy case, waterproof, fully potted, meets IP-65 waterproof standard
- Capacitive touch control keypad digits light, normal on, normal off or automatic models optional for backlight
- Built-in doorbell
- Built-in 125KHz card reader
- 2000 users available, each has a card and a 4-6 digits password
- Has a master card
- 2000 serial number cards can be recorded at a time
- 2-10 cards to entry supportable
- Replay control to open, 1A
- Password keypad supported, single press 4 Bit, single press 8 bit, 4-6 digits code output
- Special card reader model: Wiegand 26-37 output card number, button entering multiple outputs
-
Vendor:
TotalSE
- Description
Product Overview
The KP-1168B is a standalone electronic access control keypad for a single door, combining a capacitive touch keypad with adjustable backlighting, a built-in doorbell, and a 125kHz card reader. It stores up to 2,000 users, each with their own card and PIN, with master card control and replay-attack prevention built in.
Like its sibling KP-1168A, it includes a configurable multi-card mode that can require 2 to 10 cards presented together before unlocking, and an aluminium alloy housing rated IP65 for indoor or outdoor use. Supplied directly through Total Security Equipment.
Key Capabilities
2,000-User Capacity
Stores up to 2,000 cards/users, each with their own card and PIN credentials.
Capacitive Touch & Backlight
A capacitive touch keypad with selectable backlighting for easy use day or night.
Configurable Multi-Card Entry
Set the keypad to require anywhere from 2 to 10 cards presented together before it unlocks.
Built-In Doorbell
A doorbell function is built into the same unit, so visitors have a way to call without their own credentials.
Best For
A self-contained card + PIN keypad for one door without a networked system.
The 2-10 card multi-entry mode suits server rooms, safes or areas needing more than one person present.
The built-in doorbell gives non-credentialed visitors a way to announce themselves.
Why Choose This Keypad
The KP-1168B brings the same genuinely useful extras as our KP-1168A keypad — capacitive touch, adjustable backlight, a built-in doorbell, and configurable multi-card entry — in a 2,000-user, IP65-rated aluminium unit built for real day-to-day use at an entry point, indoors or out. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | KP-1168B |
| Product Type | Standalone electronic access control keypad with doorbell |
| Card Frequency | 125kHz EM proximity card |
| User/Card Capacity | Up to 2,000 users/cards |
| Password Options | 4-8 digit codes, single or double press formats |
| Multi-Card Entry Mode | Configurable — requires 2 to 10 cards presented together to unlock |
| Keypad | Capacitive touch, selectable backlighting |
| Relay Output | 1A relay for door release |
| Reader-Mode Output | Wiegand 26-37 (special card-reader-mode variant — confirm with our team) |
| Doorbell | Built-in doorbell function |
| Security | Master card control, replay-attack prevention |
| Housing | Aluminium alloy, IP65-rated |
| Dimensions & Weight | Not published for this specific model — confirm with our team |
| Power Supply | DC 12–24V (typical for this keypad series — confirm exact rating with our team) |
| Operating Temperature | Not published for this specific model — confirm with our team |
| Mounting | Wall or gate-post mount, indoor or outdoor |
| Warranty | Confirm current warranty term with our team |
Ideal Use Cases
Server Rooms & Secure Storage
Multi-card mode enforces more than one authorised person present to gain entry.
Front Doors & Reception Entries
Built-in doorbell gives visitors a way to call through without a card or code.
Low-Light Entry Points
Adjustable backlight keeps the keypad usable after dark.
Warehouses & Staff Entries
High user capacity and touch keypad suit a busy staff or loading door.
FAQs
1. How is this different from the KP-1168A?
Based on the specifications published for each, the KP-1168A and KP-1168B share the same core feature set. We haven't confirmed a specific technical distinction between the two — please call our team if you're deciding between them and we'll clarify before you order.
2. How many users can it store?
Up to 2,000 users/cards, managed with master card control.
3. What is the multi-card entry mode?
You can configure the keypad to require between 2 and 10 different cards presented together before it unlocks — useful for restricted areas that need more than one person's authorisation.
4. Does it need a separate control panel?
No — it runs standalone by default. A special reader-mode variant with Wiegand 26-37 output is also available if you want to feed it into a third-party access control panel instead — confirm with our team which mode you need.
5. Where can I buy this keypad in Australia?
It's available directly from Total Security Equipment.
Additional Information
Melbourne HQ
26 Davies Ave., Sunshine North, VIC 3020
03 9079 5566
Sydney Branch
38 Lisbon St., Fairfield East, NSW 2165
02 8722 0348
Ordering & Support
- Australia-wide shipping
- Trade accounts and volume pricing
- Phone support on door hardware & wiring
- Download Spec Sheet
Not sure which keypad in our range suits your site, or what else you'll need to complete the install? Call our Melbourne team on 03 9079 5566 or Sydney on 02 8722 0348 — describe your setup and we will tell you honestly what fits.
