SKU:EM4500

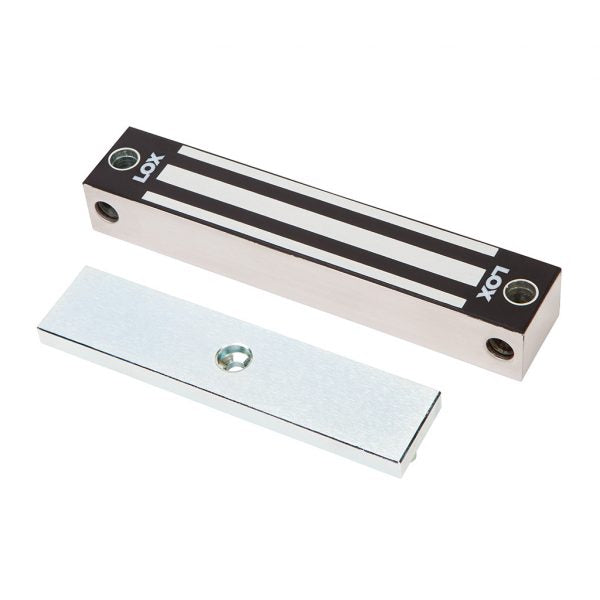

Lox EM4500 Mini Weather Resistant Electro Magnetic Gate Lock
Login to buyThe LOX EM4500 Series product line is a comprehensive Electro Magnetic Lock range with up to 200kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
Features:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light
- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
-
Vendor:
Lox
- Description
Product Overview
The Lox EM4500 is a compact, weather-resistant electromagnetic lock (maglock) purpose-built for gates, with up to 200kg of holding force and an IP67 weather rating for reliable outdoor use. Like all electromagnetic locks, it's fail-safe by physical design — it holds only while powered and releases automatically the moment power is cut. There's no fail-secure option with this type of lock.
It's fully enclosed in 304 stainless steel and includes built-in status sensors — a lock status sensor (LSS) and a door/gate status sensor (DSS) — plus a highly visible red/green LED status light. It runs on dual voltage (12VDC or 24VDC) and mounts either front-fixed or header-fixed to suit your gate. As with any maglock, please confirm your full gate access system meets your local fire and safety compliance requirements with a licensed installer. Supplied through Total Security Equipment.
Key Capabilities
IP67 Weather Resistant
Rated for reliable outdoor use on gates and exposed installations.
Up to 200kg Holding Force
Strong holding suited to pedestrian and light commercial gates.
Built-In Status Sensors
Lock status (LSS) and door/gate status (DSS) sensors, plus a red/green LED indicator.
Compact "Mini" Design
A smaller footprint than our full-size EM3500, purpose-built for gate applications.
Best For
Pedestrian Gates
IP67 weather resistance suits outdoor gate installations.
Access Control Upgrades
Pairs with a card reader, keypad, or intercom release for controlled gate access.
Light Commercial Gate Fit-Outs
A compact, weather-resistant option for smaller gate projects.
Why Choose This Gate Lock
Most maglocks are built for indoor commercial doors, not outdoor gates. The EM4500 is purpose-built for the job — IP67 weather resistant, compact, and with built-in status sensors so you know the gate is secure. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | EM4500 |
| Brand | Lox (Lox Locking) |
| Type | Compact, weather-resistant electromagnetic gate lock (maglock) with built-in status sensors |
| Operating Mode | Fail-safe only — releases on power loss, by physical design (not field-selectable) |
| Voltage | Dual voltage — 12VDC or 24VDC |
| Current Draw | ≈360mA at 12VDC / ≈180mA at 24VDC |
| Holding Force | Up to 200kg |
| Weather Rating | IP67 weather resistant |
| Status Sensors | Built-in lock status sensor (LSS) and door/gate status sensor (DSS), plus red/green LED indicator |
| Mounting | Front-mount or header-mount, to suit your gate |
| Material | Fully enclosed 304 stainless steel housing |
| Dimensions | Compact "mini" sizing — exact dimensions not published; confirm with our team |
| Operating Temperature | -20°C to 60°C |
| Weight | Not published by the manufacturer |
| Warranty | Lifetime warranty (Lox Locking) |
Ideal Use Cases
Pedestrian Gate Access
IP67 weather resistance suits outdoor gate installations.
Intercom or Card-Reader Release
Pairs with an intercom, card reader, or keypad for controlled gate access.
Small Commercial Gate Fit-Outs
A compact, budget-friendly option for smaller gate projects.
Status-Monitored Gate Installs
Built-in LSS/DSS sensors suit installs that want basic gate status feedback.
FAQs
1. Is this lock fail-safe or fail-secure?
It's fail-safe only — this is a physical property of electromagnetic locks, not a setting you can change. The lock releases automatically whenever power is cut.
2. Is the EM4500 actually suitable for outdoor gates?
Yes — it's IP67 weather resistant and purpose-built for gate applications, unlike our general-purpose EM3500, which is intended for indoor commercial doors.
3. Does this lock have status monitoring?
It includes built-in lock status (LSS) and door/gate status (DSS) sensors with an LED indicator. Please confirm with our team exactly how these connect to your access control panel if you need full status reporting.
4. What voltage does the EM4500 run on?
It's dual voltage, accepting either 12VDC or 24VDC.
5. Should I install this myself?
We recommend having it installed and wired by a licensed locksmith or security technician to ensure correct wiring, mounting, and safe, compliant operation.
