SKU:EM4500

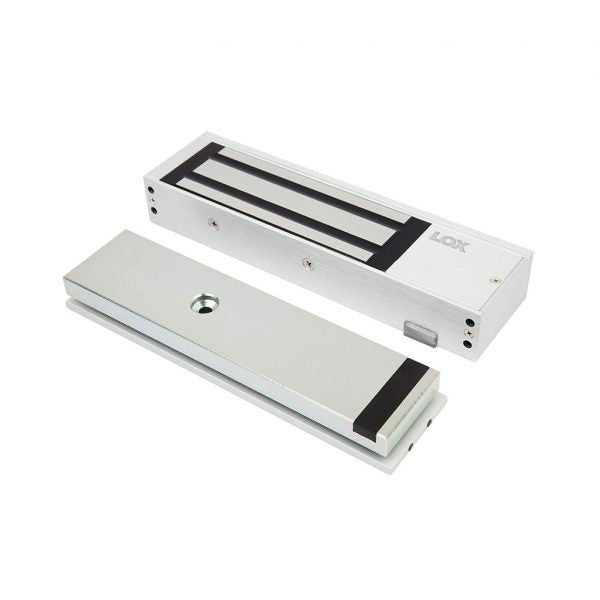

Lox EM5700 Magnetic Locking Device
Login to buyThe LOX EM5700 Series product line is a comprehensive Electro Magnetic Lock range with up to 580kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market in this product category.
Features:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light
- Anti-Tamper-Fixing-Plate (with monitored version) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
-
Vendor:
Lox
- Description
Product Overview
The Lox EM5700 is a standard-duty electromagnetic lock (maglock) for single doors, with strong holding force of up to 580kg — suited to high-traffic commercial entries where you need serious holding strength. Like all electromagnetic locks, it's fail-safe by physical design: it holds the door shut only while powered, and releases automatically the moment power is cut. There's no fail-secure option with this type of lock.
It includes a built-in lock status sensor (LSS) and door status sensor (DSS), plus a highly visible red/green LED status light, and runs on dual voltage (12VDC or 24VDC). It's fire rated up to 4 hours and tested to 1 million operating cycles. As with any maglock, please confirm your full access control system meets your local fire and safety compliance requirements with a licensed installer. Supplied through Total Security Equipment.
Key Capabilities
Up to 580kg Holding Force
Serious holding strength suited to high-traffic commercial doors.
Fire Rated to 4 Hours
Suited to commercial fire-rated door applications.
Built-In Status Sensors
Lock status (LSS) and door status (DSS) sensors, plus a red/green LED indicator.
Tested to 1 Million Cycles
Built for long-term reliability on busy doors.
Best For
High-Traffic Commercial Doors
Strong holding force suits busy entries where reliability matters.
Fire-Rated Door Applications
Fire rating suits commercial fire-rated door requirements.
Access Control Upgrades
Pairs with a card reader, keypad, or intercom release for controlled entry.
Why Choose This Electromagnetic Lock
Where a standard-strength maglock isn't quite enough, the EM5700 steps up to 580kg of holding force while keeping the same reliable fail-safe operation, built-in status sensors, and fire rating as the rest of our Lox maglock range. Available from Total Security Equipment.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | EM5700 |
| Brand | Lox (Lox Locking) |
| Type | Standard-duty single-door electromagnetic lock (maglock) with built-in status sensors |
| Operating Mode | Fail-safe only — releases on power loss, by physical design (not field-selectable) |
| Voltage | Dual voltage — 12VDC or 24VDC |
| Current Draw | ≈500mA at 12VDC / ≈260mA at 24VDC |
| Holding Force | Up to 580kg |
| Status Sensors | Built-in lock status sensor (LSS) and door status sensor (DSS), plus red/green LED indicator |
| Fire Rating | Up to 4-hour fire rated; CE and RCM approved |
| Cycle Testing | Tested to 1 million operating cycles |
| Weather Rating | Not weather rated — designed for indoor/protected commercial door use |
| Operating Temperature | -20°C to 60°C |
| Weight | Not published by the manufacturer |
| Warranty | Not published for this exact listing — confirm current warranty term with our team |
Ideal Use Cases
Busy Commercial Entries
Strong holding force suits doors with high foot traffic.
Fire-Rated Door Fit-Outs
Fire rating suits commercial fire-rated door requirements.
Intercom or Card-Reader Release
Pairs with an intercom, card reader, or keypad for controlled access.
Upgrades From Standard Maglocks
A step up in holding force from our EM3500 for demanding doors.
FAQs
1. Is this lock fail-safe or fail-secure?
It's fail-safe only — this is a physical property of electromagnetic locks, not a setting you can change. The lock releases automatically whenever power is cut.
2. Can the EM5700 be used outdoors or on a gate?
It's a standard indoor-rated commercial lock, not a weather-resistant or gate-specific model. If you need a lock for an outdoor gate, please ask our team about our weather-resistant options.
3. Does this lock have status monitoring?
It includes built-in lock status (LSS) and door status (DSS) sensors with an LED indicator. Please confirm with our team exactly how these connect to your access control panel if you need full status reporting.
4. What voltage does the EM5700 run on?
It's dual voltage, accepting either 12VDC or 24VDC.
5. Should I install this myself?
We recommend having it installed and wired by a licensed locksmith or security technician to ensure correct wiring and safe, compliant operation.
