SKU:PFS4226-24GT-360

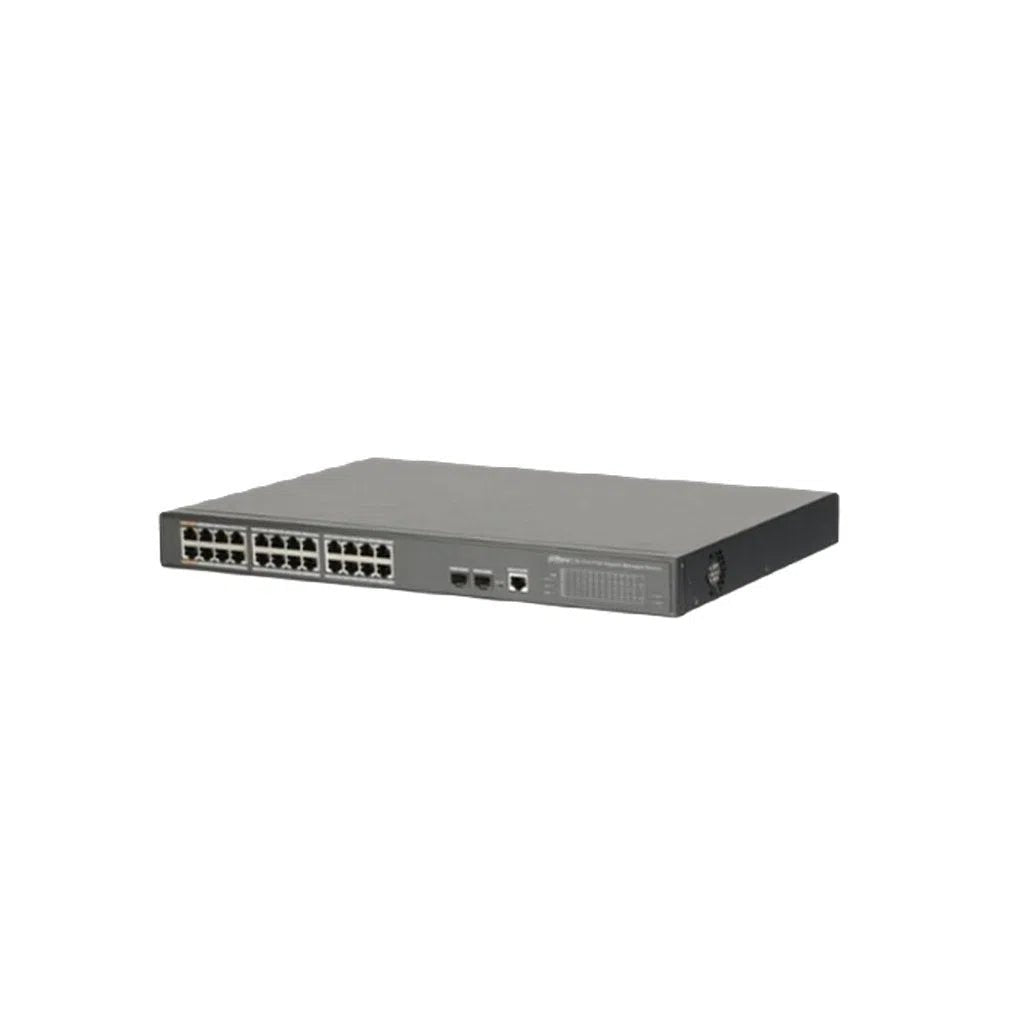

Dahua 24-Port PoE Gigabit Managed Switch - PFS4226-24GT-360
Login to buyDahua 24-Port PoE Gigabit Managed Switch (PFS4226-24GT-360) is a dedicated PoE switch designed especially for the security industry. The switch provides 24 Gigabit Ethernet PoE ports and supports Layer 2 network management and PoE management with high-speed data forwarding. The switch offers two Hi-PoE ports that deliver up to 60 W of power per port, and delivers up to 360 W of total power to PoE devices.
Features
- Layer 2 network management PoE switch
- Support IEEE802.3af, IEEE802.3at standard
- Support Hi-PoE 60W
- Network Redundancy: STP/RSTP/MSTP
- Support IPv4/IPv6, and DHCP
- Network management based on SNMP
- Configuration: Web, Telnet, CLI Command
- QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
- Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/ v3, HTTPS, and SSH/SSL
- Large data cache(4M), real-time transmission
- MAC auto study and aging, MAC address list capacity is 8K
- EMC high protection design
- Description
Product Overview
The Dahua PFS4226-24GT-360 is a 26-port Layer 2 managed Gigabit PoE switch built for large CCTV and access-control installs that need full Gigabit throughput on every camera port. Twenty-four Gigabit PoE ports, including 2 dedicated Hi-PoE ports for higher-draw devices, are backed by a 360W total PoE budget, while 2 combo Gigabit SFP/RJ45 uplinks give you a flexible copper or fibre connection back to your core network or NVR.
With full CLI/web/Telnet/SNMP management, an 8K MAC address table, and a rugged all-metal chassis rated to +55°C, it is built for demanding managed-network installations. This is a clearance-listed item — see the Buyer Decision Tips below before you order. Supplied through Total Security Equipment.
Key Capabilities
24 Gigabit PoE Ports, 360W Total
Every access port runs at full Gigabit speed, sharing a 360W power budget with 2 dedicated Hi-PoE ports at 60W each.
Layer 2 Managed
Full CLI, web GUI, Telnet, and SNMP v1/v2c/v3 management, with STP/RSTP/MSTP redundancy support.
Copper + Fibre Uplinks
2 combo Gigabit SFP/RJ45 uplink ports let you connect back to your core network over copper or fibre.
Enterprise-Grade Security
802.1X port authentication, HTTPS, and SSH/SSL support for secure managed access.
Best For
Gigabit CCTV Deployments
Powers up to 24 IP cameras at full Gigabit throughput, with Hi-PoE headroom for demanding devices.
Managed Network Environments
Full CLI/web/SNMP control suits installers who need VLANs, monitoring, or centralised management.
High-Bandwidth Camera Streams
Gigabit ports throughout suit multi-megapixel or 4K camera streams that outgrow Fast Ethernet switches.
Why Choose This Switch
Larger camera and access-control jobs increasingly need full Gigabit bandwidth per port, not just per uplink. The Dahua PFS4226-24GT-360 gives you 24 Gigabit PoE ports, a 360W power budget with 2 Hi-PoE ports for demanding devices, flexible copper/fibre uplinks, and full Layer 2 management in a rugged all-metal case. Available from Total Security Equipment while clearance stock lasts.
Buyer Decision Tips
Key Features & Technical Specifications
| Model SKU | PFS4226-24GT-360 |
| Brand | Dahua |
| Ports | 24 × 10/100/1000Mbps RJ45 PoE ports + 2 × Gigabit SFP/RJ45 combo uplink ports (26 ports total) |
| PoE Standard | IEEE 802.3af/802.3at on standard ports; Hi-PoE on 2 dedicated ports |
| PoE Power Budget | 360W total; up to 30W on standard ports, up to 60W on the 2 Hi-PoE ports |
| Switching Capacity | 52Gbps |
| Forwarding Rate | 38.688Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 4MB |
| Management | Layer 2 managed — Web GUI, Telnet, CLI, SNMP v1/v2c/v3; STP/RSTP/MSTP; QoS (802.1p/1Q); 802.1X, HTTPS, SSH/SSL |
| Power Supply | Internal power supply, 100-240VAC input, 50/60Hz |
| Design | All-metal rackmount case; fanless per manufacturer listing |
| Operating Temperature | -10°C to +55°C, 5-95% RH |
| Dimensions | 440mm × 300mm × 44mm, 1U rackmount |
| Weight | ≈3.38kg (confirm with our team if exact weight matters) |
| Model Status | Legacy/clearance stock — check current availability with our team before ordering |
| Warranty | Not published for this clearance listing — confirm current warranty term with our team |
Ideal Use Cases
Gigabit Camera Deployments
Powers up to 24 Gigabit-connected IP cameras from one rackmount unit.
Managed Network Sites
CLI/web/SNMP management suits installers who need VLANs and remote monitoring.
High-Draw PTZ Cameras
2 dedicated 60W Hi-PoE ports suit PTZ cameras or heated camera housings.
Budget-Conscious Rack Upgrades
Clearance pricing on a proven Gigabit managed switch for cost-sensitive expansion or replacement jobs.
FAQs
1. Are all the PoE ports Gigabit speed?
Yes — all 24 PoE ports run at full 10/100/1000Mbps Gigabit speed, unlike the similarly-named ET-360 model, which uses Fast Ethernet (10/100Mbps) ports.
2. Is this switch managed or unmanaged?
It's a full Layer 2 managed switch with CLI, web GUI, Telnet, and SNMP support.
3. Why is this listed as clearance?
This model has moved to legacy status in some markets and is being cleared from remaining channel stock at a reduced price — confirm quantity available with our team before ordering.
4. What's the maximum PoE wattage per port?
Standard ports support up to 30W (802.3af/at). The 2 dedicated Hi-PoE ports support up to 60W each, suited to PTZ cameras or heated housings.
5. Where can I buy this switch in Australia?
It's available directly from Total Security Equipment — confirm current clearance stock and delivery timing with our team.
